TABLE OF
CONTENTS
Page
1.4 Summary of Construction Works
1.5 Summary of EM&A Programme Requirements
2.4 Monitoring Parameters, Frequency and Duration
2.6 Monitoring Schedule for the Reporting Month
3.4 Monitoring Parameters, Frequency and Duration
3.6 Monitoring Schedule for the Reporting Month
4.3 Monitoring Parameters, Frequency and Duration
4.6 Monitoring Schedule for the Reporting Month
5.3 Monitoring Frequency and Conditions
5.4 Monitoring Methodology and Location
5.6 Monitoring Schedule for the Reporting Month
6 ENVIRONMENTAL
SITE INSPECTION AND AUDIT
6.2 Advice on the Solid and Liquid Waste Management Status
6.3 Environmental Licenses and Permits
6.4 Implementation Status of Environmental Mitigation Measures
6.5 Summary of Exceedances of the Environmental Quality
Performance Limit
6.6 Summary of Complaints, Notification of Summons and
Successful Prosecutions
7.1 Construction Programme for the Coming Months
7.2 Key Issues for the Coming Month
7.3 Monitoring Schedule for the Coming Month
8 ConclusionS AND RECOMMENDATIONS
List of Tables
Table 1.1 Contact Information
of Key Personnel
Table 2.1 Air
Quality Monitoring Equipment
Table 2.2 Locations
of Impact Air Quality Monitoring Stations
Table 2.3 Air
Quality Monitoring Parameters, Frequency and Duration
Table 2.4 Summary
of 1-hour TSP Monitoring Results in the Reporting Period
Table 2.5 Summary
of 24-hour TSP Monitoring Results in the Reporting Period
Table 3.1 Noise
Monitoring Equipment
Table 3.2 Locations
of Impact Noise Monitoring Stations
Table 3.3 Noise
Monitoring Parameters, Frequency and Duration
Table 3.4 Summary
of Construction Noise Monitoring Results in the Reporting Period
Table 4.1 Water
Quality Monitoring Equipment
Table 4.2 Impact
Water Quality Monitoring Parameters and Frequency
Table 4.3 Impact
Water Quality Monitoring Stations
Table 4.4 Laboratory
Analysis for Suspended Solids
Table
4.5 Summary of Water Quality Exceedances
Table 5.1 Dolphin
Monitoring Equipment
Table 5.2 Impact
Dolphin Monitoring Line Transect Co-ordinates (Provided by AFCD)
Table 5.3 Impact
Dolphin Monitoring Survey Effort Summary, Effort by Area and Beaufort State
Table 5.4 Impact
Dolphin Monitoring Survey Details in August
2013
Table 5.5. The
Encounter Rate of Number of
Dolphin Sightings & Total Number of Dolphins per Area
Table 6.1 Summary of
Environmental Licensing and Permit Status
Figures
Figure
1 General
Project Layout Plan
Figure
2 Impact
Air Quality and Noise Monitoring Stations and Wind Station
Figure
3 Impact
Water Quality Monitoring Stations
Figure
4 Impact
Dolphin Monitoring Line Transect Layout Map
Figure
5 Impact
Dolphin Monitoring Survey Efforts and Sightings in August 2013
Figure
6 Environmental
Complaint Handling Procedure
List of Appendices
Appendix
A Project
Organization for Environmental Works
Appendix B Three Month
Rolling Construction Programmes
Appendix C Implementation
Schedule of Environmental Mitigation Measures (EMIS)
Appendix D Summary of Action
and Limit Levels
Appendix E Calibration Certificates of
Monitoring Equipments
Appendix F EM&A Monitoring Schedules
Appendix
G Impact Air
Quality Monitoring Results and their Graphical Presentation
Appendix H Meteorological Data for Monitoring
Periods on Monitoring Dates in August
2013
Appendix
I Impact
Construction Noise Monitoring Results and their Graphical Presentation
Appendix J Impact Water Quality Monitoring Results and their Graphical Presentation
Appendix
K Impact
Dolphin Monitoring Survey Sighting Summary
Appendix M Monthly Summary of Waste Flow Table
This report documents the findings of EM&A works conducted in the period between 1 and 31 August 2013. As informed by the Contractor, major activities in the reporting period were:-
Marine-based Works
-
Cellular structure installation
-
Connecting arc cell installation
-
Laying geo-textile
-
Sand blanket laying
-
Sand filling
-
Maintenance of silt curtain &
silt screen at sea water intake of HKIA
-
Stone column installation
-
Laying stone blanket
-
Band drain installation
-
Backfill cellular structure
-
Instrumentation works
-
Rubble mound seawall construction
-
Construction of temporary seawall
-
Ground investigation
Land-based Works
-
Maintenance works of Site Office at
Works Area WA2
-
Maintenance works of Public
Works Regional Laboratory at Works Area WA3
-
Geo-textile fabrication at Works
Area WA2
-
Silt curtain fabrication at Works
Area WA4
-
Maintenance of Temporary Marine
Access at Works Area WA2
A summary of
monitoring and audit activities conducted in the reporting period is listed
below:
24-hour
Total Suspended Particulates (TSP) monitoring 1-hour
TSP monitoring |
5 sessions 5 sessions |
Noise monitoring |
4 sessions |
Impact
water quality monitoring |
12 sessions |
Impact
dolphin monitoring |
2 surveys |
Joint
Environmental site inspection |
5 sessions |
Breaches of Action and
Limit Levels for Air Quality
All 1-Hour TSP and 24-hour TSP results
were below the Action and Limit Level in the reporting month.
Breaches of Action and
Limit Levels for Noise
For construction noise, no exceedance was recorded at all monitoring stations in the reporting period.
Breaches of Action and
Limit Levels for Water Quality

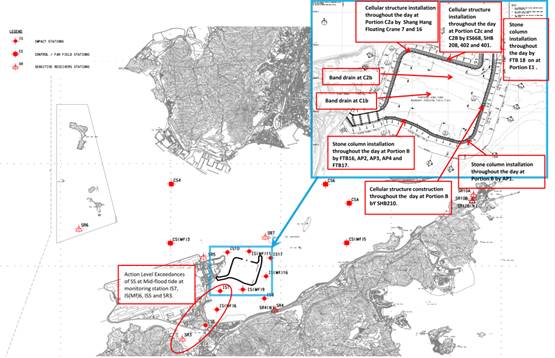

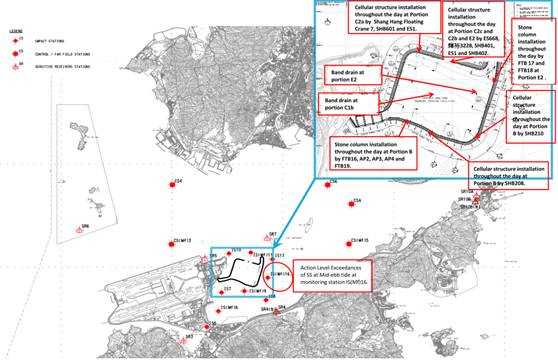

Five (5) Action Level exceedances were recorded at
measured suspended solids (SS) values (in mg/L) in the reporting month. After investigation, the water
quality exceedances were considered not to be due to the Project works.
Impact Dolphin Monitoring
A total of sixteen dolphin
sightings were recorded during the two surveys, five on 5 August 2013, four on 6
August 2013, six on 21 August 2013 and one on 31 August 2013. Of the sixteen sightings, nine were ¡§on effort¡¨ (which are all under favourable condition) and seven were
¡§opportunistic¡¨. A total of thirty eight individuals were
sighted from the two impact dolphin surveys in the reporting period. Sighting
details are summarised and plotted in Appendix K and Figure 5c, respectively.
Complaint, Notification of Summons and Successful
Prosecution
Reporting Change
There was no reporting change required in the
reporting period.
Future
Key Issues
Key issues to be considered in the coming month included:-
-
Site runoff should be properly
collected and treated prior to discharge;
-
Minimize loss of sediment from
filling works;
-
Regular review and maintenance of
silt curtain systems, drainage systems and desilting facilities;
-
Exposed surfaces/soil stockpiles
should be properly treated to avoid generation of silty surface run-off during
rainstorm;
-
Regular review and maintenance of
wheel washing facilities provided at all site entrances/exits;
-
Conduct regular inspection of
various working machineries and vessels within works areas to avoid any dark
smoke emission;
-
Suppress dust generated from work
processes with use of bagged cements, earth movements, excavation activities,
exposed surfaces/soil stockpiles and haul road traffic;
-
Quieter powered mechanical equipment
should be used;
-
Provision of proper and effective
noise control measures for operating equipment and machinery on-site, such as
erection of movable noise barriers or enclosure for noisy plants;
-
Closely check and replace the sound
insulation materials regularly;
-
Better scheduling of construction
works to minimize noise nuisance;
-
Properly store and label oil drums
and chemical containers placed on site;
-
Proper chemicals, chemical wastes
and wastes management;
-
Maintenance works should be carried
out within roofed, paved and confined areas;
-
Collection and segregation of
construction waste and general refuse on land and in the sea should be carried
out properly and regularly; and
-
Proper protection and regular
inspection of existing trees, transplanted/retained trees.
Table 1.1 Contact Information of Key Personnel
Party |
Position |
Name |
Telephone |
Fax |
Engineer¡¦s Representative (ER) (Ove Arup & Partners Hong Kong
Limited) |
Chief
Resident Engineer |
Roger Marechal |
3698 5700 |
2698 5999 |
IEC / ENPO (ENVIRON Hong Kong Limited) |
Independent
Environmental Checker |
Raymond
Dai |
3465 2868 |
3465 2899 |
Environmental
Project Office Leader |
Y. H.
Hui |
3465 2868 |
3465 2899 |
|
Contractor (China Harbour Engineering Company Limited) |
General
Manager (S&E) |
Daniel
Leung |
3157
1086 |
2578
0413 |
Environmental
Officer |
Richard Ng |
36932253 |
2578
0413 |
|
24-hour
Hotline |
Alan
C.C. Yeung |
9448
0325 |
-- |
|
ET (AECOM Asia Company Limited) |
ET
Leader |
Echo
Leong |
3922
9280 |
2317 7609 |
Marine-based Works
-
Marine-base
-
Cellular structure installation
-
Connecting arc cell installation
-
Laying geo-textile
-
Sand blanket laying
-
Sand filling
-
Maintenance of silt curtain &
silt screen at sea water intake of HKIA
-
Stone column installation
-
Laying stone blanket
-
Band drain installation
-
Backfill cellular structure
-
Instrumentation works
-
Rubble mound seawall construction
-
Construction of temporary seawall
-
Ground investigation
Land-based Works
-
Maintenance works of Site Office at
Works Area WA2
-
Maintenance works of Public
Works Regional Laboratory at Works Area WA3
-
Geo-textile fabrication at Works
Area WA2
-
Silt curtain fabrication at Works
Area WA4
-
Maintenance of Temporary Marine
Access at Works Area WA2
-
All monitoring
parameters;
-
Monitoring
schedules for the reporting month and forthcoming month;
-
Action and
Limit levels for all environmental parameters;
-
Event / Action
Plan;
-
Environmental
mitigation measures, as recommended in the Project EIA reports; and
-
Environmental
requirement in contract documents.
Table 2.1 Air Quality
Monitoring Equipment
Equipment |
Brand and Model |
Portable direct reading dust meter (1-hour TSP) |
Sibata Digital Dust Monitor (Model No. LD-3 and LD-3B) |
High Volume Sampler |
Tisch Environmental Mass Flow Controlled Total
Suspended Particulate (TSP) High Volume Air Sampler (Model No. TE-5170) |
Table 2.2 Locations
of Impact Air Quality Monitoring Stations
Monitoring
Station |
Location |
Description |
AMS2 |
Tung Chung Development Pier |
Rooftop of the premise |
AMS3A |
Site Boundary of Site Office Area at Works Area WA2 |
On ground at
the area boundary |
AMS6* |
Dragonair/CNAC (Group)
Building |
On ground at
boundary of the premise |
AMS7 |
Hong Kong SkyCity Marriott Hotel |
On ground at
boundary of the premise |
#Remarks:
Reference is made to EPD conditional approval of the omission of air monitoring
station (AMS 6) for the project. The omission will be effective on 19 November
2012.
Table
2.3 Air
Quality Monitoring Parameters, Frequency and Duration
Parameter |
Frequency
and Duration |
1-hour TSP |
Three times every 6 days while the highest dust impact was expected |
24-hour TSP |
Once every 6 days |
(a)
The HVS
was installed in the vicinity of the air sensitive receivers. The following criteria were considered
in the installation of the HVS.
(i)
A
horizontal platform with appropriate support to secure the sampler against
gusty wind was provided.
(ii)
No two samplers should be placed less than 2 meters apart.
(iii)
The
distance between the HVS and any obstacles, such as buildings, was at least
twice the height that the obstacle protrudes above the HVS.
(iv)
A minimum
of 2 meters separation from walls, parapets and penthouse for rooftop sampler.
(v)
A minimum of 2 meters separation from any supporting structure,
measured horizontally is required.
(vi)
No
furnace or incinerator flues nearby.
(vii)
Airflow
around the sampler was unrestricted.
(viii)
Permission
was obtained to set up the samplers and access to the monitoring stations.
(ix)
A secured
supply of electricity was obtained to operate the samplers.
(x)
The
sampler was located more than 20 meters from any dripline.
(xi)
Any wire
fence and gate, required to protect the sampler, did not obstruct the
monitoring process.
(xii)
Flow
control accuracy was kept within ¡Ó2.5% deviation over 24-hour sampling period.
(b)
Preparation
of Filter Papers
(i)
Glass
fibre filters, G810 were labelled and sufficient filters that were clean and
without pinholes were selected.
(ii)
All
filters were equilibrated in the conditioning environment for 24 hours before
weighing. The conditioning environment temperature was around
(iii)
All
filter papers were prepared and analysed by ALS Technichem (HK) Pty Ltd., which
is a HOKLAS accredited laboratory and has comprehensive quality assurance and
quality control programmes.
(c)
Field
Monitoring
(i)
The power
supply was checked to ensure the HVS works properly.
(ii)
The
filter holder and the area surrounding the filter were cleaned.
(iii)
The
filter holder was removed by loosening the four bolts and a new filter, with
stamped number upward, on a supporting screen was aligned carefully.
(iv)
The
filter was properly aligned on the screen so that the gasket formed an airtight
seal on the outer edges of the filter.
(v)
The swing
bolts were fastened to hold the filter holder down to the frame. The pressure applied was sufficient to
avoid air leakage at the edges.
(vi)
Then the
shelter lid was closed and was secured with the aluminum strip.
(vii)
The HVS
was warmed-up for about 5 minutes to establish run-temperature conditions.
(viii)
A new
flow rate record sheet was set into the flow recorder.
(ix)
On site temperature
and atmospheric pressure readings were taken and the flow rate of the HVS was
checked and adjusted at around 1.1 m3/min, and complied with the
range specified in the updated EM&A Manual (i.e. 0.6-1.7 m3/min).
(x)
The
programmable digital timer was set for a sampling period of 24 hrs, and the
starting time, weather condition and the filter number were recorded.
(xi)
The
initial elapsed time was recorded.
(xii)
At the
end of sampling, on site temperature and atmospheric pressure readings were
taken and the final flow rate of the HVS was checked and recorded.
(xiii)
The final
elapsed time was recorded.
(xiv)
The
sampled filter was removed carefully and folded in half length so that only
surfaces with collected particulate matter were in contact.
(xv)
It was
then placed in a clean plastic envelope and sealed.
(xvi)
All
monitoring information was recorded on a standard data sheet.
(xvii) Filters were then sent to ALS Technichem (HK)
Pty Ltd. for analysis.
(d)
Maintenance
and Calibration
(i)
The HVS
and its accessories were maintained in good working condition, such as
replacing motor brushes routinely and checking electrical wiring to ensure a
continuous power supply.
(ii)
5-point
calibration of the HVS was conducted using TE
(iii)
Calibration
certificate of the HVSs are provided in Appendix E.
(a)
Measuring
Procedures
The
measuring procedures of the 1-hour dust meter were in accordance with the
Manufacturer¡¦s Instruction Manual as follows:-
(i)
Turn the
power on.
(ii)
Close the
air collecting opening cover.
(iii)
Push the
¡§TIME SETTING¡¨ switch to [BG].
(iv)
Push
¡§START/STOP¡¨ switch to perform background measurement for 6 seconds.
(v)
Turn the
knob at SENSI ADJ position to insert the light scattering plate.
(vi)
Leave the
equipment for 1 minute upon ¡§SPAN CHECK¡¨ is indicated in the display.
(vii)
Push
¡§START/STOP¡¨ switch to perform automatic sensitivity adjustment. This
measurement takes 1 minute.
(viii)
Pull out
the knob and return it to MEASURE position.
(ix)
Push the
¡§TIME SETTING¡¨ switch the time set in the display to 3 hours.
(x)
Lower
down the air collection opening cover.
(xi)
Push
¡§START/STOP¡¨ switch to start measurement.
(b)
Maintenance
and Calibration
(i)
The
1-hour TSP meter was calibrated at 1-year intervals against a continuous
particulate TEOM Monitor, Series 1400ab. Calibration certificates of the Laser
Dust Monitors are provided in Appendix E.
(ii)
1-hour
validation checking of the TSP meter against HVS is carried out on half-year basis at the air
quality monitoring locations.
Table 2.4 Summary
of 1-hour TSP Monitoring Results in the Reporting Period
|
Average (mg/m3) |
Range (mg/m3) |
Action Level
(mg/m3) |
Limit Level (mg/m3) |
AMS2 |
83 |
66 ¡V 83 |
374 |
500 |
AMS3A |
85 |
68 ¡V 85 |
368 |
500 |
AMS7 |
83 |
61 ¡V 83 |
370 |
500 |
Table 2.5 Summary
of 24-hour TSP Monitoring Results in the Reporting Period
|
Average (mg/m3) |
Range (mg/m3) |
Action Level
(mg/m3) |
Limit Level (mg/m3) |
AMS2 |
24 |
6 ¡V 34 |
176 |
260 |
AMS3A |
46 |
27 ¡V 101 |
167 |
260 |
AMS7 |
40 |
17 ¡V 98 |
183 |
260 |
Table 3.1 Noise
Monitoring Equipment
Equipment |
Brand
and Model |
Integrated
Sound Level Meter |
Rion NL-31 & B&K2238 |
Acoustic
Calibrator |
Rion NC-73 |
Remarks:
Monitoring
Table 3.2 Locations
of Impact Noise Monitoring Stations
Monitoring
Station |
Location |
Description |
NMS2 |
Seaview
Crescent Tower 1 |
Free-field on the rooftop of the premise |
NMS3A |
Site Boundary
of Site Office Area at Works Area WA2 |
Free-field on ground at the area boundary. |
Table 3.3 Noise
Monitoring Parameters, Frequency and Duration
Parameter |
Frequency and Duration |
30-mins measurement at each
monitoring station between 0700 and 1900 on normal weekdays (Monday to
Saturday). Leq, L10 and L90 would be
recorded. |
At
least once per week |
(a)
The sound
level meter was set on a tripod at a height of
(b)
All measurement at NMS3A were free field
measurements in the reporting
month at NMS3A. A correction of +3 dB(A) shall be made to
the free field measurements.
(c)
The
battery condition was checked to ensure the correct functioning of the meter.
(d)
Parameters
such as frequency weighting, the time weighting and the measurement time were
set as follows:-
(i)
frequency
weighting: A
(ii)
time
weighting: Fast
(iii)
time
measurement: Leq(30-minutes) during non-restricted hours i.e. 07:00
¡V 1900 on normal weekdays.
(e)
Prior to
and after each noise measurement, the meter was calibrated using the acoustic
calibrator for 94dB(A) at 1000 Hz. If
the difference in the calibration level before and after measurement was more
than 1 dB(A), the measurement would be considered invalid and repeat of noise
measurement would be required after re-calibration or repair of the equipment.
(f)
During
the monitoring period, the Leq, L10 and L90
were recorded. In addition, site
conditions and noise sources were recorded on a standard record sheet.
(g)
Noise
measurement was paused during periods of high intrusive noise (e.g. dog
barking, helicopter noise) if possible. Observations were recorded when
intrusive noise was unavoidable.
(h)
Noise
monitoring was cancelled in the presence of fog, rain, wind with a steady speed
exceeding
(a)
The
microphone head of the sound level meter was cleaned with soft cloth at regular
intervals.
(b)
The meter
and calibrator were sent to the supplier or HOKLAS laboratory to check and
calibrate at yearly intervals.
(c)
Calibration
certificates of the sound level meters and acoustic calibrators are provided in
Appendix E.
Table 3.4 Summary
of Construction Noise Monitoring Results in the Reporting Period
|
Average, dB(A), Leq (30 mins) |
Range, dB(A), Leq (30 mins) |
Limit Level, dB(A), Leq (30 mins) |
NMS2 |
66 |
65 ¡V 67* |
75 |
NMS3A |
67 |
66 ¡V 69* |
70^ |
*+3dB(A) Façade correction included
^
Daytime noise Limit Level of 70 dB(A) applies
to education institutions, while 65dB(A) applies during school examination
period.
Table 4.1 Water
Quality Monitoring Equipment
Equipment |
Brand and Model |
Dissolved Oxygen (DO) and Temperature
Meter, Salinity Meter and Turbidimeter |
YSI Model 6820 |
pH Meter |
YSI Model 6820 or Thermo Orion 230A+ |
Positioning Equipment |
JRC DGPS 224 Model JLR-4341 with J-NAV
500 Model NWZ4551 |
Water Depth Detector |
Eagle Cuda-168 |
Water Sampler |
Kahlsio Water Sampler (Vertical) 2.2 L
with messenger |
Table 4.2 Impact
Water Quality Monitoring Parameters and Frequency
Monitoring Stations |
Parameter, unit |
Frequency |
No. of depth |
Impact Stations: IS5,
IS(Mf)6, IS7, IS8, IS(Mf)9, IS10, IS(Mf)11, IS(Mf)16, IS17 Control/Far Field Stations: CS(Mf)3,
CS(Mf)5, CS4, CS6, CSA Sensitive Receiver Stations: SR3-SR7,
SR10A&SR10B |
¡P
Depth, m ¡P
Temperature, oC ¡P
Salinity, ppt ¡P
Dissolved
Oxygen (DO), mg/L ¡P
DO
Saturation, % ¡P
Turbidity,
NTU ¡P
pH ¡P
Suspended
Solids (SS), mg/L |
Three times per week during mid-ebb and mid-flood
tides (within ¡Ó 1.75 hour of the predicted time) |
3 (1 m below water surface, mid-depth and 1 m above
sea bed, except where the water depth is less than 6 m, in which case the
mid-depth station may be omitted. Should the water depth be less than 3
m, only the mid-depth station will be monitored). |
Table
4.3 Impact
Water Quality Monitoring Stations
Station |
Description |
East |
North |
IS5 |
Impact
Station (Close to HKBCF construction site) |
811579 |
817106 |
IS(Mf)6 |
Impact
Station (Close to HKBCF construction site) |
812101 |
817873 |
IS7 |
Impact
Station (Close to HKBCF construction site) |
812244 |
818777 |
IS8 |
Impact
Station (Close to HKBCF construction site) |
814251 |
818412 |
IS(Mf)9 |
Impact
Station (Close to HKBCF construction site) |
813273 |
818850 |
IS10 |
Impact
Station (Close to HKBCF construction site) |
812577 |
820670 |
Impact
Station (Close to HKBCF construction site) |
813562 |
820716 |
|
Impact
Station (Close to HKBCF construction site) |
814328 |
819497 |
|
IS17 |
Impact
Station (Close to HKBCF construction site) |
814539 |
820391 |
SR3 |
Sensitive
receivers (San Tau SSSI) |
810525 |
816456 |
SR4(N) |
Sensitive
receivers (Tai Ho) |
814705 |
817859 |
SR5 |
Sensitive
receivers (Artificial Reef in NE Airport) |
811489 |
820455 |
SR6 |
Sensitive
receivers (Sha Chau and Lung Kwu Chau Marine Park) |
805837 |
821818 |
SR7 |
Sensitive receivers (Tai Mo Do) |
814293 |
821431 |
SR10A |
Sensitive
receivers (Ma Wan FCZ)1 |
823741 |
823495 |
SR10B(N) |
Sensitive
receivers (Ma Wan FCZ)2 |
823683 |
823187 |
Control
Station |
809989 |
821117 |
|
Control
Station |
817990 |
821129 |
|
CS4 |
Control
Station |
810025 |
824004 |
CS6 |
Control
Station |
817028 |
823992 |
CSA |
Control
Station |
818103 |
823064 |
(a)
The
in-situ water quality parameters, viz. dissolved oxygen, temperature, salinity,
turbidity and pH, were measured by multi-parameter meters (i.e. Model YSI 6820
CE-C-M-Y) and pH meter (i.e. Thermo Orion 230A+) respectively.
(a)
Digital Differential Global
Positioning Systems (DGPS) were used
to ensure that the correct location was selected prior to sample collection.
(b)
Portable,
battery-operated echo sounders were used for the determination of water depth
at each designated monitoring station.
(c)
All
in-situ measurements were taken at 3 water depths, 1 m
below water surface, mid-depth and 1 m above sea bed, except where the water
depth was less than 6 m, in which case the mid-depth station was omitted.
Should the water depth be less than 3 m, only the mid-depth station was
monitored.
(d)
At each
measurement/sampling depth, two consecutive in-situ monitoring (DO
concentration and saturation, temperature, turbidity, pH, salinity) and water
sample for SS. The probes were retrieved out of the water after the first
measurement and then re-deployed for the second measurement. Where the
difference in the value between the first and second readings of DO or
turbidity parameters was more than 25% of the value of the first reading, the reading
was discarded and further readings were taken.
(e)
Duplicate
samples from each independent sampling event were collected for SS measurement.
Water samples were collected using the water samplers and the samples were
stored in high-density polythene bottles. Water samples collected were
well-mixed in the water sampler prior to pre-rinsing and transferring to sample
bottles. Sample bottles were pre-rinsed with the same water samples. The sample
bottles were then be packed in cool-boxes (cooled at 4oC without
being frozen), and delivered to ALS Technichem (HK) Pty Ltd. for the analysis
of suspended solids concentrations. The laboratory determination work would be
started within 24 hours after collection of the water samples. ALS Technichem (HK) Pty Ltd. is a HOKLAS accredited
laboratory and has comprehensive quality assurance and quality control
programmes. For QA/QC procedures, one duplicate samples of every batch of 20
samples was analyzed.
(f)
The
analysis method and reporting and detection limit for SS is shown in Table 4.4.
Table 4.4 Laboratory
Analysis for Suspended Solids
Parameters |
Instrumentation |
Analytical Method |
Reporting Limit |
Detection Limit |
Suspended Solid (SS) |
Weighting |
APHA
2540-D |
0.5mg/L |
0.5mg/L |
(g)
Other
relevant data were recorded, including monitoring location / position, time,
water depth, tidal stages, weather conditions and any special phenomena or work
underway at the construction site in the field log sheet for information.
(a)
All in
situ monitoring instruments would be calibrated and calibrated by ALS
Technichem (HK) Pty Ltd. before use and at 3-monthly intervals throughout all
stages of the water quality monitoring programme. Calibration details are provided in Appendix E.
(b)
The
dissolved oxygen probe of YSI 6820 was calibrated by wet bulb method. Before
the calibration routine, the sensor for dissolved oxygen was thermally
equilibrated in water-saturated air. Calibration cup is served as a calibration
chamber and it was loosened from airtight condition before it is used for the
calibration. Calibration at ALS Technichem (HK) Pty Ltd. was carried out once
every three months in a water sample with a known concentration of dissolved
oxygen. The sensor was immersed in the water and after thermal equilibration,
the known mg/L value was keyed in and the calibration was carried out
automatically.
(c)
The
turbidity probe of YSI 6820 is calibrated two times a month. A zero check in
distilled water was performed with the turbidity probe of YSI 6820 once per
monitoring day. The probe will be calibrated with a solution of known NTU at
ALS Technichem (HK) Pty Ltd. once every three months.
Table 4.5 Summary of Water Quality Exceedances
Exceedance Level |
DO (S&M) |
DO (Bottom) |
Turbidity |
SS |
Total |
||||||
Ebb |
Flood |
Ebb |
Flood |
Ebb |
Flood |
Ebb |
Flood |
Ebb |
Flood |
||
Action |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
(1) 7 Aug 2013 |
0 |
(1) 7 Aug 2013 |
|
Limit |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
|
IS(Mf)6 |
Action |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
(1) 7 Aug 2013 |
0 |
(1) 7 Aug 2013 |
Limit |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
|
IS7 |
Action |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
(1) 7 Aug 2013 |
0 |
(1) 7 Aug 2013 |
Limit |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
|
IS8 |
Action |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
Limit |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
|
IS(Mf)9 |
Action |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
Limit |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
|
IS10 |
Action |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
Limit |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
|
IS(Mf)11 |
Action |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
Limit |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
|
IS(Mf)16 |
Action |
0 |
0 |
0 |
0 |
0 |
0 |
(1) 23 Aug 2013 |
0 |
0 |
(1) 23 Aug 2013 |
Limit |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
|
IS17 |
Action |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
Limit |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
|
SR3 |
Action |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
(1) 7 Aug 2013 |
0 |
(1) 7 Aug 2013 |
Limit |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
|
SR4(N) |
Action |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
Limit |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
|
SR5 |
Action |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
Limit |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
|
SR6 |
Action |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
Limit |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
|
SR7 |
Action |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
Limit |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
|
SR10A |
Action |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
Limit |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
|
SR10B (N) |
Action |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
Limit |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
|
Total |
Action |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
5 |
|
|
Limit |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
Note: S:
Surface; and
M:
Mid-depth.
Table 5.1 Dolphin
Monitoring Equipment
Equipment |
Model |
Commercially
licensed motor vessel |
15m in length with a 4.5m viewing
platform |
Global
Positioning System (GPS) x2 |
Integrated into
T7000 Garmin GPS Map
78C |
Computers (T7000 Tablet, Intel Atom) |
Windows 7/MSO 13 Logger |
Camera |
Nikon D90 300m
2.8D fixed focus Nikon D90
20-400m zoom lens |
Laser Rangefinder |
Infinitor LRF1000/ Kings 950 |
Marine Binocular x3 |
Nexus 7 x 50
marine binocular with compass and reticules Fujinon 7 x 50 marine binocular with compass and reticules |
Table 5.2 Impact
Dolphin Monitoring Line Transect Co-ordinates (Provided by AFCD)
|
HK Grid System |
Long Lat in WGS84 |
||
ID |
X |
Y |
Long |
Lat |
1 |
804671 |
814577 |
113.870308 |
22.269741 |
1 |
804671 |
831404 |
113.869975 |
22.421696 |
2 |
805475 |
815457 |
113.878087 |
22.277704 |
2 |
805477 |
826654 |
113.877896 |
22.378814 |
3 |
806464 |
819435 |
113.887615 |
22.313643 |
3 |
806464 |
822911 |
113.887550 |
22.345030 |
4 |
807518 |
819771 |
113.897833 |
22.316697 |
4 |
807518 |
829230 |
113.897663 |
22.402113 |
5 |
808504 |
820220 |
113.907397 |
22.320761 |
5 |
808504 |
828602 |
113.907252 |
22.396462 |
6 |
809490 |
820466 |
113.916965 |
22.323003 |
6 |
809490 |
825352 |
113.916884 |
22.367128 |
7 |
810499 |
820690 |
113.926752 |
22.325043 |
7 |
810499 |
824613 |
113.926688 |
22.360464 |
8 |
811508 |
820847 |
113.936539 |
22.326475 |
8 |
811508 |
824254 |
113.936486 |
22.357241 |
9 |
812516 |
820892 |
113.946329 |
22.326894 |
9 |
812516 |
824254 |
113.946279 |
22.357255 |
10* |
813525 |
818270 |
113.956156 |
22.303225 |
10* |
813525 |
824657 |
113.956065 |
22.360912 |
11 |
814556 |
818449 |
113.966160 |
22.304858 |
11 |
814556 |
820992 |
113.966125 |
22.327820 |
12 |
815542 |
818807 |
113.975726 |
22.308109 |
12 |
815542 |
824882 |
113.975647 |
22.362962 |
13 |
816506 |
819480 |
113.985072 |
22.314192 |
13 |
816506 |
824859 |
113.985005 |
22.362771 |
14 |
817537 |
820220 |
113.995070 |
22.320883 |
14 |
817537 |
824613 |
113.995018 |
22.360556 |
15 |
818568 |
820735 |
114.005071 |
22.325550 |
15 |
818568 |
824433 |
114.005030 |
22.358947 |
16 |
819532 |
821420 |
114.014420 |
22.331747 |
16 |
819532 |
824209 |
114.014390 |
22.356933 |
17 |
820451 |
822125 |
114.023333 |
22.338117 |
17 |
820451 |
823671 |
114.023317 |
22.352084 |
18 |
821504 |
822371 |
114.033556 |
22.340353 |
18 |
821504 |
823761 |
114.033544 |
22.352903 |
19 |
822513 |
823268 |
114.043340 |
22.348458 |
19 |
822513 |
824321 |
114.043331 |
22.357971 |
20 |
823477 |
823402 |
114.052695 |
22.349680 |
20 |
823477 |
824613 |
114.052686 |
22.360610 |
21 |
805476 |
827081 |
113.877878 |
22.382668 |
21 |
805476 |
830562 |
113.877811 |
22.414103 |
22 |
806464 |
824033 |
113.887520 |
22.355164 |
22 |
806464 |
829598 |
113.887416 |
22.405423 |
23 |
814559 |
821739 |
113.966142 |
22.334574 |
23 |
814559 |
824768 |
113.966101 |
22.361920 |
Table 5.3 Impact
Dolphin Monitoring Survey Effort Summary, Effort
by Area and Beaufort Sea State
Date |
Area |
Beaufort |
Effort (km) |
Total Distance Travelled (km) |
|
1 |
05-08-13 |
NWL |
1 |
63.0 |
70.9 |
05-08-13 |
NWL |
2 |
7.9 |
||
06-08-13 |
NWL |
1 |
3.1 |
40.2 |
|
06-08-13 |
NEL |
1 |
22.4 |
||
06-08-13 |
NEL |
2 |
9.3 |
||
06-08-13 |
NEL |
3 |
5.4 |
||
2 |
21-08-13 |
NWL |
1 |
46.2 |
63.4 |
21-08-13 |
NWL |
2 |
17.2 |
||
28-08-13 |
NWL |
1 |
10.7 |
26.1 |
|
28-08-13 |
NEL |
1 |
15.4 |
||
30-08-13 |
NEL |
1 |
14.6 |
21.7 |
|
30-08-13 |
NEL |
2 |
7.1 |
||
TOTAL in August 2013 |
222.3 |
*Remark:
Surveys conduct under Beaufort Sea State 3 or below are considered
as under favourable condition.
Table 5.4 Impact
Dolphin Monitoring Survey Details in August 2013
Date |
Location |
No.
Sightings ¡§on effort¡¨ |
No.
Sightings ¡§opportunistic¡¨ |
05-08-13 |
NW L |
3 |
1 |
NEL |
0 |
1 |
|
06-08-13 |
NW L |
1 |
2 |
NEL |
1 |
0 |
|
21-08-13 |
NW L |
4 |
2 |
NEL |
0 |
0 |
|
28-08-13 |
NW L |
0 |
0 |
NEL |
0 |
0 |
|
30-08-13 |
NW L |
0 |
0 |
NEL |
0 |
1 |
|
TOTAL in August 2013 |
9 |
7 |
Table 5.5 The Encounter Rate of Number of Dolphin Sightings & Total
Number of Dolphins per Area^
Encounter Rate of Number of Dolphin Sightings (STG)* |
||||||
Date |
NEL Track |
NWL Track |
NEL Sightings |
NWL Sightings |
NEL Encounter Rate |
NWL Encounter Rate |
05 - 06/08/2013 |
37.1 km |
74 km |
1 |
4 |
2.7 |
5.4 |
21, 28 & 31/08/2013 |
37.1 km |
74.1 km |
0 |
4 |
0.0 |
5.4 |
Encounter Rate of Total Number of Dolphins (ANI)** |
||||||
Date |
NEL Track |
NWL Track |
NEL Dolphins |
NWL Dolphins |
NEL Encounter Rate |
NWL Encounter Rate |
05 - 06/08/2013 |
37.1 km |
74 km |
1 |
7 |
2.7 |
9.5 |
21, 28 & 31/08/2013 |
37.1 km |
74.1 km |
0 |
6 |
0.0 |
8.1 |
* Encounter Rate of Number of Dolphin Sightings (STG) presents encounter rates in terms of
groups per 100km.
** Encounter Rate of Total
Number of Dolphins (ANI)
presents encounter rates in terms of individuals per 100km. And the encounter
rate is not corrected for individuals, calculation may represent double
counting.
^The table is made
only for reference to the quarterly STG & ANI, which were adopted for the
Event & Action Plan.
Air Quality
Noise
Water Quality
Chemical and Waste Management
Landscape and Visual Impact
Others
Table 6.1 Summary of Environmental Licensing and Permit Status
Statutory
Reference |
License/
Permit |
License
or Permit No. |
Valid
Period |
License/
Permit Holder |
Remarks |
|
From |
To |
|||||
EIAO |
Environmental Permit |
EP-353/2009/G |
06/08/2012 |
N/A |
HyD |
Hong Kong ¡V Zhuhai ¡V Macao Bridge Hong Kong Boundary
Crossing Facilities |
EP-354/2009/A |
08/12/2010 |
N/A |
Tuen Mun ¡V Chek Lap Kok Link (TMCLKL Southern
Landfall Reclamation only) |
|||
APCO |
NA notification |
-- |
30/12/2011 |
-- |
CHEC |
Works Area WA2 and WA3 |
APCO |
NA notification |
-- |
17/01/2012 |
-- |
CHEC |
Works Area WA4 |
WDO |
Chemical Waste Producer Registration |
5213-951-C1186-21 |
30/3/2012 |
N/A |
CHEC |
Chemical waste produced in Contract HY/2010/02 |
WDO |
Chemical Waste Producer Registration |
5213-974-C3750-01 |
31/10/2012 |
-- |
CHEC |
Registration as Chemical Waste Producer at To Kau
Wan(WA4) |
WDO |
Chemical Waste Producer Registration |
5213-839-C3750-02 |
13/09/2012 |
-- |
CHEC |
Registration as Chemical Waste Producer at TKO
137(FB) |
WDO |
Billing Account for Disposal of Construction Waste |
7014181 |
05/12/2011 |
N/A |
CHEC |
Waste disposal in Contract HY/2010/02 |
NCO |
Construction Noise Permit |
GW-RS0847-13 |
01/08/2013 |
19/01/2014 |
CHEC |
Marine-based areas in Contract HY/2010/02 |
NCO |
Construction Noise Permit |
GW-RE0634-13 |
24/06/2013 |
31/12/2013 |
CHEC |
Works
Area WA4 in Contract HY/2010/02 |
NCO |
Construction Noise Permit |
GW-RW0424-13 |
28/06/2013 |
27/12/2013 |
CHEC |
Section
of TKO Fill Bank under Contract HY/2010/02 |
Marine-based
Works
-
Marine-base
-
Cellular structure installation
-
Connecting arc cell installation
-
Laying geo-textile
-
Sand blanket laying
-
Sand filling
-
Maintenance of silt curtain &
silt screen at sea water intake of HKIA
-
Stone column installation
-
Band drain installation
-
Backfill cellular structure
-
Instrumentation works
-
Rubble mound seawall construction
-
Construction of temporary seawall
-
Ground investigation
Land-based
Works
-
Maintenance works of Site Office at
Works Area WA2
-
Maintenance works of Public
Works Regional Laboratory at Works Area WA3
-
Geo-textile fabrication at Works
Area WA2
-
Silt curtain fabrication at Works
Area WA4
-
Maintenance of Temporary Marine
Access at Works Area WA2
-
Site runoff should be properly
collected and treated prior to discharge;
-
Minimize loss of sediment from
filling works;
-
Regular review and maintenance of
silt curtain systems, drainage systems and desilting facilities;
-
Exposed surfaces/soil stockpiles
should be properly treated to avoid generation of silty surface run-off during
rainstorm;
-
Regular review and maintenance of
wheel washing facilities provided at all site entrances/exits;
-
Conduct regular inspection of
various working machineries and vessels within works areas to avoid any dark
smoke emission;
-
Suppress dust generated from work
processes with use of bagged cements, earth movements, excavation activities,
exposed surfaces/soil stockpiles and haul road traffic;
-
Quieter powered mechanical equipment
should be used;
-
Provision of proper and effective
noise control measures for operating equipment and machinery on-site, such as
erection of movable noise barriers or enclosure for noisy plants;
-
Closely check and replace the sound
insulation materials regularly;
-
Better scheduling of construction
works to minimize noise nuisance;
-
Properly store and label oil drums
and chemical containers placed on site;
-
Proper chemicals, chemical wastes
and wastes management;
-
Maintenance works should be carried
out within roofed, paved and confined areas;
-
Collection and segregation of
construction waste and general refuse on land and in the sea should be carried
out properly and regularly; and
-
Proper protection and regular
inspection of existing trees, transplanted/retained trees.
Air
Quality Impact
l All working plants and vessels on site should
be regularly inspected and properly maintained to avoid dark smoke emission.
l All vehicles should be washed to remove any dusty materials before
leaving the site.
l Haul roads should be sufficiently dampened to minimize fugitive dust
generation.
l Wheel washing facilities should be properly maintained and reviewed to
ensure properly functioning.
l Temporary exposed slopes and open stockpiles should be properly covered.
l Enclosure should be erected for cement debagging, batching and mixing
operations.
l Water spraying should be
provided to suppress fugitive dust for any dusty construction activity.
Construction
Noise Impact
l Quieter powered mechanical equipment should
be used as far as possible.
l Noisy operations should be oriented to a
direction away from sensitive receivers as far as possible.
l Proper and effective noise control measures
for operating equipment and machinery on-site should be provided, such as
erection of movable noise barriers or enclosure for noisy plants. Closely check
and replace the sound insulation materials regularly
l Vessels and equipment operating should be
checked regularly and properly maintained.
l Noise Emission Label (NEL) shall be affixed
to the air compressor and hand-held breaker operating within works area.
l Better scheduling of construction works to
minimize noise nuisance.
Water
Quality Impact
l Regular review and maintenance of silt
curtain systems, drainage systems and desilting facilities in order to make
sure they are functioning effectively.
l Construction of seawall should be completed
as early as possible.
l Regular inspect and review the loading
process from barges to avoid splashing of material.
l Silt, debris and leaves accumulated at public
drains, wheel washing bays and perimeter u-channels and desilting facilities
should be cleaned up regularly.
l Silty effluent should be treated/ desilted
before discharged. Untreated effluent should be prevented from entering public
drain channel.
l Proper drainage channels/bunds should be
provided at the site boundaries to collect/intercept the surface run-off from
works areas.
l Exposed slopes and stockpiles should be covered
up properly during rainstorm.
Chemical
and Waste Management
l All types of wastes, both on land and
floating in the sea, should be collected and sorted properly and disposed of
timely and properly. They should be properly stored in designated areas within
works areas temporarily.
l All chemical containers, batteries and oil
drums should be properly stored and labelled.
l All plants and vehicles on site should be
properly maintained to prevent oil leakage. Proper measures, like drip trays
and/or bundings, should be provided for retaining leaked oil/chemical from
plants.
l All kinds of maintenance works should be
carried out within roofed, paved and confined areas.
l All drain holes of the drip trays utilized
within works areas should be properly plugged to avoid any oil and chemical
waste leakage.
l Oil stains on soil surface, accumulated oil
mixture and empty chemical containers should be cleared and disposed of as
chemical waste.
l Regular review
should be conducted for working barges and patrol boats to ensure sufficient
measures and spill control kits were provided on working barges and patrol
boats to avoid any spreading of leaked oil/chemicals.
Landscape
and Visual Impact
l All existing, retained/transplanted trees at
the works areas should be properly fenced off and regularly inspected.
