TABLE
OF CONTENTS
|
|
||||
1 |
1-2 |
|
|||
1.1 |
Basic Project Information |
1 |
|||
1.2 |
Project Organization |
2 |
|||
1.3 |
Construction Programme |
2 |
|||
1.4 |
Construction Works
Undertaken During the Reporting Period |
2 |
|||
|
|
|
|||
2 |
3 |
||||
2.1 |
Monitoring Locations |
3 |
|||
2.2 |
Monitoring Requirements |
3 |
|||
2.3 |
Monitoring Results |
3-4 |
|||
|
|
|
|||
3 |
4-5 |
||||
3.1 |
Monitoring Locations |
4 |
|||
3.2 |
Monitoring Requirements |
4 |
|||
3.3 |
Monitoring Results |
4-5 |
|||
|
|
|
|||
4
|
5-6 |
||||
4.1 |
Monitoring Locations |
5 |
|||
4.2 |
Monitoring Requirements |
5-6 |
|||
4.3 |
Monitoring Results |
6 |
|||
|
|
|
|||
5
|
7 |
||||
5.1 |
Monitoring Locations |
7 |
|||
5.2 |
Monitoring Requirements |
7 |
|||
5.3 |
Monitoring Results |
7 |
|||
|
|
|
|||
6 |
8-10 |
||||
6.1 |
Site
Inspection |
8-9 |
|||
6.2 |
Advice on
the Solid and Liquid Waste Management Status |
9 |
|||
6.3 |
Environmental Licenses and Permits |
9 |
|||
6.4 |
Implementation Status of Environmental Mitigation Measures
|
9 |
|||
6.5 |
Summary of Exceedance of the Environmental
Quality Performance Limit |
9-10 |
|||
6.6 |
Summary of Complaints, Notification of Summons and Successful
Prosecution |
10 |
|||
|
|
|
|||
7 |
10 |
||||
7.1 |
Construction Programme for the Coming Months |
10 |
|||
7.2 |
Environmental Site
Inspection Schedule for the Coming Month |
10 |
|||
|
|
|
|||
8 |
11 |
||||
8.1 |
Conclusions |
11 |
|||
Figure 1.1 |
Air Quality and Noise Monitoring Stations for HKBCF before 06 February 2018 |
Figure 1.2 |
Air Quality and Noise Monitoring Stations for HKBCF on or after 06 February 2018 |
Figure 2 |
Water Quality Monitoring Stations (construction phases) |
Figure 3 |
Dolphin
Monitoring Transect Line
and Layout
Map |
|
|
|
|
|
|
TABLE |
|
Table 1.1 |
Contact Information of Key Personnel |
Table 2.1 |
Air Quality Monitoring Locations |
Table 2.2 |
Action and Limit Levels for 1-hour TSP |
Table 2.3 |
Action and Limit Levels for 24-hour TSP |
Table 3.1 |
Construction Noise Monitoring Locations |
Table 3.2 |
Action and Limit Levels for Construction Noise |
Table 4.1 |
Water Quality Monitoring Stations (construction
phases) |
Table 4.2 |
Action and Limit Levels for Water Quality |
Table 5.1a |
Action and Limit Levels for Chinese White Dolphin
Monitoring ¡V Approach to Define Action Level (AL) and Limit Level (LL) |
Table 5.1b |
Action and Limit Levels for Chinese White Dolphin
Monitoring - |
|
|
|
|
|
|
APPENDICES |
|
Location of Works Areas |
|
Project Organization for Environmental Works |
|
Construction Programme |
|
Event and Action Plan |
|
Monthly Summery of Waste Flow Table & Monthly
Summery of Marine Sediment |
|
Environmental Licenses and Permits |
|
Implementation Schedule for Environmental
Mitigation Measures (EMIS) |
|
Statistics on Environmental Complaints,
Notification of Summons and Successful Prosecutions |
|
Environmental Site Inspection Schedule |
|
|
|

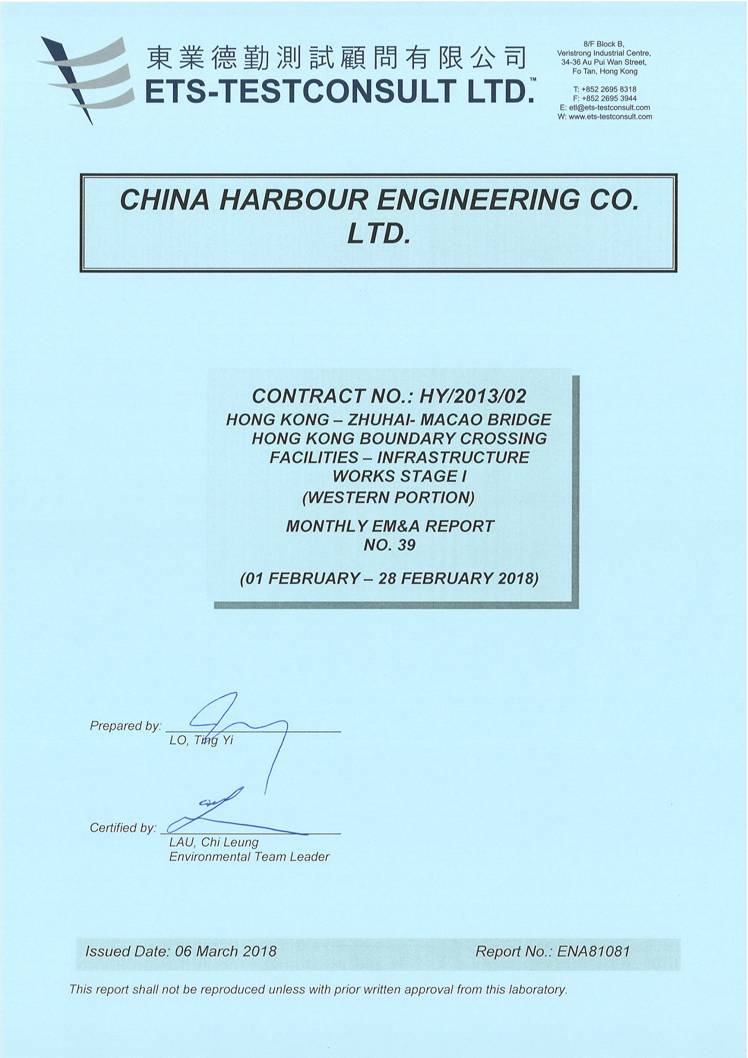

This Monthly Environmental
Monitoring and Audit (EM&A) Report is
prepared for Contract HY/2013/02 ¡§Hong Kong¡VZhuhai-Macao
Bridge Hong Kong Boundary Crossing Facilities (HKBCF) ¡V Infrastructure Works
Stage I (Western Portion)¡¨ (hereafter referred to as ¡§the Contract¡¨) for the
Highways Department of Hong Kong Special Administrative Region (HKSAR). The
Contract was awarded to China Harbour Engineering Co., Ltd. (hereafter referred
to as ¡§the Contractor¡¨) and ETS-Testconsult Limited
was appointed as the Environmental Team (ET) by the Contractor.
The Contract is part of
Hong Kong¡VZhuhai¡VMacao Bridge HKBCF which is a
¡§Designated Project¡¨, under Schedule 2 of the Environmental Impact Assessment
Ordinance (EIAO) (Cap 499) and Environmental Impact Assessment (EIA) Report
(Register No. AEIAR-145/2009) was prepared for the Project. The
current Environmental Permit (EP) No.
EP-353/2009/K for HKBCF was issued on 11 April 2016. These documents are
available through the EIA Ordinance Register. Site preparation works of the
Contract was started on 25 July 2014 and the construction works of the Contract
commenced on 24 November 2014.
ETS-Testconsult
Limited has been appointed by the Contractor to implement the Environmental
Monitoring & Audit (EM&A) programme for the Contract in accordance with
the Updated EM&A Manual for HKBCF (Version 1.0) and provide environmental
team services to the Contract.
This is the Thirty-ninth Monthly Environmental Monitoring
and Audit (EM&A) Report for the Contract which summaries findings of the
EM&A works conducted during the reporting period from 01 February to 28 February 2018.
Site Activities
As
informed by the Contractor, site
activities were carried out in
this reporting month:
l
Road
and Bituminous works;
l
Landscaping
work
Environmental Monitoring and Audit Progress
The monthly EM&A programme was
undertaken in accordance with the Updated EM&A Manual for HKBCF (Version 1.0).
It should be noted that the air quality and noise monitoring works for the
Contract are covered by Contract No. HY/2013/01 ¡§Hong Kong-Zhuhai-Macao
Bridge HKBCF ¡V Passenger
Clearance Building¡¨ and
Contract No. HY/2011/03 ¡§Hong Kong-Zhuhai-Macao
Bridge Hong Kong Link Road ¡V Section between Scenic Hill and HKBCF¡¨. The ET of the Contract or another ET of the
HZMB project is required to conduct impact air quality monitoring at AMS6 and
AMS7 / AMS7B, noise monitoring at NMS2 and NMS3B, water quality
monitoring show in Figure 2 and
dolphin monitoring
show in Figure 3 as part of EM&A programme
if these monitoring stations are no longer covered under Contract
No. HY/2013/01 and
HY/2011/03. However, this is subject to ENPO¡¦s final decision on which ET should
carry out the monitoring works at these stations. The dates of site inspection during the reporting period are listed
below:
Environmental Site
Inspection:
01, 08, 13 & 22 February 2018
Breaches of
Action and Limit Levels
Summary
of Action and Limit Level exceedance of 1-hr TSP
level and 24-hr TSP level at AMS6 shall be referred to the monthly EM&A
report prepared by Contract No. HY/2011/03.
There was no Action and Limit Level exceedance of 1-hr TSP
level and 24-hr TSP level recorded at station AMS7 / AMS7B by
the Environmental Team of Contract No. HY/2013/01 during the reporting period.
There was no Action and Limit Level exceedance for noise recorded
at station NMS2 and station NMS3B by the Environmental Team of Contract No. HY/2013/01 during the
reporting period.
During February 2018, there were two action level exceedances of suspended solids recorded on 02 February
2018. Since the removal of temporary loading and unloading
point by Contract No. HY/2013/02, which involved marine work, was
completed on 10 September 2017 and the area was handed back to Reclamation
Contractor with Contract No. HY/2010/02 on 11 September 2017 for
subsequent seawall construction as confirmed by RSS, there was no
marine works or barge of this Contract worked at HKBCF reclamation site near
the sea area or area near the monitoring station under Contract No.
HY/2013/02 during February 2018. Hence, specific investigation shall be
referred to other ET¡¦s report(s) under the HZMB Projects in which the
respective contract(s) with remaining marine works on-going for the exceedances recorded in water quality monitoring during
this reporting month. There was no Action and Limit Level exceedance
recorded on other monitoring date at the monitoring stations showed at Table
4.1 by the Environmental Team of Contract No. HY/2013/01
during the reporting period.
Complaint Log
During
February 2018, there was a complaint received by Environmental
Protection Department on on 05 February 2018 and referred to the ENPO on 05 February
2018. Then the
ENPO forwarded the complaint by email to the R.E. (AECOM), the Contractor
(China Harbour) and the ET (ETS-Testconsult Ltd.) of
Contract No. HY/2013/02 at 11:26 on 05 February
2018. The
complaint detail was "®Ú¾Ú¡mªÅ®ð¦Ã¬VºÞ¨î(«Ø³y¤uµ{¹Ð®J)³W¨Ò¡n¦a½LÀ³¦b«ü©wªº¨®½ø¥X¤f³B¦w¸Ë½üL²M¬~³]¬I¦ý¨C¤é±ß¤W7ÂI«á´N·|³Q¦a½LºÞ²z¤HûºI¤ô¡A¨Ï©Ò¦³¨®½øµLªk¬~²M½üL¦Ó¨«¥X¤u¦a¡A¥O¦a±°ï¿n¨F¹Ð¤Îªd¼ß¡A¼vÅT¨ä¥L¹D¸ô¨Ï¥ÎªÌ¤ÎÀô¹Ò½Ã¥Í¡Cn¨D·í§½¥[±j¨µ¬d¡A¥O¤u¦a¿í¦u³W¨Ò"
The complaint is under investigation and to be
reported in the next reporting month.
Notifications of Summons and Successful
Prosecutions
There were no
notifications of summons or prosecutions received during the reporting period.
Reporting Change
Since the
permission of carrying out AQM at Hong Kong SkyCity
Marriott Hotel could not be granted after the end of January 2018,
re-location of AQM station (AMS7) for HZMB HKBCF Project was
justified by the ET Leader for Contract No. HY/2013/01 on 22 January
2018; verified by the IEC on 24 January 2018; and submitted to EPD on 30
January 2018, and the AQM has been carrying out at the alternative
AQM station (AMS7B) with EPD's consent since 06 February 2018.
Future
Key Issues
The future key issues
to be undertaken in the upcoming month are as follows:
l
Road Furniture
& Fit out;
l
Landscaping work
1.1.
Basic Project Information
1.1.1.
This Monthly Environmental
Monitoring and Audit (EM&A) Report is
prepared for Contract HY/2013/02 ¡§Hong Kong¡VZhuhai-Macao
Bridge Hong Kong Boundary Crossing Facilities (HKBCF) ¡V Infrastructure Works
Stage I (Western Portion)¡¨ (hereafter referred to as ¡§the Contract¡¨) for the
Highways Department of Hong Kong Special Administrative Region (HKSAR). The
Contract was awarded to China Harbour Engineering Co., Ltd. (hereafter referred
to as ¡§the Contractor¡¨) and ETS-Testconsult Limited
was appointed as the Environmental Team (ET) by the Contractor.
1.1.2.
The Contract is part of
Hong Kong¡VZhuhai¡VMacao Bridge HKBCF which is a
¡§Designated Project¡¨, under Schedule 2 of the Environmental Impact Assessment
Ordinance (EIAO) (Cap 499) and Environmental Impact Assessment (EIA) Report
(Register No. AEIAR-145/2009) was prepared for the Project. The current
Environmental Permit (EP) No. EP-353/2009/K for HKBCF
was issued on 11 April 2016. These documents are available through the
EIA Ordinance Register. Site preparation works of the Contract started on 25
July 2014 and the construction works of the Contract commenced on 24 November
2014. The works area of the Contract is shown in Appendix A.
1.1.3.
The proposed works under this
Contract comprise the following:
l
Construction of the
viaducts and roads at the western portion of Hong Kong Boundary Crossing
Facilities (HKBCF) mainly for connection with the Hong Kong¡VZhuhai¡VMacao Bridge
(HZMB), Hong Kong Link Road (HKLR), Hong Kong International Airport (HKIA) and
the Tuen Mun-Chek Lap Kok Link (TM-CLKL);
l
Construction of the road modification at the SkyCity Interchange at Airport Island;
l
Construction of associated street lighting,
street furniture, road marking, road signage, drainage, sewerage, fresh water
and flushing water supply, irrigation, landscape, electrical and mechanical
(E&M), utilities and services works;
l
Provisioning of civil engineering works and power
supply installation for the Traffic Control and Surveillance System TCSS;
l
Other works in accordance with the
Contract.
1.1.4.
This is the Thirty-ninth
Monthly
Environmental Monitoring and Audit (EM&A) Report for the Contract which
summaries the audit findings of the EM&A programme during the reporting period from 01 February to 28 February 2018.
1.2.
Project Organization
1.2.1.
The project
organization
structure and lines of communication with respect to the on-site environmental
management structure is shown in Appendix B. The key personnel contact
names and numbers are summarized in Table
1.1.
Table 1.1 Contact Information of Key Personnel
Party |
Position |
Name of Key Staff |
Tel. No. |
Fax No. |
Engineer or Engineer¡¦s Representative (AECOM Asia Co. Ltd.) |
Resident Engineer |
Mr. Winston Wong |
6330 8293 |
3152 5116 |
Environmental Project Office / Independent Environmental Checker (Ramboll
Hong Kong Limited*) |
Environmental Project Office Leader |
Mr. Y. H. Hui |
3465 2888 |
3465 2899 |
Independent Environmental Checker |
Mr. Raymond Dai |
3465 2888 |
3465 2899 |
|
Environmental Site Supervisor |
Mr. Ray Yan |
5181 8165 |
3465 2899 |
|
Contractor (China Harbour Engineering Co., Ltd.) |
Environmental Officer |
Mr. Richard Ng |
5977 0593 |
3915 0300 |
Environmental Officer |
Mr. Paper Chan |
6486 8967 |
3915 0300 |
|
Environmental Supervisor |
Mr. Endy Tse |
5512 2662 |
3915 0300 |
|
Environmental
Team (ETS-Testconsult
Ltd.) |
Environmental
Team Leader |
Mr. C. L. Lau |
2946
7791 |
2695
3944 |
(*) ¡§Ramboll
Environ Hong Kong Limited¡§ was re-branded as ¡§Ramboll Hong Kong Limited¡¨ since 03 January
2018. |
1.3.
Construction Programme
1.3.1. A copy of the Contractor¡¦s construction programme is provided in Appendix
C.
1.4.
Construction Works Undertaken During the Reporting Period
1.4.1.
A
summary of the construction activities undertaken during this reporting period is
shown below:
l
Road and Bituminous works;
l
Landscaping work
2.1.
Monitoring Locations
2.1.1.
The air quality monitoring works for
the Contract are covered by Contract No. HY/2013/01 Hong Kong-Zhuhai-Macao Bridge
HKBCF ¡V Passenger
Clearance Building and
Contract No. HY/2011/03 Hong Kong-Zhuhai-Macao Bridge
Hong Kong Link Road ¡V Section between Scenic Hill and HKBCF. The ET of
the Contract or another ET of the HZMB project is required to conduct impact
air quality monitoring at AMS6 and AMS7 / AMS7B as part of EM&A programme
if these air quality monitoring stations are no longer covered under Contract
No. HY/2013/01 and HY/2011/03. Since the permission of
carrying out AQM at Hong Kong SkyCity Marriott
Hotel could not be granted after the end of January 2018, re-location
of AQM station (AMS7) for HZMB HKBCF Project was justified by the ET
Leader for Contract No. HY/2013/01 on 22 January 2018; verified by
the IEC on 24 January 2018; and submitted to EPD on 30 January 2018, and
the AQM has been carrying out at the alternative AQM station (AMS7B) with EPD's consent since 06 February 2018. Table 2.1 and Figure 1 shows the locations of air monitoring
stations.
Table 2.1 Air
Quality Monitoring Locations
Identification No. |
Location Description |
AMS6(1) |
Dragonair / CNAC (Group)
Building |
AMS7(1) (2) |
Hong Kong SkyCity
Marriott Hotel |
AMS7B(1) (3) |
3RS Site Offices |
Remarks: |
|
(1)
The ET of this Contract should conduct impact air quality
monitoring at the AMS listed in the table as part of EM&A programme according
to latest notification from ENPO when the monitoring station(s) is/are no
longer covered by another ET of the HZMB project. |
|
(2)
The air quality monitoring location AMS7A was relocated back to the
original monitoring location AMS7 of the updated EM&A Manual started from January
2016. (3)
Alternative
Air Quality Monitoring
Stations with effect from 06
February 2018 |
2.2.
Monitoring Requirements
2.2.1.
The monitoring requirements, monitoring
equipment, monitoring parameters, frequency and duration, monitoring
methodology, monitoring schedule, meteorological information are detailed in
the monthly EM&A Reports prepared for Contract Nos. HY/2013/01 and
HY/2011/03.
2.2.2.
The Action
and Limit Levels for 1-hr TSP and 24-hr TSP are provided in Table 2.2 and Table
2.3 respectively. The Action and Limit Levels of AMS7B are as same as the original levels of AMS7.
Table 2.2 Action and Limit Levels for 1-hour TSP
Monitoring Station |
Action Level,mg/m3 |
Limit Level,mg/m3 |
AMS6
¡V Dragnair / SNAC (Group) Building (HKIA) |
360 |
500 |
AMS7
¡V Hong Kong SkyCity Marriott Hotel |
370 |
500 |
AMS7B - 3RS Site Offices |
370 |
500 |
Table
2.3 Action and Limit Levels for 24-hour TSP
Monitoring Station |
Action Level,mg/m3 |
Limit Level,mg/m3 |
AMS6
¡V Dragnair / SNAC (Group) Building (HKIA) |
173 |
260 |
AMS7
¡V Hong Kong SkyCity Marriott Hotel |
183 |
260 |
AMS7B - 3RS Site Offices |
183 |
260 |
2.2.3.
The event and
action plan is provided in Appendix D.
2.2.4.
If exceedance(s) at these stations is/are recorded by the ET
of the Contract or referred by the other ET under the HZMB project to the
Contract, the ET of the Contract will carry out an investigation and findings
will be reported in the monthly EM&A Report.
2.3.
Monitoring Results
2.3.1.
The
monitoring results for AMS6 and AMS7 / AMS7B are reported in the monthly
EM&A Reports prepared for Contract Nos. HY/2011/03 and HY/2013/01 respectively.
2.3.2.
Summary of Action and
Limit Level exceedance of 1-hr TSP level and 24-hr
TSP level at AMS6 shall be referred to the monthly EM&A report prepared by
Contract No. HY/2011/03.
2.3.3.
There was no
Action and Limit Level
exceedance of
1-hr TSP level and 24-hr TSP level recorded at station AMS7 /
AMS7B by the Environmental Team of Contract No. HY/2013/01 during the reporting period.
3.1.
Monitoring
Locations
3.1.1. The noise monitoring works for the Contract are covered by Contract
No. HY/2013/01 Hong Kong-Zhuhai-Macao Bridge HKBCF ¡V Passenger
Clearance Building.
The ET of the Contract or another ET of the HZMB project is required to conduct
noise monitoring at NMS2 and NMS3B as part of EM&A programme if these
monitoring stations are no longer covered under Contract No. HY/2013/01. Table 3.1 and Figure 1 shows the locations of noise monitoring stations.
Table
3.1 Construction Noise Monitoring Locations
Identification No. |
Location Description |
NMS2(1) |
Sea
View Crescent |
NMS3B(1) (2) |
Site
Boundary of Site Office Area at Works Area WA2 |
Remarks: |
|
(1)
The ET of this Contract should conduct impact noise monitoring
at the NMS listed in the table as part of EM&A programme according to
latest notification from ENPO when the monitoring station(s) is/are no longer
covered by another ET of the HZMB project. |
|
(2)
The Action and Limit Levels for schools will be applied for this
alternative monitoring location. |
3.2.
Monitoring Requirements
3.2.1.
The monitoring requirements, monitoring
equipment, monitoring parameters, frequency and duration, monitoring
methodology, monitoring schedule, meteorological information are detailed in
the monthly EM&A Reports prepared for Contract No. HY/2013/01.
3.2.2.
The Action and Limit Levels for construction noise are provided in Table 3.2
3.2.3.
The event and action plan is provided in Appendix D.
Table 3.2 Action
and Limit Levels for Construction Noise
Parameter |
Action Level |
Limit Level |
07:00 ¡V 19:00 hours on normal
weekdays |
When one documented complaint is received |
75 dB(A)* |
Notes: |
||
If works are to be carried out during restricted hours, the conditions stipulated in the construction noise permit issued by the Noise Control Authority have to be followed. |
||
* Reduce
to 70
dB(A) for schools and 65 dB(A) during school examination period. |
3.2.4.
If exceedance(s)
at these stations is/are recorded by the ET of the Contract or referred by the
other ET under the HZMB project to the Contract, the ET of the Contract will carry
out an investigation and findings will be reported in the monthly EM&A
Report.
3.3.
Monitoring
Results
3.3.1
The monitoring
results for NMS2 and NMS3B are reported in the monthly EM&A Reports
prepared for Contract No. HY/2013/01. There was no exceedance for noise recorded
at station NMS2 and station NMS3B by the Environmental Team of Contract No. HY/2013/01 during the reporting period.
4.1.
Monitoring
Locations
The water monitoring works for the
Contract are covered by Contract No. HY/2013/01 Hong Kong-Zhuhai-Macao Bridge HKBCF ¡V Passenger Clearance Building.
The ET of the Contract or another ET of the HZMB project is required to conduct
water quality monitoring at twenty one
stations (9 Impact Stations, 7 Sensitive Receiver Stations and 5 Control/Far
Field Stations). Due to topographical conditions of SR3,
SR10A and SR10B(N),
the water quality monitoring (WQM) stations was proposed to be monitored at
alternative WQM stations named as SR3(N), SR10A
(N) and SR10B(N2). The proposal for alternation of
water quality monitoring stations for HZMB HKBCF was justified by the ET
Leader for Contract No. HY/2013/01 on 08 November 2017 and
verified by the IEC on 13
November 2017; and submitted to EPD on 29 November 2017, and it was approved by
EPD on 22 December 2017. Table 4.1
and Figure 2 shows the locations
of water quality monitoring stations.
Table 4.1 Water Quality
Monitoring Stations (construction phases)
Station |
Description |
East |
North |
IS5 |
Impact Station
(Close to HKBCF construction site) |
811579 |
817106 |
IS(Mf)6 |
Impact Station
(Close to HKBCF construction site) |
812101 |
817873 |
IS7 |
Impact Station
(Close to HKBCF construction site) |
812244 |
818777 |
IS8 |
Impact Station
(Close to HKBCF construction site) |
814251 |
818412 |
IS(Mf)9 |
Impact Station (Close
to HKBCF construction site) |
813273 |
818850 |
IS10(N) |
Impact Station (Close to HKBCF construction site) |
812942 |
820881 |
IS(Mf)11 |
Impact Station
(Close to HKBCF construction site) |
813562 |
820716 |
IS(Mf)16 |
Impact Station
(Close to HKBCF construction site) |
814328 |
819497 |
IS17 |
Impact Station
(Close to HKBCF construction site) |
814539 |
820391 |
SR3(N)[3] |
Sensitive
receivers (San Tau SSSI) |
810689 |
816591 |
SR4(N) |
Sensitive
receivers (Tai Ho) |
814705 |
817859 |
SR5(N) |
Sensitive receiver (Artificial Reef in NE Airport) |
812569 |
821475 |
SR6 |
Sensitive
receivers (Sha Chau and
Lung Kwu Chau Marine
Park) |
805837 |
821818 |
SR7 |
Sensitive
receivers (Tai Mo Do) |
814293 |
821431 |
SR10A(N) [1][3] |
Sensitive
receivers (Ma Wan FCZ)1 |
823644 |
823484 |
SR10B(N2) [1][3] |
Sensitive
receivers (Ma Wan FCZ)2 |
823689 |
823159 |
CS(Mf)3(N) |
Control Station |
808814 |
822355 |
CS(Mf)5 |
Control Station |
817990 |
821129 |
CS4 |
Control Station |
810025 |
824004 |
CS6 |
Control Station |
817028 |
823992 |
CSA[2] |
Control Station |
818103 |
823064 |
Note: |
|||
(1) Additional monitoring station for Ma Wan
FCZ. |
|||
(2)
Additional
control monitoring station for Ma Wan FCZ (3)
Alternative
WQM Stations with effect from 22 December
2017 |
|||
Remarks: |
|||
The ET of this Contract should conduct impact water quality
monitoring at the WQMS listed in the table as part of EM&A programme
according to latest notification from ENPO when the monitoring station(s)
is/are no longer covered by another ET of the HZMB project. The ET of the Contract
shall communicate and share the monitoring data to the ET(s) of other works
contracts if the water quality monitoring station(s) is/are as part of
EM&A programme. |
4.2
Monitoring
Requirements
The
monitoring requirements, monitoring equipment, monitoring parameters, frequency
and duration, monitoring methodology, monitoring schedule, meteorological
information are detailed in the monthly EM&A Reports prepared for Contract
No. HY/2013/01.
4.2.1 The event and action plan is provided in Appendix
D.
4.2.2 The Action and Limit Levels for Water Quality are provided in Table 4.2
Table 4.2 Action and Limit
Levels for Water Quality
Parameters |
Action |
Limit |
DO in mg/L (Surface, Middle & Bottom) |
Surface and Middle 5.0 Bottom 4.7 |
Surface and Middle 4.2 (except 5 mg/L for FCZ) Bottom 3.6 |
SS in mg/L (depth-averaged) at all monitoring
stations and control stations |
23.5 and 120% of upstream control station's SS at
the same tide of the same day* |
34.4 and 130% of upstream control station's SS at
the same tide of the same day and 10mg/L for WSD Seawater intakes* |
Turbidity in NTU (depth-averaged) |
27.5 and 120% of upstream control station's
turbidity at the same tide of the same day* |
47.0 and 130% of upstream control station's
turbidity at the same tide of the same day* |
* Remarks: Reference is made to EPD
approval of adjustment of water quality assessment criteria issued and became
effective on 18 February 2013. |
||
Notes:
1.
"depth-averaged" is calculated by taking the
arithmetic means of reading of all three depths. |
||
2. For DO, non-compliance of
the water quality limits occurs when monitoring result is lower than the limits. |
||
3. For turbidity, SS, non-compliance of the
water quality limits occurs when monitoring result is higher than the limits. |
||
4. All the figures given in
the table are used for reference only and the EPD may amend the figures
whenever it is considered as necessary. |
||
5.
The 1%-ile of baseline data for dissolved
oxygen (surface and middle) and dissolved oxygen (bottom) are 4.2mg/L and
3.6mg/L respectively. |
4.2.3 If exceedance(s) at these
stations is/are recorded by the ET of the Contract or referred by the other ET
under the HZMB project to the Contract, the ET of the Contract will carry out
an investigation and findings will be reported in the monthly EM&A Report.
4.3
Monitoring Result
4.3.1 The monitoring results for the monitoring stations showed in Table
4.1 are reported in the monthly EM&A Report prepared for Contract No. HY/2013/01. During February
2018, there were two action level exceedances of suspended
solids recorded on 02 February 2018.
4.3.2 Since the removal of temporary loading and unloading point by
Contract No. HY/2013/02, which involved marine work, was completed on 10
September 2017 and the area was handed back to Reclamation Contractor with
Contract No. HY/2010/02 on 11 September 2017 for subsequent seawall
construction as
confirmed by RSS, there was no marine works or
barge of this Contract worked at HKBCF reclamation site near the sea area or
area near the monitoring station under Contract No.
HY/2013/02 during February
2018. Hence,
specific investigation shall be referred to other ET¡¦s report(s) under the HZMB
Projects in which the respective contract(s) with remaining marine works
on-going for the exceedances recorded in water
quality monitoring during this reporting month. There was
no Action and Limit Level exceedance recorded on
other monitoring date at the monitoring stations showed at Table 4.1 by
the Environmental Team of Contract No. HY/2013/01 during the reporting period.
4.3.3
Although the exceedances were not relevant to this Contract, the
Contractor was reminded to provide appropriate water pollution
mitigation measures, such as ensure all construction activities that would
deteriorate the water quality was collected by sedimentation tanks or package
treatment systems for proper treatment prior to disposal.
5.
DOLPHIN MONITORING
5.1.
Monitoring Locations
The dolphin monitoring works for the Contract are covered by Contract No. HY/2013/01 Hong Kong-Zhuhai-Macao Bridge HKBCF ¡V Passenger Clearance Building.
The ET of the Contract or another ET of the HZMB project is required to conduct
dolphin monitoring at 24 transects as
part of EM&A programme if these transects are no longer covered under
Contract No. HY/2013/01. The dolphin monitoring should adopt
line-transect vessel survey method. The survey follows pre-set and fixed
transect lines in the two areas defined by AFCD as: Northeast Lantau survey area; and Northwest Lantau
survey area. Figure 3 shows the co-ordinates for the transect lines and layout map.
5.2.
Monitoring Requirements
The
monitoring requirements, monitoring equipment, monitoring parameters, frequency
and duration, monitoring methodology, monitoring schedule, meteorological
information are detailed in the monthly EM&A Reports prepared for Contract
No. HY/2013/01.
5.2.1.
The event and
action plan is provided in Appendix D.
5.2.2.
The Action and Limit Levels for Chinese White Dolphin Monitoring are provided in Table 5.1a & Table 5.1b
Table 5.1a Action and Limit
Levels for Chinese White Dolphin Monitoring ¡V Approach
to
Define
Action Level (AL) and Limit Level (LL)
|
North Lantau
Social Cluster |
|
NEL |
NWL |
|
Action Level |
(STG < 70% of baseline) & (ANI < 70% of
baseline) |
(STG < 70% of baseline) & (ANI < 70% of baseline) |
Limit Level |
[(STG < 40% of baseline) & (ANI < 40%
of baseline)] AND [(STG < 40% of baseline) & (ANI <
40% of baseline)] |
For North Lantau Social Cluster, action level will be trigger if
either NEL or NWL fall below the criteria; limit level will be triggered if
both NEL and NWL fall below the criteria.
Table 5.1b Derived Value of
Action Level (AL) and Limit Level (LL) for Chinese White
Dolphin
Monitoring
|
North Lantau
Social Cluster |
|
NEL |
NWL |
|
Action Level |
(STG < 4.2) & (ANI < 15.5) |
(STG < 6.9) & (ANI < 31.3) |
Limit Level |
[(STG < 2.4) & (ANI < 8.9)] AND [(STG
< 3.9) & (ANI < 17.9)] |
5.2.3.
If exceedance(s)
at these transects is/are recorded by the ET of the Contract or
referred by the other ET under the HZMB project to the Contract, the ET of the
Contract will carry out an investigation and findings will be reported in the
monthly EM&A Report.
5.3
Monitoring Result
The
dolphin survey results for all transects are reported in the monthly
EM&A Reports prepared for Contract No. HY/2013/01.
6.
ENVIRONMENTAL
SITE INSPECTION AND AUDIT
6.1.
Site Inspection
6.1.1.
Site Inspections
were carried out on a weekly basis to monitor the implementation of proper
environmental pollution control mitigation measures for the project. During the
reporting period, site inspections were carried out on 01, 08, 13 & 22 February 2018.
6.1.2.
As confirmed by
RSS on 16 January 2018, the landscape construction works including planting (Shrubs
& Grass), installation of irrigation pipe and soiling (Sub & Top soil) for Contract No. HY/2013/02 were commended on 04 November 2017. The landscape inspections were
conducted on 08 and 22 February 2018 on a
bi-weekly basis during the weekly environmental site inspection. The weekly site inspection checklists including the landscape inspection
items would be
submitted to IEC for checking within the reporting period.
6.1.3.
During the site inspections on February 2018,
there was no conflict occurred regarding
to the Landscape
& Visual mitigation
measures stated in Contract Specific EM&A Manual. The work site was found to be
confined within site boundaries and grass-hydroseed
was provided for bare soil surface and stock pile areas. Landscape & Visual mitigate Measures during
construction would be checked to ensure compliance with the intended aims of the measures.
6.1.4. Particular
observations during the site inspections are described below:
25 January
2018
(a)
Improper
storage of C&D materials was observed at Portion F. C&D
materials was collected at Portion F. The observation was closed
on 01 February 2018.
(b)
Inappropriate
NRMM label was observed at Portion C. Appropriate NRMM label was
provided at Portion C. The observation was closed
on 01 February 2018.
(c)
Tower
light generator with opened door was observed at Portion C. The
door was closed immediately at Portion C. The observation was closed on 01 February 2018.
01 February 2018
(a)
Stagnant water was observed at
Portion C. Stagnant water was cleared at Portion C. The observation was closed on 08 February 2018.
(b)
Substandard NRMM label was
observed at Portion A. Proper NRMM label was
provided at Portion A. The observation was closed
on 08 February 2018.
08 February 2018
(a)
Improper storage of chemical
containers were observed at Portion F. Chemical containers were
removed at Portion F. The observation was closed
on 13 February 2018.
(b)
Oil stain was observed on the road
surface at Portion C and Portion F. Oil stain was cleaned on the
road surface at Portion C and Portion F. The observation was closed on 13 February 2018.
(c)
Opened cement bag without cover
was observed at Portion F. Impervious cover was provided at
Portion F. The observation was closed on 13 February 2018.
(d)
An operating transformer without
NRMM label was observed at Portion A. Proper NRMM label was
provided at Portion A. The observation was closed
on 13 February 2018.
13 February 2018
(a)
Fugitive dust was observed on the
haul roads at Portion A and Portion F. Watering truck was arranged immediately
at Portion A and Portion F. The observation was closed
on 22 February 2018.
(b)
Improper disposal of chemical
container was observed at Portion F. Chemical container was
removed at Portion F. The observation was closed
on 22 February 2018.
(c)
Missing of NRMM label on an excavator
was observed at Portion F. Valid NRMM label was provided on an excavator at
Portion F. The observation was closed on 22 February 2018.
(d)
Stagnant water was observed inside
the drip tray of a generator at Portion C. Stagnant water was cleared
inside the drip tray of a generator at Portion C. The observation was closed
on 22 February 2018.
22 February 2018
(a)
Extra intersection was found after
the wheel washing facility at Portion A. Follow-actions for outstanding observation will be inspected during the
next site inspection.
6.2.
Advice on the Solid and
Liquid Waste Management Status
6.2.1.
The Contractor registered as a chemical waste producer for the
Contract. Sufficient numbers of receptacles were available for general refuse
collection and sorting.
6.2.2.
There was no excavated marine sediment generated in this reporting period. Since the disposal of excavated marine sediments has been completed
with the last batch disposal on 30 August 2017 as confirmed by RSS, no excavated marine sediment was still remained and stored on site awaiting
disposal during this reporting period under Contract No. HY/2013/02.
6.3.
Environmental Licenses
and Permits
6.3.1.
The valid environmental licenses and permits during the reporting period
are summarized in Appendix F.
6.4.
Implementation Status of Environmental Mitigation
Measures
6.4.1.
In response to the site audit findings, the Contractor carried out
corrective actions.
6.4.2.
The Contractor waters 8 times per day on all exposed soil within the
project site and associated works areas when construction activities are being
undertaken.
6.4.3.
The
Contractor was reminded to resolve the potential conflicts
between the proposed landscape measures and any other works of the project. The landscape works with mitigation code G1, G2
and G4 were mainly conducted in Portion D under construction stage. The other mitigation measures with mitigation code G5, G6, G7
& G9 were not yet started. The implementation status of Landscape and
Visual Mitigation Measures is presented in Appendix G.
6.4.4.
The Contractor was reminded to provide
well-maintained plant operated on-site and plant served regularly;
6.4.5.
The Contractor was reminded to switch
off vehicles and equipment while not in use;
6.4.6.
The Contractor was reminded to
schedule the construction works to minimize noise nuisance etc.
6.4.7.
A summary of the implementation Schedule of Environmental Mitigation
Measures (EMIS) is presented in Appendix G. Most of the necessary
mitigation measures were implemented properly.
6.5.
Summary of Exceedance of the Environmental Quality Performance Limit
6.5.1.
Summary of Action and
Limit Level exceedance of 1-hr TSP level and 24-hr
TSP level at AMS6 shall be referred to the monthly EM&A report prepared by
Contract No. HY/2011/03.
6.5.2.
There was no
Action and Limit Level
exceedance of
1-hr TSP level and 24-hr TSP level recorded at station AMS7 /
AMS7B by the Environmental Team of Contract No. HY/2013/01 during the reporting period.
6.5.3.
There was no
Action and Limit Level
exceedance for
noise recorded at station NMS2 and station NMS3B by the Environmental
Team of Contract No. HY/2013/01 during the reporting period.
6.5.4.
The monitoring
results for the monitoring stations showed in Table 4.1 are reported in
the monthly EM&A Report prepared for Contract No. HY/2013/01. During February
2018, there were two action
level exceedances of suspended solids recorded on 02 February 2018.
6.5.5. Since the removal of
temporary loading and unloading point by Contract No. HY/2013/02, which
involved marine work, was completed on 10 September 2017 and the area was
handed back to Reclamation Contractor with Contract No. HY/2010/02 on
11 September 2017 for subsequent seawall construction as confirmed by RSS, there was no marine works or
barge of this Contract worked at HKBCF reclamation site near the sea area or
area near the monitoring station under Contract No.
HY/2013/02 during February
2018. Hence,
specific investigation shall be referred to other ET¡¦s report(s) under the HZMB
Projects in which the respective contract(s) with remaining marine works
on-going for the exceedances recorded in water
quality monitoring during this reporting month. There was
no Action and Limit Level exceedance recorded on
other monitoring date at the monitoring stations showed at Table 4.1 by
the Environmental Team of Contract No. HY/2013/01 during the reporting period.
6.5.6. Impact dolphin monitoring results at all transects are reported in the EM&A Reports
prepared for Contract No. HY/2013/01.
6.6.
Summary of Complaints,
Notification of Summons and Successful Prosecution
6.6.1.
During February 2018,
there was a complaint received by Environmental
Protection Department on on 05 February 2018 and
referred to the ENPO on 05 February 2018. Then the ENPO
forwarded the complaint by email to the R.E. (AECOM), the Contractor (China
Harbour) and the ET (ETS-Testconsult Ltd.) of
Contract No. HY/2013/02 at 11:26 on 05 February 2018. The complaint
detail was "®Ú¾Ú¡mªÅ®ð¦Ã¬VºÞ¨î(«Ø³y¤uµ{¹Ð®J)³W¨Ò¡n¦a½LÀ³¦b«ü©wªº¨®½ø¥X¤f³B¦w¸Ë½üL²M¬~³]¬I¦ý¨C¤é±ß¤W7ÂI«á´N·|³Q¦a½LºÞ²z¤HûºI¤ô¡A¨Ï©Ò¦³¨®½øµLªk¬~²M½üL¦Ó¨«¥X¤u¦a¡A¥O¦a±°ï¿n¨F¹Ð¤Îªd¼ß¡A¼vÅT¨ä¥L¹D¸ô¨Ï¥ÎªÌ¤ÎÀô¹Ò½Ã¥Í¡Cn¨D·í§½¥[±j¨µ¬d¡A¥O¤u¦a¿í¦u³W¨Ò"
The complaint is under investigation and to be reported in the next
reporting month.
6.6.2.
There were no
notifications of summons or prosecutions received during the reporting period.
6.6.3.
Statistics on environmental complaints,
notifications of summons and successful prosecutions are summarized in Appendix H.
7.1
Construction Programme
for the Coming Months
7.1.1 As informed by the Contractor, the
major construction activities for March 2018 are summarized:
l Landscaping
work
l Road Furniture & Fit out
7.2
Environmental Site
Inspection Schedule for the Coming Month
7.2.1 The tentative schedule for weekly site
inspections for March 2018 is provided in Appendix I.
8.1
Conclusions
8.1.1 The site preparation work of the Contract was
started on 25 July 2014 and the construction works of the Contract commenced on
24 November 2014.
8.1.2 Summary of Action and Limit Level exceedance
of 1-hr TSP level and 24-hr TSP level at AMS6 shall be referred to the monthly
EM&A report prepared by Contract No. HY/2011/03.
8.1.3 There was no Action and Limit Level exceedance of 1-hr TSP
level and 24-hr TSP level recorded at station AMS7 / AMS7B by
the Environmental Team of Contract No. HY/2013/01 during the reporting period.
8.1.4 There was no Action and Limit Level exceedance
for noise recorded at station NMS2 and station NMS3B by the
Environmental Team of Contract No. HY/2013/01 during the reporting period.
8.1.5 The monitoring results for the monitoring stations showed in Table
4.1 are reported in the monthly EM&A Report prepared for Contract No. HY/2013/01. During February 2018, there were two action
level exceedances of suspended solid recorded on 02
February 2018.
8.1.6
Since the removal of temporary loading and unloading point by
Contract No. HY/2013/02, which involved marine work, was completed on 10
September 2017 and the area was handed back to Reclamation Contractor with
Contract No. HY/2010/02 on 11 September 2017 for subsequent seawall
construction as confirmed by RSS, there was no
marine works or barge of this Contract worked at HKBCF reclamation site near
the sea area or area near the monitoring station under Contract No. HY/2013/02 during February 2018. Hence, specific investigation shall be
referred to other ET¡¦s report(s) under the HZMB Projects in which the
respective contract(s) with remaining marine works on-going for the exceedances recorded in water quality monitoring during
this reporting month. There was no Action and Limit Level exceedance
recorded on other monitoring date at the monitoring stations showed at Table
4.1 by the Environmental Team of Contract No. HY/2013/01 during the reporting period.
8.1.7 Impact dolphin monitoring results at all transects are reported in the EM&A Reports
prepared for Contract No. HY/2013/01.
8.1.8 During February 2018, there was a complaint received by Environmental
Protection Department on on 05 February 2018 and
referred to the ENPO on 05 February 2018. Then the ENPO
forwarded the complaint by email to the R.E. (AECOM), the Contractor (China
Harbour) and the ET (ETS-Testconsult Ltd.) of
Contract No. HY/2013/02 at 11:26 on 05 February 2018. The complaint
detail was "®Ú¾Ú¡mªÅ®ð¦Ã¬VºÞ¨î(«Ø³y¤uµ{¹Ð®J)³W¨Ò¡n¦a½LÀ³¦b«ü©wªº¨®½ø¥X¤f³B¦w¸Ë½üL²M¬~³]¬I¦ý¨C¤é±ß¤W7ÂI«á´N·|³Q¦a½LºÞ²z¤HûºI¤ô¡A¨Ï©Ò¦³¨®½øµLªk¬~²M½üL¦Ó¨«¥X¤u¦a¡A¥O¦a±°ï¿n¨F¹Ð¤Îªd¼ß¡A¼vÅT¨ä¥L¹D¸ô¨Ï¥ÎªÌ¤ÎÀô¹Ò½Ã¥Í¡Cn¨D·í§½¥[±j¨µ¬d¡A¥O¤u¦a¿í¦u³W¨Ò"
The complaint is
under investigation and to be reported in the next reporting month.
8.1.9 There were no
notifications of summons or prosecutions received during the reporting period.
- END OF REPORT -
