TABLE OF CONTENTS
Page |
|||
1 |
1-2 |
||
1.1 |
Basic
Project Information |
1 |
|
1.2 |
Project
Organization |
2 |
|
1.3 |
Construction Programme |
2 |
|
1.4 |
Construction Works
Undertaken During the Reporting Period |
2 |
|
|
|
|
|
2 |
3-6 |
||
2.1 |
Summary of EM&A Requirements |
3-4 |
|
2.2 |
Monitoring Requirements |
4 |
|
2.3 |
Action and Limit Levels |
4-6 |
|
2.4 |
Event
Action plans |
6 |
|
2.5 |
Mitigation Measures |
6 |
|
|
|
|
|
3 |
6-10 |
||
3.1 |
Air
Quality Monitoring Result |
6 |
|
3.2 |
Noise Monitoring Results |
7 |
|
3.3 |
Water
Quality Monitoring
Results |
7-8 |
|
3.4 |
Dolphin Monitoring |
8 |
|
3.5 |
Implementation Status of Environmental
Mitigation Measures |
8-9 |
|
3.6 |
Advice on the Solid and Liquid
Waste Management Status |
9-10 |
|
3.7 |
Environmental
Licenses and Permits |
10 |
|
|
|
|
|
4 |
Summary of Exceedance,
Complaint, notification of summons and sucessful prosecution |
11 |
|
4.1 |
Summary of Exceedance of the Environmental
Quality Performance Limit |
11 |
|
4.2 |
Summary
of Complaints, Notification of Summons and Successful Prosecution |
11 |
|
|
|
|
|
5 |
12-13 |
||
5.1 |
Comments |
12 |
|
5.2 |
Recommendations |
12 |
|
5.3
|
Conclusions |
12-13 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
Figure
1 |
Air
Quality and Noise Monitoring
Stations for HKBCF |
|
|
Figure
2 |
Water Quality Monitoring Stations(construction phases) |
|
|
Figure
3 |
Dolphin Monitoring Transect Line and Layout Map |
|
|
|
|
|
|
Table |
|
Table 1.1 |
Contact
Information of Key Personnel |
Table 2.1 |
Air
Quality and Noise Monitoring Locations |
Table 2.2 |
Water
Quality Monitoring Stations(construction phases) |
Table 2.3 |
Action
and Limit Levels for 1-hour TSP |
Table 2.4 |
Action
and Limit Levels for 24-hour TSP |
Table 2.5 |
Action
and Limit Levels for Construction Noise |
Table 2.6 |
Action
and Limit Levels for Water Quality |
Table 2.7 |
Action
and Limit Levels for Chinese White Dolphin Monitoring ¡V Approach to Define
Action |
|
Level
( |
Table 2.8 |
Derived
Value of Action Level ( |
Table 3.1 |
Summary
of marine sediment disposed to dumping site via Contract No. HY/2013/03 |
|
|
APPENDIX |
|
Location
of Works Areas |
|
Project
Organization for Environmental Works |
|
Construction
Programme |
|
Event
and Action Plan |
|
Waste
Flow Table & Marine Sediment |
|
Environmental
Licenses and Permits |
|
Implementation
Schedule for Environmental Mitigation Measures (EMIS) |
|
Statistics on Environmental Complaints,
Notification of Summons and Successful Prosecutions |
|
Environmental
Site Inspection Schedule |
|
Investigation Report on Action or Limit Level
Non-compliance |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

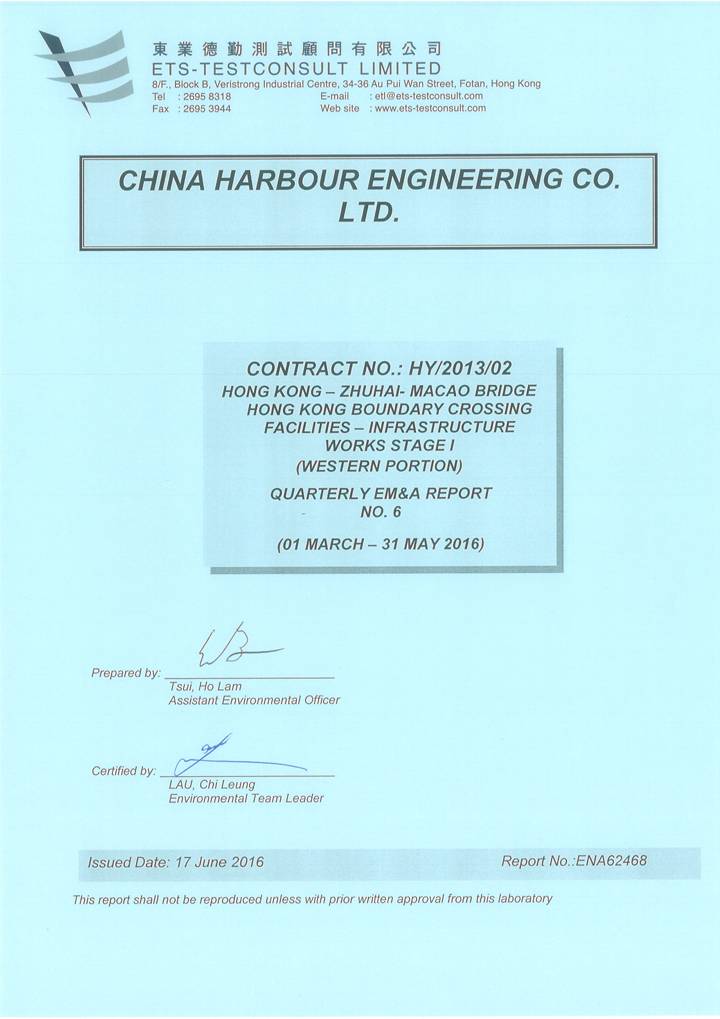

This Quarterly Environmental Monitoring and Audit (EM&A) Report is prepared for Contract HY/2013/02
Hong Kong-Zhuhai-Macao Bridge Hong Kong Boundary Crossing Facilities (HKBCF) ¡V
Infrastructure Works Stage I (Western Portion) (hereafter referred to as ¡§the
Contract¡¨) for the Highways Department of Hong Kong Special Administrative
Region (HKSAR). The Contract was awarded to China Harbour Engineering Co., Ltd.
(hereafter referred to as ¡§the Contractor¡¨) and ETS-Testconsult Limited was
appointed as the Environmental Team (ET) by the Contractor.
The Contract is part of
ETS-Testconsult Limited has been appointed by the
Contractor to implement the Environmental Monitoring & Audit (EM&A)
programme for the Contract in accordance with the Updated EM&A Manual for
HKBCF (Version 1.0) and provide environmental team services to the Contract.
This is the Sixth Quarterly Environmental
Monitoring and Audit (EM&A) Report for the Contract which summaries
findings of the EM&A works conducted during the reporting
period from 01 March 2016 to 31 May 2016.
Environmental Monitoring and Audit Progress
The EM&A programme was
undertaken in accordance with the Updated EM&A Manual for HKBCF (Version
1.0). It should be noted that the air quality and noise monitoring works for
the Contract are covered by Contract No. HY/2010/02 ¡§Hong Kong-Zhuhai-
The dates of environmental site
inspections during the reporting period are listed below:
Environmental Site Inspection
Date |
||
March 2016 |
April 2016 |
May 2016 |
03, 11, 17, 24 and 31 |
07, 15, 21 and 28 |
05, 12, 20 and 26 |
Breaches of Action and
Limit Levels
Summary
of Action and Limit Level exceedance of 1-hr TSP level and 24-hr TSP level at
AMS6 shall be referred to the monthly EM&A report prepared by Contract No.
HY/2011/03.
There was no
Action and Limit Level exceedance of 1-hr
TSP level and 24-hr TSP level recorded at station AMS7 by the
Environmental Team of Contract No. HY/2010/02 during the reporting period.
There was no
Action and Limit Level exceedance for
noise recorded at station NMS2 and station NMS3B by the
Environmental Team of Contract No. HY/2010/02 during the reporting period.
Although the marine construction
works of temporary loading and unloading point was
completed in December 2015 and no marine works was carried out during this reporting
period, water quality monitoring and impact dolphin monitoring are still
required in this reporting month.
There was one Limit Level
exceedance of SS on impact water quality monitoring at station SR4(N) during
mid-flood tide recorded on 20 May 2016. After investigation, there was
concluded that the exceedances were not relevant to this Contract since there
was no marine works carried out by this Contract during the reporting period. There was no Action and Limit
Level exceedance recorded on other date at the monitoring stations showed in Table
2.2 by the Environmental Team of
Contract No. HY/2010/02 during the reporting period. The Investigation Report
No. 003 (including the causes of exceedance, action taken and recommendation
for mitigation) for Action or Limit Level Non-compliance was provided in Appendix
J.
Impact dolphin monitoring results at all transects are reported in the
EM&A Report prepared for Contract No. HY/2010/02.
Implementation of Environmental
Measures
Site
inspections were carried out on a weekly basis to monitor the implementation of
proper environmental pollution control and mitigation measures for the Project.
Potential environmental impacts due to the construction activities were
monitored and reviewed.
Complaint Log
There
was no complaint received in relation to the environmental impact during the reporting period.
Notifications of Summons and
Successful Prosecutions
There
were no notification of summon or prosecution received during the reporting period.
Reporting
Change
The Environmental Permit (EP) was
updated from No. EP-353/2009/J to No. EP-353/2009/K for HKBCF which was applied
on 24 March 2016 and was issued on 11 April 2016. These documents are available
through the EIA Ordinance Register.
1.1 Basic Project
Information
1.2 Project Organization
Table 1.1 Contact Information of Key Personnel
Party |
Position |
Name of Key
Staff |
Tel. No. |
Fax No. |
Engineer or Engineer¡¦s
Representative (AECOM Asia
Co. Ltd.) |
Resident Engineer |
Mr.
Fred Yeung |
63308293 |
31525116 |
Environmental Project Office / Independent Environmental Checker
(Ramboll Environ Hong Kong Limited)
|
Environmental Project Office Leader |
Mr. Y. H. Hui |
34652888 |
34652899 |
Independent Environmental Checker |
Mr. Raymond Dai |
34652888 |
34652899 |
|
Environmental Site Supervisor |
Mr. Ray Yan |
51818165 |
34652899 |
|
Contractor (China Harbour Engineering
Co., Ltd.) |
Environmental Officer |
Mr. Richard Ng |
59770593 |
39150300 |
Environmental Supervisor |
Ms. Joy Chan |
54005086 |
39150300 |
|
Environmental Supervisor |
Ms. Selena Yang |
55122662 |
39150300 |
|
Environmental
Team (ETS-Testconsult Ltd.) |
Environmental
Team Leader |
Mr
C. L. Lau |
2946
7791 |
2695
3944 |
1.3 Construction
Programme
1.4 Construction
Works Undertaken During the Reporting Period
¡±
Bored piles
works in Portion A1, D, C1, C2& F;
¡±
Temporary
marine loading and unloading point for segment delivery in Portion A1;
¡±
Filling works
(land based) in Portion A & B1;
¡±
Pier / Abutment
in Portion D;
¡±
Pile Cap in
Portion D & A1;
¡±
Pre-bored
H-pile for sign gantries in Portion D;
¡±
Loading test of
preliminary pre-bored socketed steel H-pile in Portion D;
¡±
UU Detection
Works in Portion I;
¡±
Pit excavation
work and duct laying in Portion I;
¡±
Footing
construction of directional signs in Portion I;
¡±
Storm drain
construction;
¡±
Construction of
alternative site entrance;&
¡±
Marine sediment
excavation activities from the land-based works and corresponding disposal at
the designated disposal sites.
2.1 Summary of EM&A Requirements
The ET of the Contract or another ET of the HZMB project is required to
conduct dolphin monitoring at 23 transects as part of EM&A programme if
these transects are no longer covered under Contract No. HY/2010/02. The dolphin monitoring should adopt line-transect
vessel survey method. The survey follows pre-set and fixed transect lines in the
two areas defined by AFCD as: Northeast Lantau survey area; and
Table 2.1 Air Quality and Noise Monitoring Locations
Environmental Monitoring |
Identification No. |
Location Description |
Air Quality |
AMS6(1) |
Dragonair / CNAC (Group) Buidling |
AMS7(1) (2) |
Hong Kong SkyCity Marriott Hotel |
|
Noise |
NMS2(3) |
|
NMS3B(3)(4) |
Site Boundary
of Site Office Area at Works Area WA2 |
Remarks:
(1) The ET of this Contract should
conduct impact air quality monitoring at the AMS listed in the table as part of
EM&A programme according to latest notification from ENPO when the
monitoring station(s) is/are no longer covered by another ET of the HZMB
project.
(2) The air quality
monitoring location AMS
(3) ET of this Contract should conduct impact
noise monitoring at the NMS listed in the table as part of EM&A programme
according to latest notification from ENPO when the monitoring station(s)
is/are no longer covered by another ET of the HZMB project.
(4) The Action and Limit Levels for schools
will be applied for this alternative monitoring location.
Table 2.2 Water Quality Monitoring Stations (construction
phases)
Station |
Description |
East |
North |
IS7
|
Impact
Station (Close to HKBCF construction site) |
812244 |
818777 |
IS10
|
Impact
Station (Close to HKBCF construction site) |
812577 |
820670 |
IS(Mf)11
|
Impact
Station (Close to HKBCF construction site) |
813562 |
820716 |
SR3
|
Sensitive
receivers (San Tau SSSI) |
810525 |
816456 |
SR4(N)
|
Sensitive
receivers (Tai Ho) |
814705 |
817859 |
SR5
|
Sensitive
receivers (Artificial Reef in NE Airport) |
811489 |
820455 |
SR6
|
Sensitive
receivers (Sha Chau and |
805837 |
821818 |
SR7
|
Sensitive
receivers (Tai Mo Do) |
814293 |
821431 |
SR |
Sensitive
receivers (Ma Wan FCZ)1 |
823741 |
823495 |
SR10B(N)[1] |
Sensitive
receivers (Ma Wan FCZ)2 |
823683 |
823187 |
CS(Mf)3
|
Control
Station |
809989 |
821117 |
CS(Mf)5
|
Control
Station |
817990 |
821129 |
CS4
|
Control
Station |
810025 |
824004 |
CS6
|
Control
Station |
817028 |
823992 |
CSA
[2] |
Control
Station |
818103 |
823064 |
Note:
[1]: Additional monitoring station for Ma Wan
FCZ.
[2]: Additional control monitoring station
for Ma Wan FCZ
Remarks:
The ET of this
Contract should conduct impact water quality monitoring at the WQMS listed in
the table as part of EM&A programme according to latest notification from
ENPO when the monitoring station(s) is/are no longer covered by another ET of
the HZMB project. The ET of the
Contract shall communicate and share the monitoring data to the ET(s) of other
works contracts if the water quality monitoring station(s) is/are as part of
EM&A programme.
2.2
Monitoring Requirements
2.3 Action and Limit Levels
Table 2.3 Action and Limit Levels for 1-hour TSP
Monitoring Station. |
Action Level,mg/m3 |
Limit Level,mg/m3 |
AMS6 ¡V Dragnair / SNAC (Group) Building
(HKIA) |
360 |
500 |
AMS |
370 |
500 |
AMS7 ¡V Hong Kong SkyCity Marriott Hotel |
370 |
500 |
Table 2.4 Action and Limit Levels for 24-hour TSP
Monitoring Station. |
Action Level,mg/m3 |
Limit Level,mg/m3 |
AMS6 ¡V Dragnair / SNAC (Group) Building
(HKIA) |
173 |
260 |
AMS |
183 |
260 |
AMS7 ¡V Hong Kong SkyCity Marriott Hotel |
183 |
260 |
Table 2.5 Action and Limit Levels for Construction
Noise
Parameter |
Action Level |
Limit Level |
07:00 ¡V 19:00 hours
on normal weekdays |
When one documented
complaint is received |
75 dB(A)* |
|
Notes:
If works are to be carried out during restricted hours, the conditions stipulated in the construction noise permit issued by the Noise Control Authority have to be followed.
* Reduce to 70
dB(A)
for schools and 65 dB(A) during school examination period.
2.3.5
The Action and Limit Levels for Water Quality are provided in Table 2.6
Table 2.6 Action and Limit Levels for Water Quality
Parameters |
Action |
Limit |
DO in mg/L (Surface,
Middle & Bottom) |
Surface and Middle
5.0 Bottom 4.7 |
Surface and Middle
4.2 (except 5 mg/L for FCZ) Bottom 3.6 |
SS in mg/L (depth-averaged) at
all monitoring stations and control stations |
23.5 and 120% of upstream control
station's SS at the same tide of the same day* |
34.4 and 130% of upstream control
station's SS at the same tide of the same day and 10mg/L for WSD Seawater
intakes* |
Turbidity in NTU (depth-averaged) |
27.5 and 120% of upstream
control station's turbidity at the
same tide of the same day* |
47.0 and 130% of upstream
control station's turbidity at the
same tide of the same day* |
* Remarks: Reference is made to EPD approval of
adjustment of water quality assessment criteria issued and became effective on
18 February 2013.
Notes: 1 "depth-averaged"
is calculated by taking the arithmetic means of reading of all three depths.
2 For
DO, non-compliance of the water quality limits occurs when monitoring result is
lower than the limits.
3 For turbidity, SS, non-compliance of the water
quality limits occurs when monitoring result is higher than the limits.
4 All
the figures given in the table are used for reference only and the EPD may amend
the figures whenever it is considered as necessary.
5 The
1%-ile of baseline data for dissolved oxygen (surface and middle) and dissolved
oxygen (bottom) are 4.2mg/L and 3.6mg/L respectively.
Table 2.7 Action and Limit Levels for Chinese White
Dolphin Monitoring ¡V Approach to Define Action Level (
|
|
|
NEL |
NWL |
|
Action Level |
(STG < 70% of baseline) & (ANI < 70% of baseline) |
(STG < 70% of baseline) & (ANI < 70% of baseline) |
Limit Level |
[(STG < 40% of baseline) & (ANI <
40% of baseline)] AND [ (STG < 40% of baseline) & (ANI
< 40% of baseline)] |
For North Lantau Social Cluster, action level will be trigger if either
NEL or NWL fall below the criteria; limit level will be triggered if both NEL
and NWL fall below the criteria.
Table 2.8 Derived
Value of Action Level (
|
|
|
NEL |
NWL |
|
Action Level |
STG < 4.2) & (ANI < 15.5 ) |
(STG < 6.9) & (ANI < 31.3) |
Limit Level |
[(STG < 2.4) & (ANI < 8.9)] AND [(STG
< 3.9) & (ANI < 17.9)] |
The ET
of this Contract should conduct impact dolphin monitoring as part of EM&A
programme according to latest notification from ENPO when the monitoring transect(s) is/are no longer covered by
another ET of the HZMB project.
2.4 Event
Action Plans
2.5 Mitigation Measures
3 Environmental
Monitoring and Audit
3.1 Air
Quality Monitoring Results
3.2 Noise Monitoring Results
3.3 Water
Quality Monitoring Result
3.4
Dolphin monitoring
Result
3.4.2
Impact dolphin monitoring
results at all transects were reported in the EM&A Report prepared for
Contract No. HY/2010/02. One limit level exceedance was recorded in the
monitoring period (March 2016 ¡V May 2016).
3.4.3
During this reporting
period, no marine works was conducted by Contract No. HY/2013/02. After checked
the Contractor¡¦s
3.4.4
After investigation, there was concluded that the exceedance
was not relevant to this Contract due to the above mentioned reasons. The
Investigation Report (including the causes of exceedance, action taken and
recommendation for mitigation) for Action or Limit Level Non-compliance was
prepared by the ET of Contract No. HY/2010/02 and detailed in the quarterly EM&A Report prepared
for Contract No. HY/2010/02.
3.5
Implementation of Environmental Measures
3.6 Advice on
the Solid and Liquid Waste Management Status
3.6.2
Table 3.1
Summary of marine sediment disposed
to dumping site via Contract No. HY/2013/03
Month/Year |
Quantity disposed (m3) |
January 2016 |
1272 |
February 2016 |
2816 |
March 2016 |
600 |
April 2016 |
5218 |
May 2016 |
0 |
Total = |
9816 |
3.7 Environmental
Licenses and Permits
4 Summary
of exceedance, complaint, notification of summons and successful prosecution
4.1 Summary
of Exceedance of the Environmental Quality Performance Limit
4.1.4
There was one Limit Level exceedance of SS on
impact water quality monitoring at station SR4(N) during mid-flood tide
recorded on 20 May 2016. After investigation, there was concluded that the
exceedances were not relevant to this Contract since there was no marine works
carried out by this Contract during the reporting period. There was no Action and Limit Level
exceedance recorded on other date at the monitoring stations showed in Table
2.2 by the Environmental Team of Contract No.
HY/2010/02 during the reporting period. The Investigation Report No. 003
(including the causes of exceedance, action taken and recommendation for
mitigation) for Action or Limit Level Non-compliance was provided in Appendix
J.
4.1.5
Impact
dolphin monitoring results at all transects are reported in the EM&A Report
prepared for Contract No. HY/2010/02.
4.2 Summary
of Complaints, Notification of Summons and Successful Prosecution
4.2.1
There was no complaint received in relation
to the environmental impact during the reporting
period.
4.2.2
There were no
notifications of summons or prosecutions received during the reporting period.
5 Comments,
recommendations and conclusion
5.1 Comments
n
The Contractor was reminded to provide drip tray for the
chemical container;
n
The Contractor was reminded to dispose the general waste
properly;
n
The Contractor was reminded to store the C&D waste/material
properly;
n
The Contractor was reminded to clean stagnant water;
n
The contractor was reminded to provide appropriate
NRMM label for the machines;
n
The Contractor was reminded to enhance the water spraying
n
The Contractor was reminded to provide additional watering for the
breaking works; and
n
The Contractor was reminded to provide water spraying for the haul road
regularly to prevent fugitive dust emission.
5.2 Recommendations
5.3
Conclusions
5.3.2
Summary of Action and
Limit Level exceedance of 1-hr TSP level and 24-hr TSP level at AMS6 shall be
referred to the monthly EM&A report prepared by Contract No. HY/2011/03.
5.3.3
There was no Action and Limit Level exceedance
of 1-hr TSP level and 24-hr TSP level
recorded at station AMS7 by the Environmental Team of Contract No. HY/2010/02 during the reporting period.
5.3.4
There was no
Action and Limit Level
exceedance of noise recorded at
station NMS2 and station NMS3B by the Environmental Team of Contract No.
HY/2010/02 during the reporting period.
5.3.5
There was one Limit Level exceedance of SS on
impact water quality monitoring at station SR4(N) during mid-flood tide
recorded on 20 May 2016. After investigation, there was concluded that the
exceedances were not relevant to this Contract since there was no marine works
carried out by this Contract during the reporting period. There was no Action and Limit Level
exceedance recorded on other date at the monitoring stations showed in Table
2.2 by the Environmental Team of Contract No.
HY/2010/02 during the reporting period. The Investigation Report No. 003
(including the causes of exceedance, action taken and recommendation for
mitigation) for Action or Limit Level Non-compliance was provided in Appendix
J.
5.3.6
Impact
dolphin monitoring results at all transects are reported in the EM&A Report
prepared for Contract No. HY/2010/02.
5.3.7
Environmental
site inspections were carried out on 03, 11, 17, 24 and 31 March 2016, 07,
15, 21
and 28 April 2016 and 05, 12, 20 and 26 May 2016. Recommendations on remedial
actions were given to the Contractors for the deficiencies identified during
the site inspections.
5.3.8
There was no complaint received in relation to the environmental
impact during the reporting period.
5.3.9
There was no notification of summons and successful prosecution was
received during the reporting period.
