TABLE OF
CONTENTS
Page |
|||
1 |
1-2 |
||
1.1 |
Basic
Project Information |
1 |
|
1.2 |
Project
Organization |
2 |
|
1.3 |
Construction Programme |
2 |
|
1.4 |
Construction Works
Undertaken During the Reporting Period |
2 |
|
|
|
|
|
2 |
3-6 |
||
2.1 |
Summary of EM&A Requirements |
3-4 |
|
2.2 |
Monitoring Requirements |
4 |
|
2.3 |
Action and Limit Levels |
4-6 |
|
2.4 |
Event
Action plans |
6 |
|
2.5 |
Mitigation Measures |
6 |
|
|
|
|
|
3 |
6-10 |
||
3.1 |
Air
Quality Monitoring Result |
6-7 |
|
3.2 |
Noise Monitoring Results |
7 |
|
3.3 |
Water
Quality Monitoring
Results |
7 |
|
3.4 |
Dolphin Monitoring |
7 |
|
3.5 |
Implementation Status of Environmental
Mitigation Measures |
8 |
|
3.6 |
Advice on the Solid and Liquid
Waste Management Status |
8-10 |
|
3.7 |
Environmental
Licenses and Permits |
10 |
|
|
|
|
|
4 |
Summary of Exceedance,
Complaint, notification of summons and sucessful prosecution |
11 |
|
4.1 |
Summary of Exceedance of the Environmental
Quality Performance Limit |
11 |
|
4.2 |
Summary
of Complaints, Notification of Summons and Successful Prosecution |
11 |
|
|
|
|
|
5 |
12-13 |
||
5.1 |
Comments |
12 |
|
5.2 |
Recommendations |
12 |
|
5.3
|
Conclusions |
12-13 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
Figure
1 |
Air
Quality and Noise Monitoring
Stations for HKBCF |
|
|
Figure
2 |
Water Quality Monitoring Stations(construction phases) |
|
|
Figure
3 |
Dolphin Monitoring Transect Line and Layout Map |
|
|
|
|
|
|
Table |
|
Table 1.1 |
Contact
Information of Key Personnel |
Table 2.1 |
Air
Quality and Noise Monitoring Locations |
Table 2.2 |
Water
Quality Monitoring Stations (construction phases) |
Table 2.3 |
Action
and Limit Levels for 1-hour TSP |
Table 2.4 |
Action
and Limit Levels for 24-hour TSP |
Table 2.5 |
Action
and Limit Levels for Construction Noise |
Table 2.6 |
Action
and Limit Levels for Water Quality |
Table 2.7 |
Action
and Limit Levels for Chinese White Dolphin Monitoring ¡V Approach to Define
Action |
|
Level ( |
Table 2.8 |
Derived
Value of Action Level ( |
Table 3.1 |
Summary
of marine sediment disposed to dumping site via Contract No. HY/2013/03 |
APPENDIX |
|
Location
of Works Areas |
|
Project
Organization for Environmental Works |
|
Construction
Programme |
|
Event
and Action Plan |
|
Implementation
Schedule for Environmental Mitigation Measures (EMIS) |
|
Site Audit Findings and Corrective Actions |
|
Waste Flow
Table |
|
Environmental
Licenses and Permits |
|
Statistics on
Environmental Complaints, Notification of Summons and Successful
Prosecutions |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

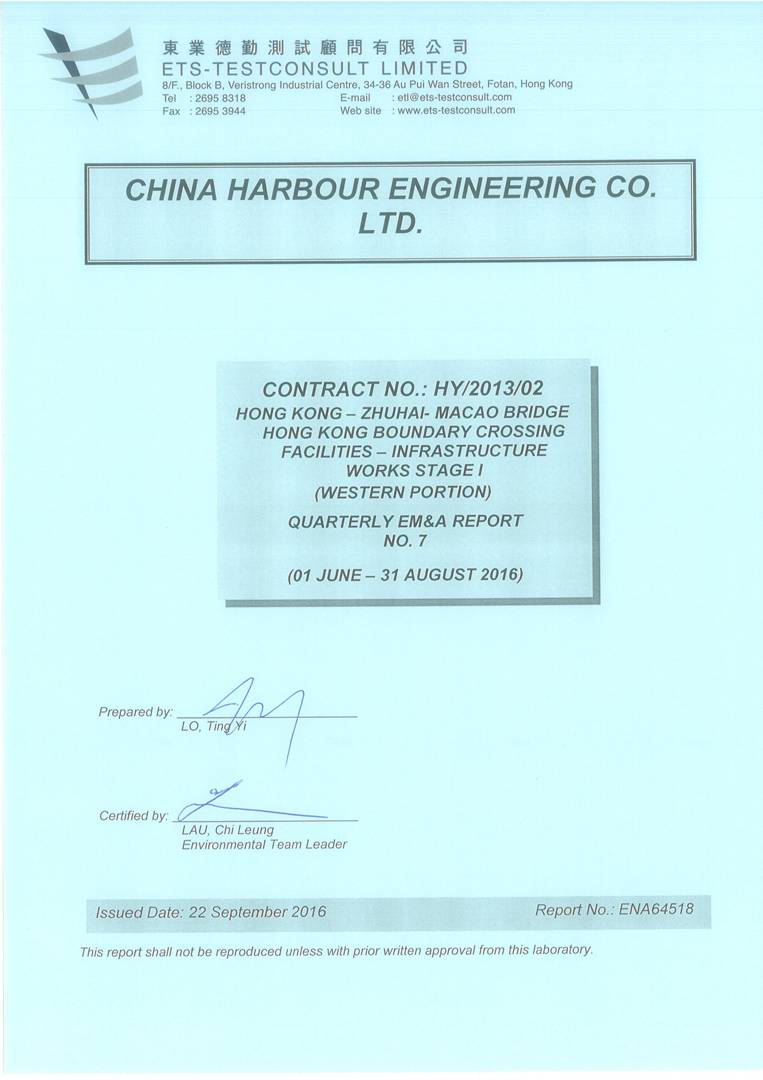

This Quarterly Environmental Monitoring and Audit (EM&A) Report is prepared for Contract HY/2013/02
Hong Kong-Zhuhai-Macao Bridge Hong Kong Boundary Crossing Facilities (HKBCF) ¡V
Infrastructure Works Stage I (Western Portion) (hereafter referred to as ¡§the
Contract¡¨) for the Highways Department of Hong Kong Special Administrative
Region (HKSAR). The Contract was awarded to China Harbour Engineering Co., Ltd.
(hereafter referred to as ¡§the Contractor¡¨) and ETS-Testconsult Limited was
appointed as the Environmental Team (ET) by the Contractor.
The Contract is part of
ETS-Testconsult Limited has been appointed by the
Contractor to implement the Environmental Monitoring & Audit (EM&A)
programme for the Contract in accordance with the Updated EM&A Manual for
HKBCF (Version 1.0) and provide environmental team services to the Contract.
This is the Seventh Quarterly Environmental
Monitoring and Audit (EM&A) Report for the Contract which summaries
findings of the EM&A works conducted during the reporting
period from 01 June 2016 to 31 August
2016.
Environmental Monitoring and Audit Progress
The EM&A programme was
undertaken in accordance with the Updated EM&A Manual for HKBCF (Version
1.0). It should be noted that the air quality and noise monitoring works for
the Contract are covered by Contract No. HY/2010/02 ¡§Hong Kong-Zhuhai-
The dates of environmental site
inspections during the reporting period are listed below:
Environmental Site Inspection
Date |
||
June 2016 |
July 2016 |
August 2016 |
02, 08, 16, 23 and 30 |
07, 15, 21 and 28 |
04, 11, 19 and 25 |
Breaches of Action and
Limit Levels
Summary
of Action and Limit Level exceedance of 1-hr TSP level and 24-hr TSP level at
AMS6 shall be referred to the monthly EM&A report prepared by Contract No.
HY/2011/03.
There was no
Action and Limit Level exceedance of 1-hr
TSP level and 24-hr TSP level recorded at station AMS7 by the
Environmental Team of Contract No. HY/2010/02 during the reporting period.
There was no
Action and Limit Level exceedance for
noise recorded at station NMS2 and station NMS3B by the
Environmental Team of Contract No. HY/2010/02 during the reporting period.
There was no Action and Limit
Level exceedance recorded at the monitoring stations showed in Table 2.2 by the Environmental Team of Contract No.
HY/2010/02 during the reporting period.
Impact dolphin monitoring results at all transects are reported in the
EM&A Report prepared for Contract No. HY/2010/02.
Implementation of Environmental
Measures
Site
inspections were carried out on a weekly basis to monitor the implementation of
proper environmental pollution control and mitigation measures for the Project.
Potential environmental impacts due to the construction activities were
monitored and reviewed.
Complaint Log
There
was no complaint received in relation to the environmental impact during the reporting period.
Notifications of Summons and
Successful Prosecutions
There
were no notification of summon or prosecution received during the reporting period.
Reporting
Change
There was no reporting change
during the reporting period.
1.1 Basic Project
Information
1.2 Project Organization
Table 1.1 Contact Information of Key Personnel
Party |
Position |
Name of Key Staff |
Tel. No. |
Fax No. |
Engineer or Engineer¡¦s
Representative (AECOM Asia
Co. Ltd.) |
Resident
Engineer |
Mr. Fred Yeung |
6330
8293 |
3152
5116 |
Environmental Project Office
/ Independent Environmental Checker (Ramboll Environ Hong Kong Limited) |
Environmental
Project Office Leader |
Mr. Y. H. Hui |
3465
2888 |
3465
2899 |
Independent
Environmental Checker |
Mr.
Raymond Dai |
3465
2888 |
3465
2899 |
|
Environmental
Site Supervisor |
Mr.
Ray Yan |
5181
8165 |
3465
2899 |
|
Contractor
(China Harbour Engineering Co., Ltd.) |
Environmental
Officer |
Mr.
Richard Ng |
5977
0593 |
3915
0300 |
Assistant
Environmental Officer |
Mr.
Paper Chan |
6486
8967 |
3915
0300 |
|
Environmental
Supervisor |
Mr.
Endy Tse |
5512
2662 |
3915
0300 |
|
Environmental Team (ETS-Testconsult
Ltd.) |
Environmental Team Leader |
Mr. C. L. Lau |
2946 7791 |
2695 3944 |
1.3 Construction
Programme
1.4 Construction
Works Undertaken During the Reporting Period
¡±
Bored piles
works in Portion A, D, C & F;
¡±
Pier / Abutment in Portion D
& A
¡±
Pile Cap in Portion D, A, C &
F;
¡±
Pre-bored H-pile for sign
gantries in Portion D;
¡±
Storm drain and water main
construction;
¡±
Footing construction of
directional signs and duct laying in Portion I;
¡±
Marine delivery of precast
segment;
¡±
Construction of bridge deck in
Portion D;
¡±
Marine sediment excavation activities from the land-based works and corresponding
disposal at the
designated disposal sites;
¡±
UU Detection Works in Portion
I;
¡±
Pit excavation work and duct
laying in Portion I; &
¡±
Filling works (land-based) in
Portion A
2.1 Summary of EM&A Requirements
The ET of the Contract or another ET of the HZMB project is required to
conduct dolphin monitoring at 23 transects as part of EM&A programme if
these transects are no longer covered under Contract No. HY/2010/02. The dolphin monitoring should adopt line-transect
vessel survey method. The survey follows pre-set and fixed transect lines in the
two areas defined by AFCD as: Northeast Lantau survey area; and
Table 2.1 Air Quality and Noise Monitoring Locations
Environmental Monitoring |
Identification No. |
Location Description |
|
Air
Quality |
AMS6(1) |
Dragonair / CNAC
(Group) Building |
|
AMS7(1) (2) |
Hong Kong SkyCity Marriott Hotel |
||
Noise |
NMS2(3) |
|
|
NMS3B(3)(4) |
Site Boundary of Site Office Area at
Works Area WA2 |
||
Remarks: |
|
||
(1) The ET of this Contract should
conduct impact air quality monitoring at the AMS listed in the table as part
of EM&A programme according to latest notification from ENPO when the
monitoring station(s) is/are no longer covered by another ET of the HZMB
project. |
|
||
(2) The
air quality monitoring location AMS |
|
||
(3) ET of this Contract should
conduct impact noise monitoring at the NMS listed in the table as part of
EM&A programme according to latest notification from ENPO when the
monitoring station(s) is/are no longer covered by another ET of the HZMB
project. |
|
||
(4) The Action and Limit Levels
for schools will be applied for this alternative monitoring location. |
|
||
Table 2.2 Water Quality Monitoring Stations
(construction phases)
Station |
Description |
East |
North |
|
IS7 |
Impact Station (Close
to HKBCF construction site) |
812244 |
818777 |
|
IS10 |
Impact Station (Close
to HKBCF construction site) |
812577 |
820670 |
|
IS(Mf)11 |
Impact Station (Close
to HKBCF construction site) |
813562 |
820716 |
|
SR3 |
Sensitive receivers
(San Tau SSSI) |
810525 |
816456 |
|
SR4(N) |
Sensitive receivers
(Tai Ho) |
814705 |
817859 |
|
SR5 |
Sensitive receivers
(Artificial Reef in NE Airport) |
811489 |
820455 |
|
SR6 |
Sensitive receivers
(Sha Chau and |
805837 |
821818 |
|
SR7 |
Sensitive receivers
(Tai Mo Do) |
814293 |
821431 |
|
SR |
Sensitive receivers (Ma
Wan FCZ)1 |
823741 |
823495 |
|
SR10B(N)[1] |
Sensitive receivers (Ma
Wan FCZ)2 |
823683 |
823187 |
|
CS(Mf)3 |
Control Station |
809989 |
821117 |
|
CS(Mf)5 |
Control Station |
817990 |
821129 |
|
CS4 |
Control Station |
810025 |
824004 |
|
CS6 |
Control Station |
817028 |
823992 |
|
CSA[2] |
Control Station |
818103 |
823064 |
|
Note: |
|
|||
[1]: Additional monitoring station for Ma Wan
FCZ. |
|
|||
[2]: Additional control monitoring station for Ma
Wan FCZ |
|
|||
Remarks: |
|
|||
The ET of this
Contract should conduct impact water quality monitoring at the WQMS listed in
the table as part of EM&A programme according to latest notification from
ENPO when the monitoring station(s) is/are no longer covered by another ET of
the HZMB project. The ET of the
Contract shall communicate and share the monitoring data to the ET(s) of
other works contracts if the water quality monitoring station(s) is/are as
part of EM&A programme. |
|
|||
2.2
Monitoring Requirements
2.3 Action and Limit Levels
Table 2.3 Action and Limit Levels for 1-hour TSP
Monitoring
Station |
Action Level,mg/m3 |
Limit Level,mg/m3 |
AMS6 ¡V Dragnair / SNAC (Group) Building
(HKIA) |
360 |
500 |
AMS7 ¡V Hong Kong SkyCity Marriott Hotel |
370 |
500 |
Table 2.4 Action and Limit Levels for 24-hour TSP
Monitoring
Station |
Action
Level, mg/m3 |
Limit
Level,mg/m3 |
AMS6 ¡V
Dragnair / SNAC (Group) Building (HKIA) |
173 |
260 |
AMS7 ¡V Hong Kong SkyCity Marriott Hotel |
183 |
260 |
Table 2.5 Action and Limit Levels for Construction
Noise
Parameter |
Action Level |
Limit Level |
|
07:00 ¡V
19:00 hours on normal weekdays |
When one
documented complaint is received |
75 dB(A)* |
|
Notes: |
|
||
If works are to be carried out during restricted hours, the conditions stipulated in the construction noise permit issued by the Noise Control Authority have to be followed. * Reduce to 70 dB(A)
for schools and 65 dB(A) during school examination period. |
|
||
2.3.5
The Action and Limit Levels for Water Quality are provided in Table 2.6
Table 2.6 Action and Limit Levels for Water Quality
Parameters |
Action |
Limit |
|
DO in mg/L (Surface, Middle & Bottom) |
Surface and Middle 5.0 Bottom 4.7 |
Surface and Middle 4.2 (except 5 mg/L for FCZ) Bottom 3.6 |
|
SS in mg/L (depth-averaged) at all monitoring stations and control
stations |
23.5 and 120% of upstream control station's SS at the same tide of the
same day* |
34.4 and 130% of upstream control station's SS at the same tide of the
same day and 10mg/L for WSD Seawater intakes* |
|
Turbidity in NTU (depth-averaged) |
27.5 and 120% of upstream control station's turbidity at the same tide
of the same day* |
47.0 and 130% of upstream control station's turbidity at the same tide
of the same day* |
|
*Remarks: |
Reference is made to EPD approval of adjustment
of water quality assessment criteria |
||
|
issued and
became effective on 18 February 2013. |
||
Notes: |
1.
"depth-averaged"
is calculated by taking the arithmetic means of reading of all three depths. |
||
|
2.
For DO,
non-compliance of the water quality limits occurs when monitoring result is lower
than the limits. |
||
|
3.
For
turbidity, SS, non-compliance of the water quality limits occurs when
monitoring result is higher than the limits. |
||
|
4.
All the
figures given in the table are used for reference only and the EPD may amend
the figures whenever it is considered as necessary. |
||
|
5.
The
1%-ile of baseline data for dissolved oxygen (surface and middle) and
dissolved oxygen (bottom) are 4.2mg/L and 3.6mg/L respectively. |
||
2.3.6
If
exceedance(s) at these station(s) is/are recorded by the ET of the Contract or
referred by the other ET under the HZMB project to the Contract, the ET of the
Contract will carry out an investigation and findings will be reported in the
quarterly EM&A Report.
2.3.7
The Action and Limit Levels for Chinese White Dolphin Monitoring are provided in Table 2.7 & Table 2.8
Table 2.7 Action and Limit Levels for Chinese White
Dolphin Monitoring ¡V Approach to Define Action Level (
|
|
|
NEL |
NWL |
|
Action Level |
(STG < 70% of baseline) & (ANI < 70% of baseline) |
(STG < 70% of baseline) & (ANI < 70% of baseline) |
Limit Level |
[(STG < 40% of baseline) & (ANI < 40% of baseline)] AND [ (STG < 40% of baseline) & (ANI < 40% of baseline)] |
For North Lantau Social Cluster, action level will be trigger if either
NEL or NWL fall below the criteria; limit level will be triggered if both NEL
and NWL fall below the criteria.
Table 2.8 Derived Value of Action Level (
|
|
|
NEL |
NWL |
|
Action Level |
(STG < 4.2) & (ANI < 15.5 ) |
(STG < 6.9) & (ANI < 31.3) |
Limit Level |
[(STG < 2.4) & (ANI < 8.9)] AND [(STG
< 3.9) & (ANI < 17.9)] |
The ET
of this Contract should conduct impact dolphin monitoring as part of EM&A
programme according to latest notification from ENPO when the monitoring transect(s) is/are no longer covered by
another ET of the HZMB project.
2.4 Event
Action Plans
2.5 Mitigation Measures
3 Environmental
Monitoring and Audit
3.1 Air
Quality Monitoring Results
3.2 Noise Monitoring Results
3.3 Water
Quality Monitoring Result
3.4
Dolphin monitoring
Result
3.4.1
Impact dolphin monitoring
results at all transects were reported in the EM&A Report prepared for
Contract No. HY/2010/02. One limit level exceedance was recorded in the
monitoring period (June 2016 ¡V August 2016).
3.4.2
During this reporting
period, no marine works was conducted by Contract No. HY/2013/02. After checked
the Contractor¡¦s
3.4.3
The exceedance is still under investigation by Contract No.
HY/2010/02. The Investigation Report (including the causes of exceedance,
action taken and recommendation for mitigation) for Action or Limit Level
Non-compliance will be prepared by the ET of Contract No. HY/2010/02 and
detailed in the quarterly EM&A Report prepared for
Contract No. HY/2010/02. The implementation of Regular Marine Travel Route Plan (RMTRP) for the
above mentioned two round trips of marine transportation undertaken by Contract
No. HY/2013/02 during the reporting period were checked by the ET. The Regular Marine Travel Route Plan were
prepared and given to the Caption to use in order to minimize the chance of vessel collision
and the routes would not go through the dolphin hotspot in
3.5
Implementation of Environmental Measures
3.6 Advice on
the Solid and Liquid Waste Management Status
3.6.2
Table 3.1 Summary of marine sediment disposed to dumping site via Contract No.
HY/2013/03
Month/Year |
Quantity
disposed (m3) |
January 2016 |
1272 |
February 2016 |
2816 |
March 2016 |
600 |
April 2016 |
5218 |
May 2016 |
0 |
June 2016 |
1200 |
July 2016 |
728 |
August 2016 |
1784 |
Total = |
13528 |
3.7 Environmental
Licenses and Permits
4 Summary
of exceedance, complaint, notification of summons and successful prosecution
4.1 Summary
of Exceedance of the Environmental Quality Performance Limit
4.1.4
There
was no Action and Limit Level exceedance recorded at the monitoring stations showed in Table
2.2 by the Environmental Team of Contract No.
HY/2010/02 during the reporting period.
4.1.5
Impact
dolphin monitoring results at all transects are reported in the EM&A Report
prepared for Contract No. HY/2010/02.
4.2 Summary
of Complaints, Notification of Summons and Successful Prosecution
4.2.1
There was no complaint received in relation
to the environmental impact during the reporting
period.
4.2.2
There were no
notifications of summons or prosecutions received during the reporting period.
5 Comments,
recommendations and conclusion
5.1 Comments
n
The Contractor was reminded to dispose the general refuse
properly;
n
The Contractor was reminded to store the C&D waste/material
properly;
n
The Contractor was reminded to
discharge wastewater properly;
n
The Contractor was reminded to provide drip tray for the
chemical containers;
n
The Contractor was reminded to store
chemical containers properly;
n
The Contractor was reminded to conduct
Bentonite operation in an enclosed system;
n
The Contractor was reminded to conduct
Cement operation in an area covered the top and the three sides;
n
The Contractor was reminded to provide
canvas under the bridge of the wharfage;
n
The Contractor was reminded to close
the door of the generators when operating;
n
The Contractor was reminded to clear stagnant water pool;
n
The Contractor was reminded to provide appropriate
NRMM label for the machines;
n
The Contractor was reminded to enhance the water spraying;
5.2 Recommendations
5.3
Conclusions
5.3.2
Summary of Action and
Limit Level exceedance of 1-hr TSP level and 24-hr TSP level at AMS6 shall be
referred to the monthly EM&A report prepared by Contract No. HY/2011/03.
5.3.3
There was no
Action and Limit Level
exceedance of 1-hr TSP level and 24-hr TSP
level recorded at station AMS7 by the Environmental Team of Contract
No. HY/2010/02 during the reporting period.
5.3.4
There was no
Action and Limit Level
exceedance of noise recorded at
station NMS2 and station NMS3B by the Environmental Team of Contract No.
HY/2010/02 during the reporting period.
5.3.5
There
was no Action and Limit Level exceedance recorded at the monitoring stations
showed in Table 2.2 by the
Environmental Team of Contract No. HY/2010/02 during the reporting period.
5.3.6
Impact
dolphin monitoring results at all transects are reported in the EM&A Report
prepared for Contract No. HY/2010/02.
5.3.7
Environmental
site inspections were carried out on 02, 08, 16, 23 and 30 June 2016, 07,
15, 21
and 28 July 2016 and 04, 11, 19 and 25 August 2016. Recommendations
on remedial actions were given to the Contractors for the deficiencies
identified during the site inspections.
5.3.8
There was no complaint received in relation to the environmental
impact during the reporting period.
5.3.9
There was no notification of summons and successful prosecution was
received during the reporting period.
