This Quarterly Environmental Monitoring and Audit (EM&A) Report is prepared for Contract HY/2013/02
Hong Kong-Zhuhai-Macao Bridge Hong Kong Boundary Crossing Facilities (HKBCF) ¡V
Infrastructure Works Stage I (Western Portion) (hereafter referred to as ¡§the
Contract¡¨) for the Highways Department of Hong Kong Special Administrative
Region (HKSAR). The Contract was awarded to China Harbour Engineering Co., Ltd.
(hereafter referred to as ¡§the Contractor¡¨) and ETS-Testconsult
Limited was appointed as the Environmental Team (ET) by the Contractor.
The Contract is part of Hong Kong ¡V Zhuhai ¡V Macao
Bridge HKBCF which is a ¡§Designated Project¡¨, under Schedule 2 of the
Environmental Impact Assessment Ordinance (EIAO) (Cap 499) and Environmental
Impact Assessment (EIA) Report (Register No. AEIAR-145/2009) was prepared for
the Project. The current Environmental Permit (EP) No.
EP-353/2009/K for HKBCF was issued on 11 April 2016. These documents are
available through the EIA Ordinance Register. Site preparation works of the
Contract was started on 25 July 2014 and the construction works of the Contract
commenced on 24 November 2014.
ETS-Testconsult Limited
has been appointed by the Contractor to implement the Environmental Monitoring
& Audit (EM&A) programme for the Contract in accordance with the
Updated EM&A Manual for HKBCF (Version 1.0) and provide environmental team
services to the Contract.

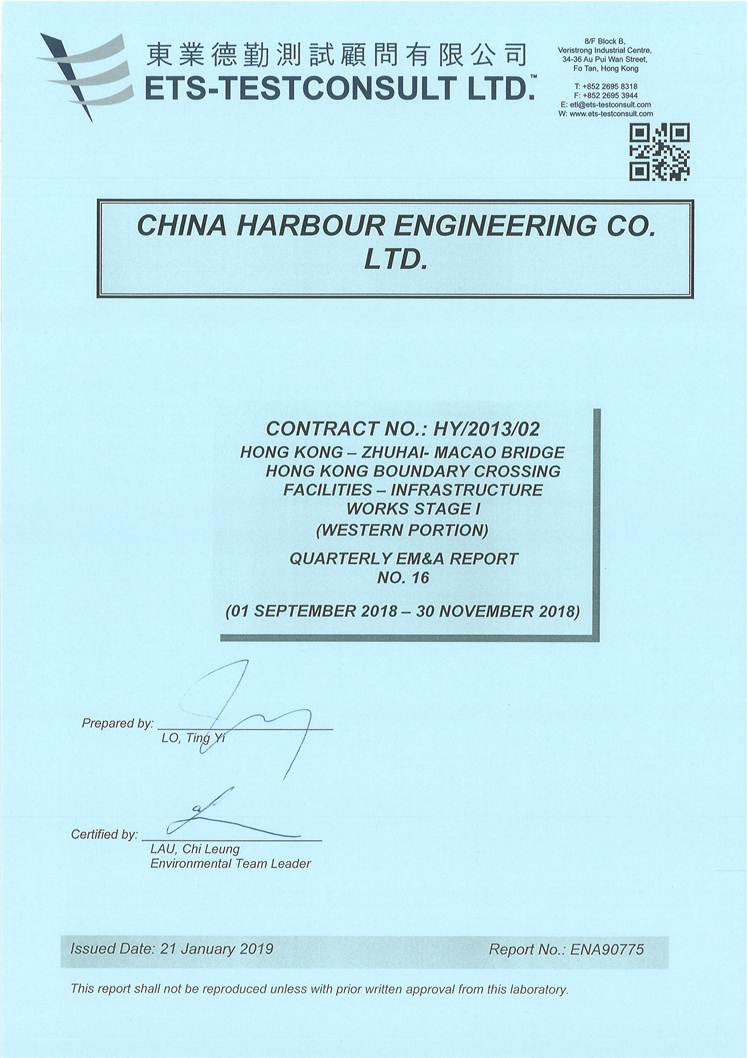

This is the sixteenth Quarterly Environmental Monitoring and Audit (EM&A) Report for the Contract which summaries findings of the EM&A works conducted during the reporting period from 01 September 2018 to 30 November 2018.
Environmental Monitoring and Audit Progress
The monthly EM&A programme was
undertaken in accordance with the Updated EM&A Manual for HKBCF (Version 1.0).
It should be noted that the air quality monitoring works for the Contract are
covered by Contract No. HY/2013/01 ¡§Hong Kong-Zhuhai-Macao Bridge HKBCF ¡V Passenger Clearance Building¡¨ during September 2018, Contract No. HY/2011/03 ¡§Hong
Kong-Zhuhai-Macao Bridge Hong Kong Link Road ¡V Section between Scenic Hill and
HKBCF¡¨ during the
reporting quarter and Contract No. HY/2013/04 HZMB HKBCF ¡V
Infrastructure Works Stage II (Southern Portion) during October 2018 and November 2018. And the noise monitoring for
the Contract are covered by Contract No. HY/2013/01 ¡§Hong Kong-Zhuhai-Macao
Bridge HKBCF ¡V Passenger
Clearance Building¡¨ during September 2018 and Contract
No. HY/2013/04 HZMB HKBCF ¡V Infrastructure Works Stage II (Southern Portion) during September to November 2018. The ET of the Contract or
another ET of the HZMB project is required to conduct impact air quality
monitoring at AMS6 and AMS7B, noise monitoring at NMS2 and
NMS3C, water quality monitoring show in Figure
2 and dolphin monitoring
show in Figure 3 as part of EM&A programme
if these monitoring stations are no longer covered under Contract
No. HY/2013/01, HY/2011/03 and HY/2013/04. However, this is subject to
ENPO¡¦s final decision on which ET should carry out the monitoring works at
these stations.
Due to the commence operation of HKBCF on 24 October 2018 and the closed
area permit have not yet issued, environmental site inspection on 25 October 2018 as scheduled was cancelled. Also, during November
2018, environmental site inspection would only be
conducted if there are any ad-hoc construction works within the construction
site of Contract No. HY/2013/02 due to the
commence operation of HKBCF on 24 October 2018. The dates of environmental site
inspections during the reporting period are listed below:
Environmental Site Inspection Date |
|
September 2018 |
October 2018 |
06, 13, 20 and 27 |
04, 11 and 18 |
Breaches
of Action and Limit Levels
Summary
of Action and Limit Level exceedance of 1-hr TSP
level and 24-hr TSP level at AMS6 shall be referred to the monthly EM&A
report prepared by Contract No. HY/2011/03.
There was no Action and Limit Level exceedance of 1-hr TSP
level and 24-hr TSP level recorded at station AMS7B by the
Environmental Team of Contract No. HY/2013/01 during September 2018 and Contract
No. HY/2013/04 during October 2018 and
November 2018.
There was no Action and Limit Level exceedance for noise recorded
at station NMS2 by the
Environmental Team of Contract No. HY/2013/01 during September 2018 and by the
Environmental Team of Contract No. HY/2013/04 during October and November 2018 and station NMS3C by
the Environmental Team of Contract No. HY/2013/04 during September to November 2018.
For water quality monitoring, there were
153 action level exceedances
and 29 limit level exceedance
of dissolved oxygen, 1 action
level exceedance of turbidity and 8 action level exceedance of suspended solid during the reporting period. The following table summarized the number of exceedances on each sampling date:
Sampling Date |
No. of Exceedances |
|||||
DO |
Turbidity |
SS |
||||
Action |
Limit |
Action |
Limit |
Action |
Limit |
|
03/09/2018 |
30 |
4 |
0 |
0 |
0 |
0 |
05/09/2018 |
21 |
5 |
0 |
0 |
0 |
0 |
07/09/2018 |
21 |
1 |
0 |
0 |
0 |
0 |
10/09/2018 |
48 |
12 |
0 |
0 |
1 |
0 |
12/09/2018 |
27 |
2 |
0 |
0 |
1 |
0 |
14/09/2018 |
6 |
4 |
0 |
0 |
0 |
0 |
28/09/2018 |
0 |
1 |
0 |
0 |
0 |
0 |
10/10/2018 |
0 |
0 |
0 |
0 |
1 |
0 |
24/10/2018 |
0 |
0 |
1 |
0 |
0 |
0 |
23/11/2018 |
0 |
0 |
0 |
0 |
3 |
0 |
26/11/2018 |
0 |
0 |
0 |
0 |
2 |
0 |
Total: |
153 |
29 |
1 |
0 |
8 |
0 |
Since the removal of temporary loading and unloading point by Contract
No. HY/2013/02, which involved marine work, was completed on
10 September 2017 and the area was handed back to Reclamation Contractor with
Contract No. HY/2010/02 on 11 September 2017 for subsequent seawall
construction as confirmed by RSS, there was no marine works or barge of this
Contract worked at HKBCF reclamation site near the sea area or area near the
monitoring station under Contract No. HY/2013/02 during September 2018, October 2018 and November 2018. Hence, specific investigation shall be referred to other ET¡¦s report(s)
under the HZMB Projects in which the respective contract(s) with remaining
marine works on-going for the exceedances recorded in
water quality monitoring during this reporting period. There was no Action and Limit Level exceedance
recorded on other monitoring date at the monitoring stations showed at Table
4.1 by the Environmental Team of Contract No. HY/2013/01 during September 2018 and by the Environmental Team of Contract No.
HY/2013/04 during October 2018 and
November 2018.
Impact dolphin monitoring results at all transects were reported in the EM&A Report prepared for Contract
No. HY/2013/01 during September 2018 and Contract No. HY/2013/04 during October to November 2018.
Implementation of Environmental Measures
Site inspections
were carried out on a weekly basis to monitor the implementation of proper
environmental pollution control and mitigation measures for the Project.
Potential environmental impacts due to the construction activities were
monitored and reviewed.
Complaint Log
There was no complaint received in
relation to the environmental impact during the reporting period.
Notifications of Summons and Successful
Prosecutions
There were no
notification of summon or prosecution received during the reporting period.
Reporting Change
The entire environmental monitoring responsibility
under the EM&A programme for the HZMB HKBCF Project has been switched from
Contract No. HY/2013/01 to Contract No. HY/2013/04
since 01 October 2018.
1.1
Basic Project Information
1.1.1
This Quarterly Environmental
Monitoring and Audit (EM&A) Report is
prepared for Contract HY/2013/02 Hong Kong¡VZhuhai-Macao Bridge Hong Kong
Boundary Crossing Facilities (HKBCF) ¡V Infrastructure Works Stage I (Western
Portion) (hereafter referred to as ¡§the Contract¡¨) for the Highways Department
of Hong Kong Special Administrative Region (HKSAR). The Contract was awarded to
China Harbour Engineering Co., Ltd. (hereafter referred to as ¡§the Contractor¡¨)
and ETS-Testconsult Limited was appointed as the
Environmental Team (ET) by the Contractor.
1.1.2
The Contract is part of
Hong Kong ¡V Zhuhai ¡V Macao Bridge HKBCF which is a ¡§Designated Project¡¨, under
Schedule 2 of the Environmental Impact Assessment Ordinance (EIAO) (Cap 499)
and an Environmental Impact Assessment (EIA) Report (Register No.
AEIAR-145/2009) was prepared for the Project. The current Environmental Permit
(EP) No. EP-353/2009/K for HKBCF was issued on 11 April 2016. These documents
are available through the EIA Ordinance Register. Site preparation works of the
Contract started on 25 July 2014 and the construction works of the Contract
commenced on 24 November 2014. The works area of the Contract is shown in Appendix
A.
1.1.3
This is the sixteenth Quarterly Environmental
Monitoring and Audit (EM&A) Report for the Contract which summaries
findings of the EM&A works conducted during the reporting period from 01 September 2018 to 30 November 2018.
1.2
Project Organization
1.2.1
The project
organisation structure and lines of communication with respect to the
on-site environmental management
structure is shown in Appendix B. The key personnel contact
names and numbers are summarized in Table
1.1.
Table 1.1 Contact
Information of Key Personnel
Party |
Position |
Name of Key Staff |
Tel. No. |
Fax No. |
Engineer or Engineer¡¦s Representative
(AECOM Asia Co. Ltd.) |
Resident Engineer |
Mr. Winston Wong |
6330 8293 |
3152 5116 |
Environmental Project Office / Independent Environmental Checker
(Ramboll Hong Kong Limited) |
Environmental Project Office Leader |
Mr. Y. H. Hui |
3465 2888 |
3465 2899 |
Independent Environmental Checker |
Mr. Raymond Dai |
3465 2888 |
3465 2899 |
|
Environmental Site Supervisor |
Mr. Ray Yan |
5181 8165 |
3465 2899 |
|
Contractor (China Harbour Engineering
Co., Ltd.) |
Environmental Officer |
Mr. Endy Tse |
5512 2662 |
3915 0300 |
Environmental
Team (ETS-Testconsult Ltd.) |
Environmental
Team Leader |
Mr. C. L. Lau |
2946
7791 |
2695
3944 |
1.3
Construction Programme
1.3.1
A copy of the Contractor¡¦s construction
programme is provided in Appendix C.
1.4
Construction Works Undertaken During the Reporting Period
1.4.1
As confirmed by RSS, the capital works
were substantially completed on 28 March 2018. A summary of the construction activities undertaken
during this
reporting period is shown below:
l
Establishment
work for Landscape
2.1
Summary of EM&A Requirements
2.1.1 The monthly
EM&A programme was undertaken in accordance with the Updated EM&A
Manual for HKBCF (Version 1.0). It should be noted that the air quality
monitoring works for the Contract are covered by Contract No. HY/2013/01 ¡§Hong
Kong-Zhuhai-Macao Bridge HKBCF ¡V Passenger
Clearance Building¡¨ during September 2018,
Contract No.
HY/2011/03 ¡§Hong Kong-Zhuhai-Macao Bridge Hong Kong Link Road ¡V Section between
Scenic Hill and HKBCF¡¨ during the reporting
quarter and Contract No. HY/2013/04 HZMB HKBCF ¡V Infrastructure Works Stage II
(Southern Portion) during October 2018 and November 2018.
And the noise monitoring for the Contract are covered by Contract No. HY/2013/01 ¡§Hong
Kong-Zhuhai-Macao Bridge HKBCF ¡V Passenger
Clearance Building¡¨ during September 2018 and Contract No.
HY/2013/04 HZMB HKBCF ¡V Infrastructure Works Stage II (Southern Portion) during September to November 2018. The ET of the Contract or
another ET of the HZMB project is required to conduct impact air quality
monitoring at AMS6 and AMS7B, noise monitoring at NMS2 and NMS3C show at Figure 1.1, Figure 1.2 and Table 2.1, water
quality monitoring show at Figure 2
and Table 2.2 and dolphin monitoring show in Figure 3 as part of
EM&A programme if these monitoring stations are no longer covered under Contract No. HY/2013/01, HY/2011/03 and HY/2013/04. However, this is subject to ENPO¡¦s final decision on which ET should carry out the monitoring works at these stations.
The ET of the Contract or another ET of the HZMB
project is required to conduct dolphin monitoring at 24
transects
as part of EM&A programme if these transects are no longer covered under
Contract No. HY/2013/04. The dolphin monitoring should adopt line-transect
vessel survey method. The survey follows pre-set and fixed transect
lines in the two areas defined by AFCD as: Northeast Lantau
survey area; and Northwest Lantau survey area. Figure 3 shows
the
co-ordinates for the transect lines and layout map.
2.1.2 A summary of air and
noise monitoring locations are presented in Table 2.1. The location of
air quality and noise monitoring stations are shown as in Figure 1.1 and Figure
1.2.
Table 2.1 Air
Quality and Noise Monitoring Locations
Environmental Monitoring |
Identification No. |
Location Description |
Air Quality |
AMS6(1) |
Dragonair / CNAC (Group)
Building |
AMS7B(1)(2) |
3RS Site
Offices |
|
Noise |
NMS2(3) |
Seaview Crescent |
NMS3C(3)(4)(5) |
Ying Tung
Estate Refuse Collection Point |
|
Remarks: |
||
(1) The ET of this Contract should
conduct impact air quality monitoring at the AMS listed in the table as part
of EM&A programme according to latest notification from ENPO when the
monitoring station(s) is/are no longer covered by another ET of the HZMB
project. |
||
(2) Alternative Air Quality Monitoring Stations with effect from 06 February 2018 |
||
(3) ET of this Contract should
conduct impact noise monitoring at the NMS listed in the table as part of
EM&A programme according to latest notification from ENPO when the
monitoring station(s) is/are no longer covered by another ET of the HZMB
project. |
||
(4) The Action and Limit Levels
for schools will be applied for this alternative monitoring location. (5) Alternative Noise Monitoring Station to replace NMS3B with effect from 20 August 2018 |
2.1.3 The water monitoring works for the Contract are covered by Contract
No. HY/2013/01 during September 2018 and Contract No.
HY/2013/04 during October to November 2018. The ET of the Contract
or another ET of the HZMB project is required to conduct water quality monitoring at twenty one stations (9
Impact Stations, 7 Sensitive Receiver Stations and 5 Control/Far Field
Stations). Due to topographical conditions of SR3, SR10A
and SR10B(N), the
water quality monitoring (WQM) stations was proposed to be monitored at
alternative WQM stations named as SR3(N), SR10A
(N) and SR10B(N2). The proposal for alternation of
water quality monitoring stations for HZMB HKBCF was justified by the ET
Leader for Contract No. HY/2013/01 on 08 November 2017 and verified by the
IEC on 13 November 2017; and submitted to EPD on 29 November 2017, and it was
approved by EPD on 22 December 2017. Table 2.2 and Figure 2 shows the locations of water quality monitoring stations.
Table 2.2 Water Quality Monitoring Stations
(construction phases)
Station |
Description |
East |
North |
IS5 |
Impact
Station (Close to HKBCF construction site) |
811579 |
817106 |
IS(Mf)6 |
Impact
Station (Close to HKBCF construction site) |
812101 |
817873 |
IS7
|
Impact
Station (Close to HKBCF construction site) |
812244 |
818777 |
IS8 |
Impact
Station (Close to HKBCF construction site) |
814251 |
818412 |
IS(Mf)9 |
Impact
Station (Close to HKBCF construction site) |
813273 |
818850 |
IS10(N) |
Impact Station (Close to HKBCF
construction site) |
812942 |
820881 |
IS(Mf)11
|
Impact
Station (Close to HKBCF construction site) |
813562 |
820716 |
IS(Mf)16 |
Impact
Station (Close to HKBCF construction site) |
814328 |
819497 |
IS17 |
Impact
Station (Close to HKBCF construction site) |
814539 |
820391 |
SR3
|
Sensitive
receivers (San Tau SSSI) |
810525 |
816456 |
SR3(N)[3] |
Sensitive
receivers (San Tau SSSI) |
810689 |
816591 |
SR4(N)
|
Sensitive
receivers (Tai Ho) |
814705 |
817859 |
SR5(N) |
Sensitive receiver (Artificial
Reef in NE Airport) |
812569 |
821475 |
SR6
|
Sensitive
receivers (Sha Chau and
Lung Kwu Chau Marine
Park) |
805837 |
821818 |
SR7
|
Sensitive
receivers (Tai Mo Do) |
814293 |
821431 |
SR10A[1] |
Sensitive
receivers (Ma Wan FCZ)1 |
823741 |
823495 |
SR10A(N) [1][3] |
Sensitive
receivers (Ma Wan FCZ)1 |
823644 |
823484 |
SR10B(N)[1] |
Sensitive
receivers (Ma Wan FCZ)2 |
823683 |
823187 |
SR10B(N2) [1][3] |
Sensitive
receivers (Ma Wan FCZ)2 |
823689 |
823159 |
CS(Mf)3(N) |
Control Station |
808814 |
822355 |
CS(Mf)5
|
Control
Station |
817990 |
821129 |
CS4
|
Control
Station |
810025 |
824004 |
CS6
|
Control
Station |
817028 |
823992 |
CSA[2] |
Control
Station |
818103 |
823064 |
Note: |
|||
(1) Additional monitoring station for Ma Wan
FCZ. |
|||
(2)
Additional
control monitoring station for Ma Wan FCZ (3)
Alternative
WQM Stations with effect from 22 December
2017 |
|||
Remarks: |
|||
The ET of this Contract should conduct impact water quality
monitoring at the WQMS listed in the table as part of EM&A programme
according to latest notification from ENPO when the monitoring station(s)
is/are no longer covered by another ET of the HZMB project. The ET of the Contract
shall communicate and share the monitoring data to the ET(s) of other works
contracts if the water quality monitoring station(s) is/are as part of
EM&A programme. |
2.1.4
The dolphin monitoring works for the Contract are covered by Contract No. HY/2013/01 during September 2018 and Contract No.
HY/2013/04 during October to November 2018. Figure 3 shown the layout map for the vessel-based
transect lines.
2.2
Monitoring Requirements
2.2.1
The monitoring requirements, monitoring
equipment, monitoring parameters, frequency and duration, monitoring
methodology, monitoring schedule, meteorological information are detailed in
the monthly EM&A Reports prepared for Contract Nos. HY/2013/01, HY/2011/03 and HY/2013/04.
2.3
Action and
Limit Levels
2.3.1
The Action
and Limit Levels for 1-hr TSP and 24-hr TSP are provided in Table 2.3 and Table
2.4 respectively. The Action and Limit Levels of AMS7B are as same as the original levels of AMS7.
Table
2.3 Action
and Limit Levels for 1-hour TSP
Monitoring Station |
Action Level,mg/m3 |
Limit Level,mg/m3 |
AMS6 ¡V Dragnair / SNAC (Group) Building
(HKIA) |
360 |
500 |
AMS7B ¡V 3RS Site Offices |
370 |
500 |
Table 2.4 Action and Limit Levels for 24-hour TSP
Monitoring Station |
Action Level, mg/m3 |
Limit Level,mg/m3 |
AMS6 ¡V Dragnair /
SNAC (Group) Building (HKIA) |
173 |
260 |
AMS7B - 3RS
Site Offices |
183 |
260 |
2.3.2
If exceedance(s) at these station(s) is/are recorded by the ET
of the Contract or referred by the other ET under the HZMB project to the
Contract, the ET of the Contract will carry out an investigation and findings
will be reported in the quarterly EM&A Report.
2.3.3
The Action and Limit Levels for construction noise are provided in Table 2.5
Table
2.5 Action and Limit Levels for Construction Noise
Parameter |
Action Level |
Limit Level |
07:00 ¡V 19:00 hours on normal weekdays |
When
one documented complaint is received |
75
dB(A)* |
Notes: |
||
If works are to be carried out during restricted hours, the conditions stipulated in the construction noise permit issued by the Noise Control Authority have to be followed. * Reduce to 70
dB(A) for schools and 65 dB(A) during school examination period. |
2.3.4
If exceedance(s) at these station(s) is/are recorded by the ET
of the Contract or referred by the other ET under the HZMB project to the
Contract, the ET of the Contract will carry out an investigation and findings
will be reported in the quarterly EM&A Report.
2.3.5
The Action and Limit Levels for Water Quality are provided in Table 2.6
Table 2.6 Action
and Limit Levels for Water Quality
Parameters |
Action |
Limit |
|
DO in mg/L (Surface, Middle & Bottom) |
Surface and Middle 5.0 Bottom 4.7 |
Surface and Middle 4.2 (except 5 mg/L for FCZ) Bottom 3.6 |
|
SS in mg/L (depth-averaged) at all monitoring
stations and control stations |
23.5 and 120% of upstream control station's SS at
the same tide of the same day* |
34.4 and 130% of upstream control station's SS at
the same tide of the same day and 10mg/L for WSD Seawater intakes* |
|
Turbidity in NTU (depth-averaged) |
27.5 and 120% of upstream control station's turbidity
at the same tide of the same day* |
47.0 and 130% of upstream control station's
turbidity at the same tide of the same day* |
|
*Remarks: |
Reference is made to EPD
approval of adjustment of water quality assessment criteria |
||
|
issued and became effective on 18 February 2013. |
||
Notes: |
1.
"depth-averaged" is calculated by taking the arithmetic
means of reading of all three depths. |
||
|
2.
For DO, non-compliance of the water quality limits occurs when
monitoring result is lower than the limits. |
||
|
3.
For turbidity, SS, non-compliance of the water quality limits occurs
when monitoring result is higher than the limits. |
||
|
4.
All the figures given in the table are used for reference only and the
EPD may amend the figures whenever it is considered as necessary. |
||
|
5.
The 1%-ile of baseline data for dissolved
oxygen (surface and middle) and dissolved oxygen (bottom) are 4.2mg/L and
3.6mg/L respectively. |
||
2.3.6 If exceedance(s) at these
station(s) is/are recorded by the ET of the Contract or referred by the other
ET under the HZMB project to the Contract, the ET of the Contract will carry
out an investigation and findings will be reported in the quarterly EM&A
Report.
2.3.7 The Action and Limit Levels for Chinese White Dolphin
Monitoring are provided in Table 2.7 & Table 2.8
Table 2.7 Action
and Limit Levels for Chinese White Dolphin Monitoring
¡V Approach to Define Action Level (AL) and Limit Level (LL)
|
North Lantau
Social Cluster |
|
NEL |
NWL |
|
Action Level |
(STG < 70% of baseline) & (ANI < 70% of baseline) |
(STG < 70% of baseline) & (ANI < 70% of baseline) |
Limit Level |
[(STG < 40% of baseline) & (ANI < 40%
of baseline)] AND [ (STG < 40% of baseline) & (ANI <
40% of baseline)] |
For North Lantau Social
Cluster, action level will be trigger if either NEL or NWL fall below the criteria;
limit level will be triggered if both NEL and NWL fall below the criteria.
Table 2.8 Derived
Value of Action Level (AL) and Limit Level (LL) for Chinese White
Dolphin Monitoring
|
North Lantau
Social Cluster |
|
NEL |
NWL |
|
Action Level |
(STG < 4.2) & (ANI < 15.5 ) |
(STG < 6.9) & (ANI < 31.3) |
Limit Level |
[(STG < 2.4) & (ANI < 8.9)] AND [(STG
< 3.9) & (ANI < 17.9)] |
The ET
of this Contract should conduct impact dolphin monitoring as part of EM&A
programme according to latest notification from ENPO when the monitoring transect(s) is/are no longer covered by
another ET of the HZMB project.
2.3.8
If exceedance(s) at these transect(s) is/are recorded by the
ET of the Contract or referred by the other ET under the HZMB project to the
Contract, the ET of the Contract will carry out an investigation and findings
will be reported in the quarterly EM&A Report.
2.4
Event Action
Plans
2.4.1
The event and
action plan is provided in Appendix D.
2.5
Mitigation
Measures
2.5.1
Environmental
mitigation measures for the Contract were recommended in the Approved EIA Report.
Appendix E lists the recommended mitigation measures and the implementation
status.
3
Environmental Monitoring and Audit
3.1
Air Quality Monitoring
Results
3.1.1 The monitoring results for AMS6 and AMS7B were reported in the monthly EM&A
Reports (September
2018, October 2018 and November 2018) prepared for Contract Nos. HY/2011/03,
HY/2013/01 and HY/2013/04.
3.1.2 Summary of Action and Limit Level exceedance
of 1-hr TSP level and 24-hr TSP level at AMS6 shall be referred to the monthly
EM&A report prepared by Contract No. HY/2011/03.
3.1.3 There was no Action and Limit Level exceedance of 1-hr TSP
level and 24-hr TSP level recorded at station AMS7B by the Environmental Team of Contract
No. HY/2013/01 during September 2018 and Contract
No. HY/2013/04 during October 2018 and
November 2018.
3.2
Noise
Monitoring Results
3.2.1 The monitoring results for NMS2 and NMS3C were reported in the monthly EM&A Reports (September 2018, October 2018 and November
2018) prepared by Contract No. HY/2013/01 and HY/2013/04.
3.2.2 There was no Action and Limit Level exceedance for noise recorded
at station NMS2 by the
Environmental Team of Contract No. HY/2013/01 during September 2018 and by the Environmental Team of
Contract No. HY/2013/04 during October
to November 2018 and station NMS3C by the Environmental Team of
Contract No. HY/2013/04 during September
to November 2018.
3.3
Water
Quality Monitoring Result
3.3.1 The monitoring results
for the monitoring stations
showed in Table 2.2 were
reported in the monthly EM&A Reports (September 2018) prepared for Contract No.
HY/2013/01
and the monthly
EM&A Reports
(October 2018 and November 2018) prepared for Contract No. HY/2013/04. For water
quality monitoring, there were 153 action
level exceedances and 29 limit level exceedance of dissolved
oxygen, 1 action level exceedance
of turbidity and 8 action level exceedance of suspended solid during the reporting period. The following table summarized the number of exceedances on each sampling date:
Sampling Date |
No. of Exceedances |
|||||
DO |
Turbidity |
SS |
||||
Action |
Limit |
Action |
Limit |
Action |
Limit |
|
03/09/2018 |
30 |
4 |
0 |
0 |
0 |
0 |
05/09/2018 |
21 |
5 |
0 |
0 |
0 |
0 |
07/09/2018 |
21 |
1 |
0 |
0 |
0 |
0 |
10/09/2018 |
48 |
12 |
0 |
0 |
1 |
0 |
12/09/2018 |
27 |
2 |
0 |
0 |
1 |
0 |
14/09/2018 |
6 |
4 |
0 |
0 |
0 |
0 |
28/09/2018 |
0 |
1 |
0 |
0 |
0 |
0 |
10/10/2018 |
0 |
0 |
0 |
0 |
1 |
0 |
24/10/2018 |
0 |
0 |
1 |
0 |
0 |
0 |
23/11/2018 |
0 |
0 |
0 |
0 |
3 |
0 |
26/11/2018 |
0 |
0 |
0 |
0 |
2 |
0 |
Total: |
153 |
29 |
1 |
0 |
8 |
0 |
3.3.2. Since the removal of temporary loading and unloading point by
Contract No. HY/2013/02, which involved marine work, was completed on 10
September 2017 and the area was handed back to Reclamation Contractor with
Contract No. HY/2010/02 on 11 September 2017 for subsequent seawall
construction as
confirmed by RSS, there was no marine works or
barge of this Contract worked at HKBCF reclamation site near the sea area or
area near the monitoring station under Contract No.
HY/2013/02 during September 2018, October
2018 and November 2018. Hence,
specific investigation shall be referred to other ET¡¦s report(s) under the HZMB
Projects in which the respective contract(s) with remaining marine works
on-going for the exceedances recorded in water
quality monitoring during this reporting period. There was
no Action and Limit Level exceedance recorded on
other monitoring date at the monitoring stations showed at Table 4.1 by
the Environmental Team of Contract No. HY/2013/01 during the reporting period.
3.3.3 Although the exceedances
were not relevant to this Contract, the Contractor was reminded to provide appropriate water pollution
mitigation measures, such as ensure all construction activities that would
deteriorate the water quality was collected by sedimentation tanks or package
treatment systems for proper treatment prior to disposal.
3.4
Dolphin monitoring Result
3.4.1
Impact dolphin
monitoring results at all transects were reported in the EM&A Report prepared
for Contract No. HY/2013/01 during September 2018 and Contract No. HY/2013/04 during October to November 2018. One limit level exceedance
was recorded in the monitoring period (September 2018 ¡V November 2018).
3.4.2
During this
reporting period, there was no marine works or barge of this
Contract worked at HKBCF reclamation site near the sea area under Contract No. HY/2013/02 during September
2018, October 2018 and November 2018.
3.4.3
The exceedance is
still under investigation by Contract No. HY/2013/04. The Investigation Report (including the
causes of exceedance, action taken and recommendation
for mitigation) for Action or Limit Level Non-compliance will be prepared by
the ET of Contract No. HY/2013/04 and detailed in the quarterly EM&A Report prepared for Contract No. HY/2013/04.
3.4.4
Although the exceedances
were not relevant to this Contract, the Contractor was reminded to provide
appropriate water pollution mitigation measures, such as ensure all marine based activities were carried out
within the silt curtain.
3.5
Implementation
of Environmental Measures
3.5.1
In response to the site
audit findings, the Contractor carried out corrective actions.
3.5.2
As confirmed
by RSS, the capital works were substantially completed on 28 March 2018. The establishment of landscape works with
mitigation code G1, G2, G4, G6, G7 & G9 were conducted around the
site while landscape works with mitigation code G5 was mainly conducted at
Portion D. The Contractor was reminded to resolve the potential conflicts between the proposed landscape
measures and any other works of the project. The implementation status of Landscape and
Visual Mitigation Measures is presented in Appendix E.
3.5.3
The Contractor was reminded
to provide well-maintained plant operated on-site and plant served
regularly;
3.5.4
The Contractor was
reminded to switch off vehicles and equipment while not in use;
3.5.5
The Contractor was
reminded to schedule the construction works to minimize noise
nuisance etc.
3.5.6 A summary of the Implementation Schedule of
Environmental Mitigation Measures (EMIS) is presented in Appendix E. Most
of the necessary mitigation measures were implemented properly.
3.6
Advice on the Solid and Liquid Waste Management
Status
3.6.1
The Contractor
registered as a chemical waste producer for the Contract. Sufficient numbers of
receptacles were available for general refuse collection and sorting. The monthly summary waste flow table is shown in Appendix
G
3.6.2
There was no excavated marine sediment generated in this
reporting period. Since the disposal of excavated marine sediments has been completed with the last batch
disposal on 30 August 2017 as confirmed by RSS, no excavated marine sediment was still remained and stored on site awaiting disposal during this
reporting period under Contract No. HY/2013/02.
3.6.3
The summary of waste flow
table is detailed in Appendix G.
3.7
Environmental Licenses and Permits
3.7.1 The valid environmental licenses and permits during
the reporting period are summarized in Appendix H.
4
Summary of exceedance, complaint, notification of
summons and successful prosecution
4.1
Summary of Exceedance of the Environmental Quality Performance Limit
4.1.1 Summary of Action and Limit Level exceedance
of 1-hr TSP level and 24-hr TSP level at AMS6 shall be referred to the monthly
EM&A report prepared by Contract No. HY/2011/03.
4.1.2 There was no Action and Limit Level exceedance of 1-hr TSP
level and 24-hr TSP level recorded at station AMS7B by the Environmental Team of Contract
No. HY/2013/01 during September 2018 and Contract
No. HY/2013/04 during October 2018 and
November 2018.
4.1.3 There was no Action and Limit Level exceedance for noise recorded
at station NMS2 by the
Environmental Team of Contract No. HY/2013/01 during September 2018 and by the Environmental Team of
Contract No. HY/2013/04 during October
to November 2018 and station NMS3C by the Environmental Team of
Contract No. HY/2013/04 during September
to November 2018.
4.1.4 For water quality monitoring, there were
153 action level exceedances
and 29 limit level exceedance
of dissolved oxygen, 1 action
level exceedance of turbidity and 8 action level exceedance of suspended solid during the reporting period. The following table summarized the number of exceedance
on each sampling date:
Sampling Date |
No. of Exceedances |
|||||
DO |
Turbidity |
SS |
||||
Action |
Limit |
Action |
Limit |
Action |
Limit |
|
03/09/2018 |
30 |
4 |
0 |
0 |
0 |
0 |
05/09/2018 |
21 |
5 |
0 |
0 |
0 |
0 |
07/09/2018 |
21 |
1 |
0 |
0 |
0 |
0 |
10/09/2018 |
48 |
12 |
0 |
0 |
1 |
0 |
12/09/2018 |
27 |
2 |
0 |
0 |
1 |
0 |
14/09/2018 |
6 |
4 |
0 |
0 |
0 |
0 |
28/09/2018 |
0 |
1 |
0 |
0 |
0 |
0 |
10/10/2018 |
0 |
0 |
0 |
0 |
1 |
0 |
24/10/2018 |
0 |
0 |
1 |
0 |
0 |
0 |
23/11/2018 |
0 |
0 |
0 |
0 |
3 |
0 |
26/11/2018 |
0 |
0 |
0 |
0 |
2 |
0 |
Total: |
153 |
29 |
1 |
0 |
8 |
0 |
4.1.5 Impact dolphin monitoring results at all transects
were reported in the EM&A Report prepared for Contract No. HY/2013/01 during September 2018 and Contract No. HY/2013/04 during October to November 2018.
4.2
Summary of Complaints,
Notification of Summons and Successful Prosecution
4.2.1 There were no complaints received during the reporting period.
4.2.2
There were no notifications of summons
or prosecutions received during the reporting period.
4.2.3
Statistics
on environmental complaints,
notifications of summons and successful prosecutions are summarized in Appendix I.
5
Comments, recommendations and conclusion
5.1
Comments
5.1.1
According to the environmental site inspection undertaken during the
reporting period, the following recommendations were provided:
l The Contractor was reminded to collect the general
refuse properly;
l
The Contractor was
reminded to sort the C & D materials and general
refuse;
l The Contractor was reminded to provide drip
tray for the chemical containers;
l The Contractor was reminded to clear the stagnant water properly.
5.1.2 A summary of the Implementation Schedule of
Environmental Mitigation Measures (EMIS) is presented in Appendix E.
Most of the necessary mitigation measures were implemented properly.
5.2
Recommendations
5.2.1 With implementation of
the recommended environmental mitigation measures, the contract¡¦s environmental
impacts were considered environmentally acceptable. The weekly environmental
site inspections ensured that all the environmental mitigation measures
recommended were effectively implemented.
5.2.2 The recommended
environmental mitigation measures, as included in the EM&A programme,
effectively minimize the potential environmental impacts from the Contract.
Also, the EM&A programme effectively monitored the environmental impacts
from the construction activities and ensure the proper implementation of
mitigation measures. No particular recommendation was advised for the
improvement of the programme.
5.3
Conclusions
5.3.1
The site preparation work of the Contract was started on 25 July 2014 and
the construction works of the Contract commenced on 24 November 2014. This is
the sixteenth Quarterly EM&A Report which summaries
findings of the EM&A work during the reporting period from 01 September
2018 to 30 November 2018.
5.3.2 Summary of Action and Limit Level exceedance
of 1-hr TSP level and 24-hr TSP level at AMS6 shall be referred to the monthly
EM&A report prepared by Contract No. HY/2011/03.
5.3.3 There was no Action and Limit Level exceedance of 1-hr TSP
level and 24-hr TSP level recorded at station AMS7B by the Environmental Team of Contract
No. HY/2013/01 during September 2018 and Contract
No. HY/2013/04 during October 2018 and
November 2018.
5.3.4 There was no Action and Limit Level exceedance for noise recorded
at station NMS2 by the
Environmental Team of Contract No. HY/2013/01 during September 2018 and by the Environmental Team of
Contract No. HY/2013/04 during October
to November 2018 and station NMS3C by the Environmental Team of
Contract No. HY/2013/04 during September
to November 2018.
5.3.5 For water quality monitoring, there were 153 action level exceedances and 29 limit
level exceedance of dissolved oxygen, 1 action level exceedance of turbidity and 8 action level exceedance of suspended solid during the reporting period. The following table summarized the number of exceedance on each sampling date:
Sampling Date |
No. of Exceedances |
|||||
DO |
Turbidity |
SS |
||||
Action |
Limit |
Action |
Limit |
Action |
Limit |
|
03/09/2018 |
30 |
4 |
0 |
0 |
0 |
0 |
05/09/2018 |
21 |
5 |
0 |
0 |
0 |
0 |
07/09/2018 |
21 |
1 |
0 |
0 |
0 |
0 |
10/09/2018 |
48 |
12 |
0 |
0 |
1 |
0 |
12/09/2018 |
27 |
2 |
0 |
0 |
1 |
0 |
14/09/2018 |
6 |
4 |
0 |
0 |
0 |
0 |
28/09/2018 |
0 |
1 |
0 |
0 |
0 |
0 |
10/10/2018 |
0 |
0 |
0 |
0 |
1 |
0 |
24/10/2018 |
0 |
0 |
1 |
0 |
0 |
0 |
23/11/2018 |
0 |
0 |
0 |
0 |
3 |
0 |
26/11/2018 |
0 |
0 |
0 |
0 |
2 |
0 |
Total: |
153 |
29 |
1 |
0 |
8 |
0 |
5.3.6
Impact
dolphin monitoring results at all transects were reported in the EM&A
Report prepared for Contract No. HY/2013/01 during September 2018 and Contract No. HY/2013/04 during October to November 2018.
5.3.7
Environmental site inspections were carried out on 06, 13, 20 and 27 September 2018, 04, 11 and
18 October 2018. Due to the commence operation of HKBCF on 24 October 2018 and the
closed area permit have not yet issued, environmental site inspection on 25 October 2018 as scheduled was cancelled. Also, during November
2018, environmental site inspection would only be
conducted if there are any ad-hoc construction works within the construction
site of Contract No. HY/2013/02 due to the
commence operation of HKBCF on 24 October 2018. Recommendations on remedial actions were
given to the Contractors for the deficiencies identified during the site
inspections.
5.3.8
There were no complaints
received during the reporting period.
5.3.9
There was no notification of summons and
successful prosecution received during the reporting period.
- END OF REPORT -
