Under Contract No. HY/2012/07,
Gammon Construction Limited (GCL) is commissioned by the Highways Department (HyD) to undertake the design and construction of the Southern
Connection Viaduct Section of the Tuen Mun ¡V Chek Lap Kok Link Project (TM-CLK Link Project) while AECOM
Asia Company Limited was appointed by HyD as the
Supervising Officer. For
implementation of the environmental monitoring and audit (EM&A) programme under the Contract, ERM-Hong Kong, Limited (ERM)
has been appointed as the Environmental Team (ET). ENVIRON Hong Kong Ltd. was employed by
the HyD as the Independent Environmental Checker
(IEC) and Environmental Project Office (ENPO) in accordance with Environmental Permit No. EP-354/2009/A. Another application for variation of
environmental permit (VEP) (EP-354/2009/B)
was granted on 28 January 2014.
The
construction phase of the Contract commenced on 31 October 2013 and will
tentatively be completed by 2018.
The impact monitoring of the EM&A programme,
including air quality, noise, water quality and marine ecological monitoring as
well as environmental site inspections, commenced on 31 October 2013.
This
is the Thirteenth Monthly EM&A report presenting the EM&A works carried
out during the period from 1 to 30 November 2014 for the Southern
Connection Viaduct Section in accordance with the Updated EM&A Manual of the
TM-CLK Link Project. As informed by the Contractor, major
activities in the reporting period included:
Marine Works
¡P
Construction of Pile caps at Viaducts B and E;
¡P
Marine piling platform installation for Viaducts A, B,
C, D & E;
¡P
Marine Piling at Viaducts B, C, D & E; and
¡P
Additional marine ground investigation (GI) and
laboratory testing.
Land-based
Works
¡P
Construction of pile cap superstructure of Viaduct B;
¡P
Channel re-construction at Area 1;
¡P
Land Piling at Viaducts B, C & D;
¡P
Pre-drilling works at Viaduct A;
¡P
Construction of pile cap at Viaducts B & D;
¡P
Additional land GI, trial pits & lab testing;
¡P
Utility surveys; and
¡P
Slope work of Slopes 9SE-B/C8, 9SE-B/C9 & 9SE-B/F9.
A summary of
monitoring and audit activities conducted in the reporting period is listed
below:
24-hour
TSP monitoring 4
sessions at ASR8; 5 sessions at ASR8A
1-hour
TSP monitoring 4
sessions at ASR8; 5 sessions at ASR8A
Noise monitoring 4
sessions
Impact
Water Quality Monitoring 13
sessions
Impact
Dolphin Monitoring 2 sessions
Joint
Environmental site inspection 4
sessions
Breaches of Action and Limit Levels for Air Quality
No exceedance
of Action and Limit Levels was recorded for construction air monitoring in the
reporting month.
Breaches of Action and Limit Levels for Noise
No exceedance
of Action and Limit Levels was recorded for construction noise monitoring in
the reporting month.
Breaches of Action and Limit Levels for Water Quality
No exceedance
of Action and Limit Levels was recorded for impact water quality monitoring in
the reporting month.
Impact Dolphin Monitoring
Whilst
two (2) Action Level exceedances and no Limit Level exceedance were observed
for the quarterly dolphin monitoring data between September and November 2014,
no unacceptable impact from the construction activities of the TM-CLKL Southern
Connection Viaduct Section on Chinese White Dolphins was noticeable from
general observations. Due to
monthly variation in dolphin occurrence within the study area, it would be more
appropriate to draw conclusion on whether any impacts on dolphins have been
detected related to the construction activities of the TM-CLKL Southern
Connection Viaduct Section in the quarterly EM&A reports, where comparison
on distribution, group size and encounter rates of dolphins between the
quarterly impact monitoring period and baseline monitoring period will be made.
Daily
marine mammal exclusion zone monitoring was undertaken during the period of
marine works under this Contract. No
Passive Acoustic Monitoring was carried out as there is no marine works carried
out outside the daylight hours in this reporting month. No sighting
of the Indo-Pacific humpback dolphin Sousa
chinensis (i.e. Chinese White Dolphin) was
recorded in November 2014 during the exclusion zone monitoring.
Coral Monitoring
The First to Fourth Quarterly Post-Translocation
Coral Monitoring has been completed and the results were detailed in the First to Fourth Quarterly Post-Translocation Coral Monitoring Report.
Environmental Complaints, Non-compliance & Summons
No environmental
complaint, notification of summons and successful prosecution was received in
the reporting month.
Reporting Change
There was no
reporting change required in the reporting period.
Upcoming Works for the Next Reporting Period
Works to be
undertaken in the next monitoring period of December 2014 include the
following:
Marine
Works
¡P
Construction of Pile caps at Viaducts B and E;
¡P
Marine piling platform installation for Viaducts A, B,
C, D & E;
¡P
Marine Piling at Viaducts B, C, D & E; and
¡P
Additional marine ground investigation (GI) and
laboratory testing.
Land-based
Works
¡P
Construction of pile cap superstructure of Viaduct B;
¡P
Channel re-construction at Area 1;
¡P
Land Piling at Viaducts B, C & D;
¡P
Pre-drilling works at Viaduct A;
¡P
Construction of pile cap at Viaducts B & D;
¡P
Additional land GI, trial pits & lab testing;
¡P
Utility surveys; and
¡P
Slope work of Slopes 9SE-B/C8, 9SE-B/C9 &
9SE-B/F9.
Future Key Issues
Potential
environmental impacts arising from the above upcoming construction activities
in the next reporting month of December 2014 are mainly associated with dust, noise,
marine water quality, marine ecology and waste management issues.
According to
the findings of the Northwest New Territories (NWNT) Traffic and Infrastructure
Review conducted by the Transport Department, Tuen Mun Road, Ting Kau Bridge, Lantau
Link and North Lantau Highway would be operating beyond capacity after
2016. This forecast has been based
on the estimated increase in cross boundary traffic, developments in the
Northwest New Territories (NWNT), and possible developments in North Lantau,
including the Airport developments, the Lantau Logistics Park (LLP) and the
Hong Kong ¡V Zhuhai ¡V Macao Bridge (HZMB).
In order to cope with the anticipated traffic demand, two new road
sections between NWNT and North Lantau ¡V Tuen Mun ¡V Chek Lap Kok Link (TM-CLKL) and Tuen Mun Western Bypass (TMWB) are proposed.
An
Environmental Impact Assessment (EIA) of TM-CLKL (the Project) was prepared in
accordance with the EIA Study Brief (No. ESB-175/2007) and
the Technical Memorandum of the
Environmental Impact Assessment Process (EIAO-TM). The
EIA Report was submitted under the Environmental Impact Assessment Ordinance
(EIAO) in August 2009. Subsequent
to the approval of the EIA Report (EIAO Register Number AEIAR-146/2009), an
Environmental Permit (EP-354/2009) for TM-CLKL was granted by the Director of
Environmental Protection (DEP) on 4 November 2009, and EP variation
(EP-354/2009A) was issued on 8 December 2010.
Under
Contract No. HY/2012/07,
Gammon Construction Limited (GCL) is commissioned by the Highways Department (HyD) to undertake the design and construction of the
Southern Connection Viaduct Section of TM-CLKL (¡§the Contract¡¨) while AECOM
Asia Company Limited was appointed by HyD as the
Supervising Officer. For
implementation of the environmental monitoring and audit (EM&A) programme under the Contract, ERM-Hong Kong, Limited (ERM)
has been appointed as the Environmental Team (ET). ENVIRON Hong Kong Ltd. was employed by HyD as the Independent Environmental Checker (IEC) and
Environmental Project Office (ENPO) in accordance with Environmental Permit No. EP-354/2009/A. Another application for variation of
environmental permit (VEP) (EP-354/2009/B)
was granted on 28 January 2014.
The
organization structure of the Contract is shown in Appendix A.
The key personnel contact names and
contact details are summarized in Table
1.1 below.
Table 1.1 Contact
Information of Key Personnel
Party |
Position |
Name |
Telephone |
Fax |
HyD
(Highways Department) |
Project
Coordinator |
Stanley Chan |
2762 3406 |
3188 6614 |
|
Senior
Engineer |
Steven Shum |
2762 4133 |
3188 6614 |
SOR (AECOM Asia
Company Limited) |
Chief
Resident Engineer |
Daniel Ip |
3553 3800 |
2492 2057 |
|
Resident
Engineer |
Kingman Chan |
3691 3950 |
3691 2899 |
ENPO / IEC (ENVIRON
Hong Kong Ltd.) |
ENPO Leader |
Y.H. Hui |
3465 2888 |
3465 2899 |
IEC |
Dr. F.C.
Tsang |
3465 2828 |
3465 2899 |
|
Contractor (Gammon
Construction Limited) |
Environmental
Manager |
Brian Kam |
3520 0387 |
3520 0486 |
Environmental
Officer |
Roy Leung |
3520 0387 |
3520 0486 |
|
|
24-hour
Complaint Hotline |
|
9738 4332 |
|
ET (ERM-HK) |
ET Leader |
Jovy Tam |
2271 3113 |
2723 5660 |
Marine
Works
¡P
Construction of Pile caps at Viaducts B and E;
¡P
Marine piling platform installation for Viaducts A, B,
C, D & E;
¡P
Marine Piling at Viaducts B, C, D & E; and
¡P
Additional marine ground investigation (GI) and laboratory
testing.
Land-based
Works
¡P
Construction of pile cap superstructure of Viaduct B;
¡P
Channel re-construction at Area 1;
¡P
Land Piling at Viaducts B, C & D;
¡P
Pre-drilling works at Viaduct A;
¡P
Construction of pile cap at Viaducts B & D;
¡P
Additional land GI, trial pits & lab testing;
¡P
Utility surveys; and
¡P
Slope work of Slopes 9SE-B/C8, 9SE-B/C9 &
9SE-B/F9.
The
locations of the construction activities are shown in Figure 1.3. The Environmental Sensitive Receivers in
the vicinity of the Project are shown in Figure 1.4.
The EM&A programme required environmental monitoring for air
quality, noise, water quality and marine ecology as well as environmental site
inspections for air quality, noise, water quality, waste management, marine
ecology and landscape and visual impacts.
The EM&A requirements and related findings for each component are summarized
in the following sections.
Table 2.1 Locations
of Impact Air Quality Monitoring Stations
Monitoring Station |
Location |
Description |
Monitoring Dates |
ASR 8 |
Pak Mong Watch Tower |
Rooftop of
the premise |
5, 11, 17
and 20 November 2014 |
ASR 8A |
Area 4 |
On ground at
the Area 4 |
5, 11, 17,
20 and 26 November 2014 |
In accordance of the requirements stipulated in the Updated EM&A
Manual, High Volume Samplers (HVSs) were used for carrying out 1-hour and 24-hour
TSP monitoring on 5, 11, 17 and 20 November 2014 at ASR8 (Pak Mong Watch Tower) and on 5, 11, 17, 20 and 26 at ASR8A (Area
4). The TSP monitoring is detailed
in Figure 2.1 and Table
2.1. Wind anemometer was deployed
at the rooftop of Pak Mong Village Watch Tower for
logging wind speed and wind direction.
Copies of the calibration certificates for the
equipment are presented in Appendix
E. Details of the equipment deployed are
given in Table 2.2. Due to the rejection of access to Pak Mong Village, monitoring results of 1-hr TSP and 24-hr TSP
at ASR 8 and meteorological data was not recorded on 26 November 2014. The Proposal of Alternative Dust and Noise Monitoring Stations ([1])
was submitted to EPD on 2 December 2014, in which the HVS at ASR 8 was proposed to be relocated to
Entrance of MTR Depot and the wind anemometer to be relocated to ASR 8A in
accordance with the requirements of the Updated EM&A Manual.
Table 2.2 Air
Quality Monitoring Equipment
Equipment |
Brand and Model |
High Volume Sampler |
Tisch Environmental Mass Flow
Controlled Total Suspended Particulate (TSP) High
Volume Sampler (Model No. TE-5170) |
Wind Sensor |
Global Water (Wind
Speed Sensor: WE550; Wind Direction Sensor: WE570) |
Wind Anemometer for
calibration |
Lutron (Model No.
AM-4201) |
Table 2.3 Summary
of 1-hour TSP Monitoring Results in the Reporting Period
|
Average (µg/m3) |
Range (µg/m3) |
Action Level (µg/m3) |
Limit Level (µg/m3) |
ASR
8A |
88 |
56
- 152 |
394 |
500 |
ASR
8 |
106 |
54
- 235 |
393 |
500 |
Table 2.4 Summary
of 24-hour TSP Monitoring Results in the Reporting Period
|
Average (µg/m3) |
Range (µg/m3) |
Action Level (µg/m3) |
Limit Level (µg/m3) |
ASR
8A |
63 |
46
- 83 |
178 |
260 |
ASR
8 |
69 |
56
- 80 |
178 |
260 |
All
1-hour and 24-hour TSP results were below the Action and Limit levels at all
monitoring locations in the reporting period. No action is thus required to be
undertaken in accordance with the Event Action Plan presented in Appendix L.
Noise
monitoring was performed on 5, 11, 17 and
20 November 2014 using
sound level meter at the designated monitoring station NSR 1 (Figure 2.2; Table 2.5) in accordance with the
requirements stipulated in the Updated EM&A Manual. Acoustic calibrator was deployed to
check the sound level meters at a known sound pressure level. Details of the deployed equipment are provided
in Table 2.6. Copies of the calibration certificates
for the equipment are presented in Appendix E. Due to the rejection of access to Pak Mong
Village, no noise monitoring results at NSR1 was recorded on 26 November
2014. The Proposal of Alternative Dust and Noise Monitoring
Stations ([2])
was submitted to EPD on 2 December 2014, in which the noise monitoring
station was proposed to be
relocated to the Pak Mong Village Pavilion in
accordance with the requirements of the Updated EM&A Manual.
Table 2.5 Location
of Impact Noise Monitoring Station
Monitoring Station |
Location |
Description |
Parameter |
Frequency and Duration |
Monitoring Dates |
NSR 1 |
Pak Mong Watch Tower |
Rooftop of
the premise |
30-minute
measurement at each monitoring station between 0700 and 1900 on normal
weekdays (Monday to Saturday). Leq, L10
and L90 would be recorded. |
At least
once per week |
5, 11, 17
and 20 November 2014 |
Table 2.6 Noise
Monitoring Equipment
Equipment |
Brand and Model |
Integrated
Sound Level Meter |
Rion
NL-31 |
Acoustic
Calibrator |
Rion
NC-73 |
Table 2.7 Summary
of Construction Noise Monitoring Results in the Reporting Period
|
Average , dB(A), Leq (30mins) |
Range, dB(A), Leq (30mins) |
Limit Level, dB(A), Leq (30mins) |
|
NSR
1 |
58 |
57
¡V 59 |
75 |
|
Table 2.8 Locations
of Impact Water Quality Monitoring Stations and its Corresponding Monitoring
Requirements
Station ID |
Type |
Coordinates |
*Parameters, unit |
Frequency |
Depth |
|
|
|
Easting |
Northing |
|
|
|
IS(Mf)9 |
Impact
Station (Close to HKBCF construction site) |
813273 |
818850 |
Temperature(¢XC)
pH (pH unit)
Turbidity (NTU)
Water depth (m)
Salinity (ppt)
DO (mg/L and % of saturation) ¡P SS (mg/L) |
Impact monitoring: 3 days per week, at mid-flood
and mid-ebb tides during the construction period of the Contract |
3 water depths: 1m below sea surface, mid-depth and 1m above sea bed. If the water depth is less than 3m,
mid-depth sampling only. If water
depth less than 6m, mid-depth may be omitted |
IS(Mf)16 |
Impact Station
(Close to HKBCF construction site) |
814328 |
819497 |
|||
IS8 |
Impact Station (Close
to HKBCF construction site) |
814251 |
818412 |
|||
SR4 |
Sensitive receiver
(Tai Ho Inlet) |
814760 |
817867 |
|||
SR4a |
Sensitive receiver |
815247 |
818067 |
|||
CS(Mf)3 |
Control
Station |
809989 |
821117 |
|||
CS(Mf)5 |
Control
Station |
817990 |
821129 |
|||
*Notes: |
Table 2.9 Water
Quality Monitoring Equipment
Equipment |
Brand and Model |
DO and Salinity |
YSI Pro2030 |
Turbidity meter |
HACH Model 2100Q |
pH meter |
HANNA HI8314 |
Positioning
Equipment |
Koden913MK2 with KBG-3 DGPS antenna |
Water Depth Detector |
Speedtech Instrument SM-5 |
Water Sampler |
Kemmerer 1520 (1520-C25) 2.2L with messenger |
No
Action and Limit levels exceedances was recorded at all monitoring stations for
impact water quality monitoring in the reporting month. No action is thus required to be
undertaken in accordance with the Event Action Plan presented in Appendix L.
Table
2.10 Dolphin
Monitoring Equipment
Equipment |
Model |
|
Global Positioning System (GPS) Camera Laser Binoculars Marine Binocular Vessel for Monitoring |
Garmin
18X-PC Geo One Phottix Nikon D90 300m 2.8D
fixed focus Nikon D90 20-300m
zoom lens Infinitor LRF 1000 Bushell 7 x 50 marine
binocular with compass and reticules 65 foot single
engine motor vessel with viewing platform 4.5m above water level |
|
Table
2.11 Impact
Dolphin Monitoring Line Transect Co-ordinates
Line No. |
Easting |
Northing |
|
Line No. |
Easting |
Northing |
||
1 |
Start
Point |
804671 |
814577 |
|
13 |
Start
Point |
816506 |
819480 |
1 |
End
Point |
804671 |
831404 |
|
13 |
End
Point |
816506 |
824859 |
2 |
Start
Point |
805475 |
815457 |
|
14 |
Start
Point |
817537 |
820220 |
2 |
End
Point |
805477 |
826654 |
|
14 |
End
Point |
817537 |
824613 |
3 |
Start
Point |
806464 |
819435 |
|
15 |
Start
Point |
818568 |
820735 |
3 |
End
Point |
806464 |
822911 |
|
15 |
End
Point |
818568 |
824433 |
4 |
Start
Point |
807518 |
819771 |
|
16 |
Start
Point |
819532 |
821420 |
4 |
End
Point |
807518 |
829230 |
|
16 |
End
Point |
819532 |
824209 |
5 |
Start
Point |
808504 |
820220 |
|
17 |
Start
Point |
820451 |
822125 |
5 |
End
Point |
808504 |
828602 |
|
17 |
End
Point |
820451 |
823671 |
6 |
Start
Point |
809490 |
820466 |
|
18 |
Start
Point |
821504 |
822371 |
6 |
End
Point |
809490 |
825352 |
|
18 |
End
Point |
821504 |
823761 |
7 |
Start
Point |
810499 |
820690 |
|
19 |
Start
Point |
822513 |
823268 |
7 |
End
Point |
810499 |
824613 |
|
19 |
End
Point |
822513 |
824321 |
8 |
Start
Point |
811508 |
820847 |
|
20 |
Start
Point |
823477 |
823402 |
8 |
End
Point |
811508 |
824254 |
|
20 |
End
Point |
823477 |
824613 |
9 |
Start
Point |
812516 |
820892 |
|
21 |
Start
Point |
805476 |
827081 |
9 |
End
Point |
812516 |
824254 |
|
21 |
End
Point |
805476 |
830562 |
10 |
Start
Point |
813525 |
820872 |
|
22 |
Start
Point |
806464 |
824033 |
10 |
End
Point |
813525 |
824657 |
|
22 |
End
Point |
806464 |
829598 |
11 |
Start
Point |
814556 |
818449 |
|
23 |
Start
Point |
814559 |
821739 |
11 |
End
Point |
814556 |
820992 |
|
23 |
End
Point |
814559 |
824768 |
12 |
Start
Point |
815542 |
818807 |
|
|
|
|
|
12 |
End
Point |
815542 |
824882 |
|
|
|
|
|
The Action and
Limit levels of dolphin impact monitoring are shown in Appendix D. The Event and Action plan is presented
in Appendix L.
A total six (6) groups of twenty-nine (29) Chinese
White Dolphins were sighted during the two sets of monitoring surveys in
November 2014. All sightings were
made in NWL during the two sets of surveys in November 2014, while no dolphin
was sighted at all in NEL in this month.
All except one (1) sighting was made on primary lines during on-effort
search, and none of the dolphin groups was associated with operating fishing
vessel. No sighting
was made in the proximity of the Project¡¦s alignment. The
distribution of dolphin sightings during the reporting month is shown in
Figure 2.5.
Encounter
rates of Chinese White Dolphins are deduced from the survey effort and
on-effort sighting data made under favourable
conditions (Beaufort 3 or below) in November 2014 are shown in Tables 2.12 and 2.13.
Table 2.12 Individual
Survey Event Encounter Rates
|
|
Encounter rate (STG) (no.
of on-effort dolphin sightings per 100 km of survey effort) |
Encounter rate (ANI)
(no. of dolphins from all on-effort sightings per
100 km of survey effort) |
Primary
Lines Only |
Primary
Lines Only |
||
NEL |
Set 1: Nov 4th/10th |
0.0 |
0.0 |
Set 2: Nov 12th/18th |
0.0 |
0.0 |
|
NWL |
Set 1: Nov 4th/10th |
4.6 |
24.5 |
Set 2: Nov 12th/18th |
2.8 |
8.5 |
|
Note:
Dolphin Encounter Rates are deduced from the two sets of surveys ( two
surveys in each set) in November 2014 in Northeast (NEL) and Northwest Lantau
(NWL) |
Table 2.13 Monthly
Average Encounter Rates
|
Encounter rate (STG)
(no. of
on-effort dolphin sightings per 100 km of survey effort) |
Encounter rate (ANI)
(no. of dolphins from all on-effort sightings per
100 km of survey effort) |
||
Primary Lines Only |
Both Primary and Secondary Lines |
Primary Lines Only |
Both Primary and Secondary Lines |
|
Northeast Lantau |
0.0 |
0.0 |
0.0 |
0.0 |
Northwest Lantau |
3.7 |
2.9 |
16.2 |
12.8 |
Note: Overall
dolphin encounter rates (sightings per 100km of survey effort) from all four
surveys are conducted in November 2014 on primary lines only as well as both
primary lines and secondary lines in Northeast and Northwest Lantau
The average group size of
Chinese White Dolphins in November 2014 was 4.8 individuals per group, which
was higher than the ones in previous months of dolphin monitoring. Four (4) of the six (6) dolphin groups
were composed of one to four 1-4 animals, while only two (2) larger dolphin
groups with seven (7) and thirteen (13) animals were sighted during the
monitoring period. Detailed results
of dolphin monitoring in this reporting month are
presented in Appendix K.
Whilst
two Action Level exceedances (one Action Level exceedance for Northeast Lantau
social cluster; one Action Level exceedance for Northwest Lantau social
cluster) and no Limit Level exceedances were observed for the quarterly dolphin
monitoring data between September and November 2014, no unacceptable impact
from the construction activities of the TM-CLKL Southern Connection Viaduct
Section on Chinese White Dolphins was noticeable from general observations
during the dolphin monitoring in this reporting month.
Daily 250 m marine
mammal exclusion zone monitoring was undertaken during the period of marine
works activities being undertaken. No Passive Acoustic Monitoring
was carried out as there is no marine works carried out outside the daylight
hours in this reporting month. No
sighting of Indo-Pacific humpback dolphin Sousa
chinensis (i.e. Chinese White Dolphin) were
recorded in November 2014 during the exclusion zone monitoring.
The First to Fourth Quarterly Post-Translocation
Coral Monitoring have been completed and the results were detailed in the First to Fourth Quarterly Post-Translocation
Coral Monitoring Report. The
findings indicated that the Action or Limit Levels for coral monitoring were
not exceeded as increase in percentage of partial mortality was not detected
for both the tagged translocated and natural coral
colonies when comparing to the pre-translocation dataset.
Table 2.14 Specific
Observations Identified during the Weekly Site Inspections in this Reporting
Month
Inspection Date |
Environmental Observations |
Recommendations/ Remarks |
5 November 2014 |
Pier D13 ¡P
A drip tray for generator was not plugged. Pier D9 ¡P
A chemical container was not placed in drip tray. Pier D14 ¡P
Some chemical containers were not placed in drip
tray. General
reminder: ¡P
The unpaved area should be watered 8 times a day. |
Pier D13 ¡P
The drip tray should be plugged. Pier D9 and
D14 ¡P
Chemical containers should be placed in drip tray. |
12 November 2014 |
Seafront ¡P
Stagnant water was accumulated in a drip tray for welder. |
Seafront ¡P
Drip tray should have enough capacity to avoid
leakage or run off of chemical waste. The contractor was reminded to remove
stagnant water regularly. |
20 November 2014 |
Area 1 ¡P
A skip for waste was nearly full. ¡P
The traffic road was partially dry. Area 2 ¡P
Water dripping was observed and caused stagnant
water in the works area. |
Area 1 ¡P
The contractor was reminded to clean the refuse
regularly. ¡P
The unpaved area should be watered or covered. Area 2 ¡P
The contractor was advised to avoid such leakage and
clean up the stagnant water. |
27 November 2014 |
Seafront ¡P
Oil stain was observed on the ground of project
area. ¡P
Some chemical containers were not placed in drip
tray. Barge M015
(Tung Shun 88) ¡P
Category of sediment was not labelled. Barge M021
(Kin Yip) ¡P
Sediment was not properly separated. |
Seafront ¡P
The contractor should remove the oil stain. ¡P
Chemical containers should be placed in drip tray. Barge M015
(Tung Shun 88) ¡P
Category of sediment should be properly labelled. Barge M021
(Kin Yip) ¡P
Different categories of sediment should be properly
separated. |
The Contractor
has rectified all of the observations identified during environmental site
inspections in the reporting month.
The Contractor
has submitted application form for registration as chemical waste producer
under the Contract. Sufficient
numbers of receptacles were available for general refuse collection and
sorting.
Wastes
generated during this reporting period include mainly construction wastes
(inert and non-inert), recyclable materials and marine sediment (Category M). Reference has been made to the waste
flow table prepared by the Contractor (Appendix M). The quantities of different types of
wastes are summarized in Table 2.15.
Table 2.15 Quantities
of Different Waste Generated in the Reporting Period
Month/Year |
Inert C&D Materials (a)
(m3) |
Imported Fill (m3) |
Inert Construction Waste
Re-used (m3) |
Non-inert Construction Waste (b)
(kg) |
Recyclable Materials (c) (kg) |
Chemical Wastes (kg) |
Marine Sediment (m3) |
|
Category L |
Category M (Mp
& Mf) |
|||||||
November 2014 |
12,474 |
0 |
3,141 |
114,370 |
133 |
0 |
0 |
234 |
Notes: |
||||||||
(a) Inert
construction wastes include hard rock and large broken concrete, and
materials disposed as public fill. (b) Non-inert
construction wastes include general refuse disposed at landfill. (c) Recyclable
materials include metals, paper, cardboard, plastics, timber, felled trees and
others. |
The Contractor
was advised to properly maintain on site C&D materials and waste collection,
sorting and recording system, dispose of C&D materials and wastes at
designated ground and maximize reuse/ recycle of C&D materials and
wastes. The Contractor was also reminded
to properly maintain the site tidiness and dispose of the wastes accumulated on
site regularly and properly.
For chemical
waste containers, the Contractor was reminded to treat properly and store temporarily
in designated chemical waste storage area on site in accordance with the Code
of Practice on the Packaging, Labelling and Storage of Chemical Wastes.
The status of
environmental licensing and permit is summarized in Table 2.16 below.
Table 2.16 Summary
of Environmental Licensing and Permit Status
License/
Permit |
License
or Permit No. |
Date of Issue |
Date of Expiry |
License/
Permit Holder |
Remarks |
Environmental Permit |
EP-354/2009/B |
28 Jan 2014 |
N/A |
HyD |
Tuen Mun- Chek Lap Kok Link |
Construction Dust Notification |
361571 |
5 Jul 2013 |
N/A |
GCL |
|
Construction Dust Notification |
362093 |
17 Jul 2013 |
N/A |
GCL |
For Area 23 |
Billing Account for Disposal |
7017735 |
10 Jul 2013 |
End of Project |
GCL |
- |
Chemical Waste Registration |
5213-961-G2380-13 |
10 Oct 2013 |
N/A |
GCL |
Chemical waste produced in Contract HY/2012/07 (Area 1 adjacent to Cheng Tung Road, Siu Ho Wan) |
Chemical Waste Registration |
5213-961-G2380-14 |
10 Oct 2013 |
N/A |
GCL |
Chemical waste produced in Contract HY/2012/07 (Area 2 adjacent to Cheung Tung Road, Pak Mong
Village) |
Chemical Waste Registration |
5213-974-G2588-03 |
4 Nov 2013 |
N/A |
GCL |
Chemical waste produced in Contract HY/2012/07 (WA5 adjacent to Cheung Tung Road, Yam O) |
Construction Waste Disposal Account |
7017735 |
10 Jul 2013 |
N/A |
GCL |
Waste disposal in Contract HY/2012/07 |
Waste Water Discharge License |
WT00019017-2014 |
13 May 2014 |
31 May 2019 |
GCL |
Discharge for marine portion |
Waste Water Discharge License |
WT00019018-2014 |
13 May 2014 |
31 May 2019 |
GCL |
Discharge for land portion |
Construction Noise Permit |
GW-RS0419-14 |
15 May 2014 |
13 Nov 2014 |
GCL |
For loading & unloading on NLH near Viaducts A & B |
Construction Noise Permit |
GW-RS0792-14 |
31 Jul 2014 |
24 Dec 2014 |
GCL |
Broad Permit for Works at Seafront & Marine Piers & Pier B9 |
Construction Noise Permit |
GW-RS0700-14 |
21 Jul 2014 |
31 Dec 2014 |
GCL |
For loading & unloading on NLH near Viaduct A & B |
Dumping Permit/ Loading Permit (Type 1 ¡V Open Sea Disposal) |
(4) in EP/MD/14-075 |
25 Sep 2013 |
N/A |
GCL |
- |
Chemical Waste Registration |
5213-951-G2380-17 |
12 Jun 2014 |
N/A |
GCL |
Viaducts A, B, C, D & E |
Construction Waste Disposal Account |
7017735 |
10 Jul 2013 |
N/A |
GCL |
- |
Construction Noise Permit |
GW-RW0640-14 |
28 Aug 2014 |
27 Feb 2015 |
GCL |
General works at WA5 |
Marine Dumping Permit |
EP/MD/15-066 |
28 Jul 2014 |
27 Jan 2015 |
GCL |
For dumping Type I sediment |
Construction Noise Permit for night works and works in general
holidays |
GW-RS0942-14 |
11 Sep 2014 |
14 Mar 2015 |
GCL |
For Plant mobilization using tractor |
Construction Noise Permit for night works and works in general
holidays |
GW-RS1032-14 |
25 Sep 2014 |
28 Mar 2015 |
GCL |
For Load unload at NLH near Viaduct D |
Construction Noise Permit for night works and works in general
holidays |
GW-RS1129-14 |
17 Oct 2014 |
31 Dec 2014 |
GCL |
For Safety Fences at Pier D9 |
Construction Noise Permit for night works and works in general
holidays |
GW-RS1130-14 |
20 Oct 2014 |
22 Apr 2015 |
GCL |
For Plant mobilization using tractor |
Construction Noise Permit for night works and works in general
holidays |
GW-RS1135-14 |
17 Oct 2014 |
15 Dec 2014 |
GCL |
For TTA Case 60-2 Ch.1.3E-3.6E |
Construction Noise Permit for night works and works in general holidays |
GW-RS1188-14 |
30 Oct 2014 |
31 Dec 2014 |
GCL |
For TTA Cases 50 Airport Road-5.3 |
|
|
|
|
|
|
No complaint, notification
of summons and prosecution was received in the reporting period.
Statistics on
complaints, notifications of summons, successful prosecutions are summarized in
Appendix N.
Marine
Works
¡P
Construction of Pile caps at Viaducts B and E;
¡P
Marine piling platform installation for Viaducts A, B,
C, D & E;
¡P
Marine Piling at Viaducts B, C, D & E; and
¡P
Additional marine ground investigation (GI) and
laboratory testing.
Land-based
Works
¡P
Construction of pile cap superstructure of Viaduct B;
¡P
Channel re-construction at Area 1;
¡P
Land Piling at Viaducts B, C & D;
¡P
Pre-drilling works at Viaduct A;
¡P
Construction of pile cap at Viaducts B & D;
¡P
Additional land GI, trial pits & lab testing;
¡P
Utility surveys; and
¡P
Slope work of Slopes 9SE-B/C8, 9SE-B/C9 &
9SE-B/F9.
Potential
environmental impacts arising from the above upcoming construction activities
in the next reporting month of December 2014 are mainly associated with dust, noise,
marine water quality, marine ecology and waste management issues.

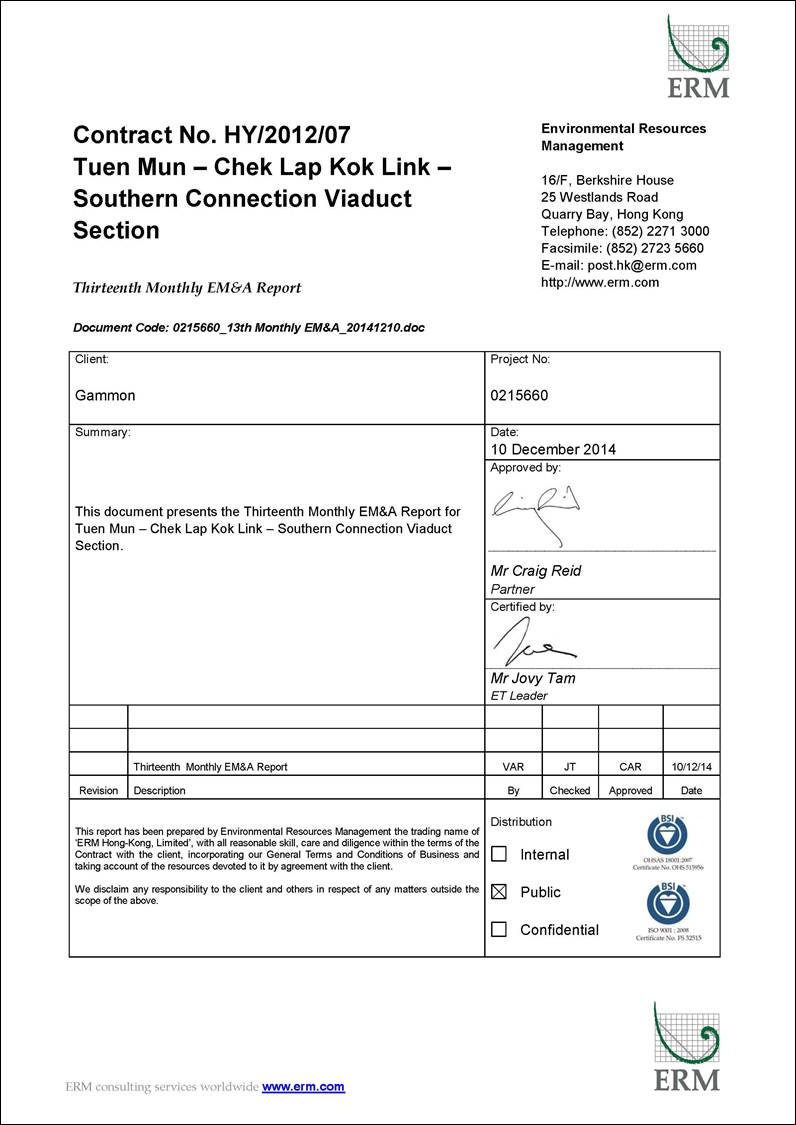

This Thirteen Monthly
EM&A Report presents the findings of the EM&A activities undertaken
during the period from 1 to 30 November 2014, in accordance with the Updated
EM&A Manual and the requirements of EP-354/2009/B.
A total six
(6) groups of twenty-nine (29) Chinese White Dolphins were sighted during the
two sets of monitoring surveys in November 2014. All sightings were made in NWL during
the two sets of surveys in November 2014, while no dolphin was sighted at all
in NEL in this month. All except
one (1) sighting was made on primary lines during on-effort search, and none of
the dolphin groups was associated with operating fishing vessel. No sighting was made in the proximity of
the Project¡¦s alignment. Whilst two Action Level exceedances and no Limit Level
exceedances were observed for the quarterly dolphin monitoring data between
September and November 2014, no unacceptable impact from the construction activities
of the TM-CLKL Southern Connection Viaduct Section on Chinese White Dolphins
were noticeable from general observations.
The ET will
keep track on the construction works to confirm compliance of environmental
requirements and the proper implementation of all necessary mitigation
measures.
