4.1 Conclusions
Under Contract
No.
HY/2012/08, Dragages
– Bouygues Joint Venture (DBJV) is commissioned by the Highways Department (HyD) to undertake the design and construction of the
Northern Connection Sub-sea Tunnel Section of the Tuen
Mun – Chek Lap Kok Link Project (TM-CLK Link Project) while AECOM
Asia Company Limited was appointed by HyD as the
Supervising Officer. For implementation
of the environmental monitoring and audit (EM&A) programme
under the Contract, ERM-Hong Kong, Limited (ERM) has been appointed as the
Environmental Team (ET) in accordance with Environmental
Permit No. EP-354/2009/A. Ramboll Environ
Hong Kong Ltd. was employed by HyD as the Independent
Environmental Checker (IEC) and Environmental Project Office (ENPO). Subsequent applications for
variation of environmental permits (VEP), EP-354/2009/B, EP-354/2009/C and EP-354/2009/D, were granted on 28 January 2014, 10 December 2014
and 13 March 2015, respectively.
The
construction phase of the Project commenced on 1 November 2013 and will
tentatively be completed by the end of 2018.
The impact monitoring of the EM&A programme,
including air quality, water quality, marine ecological monitoring and environmental
site inspections, were commenced on 1 November 2013.
This
is the Thirty-seventh Monthly EM&A report presenting the EM&A works
carried out during the period from 1 to 30 November 2016 for the Contract No. HY/2012/08 Northern Connection
Sub-sea Tunnel Section (the “Project”) in
accordance with the Updated EM&A Manual of the TM-CLK
Link Project. As informed by the
Contractor, major activities in the reporting period included:
Land-based Works
·
Box Culvert Extension at Works Area – Portion N-A;
·
Preparation of Stage 2 Reclamation – Portion N-A;
·
Shaft Structure and Backfilling – Portion N-C;
·
Construction of Cross Passage Tympanum – TBM tunnel;
·
Cross Passage Lining Installation – TBM Tunnel;
·
Corbel Construction – TBM Tunnel;
·
Excavation of Sub-sea Tunnel – TBM tunnel;
·
Sub-sea Tunnel Gallery Installation – TBM tunnel;
·
Deep Band Drain Installation – Portion S-A; and
·
Jet Grouting, CSM Ground Treatment and Diaphragm Wall
Construction – Portion S-A.
A
summary of monitoring and audit activities conducted in the reporting period is
listed below:
24-hour
TSP Monitoring 10
sessions
1-hour
TSP Monitoring 10
sessions
Impact
Dolphin Monitoring 2
sessions
Joint
Environmental Site Inspection 5
sessions
Implementation of Marine Mammal Exclusion Zone
There was no dredging, reclamation or marine
sheet piling works in open waters during this reporting period. Thus,
Passive Acoustic Monitoring (PAM) and the day-time monitoring of Dolphin
Exclusion Zone (DEZ) by dolphin observers were not in effect during the reporting
period.
Summary
of Breaches of Action/Limit Levels
Breaches of Action and Limit Levels for Air Quality
No
Action Level or Limit Level of air quality exceedances were recorded in the air
quality monitoring of this reporting month.
Breaches of Action and Limit Levels for Dolphin
Monitoring
Whilst one (1) Limit Level
exceedance was observed for the quarterly dolphin monitoring data between
September and November 2016, no unacceptable impact from the construction
activities of the TM-CLKL Northern Connection Sub-sea Tunnel Section on Chinese White Dolphins
was noticeable from general observations.
Due to monthly variation in dolphin occurrence within the study area, it
would be more appropriate to draw conclusion on whether any impacts on dolphins
have been detected related to the construction activities of the TM-CLKL
Northern Connection Sub-sea Tunnel Section in the quarterly EM&A reports,
where comparison on distribution, group size and encounter rates of dolphins
between the quarterly impact monitoring period and baseline monitoring period
will be made.
Environmental
Complaints, Non-compliance & Summons
No non-compliance with
EIA recommendations,
EP conditions and other requirements associated with the construction of this
Contract was recorded in this reporting period.
One (1) environmental
complaint case regarding effluent discharge at the sea was referred by EPD on 28 November 2016.
Interim report will be sent to EPD after thorough investigation.
No
environmental summons was received in this reporting period.
Reporting Change
There
was no reporting change required in the reporting period.
Upcoming
Works for the Next Reporting Month
Works
to be undertaken in the next monitoring period of December 2016 include the
following:
Marine-based Works
Dredging
at Portion N-A; and
Construction
of Vertical Seawall at Portions N-A.
Land-based Works
·
Box Culvert Extension at Works Area – Portion N-A;
·
Shaft Structure and Backfilling – Portion N-C;
·
Construction of Cross Passage Tympanum – TBM tunnel;
·
Cross Passage Lining Installation – TBM Tunnel;
·
Corbel Construction – TBM Tunnel;
·
Excavation of Sub-sea Tunnel – TBM tunnel;
·
Sub-sea Tunnel Gallery Installation – TBM tunnel;
·
Jet Grouting, CSM Ground Treatment and Diaphragm Wall
Construction – Portion S-A.
Future
Key Issues
Potential
environmental impacts arising from the above upcoming construction activities
in the next reporting month of December 2016 are mainly associated with dust,
marine ecology and waste management issues.
According
to the findings of the Northwest New Territories (NWNT) Traffic and
Infrastructure Review conducted by the Transport Department, Tuen Mun Road, Ting Kau Bridge, Lantau Link and North Lantau Highway would be
operating beyond capacity after 2016.
This forecast has been based on the estimated increase in cross boundary
traffic, developments in the Northwest New Territories (NWNT), and possible
developments in North Lantau, including the Airport developments, the Lantau
Logistics Park (LLP) and the Hong Kong – Zhuhai – Macao Bridge (HZMB). In order to cope with the anticipated traffic
demand, two new road sections between NWNT and North Lantau – Tuen Mun – Chek
Lap Kok Link (TM-CLKL) and Tuen
Mun Western Bypass (TMWB) are proposed.
An
Environmental Impact Assessment (EIA) of TM-CLKL (the Project) was prepared in
accordance with the EIA Study Brief (No. ESB-175/2007) and
the Technical Memorandum of the
Environmental Impact Assessment Process (EIAO-TM). The EIA
Report was submitted under the Environmental Impact Assessment Ordinance (EIAO)
in August 2009. Subsequent to the
approval of the EIA Report (EIAO Register Number AEIAR-146/2009), an
Environmental Permit (EP-354/2009) for TM-CLKL was granted by the Director of
Environmental Protection (DEP) on 4 November 2009, and EP variation (VEP)
(EP-354/2009/A) was issued on 8 December 2010.
Subsequent applications for variation of environmental permits (VEPs), EP-354/2009/B, EP-354/2009/C and EP-354/2009/D, were granted on 28
January 2014, 10 December 2014 and 13 March 2015, respectively.
Under Contract
No.
HY/2012/08, Dragages
– Bouygues Joint Venture (DBJV) is commissioned by the Highways Department (HyD) to undertake the design and construction of the
Northern Connection Sub-sea Tunnel Section of TM-CLKL while AECOM
Asia Company Limited was appointed by HyD as the
Supervising Officer. For implementation
of the environmental monitoring and audit (EM&A) programme
under the Contract, ERM-Hong Kong, Limited (ERM) has been appointed as the
Environmental Team (ET). Ramboll Environ
Hong Kong Ltd. was employed by HyD as the Independent
Environmental Checker (IEC) and Environmental Project Office (ENPO).
Layout
of the Contract components is presented in Figure 1.1.
The
organization structure of the Contract is shown in Appendix A. The key personnel contact names and contact
details are summarized in Table 1.1
below.
Table 1.1 Contact Information of Key Personnel
Party |
Position |
Name |
Telephone |
Fax |
Highways Department |
Engr
16/HZMB |
Kenneth Lee |
2762
4996 |
3188
6614 |
SOR (AECOM Asia Company Limited) |
Chief Resident Engineer |
Edwin
Ching Andrew Westmoreland |
2293
6388 2293
6360 |
2293
6300 2293
6300 |
ENPO / IEC (Ramboll Environ Hong Kong
Ltd.) |
ENPO Leader |
Y.H. Hui |
3465 2850 |
3465 2899 |
IEC |
Dr. F.C. Tsang |
3465 2851 |
3465 2899 |
|
Contractor (Dragages – Bouygues Joint Venture) |
Environmental Manager |
C.F. Kwong |
2293
7322 |
2293
7499 |
Environmental Officer |
Bryan Lee |
2293
7323 |
2293
7499 |
|
|
Environmental Officer |
Ality Chan |
5933 5904 |
2293 7499 |
|
24-hour complaint hotline |
Rachel Lam |
2293
7330 |
|
ET (ERM-HK) |
ET Leader |
Jovy Tam |
2271 3113 |
2723 5660 |
Table 1.2 Summary of Construction Activities Undertaken during the
Reporting Period
Construction
Activities Undertaken |
Land-based
Works |
·
Box Culvert Extension at Works Area – Portion N-A; ·
Preparation of Stage 2 Reclamation – Portion N-A; ·
Shaft Structure and Backfilling – Portion N-C; ·
Construction of Cross Passage Tympanum – TBM tunnel; ·
Cross Passage Lining Installation – TBM Tunnel; ·
Corbel Construction – TBM Tunnel; ·
Excavation of Sub-sea Tunnel – TBM tunnel; ·
Sub-sea Tunnel Gallery Installation – TBM tunnel; ·
Deep Band Drain Installation – Portion S-A; and ·
Jet Grouting, CSM Ground Treatment and Diaphragm
Wall Construction – Portion S-A. |

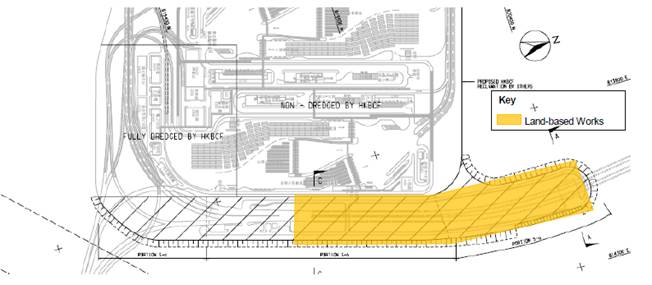

Figure 1.2 Locations of Construction Activities –
November 2016
|
The
EM&A programme required environmental monitoring
for air quality, water quality and marine ecology as well as environmental site
inspections for air quality, noise, water quality, waste management, marine
ecology and landscape and visual impacts.
The EM&A requirements and related findings for each component are
summarized in the following sections
In accordance
with the Updated EM&A Manual and the Enhanced TSP Monitoring Plan, impact
1-hour TSP monitoring was conducted three (3) times every six (6) days and
impact 24-hour TSP monitoring was carried out once every six (6) days when the
highest dust impact was expected. 1-hr
and 24-hr TSP monitoring frequency was increased to three times per day every
three days and daily every three days, respectively, as excavation works for
launching shaft commenced on 24 October 2014.
High
volume samplers (HVSs) were used to carry out the 1-hour and 24-hour TSP
monitoring on 1, 4, 7, 10, 13, 16, 19, 22, 25 and 28 November 2016 at the five
(5) air quality monitoring stations in accordance with the requirements
stipulated in the Updated EM&A Manual (Figure 2.1; Table 2.1). Wind meter was installed at the rooftop of
ASR5 for logging wind speed and wind direction.
Details of the equipment deployed are provided in Table 2.2. Copies of the
calibration certificates for the equipment are presented in Appendix E.
Table 2.1 Locations of Impact Air Quality
Monitoring Stations and Monitoring Dates in this Reporting Period
Monitoring Station |
Monitoring Dates |
Location |
Description |
Parameters
& Frequency |
ASR1 |
1,
4, 7, 10, 13, 16, 19, 22, 25 and 28 November 2016 |
Tuen Mun Fireboat Station |
Office |
TSP monitoring
1-hour Total
Suspended Particulates (1-hour TSP, µg/m3), 3 times in every 6
days
24-hour Total
Suspended Particulates (24-hour TSP, µg/m3), daily for 24-hour in
every 6 days Enhanced TSP monitoring (commenced on 24 October 2014)
1-hour Total
Suspended Particulates (1-hour TSP, µg/m3), 3 times in every 3
days
24-hour Total
Suspended Particulates (24-hour TSP, µg/m3), daily for 24-hour in
every 3 days |
ASR5 |
|
Pillar
Point Fire Station |
Office |
|
AQMS1 |
|
Previous
River Trade Golf |
Bare
ground |
|
ASR6 |
|
Butterfly
Beach Laundry |
Office |
|
ASR10 |
|
Butterfly
Beach Park |
Recreational
uses |
Table 2.2 Air
Quality Monitoring Equipment
Equipment |
Brand and Model |
High
Volume Sampler |
Tisch Environmental Mass Flow Controlled Total Suspended Particulate
(TSP) High Volume Sampler (Model No. TE-5170) |
Wind
Meter |
Davis
(Model: Vantage Pro 2 (S/N: AS160104014) |
Wind
Anemometer for calibration |
Lutron
(Model No. AM-4201) |
The
Action and Limit Levels of the air quality monitoring is provided in Appendix D. The
Event and Action plan is presented in Appendix J.
The
schedule for air quality monitoring in November 2016 is provided in Appendix F.
The
monitoring results for 1-hour TSP and 24-hour TSP are summarized in Tables 2.3 and 2.4, respectively. Detailed
impact air quality monitoring results and graphical presentations are presented
in Appendix G.
Table 2.3 Summary of 1-hour
TSP Monitoring Results in this Reporting Period
Station |
Average (µg/m3) |
Range (µg/m3) |
Action Level (µg/m3) |
Limit Level (µg/m3) |
ASR1 |
108 |
39 - 159 |
331 |
500 |
ASR5 |
132 |
41 - 223 |
340 |
500 |
AQMS1 |
87 |
34 - 196 |
335 |
500 |
ASR6 |
102 |
41 - 152 |
338 |
500 |
ASR10 |
86 |
39 - 123 |
337 |
500 |
Table 2.4 Summary of 24-hour TSP Monitoring Results in this Reporting
Period
Station |
Average (µg/m3) |
Range (µg/m3) |
Action Level (µg/m3) |
Limit Level (µg/m3) |
ASR1 |
75 |
47 - 108 |
213 |
260 |
ASR5 |
72 |
54 - 92 |
238 |
260 |
AQMS1 |
62 |
46 - 80 |
213 |
260 |
ASR6 |
69 |
52 - 93 |
238 |
260 |
ASR10 |
63 |
44 - 77 |
214 |
260 |
The
weather condition during the monitoring period varied from sunny to
cloudy. The major dust sources in the
reporting period included construction activities under the Contract as well as
nearby traffic emissions.
A
total of 10 monitoring events were undertaken in which no Action or Limit Level
exceedances of 1-hr TSP were recorded in this reporting month. No Action or Limit Level exceedances for
24-hr TSP were record.
Meteorological
information collected at the ASR5, including wind speed and wind direction, is
provided in Appendix H.
As
informed by the Contractor, Phase I Reclamation works for the Northern Landfall
was substantially completed in December 2014, a proposal letter was sent to EPD
on 21 May 2015 to seek approval for the temporary suspension of Water Quality
Monitoring. Subsequently, a letter from
EPD on 5 June 2015 stated that they have no strong objection to the temporary
suspension of the water quality monitoring.
Water Quality Monitoring was suspended from 6 June 2015 effectively and
will resume when Phase II Reclamation commences on 28 December 2016
tentatively. The water quality monitoring schedule in December 2016 and January
2017 is provided in Appendix
F.
Impact
dolphin monitoring is required to be conducted by a qualified dolphin
specialist team to evaluate whether there have been any effects on the
dolphins. In order to fulfil the
EM&A requirements and make good use of available resources, the on-going
impact line transect dolphin monitoring data collected by HyD’s
Contract No. HY/2011/03 Hong Kong-Zhuhai-Macao Bridge. Hong
Kong Link Road - Section between Scenic Hill and Hong Kong Boundary Crossing
Facilities on the monthly basis is adopted to avoid duplicates of survey
effort.
Table 2.5 summarises
the equipment used for the impact dolphin monitoring.
Table 2.5 Dolphin Monitoring Equipment
Equipment |
Model |
Global Positioning System (GPS) |
Garmin 18X-PC Geo One Phottix |
Camera |
Nikon D90 300m
2.8D fixed focus Nikon D90
20-300m zoom lens |
Laser
Binocular |
Infinitor LRF 1000 |
Marine
Binocular |
Bushell 7 x 50 marine
binocular with compass and reticules |
Vessel
for Monitoring |
65 foot single
engine motor vessel with viewing platform 4.5m above water level |
Dolphin
monitoring should cover all transect lines in Northeast Lantau (NEL) and the
Northwest Lantau (NWL) survey areas twice per month throughout the entire
construction period. The monitoring data
should be compatible with, and should be made available for, long-term studies
of small cetacean ecology in Hong Kong.
In order to provide a suitable long-term dataset for comparison, identical
methodology and line transects employed in baseline dolphin monitoring was
followed in the impact dolphin monitoring.
The
impact dolphin monitoring was carried out in the NEL and NWL along the line
transect as depicted in Figure 2.2. The co-ordinates of all transect lines are
shown in Table 2.6 below.
Table 2.6 Impact Dolphin Monitoring Line Transect Co-ordinates
Line No. |
Easting |
Northing |
Line No. |
Easting |
Northing |
||
1 |
Start
Point |
804671 |
815456 |
13 |
Start
Point |
816506 |
819480 |
1 |
End
Point |
804671 |
831404 |
13 |
End
Point |
816506 |
824859 |
2 |
Start
Point |
805475 |
815913 |
14 |
Start
Point |
817537 |
820220 |
2 |
End
Point |
805477 |
826654 |
14 |
End
Point |
817537 |
824613 |
3 |
Start
Point |
806464 |
819435 |
15 |
Start
Point |
818568 |
820735 |
3 |
End
Point |
806464 |
822911 |
15 |
End
Point |
818568 |
824433 |
4 |
Start
Point |
807518 |
819771 |
16 |
Start
Point |
819532 |
821420 |
4 |
End
Point |
807518 |
829230 |
16 |
End
Point |
819532 |
824209 |
5 |
Start
Point |
808504 |
820220 |
17 |
Start
Point |
820451 |
822125 |
5 |
End
Point |
808504 |
828602 |
17 |
End
Point |
820451 |
823671 |
6 |
Start
Point |
809490 |
820466 |
18 |
Start
Point |
821504 |
822371 |
6 |
End
Point |
809490 |
825352 |
18 |
End
Point |
821504 |
823761 |
7 |
Start
Point |
810499 |
820880 |
19 |
Start
Point |
822513 |
823268 |
7 |
End
Point |
810499 |
824613 |
19 |
End
Point |
822513 |
824321 |
8 |
Start
Point |
811508 |
821123 |
20 |
Start
Point |
823477 |
823402 |
8 |
End
Point |
811508 |
824254 |
20 |
End
Point |
823477 |
824613 |
9 |
Start
Point |
812516 |
821303 |
21 |
Start
Point |
805476 |
827081 |
9 |
End
Point |
812516 |
824254 |
21 |
End
Point |
805476 |
830562 |
10 |
Start
Point |
813525 |
820872 |
22 |
Start
Point |
806464 |
824033 |
10 |
End
Point |
813525 |
824657 |
22 |
End
Point |
806464 |
829598 |
11 |
Start
Point |
814556 |
818853 |
23 |
Start
Point |
814559 |
821739 |
11 |
End
Point |
814556 |
820992 |
23 |
End
Point |
814559 |
824768 |
12 |
Start
Point |
815542 |
818807 |
|
|
|
|
12 |
End
Point |
815542 |
824882 |
|
|
|
|
The
Action and Limit levels of impact dolphin monitoring are shown in Appendix D. The
Event and Action plan is presented in Appendix J.
Dolphin
monitoring was carried out on 2, 7, 18 and 22 of November 2016. The dolphin monitoring schedule for the
reporting month is shown in Appendix F.
A
total of three groups of 12 Chinese White Dolphins sightings were recorded
during the two sets of surveys in November 2016. All three dolphin sightings were made in NWL,
while none was sighted in NEL. All three
dolphin sightings were made on primary lines during on-effort search, and one
of these dolphin groups was associated with an operating gill-netter.
None of the dolphin sightings was made in the proximity of the
TM-CLKL alignment. The distribution of dolphin sightings during the
reporting month is shown in Figure 2.3.
Encounter
rates of Chinese White Dolphins are deduced from the survey effort and
on-effort sighting data made under favourable
conditions (Beaufort 3 or below) in November 2016 with the results present in Tables 2.7 and 2.8.
Table 2.7 Individual Survey Event Encounter Rates
|
Encounter
rate (STG) (no. of on-effort dolphin sightings per 100 km of
survey effort) |
Encounter
rate (ANI) (no. of dolphins from all on-effort sightings per
100 km of survey effort) |
|
Primary
Lines Only |
Primary
Lines Only |
||
NEL |
Set 1: November 2nd / 7th |
0.0 |
0.0 |
Set 2: November 18th / 22nd |
0.0 |
0.0 |
|
NWL |
Set 1: November 2nd / 7th |
1.7 |
1.7 |
Set 2: November 18th / 22nd |
2.8 |
15.3 |
Note: Dolphin Encounter Rates are deduced from the Two
Sets of Surveys (Two Surveys in Each Set) in November 2016 in Northeast (NEL)
and Northwest Lantau (NWL)
Table 2.8 Monthly Average Encounter Rates
|
Encounter
rate (STG) (no. of on-effort dolphin sightings per 100
km of survey effort) |
Encounter
rate (ANI) (no. of dolphins from
all on-effort sightings per 100 km of survey effort) |
||
Primary Lines Only |
Both
Primary and Secondary Lines |
Primary Lines Only |
Both
Primary and Secondary Lines |
|
Northeast
Lantau |
0.0 |
0.0 |
0.0 |
0.0 |
Northwest
Lantau |
2.3 |
1.7 |
9.1 |
6.9 |
Note: Overall
dolphin encounter rates (sightings per 100 km of survey effort) from all four
surveys are conducted in November 2016 on primary lines only as well as both
primary lines and secondary lines in Northeast and Northwest Lantau.
One (1) Limit Level
exceedance was observed for the quarterly dolphin monitoring data between
September and November 2016, whilst no unacceptable impact from the
construction activities of the TM-CLKL Northern Connection Sub-sea Tunnel Section on Chinese White Dolphins
was noticeable from general observations.
Due to monthly variation in dolphin occurrence within
the survey area, it would be more appropriate to draw conclusion on whether any
unacceptable impacts on dolphins have been detected in relation to the
construction activities of this Project in the quarterly EM&A reports,
where comparison on distribution, group size and encounter rates of dolphins
between the quarterly impact monitoring period and baseline monitoring period
will be made.
There was no dredging, reclamation or marine
sheet piling works in open waters during this reporting period. Thus,
Passive Acoustic Monitoring (PAM) and the day-time monitoring of Dolphin
Exclusion Zone (DEZ) by dolphin observers were not in effect during the
reporting period.
Site
inspections were carried out on a weekly basis to monitor the implementation of
proper environmental pollution control and mitigation measures under the Contract. In the reporting month, five (5) site
inspections were carried out on 2, 9, 16, 23 and 30 November 2016.
Key
observations and recommendations during the site inspections in this reporting
period are summarized in Table 2.9.
Table 2.9 Specific Observations and Recommendations during the Weekly
Site Inspection in this Reporting Month
Inspection
Date |
Observations |
Recommendations/
Remarks |
2 November 2016 |
Works Area -
TBM Tunnel
Cement bags should be covered by tarpaulin sheets to
avoid dust impacts.
Drip tray should be provided to the oil drums. Works Area -
Portion S-B
Drip tray should be provided to the oil drums.
Accumulated waste in the skip should be removed.
Cement bags should be covered by tarpaulin sheets to
avoid dust impacts. |
Works Area -
TBM Tunnel
The Contractor was reminded to cover the cement bags
by tarpaulin sheets to avoid dust impacts.
The Contractor was reminded to provide drip tray to
the oil drums. Works Area -
Portion S-B
The Contractor was reminded to provide drip tray to
the oil drums.
The Contractor was reminded to remove the
accumulated waste in the skip.
The Contractor was reminded to cover the cement bags
by tarpaulin sheets to avoid dust impacts. |
9 November
2016 |
Works Area -
Ventilation shaft
Drip tray should be provided to the oil drums. Works Area -
Portion S-B
Drip tray should be provided to the oil drums. Works Area -
Portion S-C
Accumulated waste should be removed from the waste
skip. |
Works Area -
Ventilation shaft
The Contractor was reminded to provide drip tray to
the oil drums. Works Area -
Portion S-B
The Contractor was reminded to provide drip tray to
the oil drums. Works Area -
Portion S-C
The Contractor was reminded to remove the
accumulated waste from the waste skip. |
16 November 2016 |
Works Area –
Portion N-B
Stagnant water should be removed.
Drip tray should be provided to the chemicals. |
Works Area –
Portion N-B
The Contractor was reminded to remove the stagnant
water.
The Contractor was reminded to provide drip tray to
the chemicals. |
23 November
2016 |
Works Area –
Portion S-B
Cement bags should be covered with tarpaulin sheet.
Drip tray should be provided to the chemicals. |
Works Area –
Portion S-B
The Contractor was reminded to cover the cement bags
with tarpaulin sheet.
The Contractor was reminded to provide drip tray to
the chemicals. |
30
November 2016 |
Works Area -
Portion N-C
Drip tray should be provided to the chemicals. Works Area -
Portion S-B
Stagnant water in the drip tray should be removed. |
Works Area -
Portion N-C
The Contractor was reminded to provide drip tray to
the chemicals. Works Area -
Portion S-B
The Contractor was reminded to remove the stagnant
water in the drip tray. |
The
Contractor has rectified all of the observations as identified during
environmental site inspections in the reporting month.
The
Contractor had submitted application form for registration as chemical waste producer
under the Contract. Sufficient numbers
of receptacles were available for general refuse collection and sorting.
Wastes
generated during this reporting period included mainly construction wastes
(inert and non-inert). Reference has
been made to the waste flow table prepared by the Contractor (Appendix L). The
quantities of different types of wastes are summarized in Table 2.10.
Table 2.10 Quantities of Different Waste Generated in the Reporting Month
Month/Year |
Inert Construction Waste (a)
(tonnes) |
Imported Fill (tonnes) |
Inert Construction Waste
Re-used (tonnes) |
Non-inert Construction Waste (b)
(tonnes) |
Recyclable Materials (c) (kg) |
Chemical Wastes (kg) |
Marine Sediment (m3) |
|
Category L |
Category M (Mp
& Mf) |
|||||||
November 2016 |
13,293 |
0 |
0 |
305 |
0 |
0 |
0 |
0 |
Notes: |
||||||||
(a) Inert
construction wastes include hard rock and large broken concrete, and
materials disposed as public fill. (b) Non-inert
construction wastes include general refuse disposed at landfill. (c) Recyclable
materials include metals, paper, cardboard, plastics, timber and others. |
The
Contractor was advised to properly maintain on site C&D materials and waste
collection, sorting and recording system, dispose of C&D materials and
wastes at designated ground and maximize reuse/ recycle of C&D materials
and wastes. The Contractor was also
reminded to properly maintain the site tidiness and dispose of the wastes accumulated
on site regularly and properly.
For
chemical waste containers, the Contractor was reminded to treat properly and
store temporarily in designated chemical waste storage area on site in
accordance with the Code of Practice on the Packaging, Labelling and Storage of
Chemical Wastes.
The
status of environmental licensing and permit is summarized in Table 2.11 below.
Table 2.11 Summary of Environmental Licensing and Permit Status
License/
Permit |
License
or Permit No. |
Date
of Issue |
Date
of Expiry |
License/ Permit Holder |
Remarks |
Environmental Permit |
EP-354/2009/D |
13 March 2015 |
Throughout the Contract |
HyD |
Application
for VEP on 3 March 2015 to supersede EP-354/2009/C |
Construction Dust
Notification |
363510 |
19 August 2013 |
Throughout the Contract |
DBJV |
Northern
Landfall |
Construction Dust
Notification |
403620 |
10
June 2016 |
Throughout the Contract |
DBJV |
Southern
Landfall |
Chemical Waste
Registration |
5213-422-D2516-01 |
10 September 2013 |
Throughout the Contract |
DBJV |
Northern
Landfall |
Chemical Waste
Registration |
5213-951-D2591-01 |
25
May 2016 |
Throughout the Contract |
DBJV |
Southern
Landfall |
Construction Waste
Disposal Account |
7018108 |
28 August 2013 |
Throughout the Contract |
DBJV |
Waste
disposal in Contract No. HY/2012/08 |
Waste Water Discharge
License |
WT00017707-2013 |
18 November 2013 |
30 November 2018 |
DBJV |
For
site WA18 |
Waste Water Discharge
License |
WT00019248-2014 |
5 June 2014 |
30 June 2019 |
DBJV |
For
site Portion N6 and Reclamation Area E |
Marine
Dumping Permit |
EP/MD/17-108 |
16
November 2016 |
15
December 2016 |
DBJV |
Southern
Landfall |
Construction Noise Permit |
GW-RW0644-16 |
30 November 2016 |
29 May 2017 |
DBJV |
For Urmston Road in front
of Pillar Point |
Construction Noise Permit |
GW-RW0666-16 |
13 December 2016 |
12 June 2017 |
DBJV |
For site WA23A+B |
Construction
Noise Permit |
GW-RW0533-16 |
29
September 2016 |
28
March 2017 |
DBJV |
For
Portion N6 |
Construction
Noise Permit |
GW-RS0860-16 |
25
August 2016 |
24
February 2017 |
DBJV |
For
Southern Landfall |
Notes: |
|||||
HyD
= Highways Department DBJV = Dragages – Bouygues Joint Venture VEP = Variation of
Environmental Permit |
In
response to the site audit findings, the Contractors carried out all corrective
actions.
A summary
of the Implementation Schedule of Environmental Mitigation Measures (EMIS) is
presented in Appendix C. The
necessary mitigation measures relevant to this Contract were implemented
properly.
No
Action Level or Limit Level exceedances were recorded in the air quality
monitoring of this reporting month.
One
(1) Limit Level exceedance was observed for the quarterly dolphin monitoring data
between September and November 2016, whilst no unacceptable impact from the
construction activities of the TM-CLKL Northern Connection Sub-sea Tunnel
Section on Chinese White Dolphins was noticeable from general observations.
Cumulative
statistics are provided in Appendix K.
The
Environmental Complaint Handling Procedure is provided in Figure 2.4.
One (1) environmental
complaint case regarding effluent discharge at the sea was referred by EPD on 28 November 2016.
Interim report will be sent to EPD after thorough investigation.
No
notification of summons and prosecution were received in the reporting period.
Statistics
on complaints, notifications of summons and successful prosecutions are
summarized in Appendix K.
As
informed by the Contractor, the major works for the Project in November 2016
are summarized in Table 3.1.
Table 3.1 Construction Works to Be Undertaken in the Coming Month
Works to be
undertaken |
Marine-based
Works |
Dredging at Portion N-A; and
Construction of Vertical Seawall at Portions N-A. Land-based
Works ·
Box Culvert Extension at Works Area – Portion N-A; ·
Shaft Structure and Backfilling – Portion N-C; ·
Construction of Cross Passage Tympanum – TBM tunnel; ·
Cross Passage Lining Installation – TBM Tunnel; ·
Corbel Construction – TBM Tunnel; ·
Excavation of Sub-sea Tunnel – TBM tunnel; ·
Sub-sea Tunnel Gallery Installation – TBM tunnel; ·
Jet Grouting, CSM Ground Treatment and Diaphragm
Wall Construction – Portion S-A. |
Potential
environmental impacts arising from the above upcoming construction activities
in the next reporting month of December 2016 are mainly associated with dust,
marine water quality, marine ecology and waste management issues.
The
tentative schedule for environmental monitoring in December 2016 is
provided in Appendix F.
This
Thirty-seventh Monthly EM&A Report presents the findings of the
EM&A activities undertaken during the period from 1 to 30 November 2016, in
accordance with the Updated EM&A Manual and the requirements of
EP-354/2009/D.
Air
quality (including 1-hour TSP and 24-hour TSP) and dolphin monitoring were
carried out in this reporting month. No Action Level or Limit Level
exceedances were recorded in the air quality monitoring of this reporting
month.
A
total of three groups of 12 Chinese White Dolphins sightings were recorded
during the two sets of surveys in November 2016. All three dolphin sightings were made in NWL,
while none was sighted in NEL. All three
dolphin sightings were made on primary lines during on-effort search, and one
of these dolphin groups was associated with an operating gill-netter. One (1) Limit Level exceedance was observed
for the quarterly dolphin monitoring data between September and November 2016,
whilst no unacceptable impact from the construction activities of the TM-CLKL
Northern Connection Sub-sea Tunnel Section on Chinese White Dolphins was noticeable
from general observations.
Environmental
site inspection was carried out five (5) times in November 2016. Recommendations on remedial actions
recommended for the deficiencies identified during the site audits were
properly implemented by the Contractor.
No
non-compliance event was recorded during the reporting period.
One (1) environmental
complaint case regarding effluent discharge at the sea was referred by EPD on 28 November 2016.
No
summons/ prosecution was received during the reporting
period.
The
ET will keep track on the construction works to confirm compliance of
environmental requirements and the proper implementation of all necessary
mitigation measures.
