Under Contract No. HY/2012/08, Dragages – Bouygues Joint
Venture (DBJV) is commissioned by the Highways Department (HyD)
to undertake the design and construction of the Northern Connection Sub-sea
Tunnel Section of the Tuen Mun
– Chek Lap Kok Link Project
(TM-CLK Link Project) while AECOM Asia
Company Limited was appointed by HyD as the
Supervising Officer. For implementation
of the environmental monitoring and audit (EM&A) programme
under the Contract, ERM-Hong Kong, Limited (ERM) has been appointed as the
Environmental Team (ET) in accordance with Environmental
Permit No. EP-354/2009/A.
Ramboll Environ Hong Kong Ltd. was employed by
HyD as the Independent Environmental Checker (IEC)
and Environmental Project Office (ENPO).
Subsequent
applications for variation of environmental permits (VEP), EP-354/2009/B, EP-354/2009/C and
EP-354/2009/D, were granted on 28
January 2014, 10 December 2014 and 13 March 2015, respectively.
The
construction phase of the Project commenced on 1 November 2013 and will
tentatively be completed by the end of 2018.
The impact monitoring of the EM&A programme,
including air quality, water quality, marine ecological monitoring and environmental
site inspections, were commenced on 1 November 2013.
This is the
Fiftieth Monthly EM&A report presenting the EM&A works carried out
during the period from 1 to 31 December 2017 for the Contract No. HY/2012/08 Northern Connection Sub-sea Tunnel
Section
(the “Project”) in
accordance with the Updated EM&A Manual of the TM-CLK Link Project. As
informed by the Contractor, major activities in the reporting period included:
Land-based
Works
·
Box Culvert
Extension at Works Area – Portion N-A;
·
Construction
of North Ventilation Building – Portion N-C;
·
Construction
of Cross Passage Tympanum – TBM tunnel;
·
Cross
Passage Lining Installation – TBM Tunnel;
·
Excavation
of Sub-sea Tunnel – TBM tunnel;
·
Corbel
Construction – TBM Tunnel;
·
Bulk
Excavation – Portion S-A;
·
CSM
treatment, Jet Grouting works and D-wall Construction; and
·
Ground
Freezing Works – Portion S-A
Marine-based
Works
·
Seawall
Construction and Filling works – Portion N-A; and
·
Seawall
Enhancement works – Portion N-C
A summary
of monitoring and audit activities conducted in the reporting period is listed
below:
24-hour TSP
Monitoring 10 sessions
1-hour TSP Monitoring 10 sessions
Water
Quality Monitoring 13
sessions
Impact Dolphin
Monitoring 2
sessions
Joint
Environmental Site Inspection 4 sessions
Implementation of Marine Mammal Exclusion Zone
Daily
marine mammal exclusion zone was in effect during the period of dredging,
reclamation or marine sheet piling works in open waters under this
Contract. No sighting of the
Indo-Pacific humpback dolphin Sousa chinensis (i.e.
Chinese White Dolphin) was recorded in December 2017 during the exclusion zone
monitoring.
Summary of
Breaches of Action/Limit Levels
Breaches of Action and Limit Levels for Air Quality
One (1) Action
Level of 1-hour TSP and two (2) Limit Level exceedances of 24-hour TSP were recorded
on 8 December 2017. Three (3) Action
Level exceedances of 1-hour TSP and one (1) Action Level exceedance of 24-hour
TSP were recorded on 11 December 2017.
One (1) Limit Level exceedance of 24-hour TSP was recorded on 17
December 2017. Two (2) Action Level exceedances
of 1-hour TSP were recorded on 20 December 2017. One (1) Action Level exceedance of 1-hour TSP
was recorded on 26 December 2017. One
(1) Action Level exceedance of 1-hour TSP was recorded on 29 December
2017. Investigation reports of air
quality exceedances on 29 November 2017, 8, 11, 17, 20, 26 December 2017 are provided
in Appendix L.
Breaches of Action and Limit Levels for Water Quality
Four (4)
Action Level exceedances of Suspended Solids (SS) were recorded in the water
quality monitoring of this reporting month.
Investigation reports of water
quality exceedances on 22 November 2017, 6 and 8 December 2017 are provided in Appendix L.
Breaches of Action and Limit Levels for Dolphin
Monitoring
Due to monthly variation in dolphin
occurrence within the survey area, it would be more appropriate to draw
conclusion on whether any unacceptable impacts on dolphins have been detected
in relation to the construction activities of this Project in the quarterly
EM&A reports, where comparison on distribution, group size and encounter
rates of dolphins between the quarterly impact monitoring period and baseline
monitoring period will be made.
Summary of
Marine Travel Route record
No non-compliance with EIA recommendations, EP conditions and other requirements associated with the marine
travel route record of this Contract was recorded in December 2017.
Environmental
Complaints, Non-compliance & Summons
No non-compliance with EIA recommendations, EP conditions and other requirements associated with the
construction of this Contract was recorded in this reporting period.
No environmental complaint was
received in this reporting period.
No
environmental summons was received in this reporting period.
Reporting Change
There was
no reporting change required in the reporting period.
Upcoming
Works for the Next Reporting Month
Works to be
undertaken in the next monitoring period of January 2018 include the following:
Land-based
Works
·
Box Culvert
Extension at Works Area – Portion N-A;
·
Construction
of North Ventilation Building – Portion N-C;
·
Construction
of Cross Passage Tympanum – TBM tunnel;
·
Cross
Passage Lining Installation – TBM Tunnel;
·
Excavation
of Sub-sea Tunnel – TBM tunnel;
·
Corbel
Construction – TBM Tunnel;
·
Bulk
Excavation – Portion S-A;
·
CSM
treatment, Jet Grouting works and D-wall Construction; and
·
Ground
Freezing Works – Portion S-A
Future Key
Issues
Potential
environmental impacts arising from the above upcoming construction activities
in the next reporting month of January 2018 are mainly associated with dust, marine
water quality, marine ecology and waste management issues.
According
to the findings of the Northwest New Territories (NWNT) Traffic and Infrastructure
Review conducted by the Transport Department, Tuen Mun Road, Ting Kau Bridge, Lantau
Link and North Lantau Highway would be operating beyond capacity after 2016. This forecast has been based on the estimated
increase in cross boundary traffic, developments in the Northwest New
Territories (NWNT), and possible developments in North Lantau, including the
Airport developments, the Lantau Logistics Park (LLP) and the Hong Kong –
Zhuhai – Macao Bridge (HZMB). In order
to cope with the anticipated traffic demand, two new road sections between NWNT
and North Lantau – Tuen Mun
– Chek Lap Kok Link
(TM-CLKL) and Tuen Mun
Western Bypass (TMWB) are proposed.
An
Environmental Impact Assessment (EIA) of TM-CLKL (the Project) was prepared in
accordance with the EIA Study Brief (No. ESB-175/2007) and
the Technical Memorandum of the
Environmental Impact Assessment Process (EIAO-TM). The EIA
Report was submitted under the Environmental Impact Assessment Ordinance (EIAO)
in August 2009. Subsequent to the
approval of the EIA Report (EIAO Register Number AEIAR-146/2009), an
Environmental Permit (EP-354/2009) for TM-CLKL was granted by the Director of
Environmental Protection (DEP) on 4 November 2009, and EP variation (VEP)
(EP-354/2009/A) was issued on 8 December 2010.
Subsequent applications for variation of environmental permits (VEPs), EP-354/2009/B, EP-354/2009/C and EP-354/2009/D, were granted on 28
January 2014, 10 December 2014 and 13 March 2015, respectively.
Under Contract No. HY/2012/08, Dragages – Bouygues Joint
Venture (DBJV) is commissioned by the Highways Department (HyD)
to undertake the design and construction of the Northern Connection Sub-sea
Tunnel Section of TM-CLKL while AECOM Asia Company Limited was appointed by HyD
as the Supervising Officer. For
implementation of the environmental monitoring and audit (EM&A) programme under the Contract, ERM-Hong Kong, Limited (ERM)
has been appointed as the Environmental Team (ET). Ramboll Environ Hong Kong Ltd. was employed
by HyD as the Independent Environmental Checker (IEC)
and Environmental Project Office (ENPO).
Layout

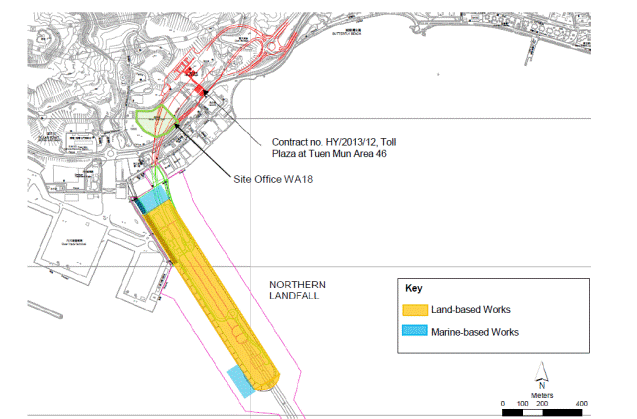

of the Contract components is presented in Figure 1.1.
The
organization structure of the Contract is shown in Appendix A. The key personnel contact names and contact
details are summarized in Table 1.1
below.
Table 1.1 Contact
Information of Key Personnel
Party |
Position |
Name |
Telephone |
Fax |
Highways Department |
Engr 22/HZMB |
Chow Man Lung, Andrew |
2762
4110 |
2762
4110 |
SOR (AECOM Asia Company Limited) |
Chief Resident Engineer |
Roger
Man Andrew Westmoreland |
2293
6388 2293
6360 |
2293
6300 2293
6300 |
ENPO / IEC (Ramboll Environ Hong Kong
Ltd.) |
ENPO Leader |
Y.H. Hui |
3465 2850 |
3465 2899 |
IEC |
Dr. F.C. Tsang |
3465 2851 |
3465 2899 |
|
Contractor (Dragages – Bouygues
Joint Venture) |
Environmental Officer |
Bryan Lee |
2293
7323 |
2293
7499 |
|
24-hour complaint hotline |
Rachel Lam |
2293
7330 |
|
ET (ERM-HK) |
ET Leader |
Jovy Tam |
2271 3113 |
2723 5660 |
Table 1.2 Summary of
Construction Activities Undertaken during the Reporting Period
Construction Activities
Undertaken |
Land-based Works |
·
Box
Culvert Extension at Works Area – Portion N-A; ·
Construction
of North Ventilation Building – Portion N-C; ·
Construction
of Cross Passage Tympanum – TBM tunnel; ·
Cross
Passage Lining Installation – TBM Tunnel; ·
Excavation
of Sub-sea Tunnel – TBM tunnel; ·
Corbel
Construction – TBM Tunnel; ·
Bulk
Excavation – Portion S-A; ·
CSM
treatment, Jet Grouting works and D-wall Construction; and ·
Ground
Freezing Works – Portion S-A Marine-based Works ·
Seawall
Construction and Filling works – Portion N-A; and ·
Seawall
Enhancement works – Portion N-C |

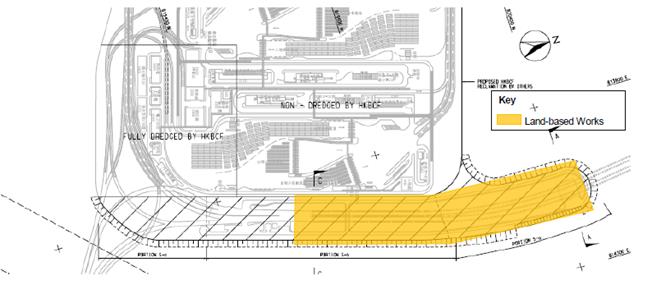

Figure 1.2 Locations
of Construction Activities – December 2017
|
The
EM&A programme required environmental monitoring
for air quality, water quality and marine ecology as well as environmental site
inspections for air quality, noise, water quality, waste management, marine
ecology and landscape and visual impacts. The EM&A requirements and related findings
for each component are summarized in the following sections
In
accordance with the Updated EM&A Manual and the Enhanced TSP Monitoring
Plan, impact 1-hour TSP monitoring was conducted three (3) times every six (6)
days and impact 24-hour TSP monitoring was carried out once every six (6) days when
the highest dust impact was expected. 1-hr
and 24-hr TSP monitoring frequency was increased to three times per day every
three days and daily every three days, respectively, as excavation works for
launching shaft commenced on 24 October 2014.
High volume
samplers (HVSs) were used to carry out the 1-hour and 24-hour TSP monitoring on
2, 5, 8, 11, 14, 17, 20, 23, 26 and 29 December 2017 at the five (5) air
quality monitoring stations in accordance with the requirements stipulated in
the Updated EM&A Manual (Figure 2.1; Table 2.1). Wind meter was installed at the rooftop of
ASR5 for logging wind speed and wind direction.
Details of the equipment deployed are provided in Table 2.2. Copies of the
calibration certificates for the equipment are presented in Appendix E.
Table
2.1 Locations of
Impact Air Quality Monitoring Stations and Monitoring Dates in this Reporting
Period
Monitoring Station |
Monitoring Dates |
Location |
Description |
Parameters
& Frequency |
ASR1 |
2, 5, 8, 11, 14, 17, 20, 23, 26
and 29 December 2017 |
Tuen Mun Fireboat Station |
Office |
TSP
monitoring 1-hour Total Suspended Particulates (1-hour TSP,
µg/m3), 3 times in every 6 days 24-hour Total Suspended Particulates (24-hour
TSP, µg/m3), daily for 24-hour in every 6 days Enhanced
TSP monitoring (commenced on 24 October 2014) 1-hour Total Suspended Particulates (1-hour TSP,
µg/m3), 3 times in every 3 days 24-hour Total Suspended Particulates (24-hour
TSP, µg/m3), daily for 24-hour in every 3 days |
ASR5 |
|
Pillar Point Fire Station |
Office |
|
AQMS1 |
|
Previous River Trade Golf |
Bare ground |
|
ASR6 |
|
Butterfly Beach Laundry |
Office |
|
ASR10 |
|
Butterfly Beach Park |
Recreational uses |
Table 2.2 Air Quality Monitoring Equipment
Equipment |
Brand and Model |
High
Volume Sampler |
Tisch
Environmental Mass Flow Controlled Total Suspended Particulate (TSP) High
Volume Sampler (Model No. TE-5170) |
Wind
Meter |
Davis
(Model: Vantage Pro 2 (S/N: AS160104014) |
Wind
Anemometer for calibration |
Lutron
(Model No. AM-4201) |
The Action
and Limit Levels of the air quality monitoring is provided in Appendix D. The
Event and Action plan is presented in Appendix K.
The
schedule for air quality monitoring in December 2017 is provided in Appendix F.
The
monitoring results for 1-hour TSP and 24-hour TSP are summarized in Tables 2.3 and 2.4, respectively. Detailed
impact air quality monitoring results and graphical presentations are presented
in Appendix G.
Table 2.3 Summary of
1-hour TSP Monitoring Results in this Reporting Period
Station |
Average (µg/m3) |
Range (µg/m3) |
Action Level (µg/m3) |
Limit Level (µg/m3) |
ASR1 |
210 |
82 - 443 |
331 |
500 |
ASR5 |
202 |
75 - 417 |
340 |
500 |
AQMS1 |
117 |
48 - 167 |
335 |
500 |
ASR6 |
156 |
32 - 262 |
338 |
500 |
ASR10 |
127 |
46 - 304 |
337 |
500 |
Table 2.4 Summary of
24-hour TSP Monitoring Results in this Reporting Period
Station |
Average (µg/m3) |
Range (µg/m3) |
Action Level (µg/m3) |
Limit Level (µg/m3) |
ASR1 |
173 |
81 - 328 |
213 |
260 |
ASR5 |
162 |
84 - 279 |
238 |
260 |
AQMS1 |
101 |
59 - 177 |
213 |
260 |
ASR6 |
120 |
83 - 161 |
238 |
260 |
ASR10 |
102 |
56 - 250 |
214 |
260 |
The weather
condition during the monitoring period varied from sunny to cloudy. The major dust sources in the reporting
period included construction activities under the Contract as well as nearby
traffic emissions.
A total of 10
1-hour TSP and 24-hour TSP monitoring were undertaken in which seven (7) Action
Level of 1-hour TSP, one (1) Action Level of 24-hour TSP and three (3) Limit
Level exceedances of 24-hour TSP were recorded in this reporting month.
Meteorological
information collected at the ASR5, including wind speed and wind direction, is provided
in Appendix H.
In
accordance with the Updated EM&A Manual, impact water quality monitoring
was carried out three days per week during the construction period at nine (9) water
quality monitoring stations (Figure 2.2; Table 2.5).
Table 2.5 Locations of
Water Quality Monitoring Stations and the Corresponding Monitoring Requirements
Station ID |
Type |
Coordinates |
*Parameters,
unit |
Depth |
Frequency |
|
|
|
Easting |
Northing |
|
|
|
IS12 |
Impact
Station |
813218 |
823681 |
Temperature(°C) pH(pH unit) Turbidity (NTU) Water depth (m) Salinity (ppt) DO (mg/L and % of saturation) · SS (mg/L) |
3 water depths: 1m below sea surface, mid-depth and 1m above sea bed.
If the water depth is less than 3m, mid-depth sampling only. If water depth less than 6m, mid-depth may
be omitted. |
Impact monitoring: 3 days per week, at mid-flood and mid-ebb tides
during the construction period of the Contract. |
IS13 |
Impact Station |
813667 |
824325 |
|||
IS14 |
Impact Station |
812592 |
824172 |
|||
IS15 |
Impact Station |
813356 |
825008 |
|||
CS4 |
Control / Far Field Station |
810025 |
824004 |
|||
CS6 |
Control / Far Field Station |
817028 |
823992 |
|||
SR8 |
Sensitive
receiver (Gazettal beaches in Tuen Mun) |
816306 |
825715 |
|||
SR9 |
Sensitive
receiver |
813601 |
825858 |
|||
SR10A |
Sensitive
receiver |
823741 |
823495 |
|||
*Notes: In addition to the parameters
presented monitoring location/position, time, water depth, sampling depth,
tidal stages, weather conditions and any special phenomena or works underway
nearby were also recorded. |
Table 2.6 summarizes the equipment used in the impact water quality monitoring programme. Copies of the calibration certificates are attached in Appendix E.
Table 2.6 Water
Quality Monitoring Equipment
Equipment |
Model |
Multi-Parameters |
YSI ProDss
16J101715 |
Multi-Parameters |
YSI ProDss
17E102520 |
Multi-Parameters |
YSI ProDss
16H104234 |
Multi-Parameters |
YSI ProDss
17H105557 |
Multi-Parameters |
YSI 6920 000109DF |
Multi-Parameters |
YSI 6920V2 00019CB2 |
Positioning Equipment |
Furuno GP-170 |
Water Depth Detector |
Lowrance Mark 5x / Garmin Striker 4 |
The Action
and Limit levels of water quality impact monitoring are shown in Appendix D.
The Event and Action plan is presented in Appendix K.
The
schedule for water quality monitoring in December 2017 is provided in Appendix F.
Impact
water quality monitoring was conducted at all designated monitoring stations in
the reporting month. Results and
graphical presentations of impact water quality monitoring are presented in Appendix I.
Since seawall
block installation for Phase II reclamation commenced on 1 November 2017,
impact water quality monitoring resumed on 1 November 2017. In this reporting period, a total of thirteen
(13) monitoring events were undertaken in which Four (4) Action Level
exceedances of Suspended Solids (SS) for impact water quality monitoring were
recorded.
Impact
dolphin monitoring is required to be conducted by a qualified dolphin
specialist team to evaluate whether there have been any effects on the
dolphins. In order to fulfil the
EM&A requirements and make good use of available resources, the on-going
impact line transect dolphin monitoring data collected by HyD’s
Contract No. HY/2011/03 Hong Kong-Zhuhai-Macao Bridge. Hong
Kong Link Road - Section between Scenic Hill and Hong Kong Boundary Crossing
Facilities on the monthly basis is adopted to avoid duplicates of survey
effort.
Table 2.7 summarises the equipment used for the impact
dolphin monitoring.
Table 2.7 Dolphin
Monitoring Equipment
Equipment |
Model |
Global
Positioning System (GPS) |
Garmin
18X-PC Geo One Phottix |
Camera |
Nikon D90 300m 2.8D fixed focus Nikon D90 20-300m zoom lens |
Laser
Binocular |
Infinitor LRF 1000 |
Marine
Binocular |
Bushell 7 x 50 marine binocular with compass and
reticules |
Vessel
for Monitoring |
65 foot single engine motor vessel with viewing
platform 4.5m above water level |
Dolphin
monitoring should cover all transect lines in Northeast Lantau (NEL) and the
Northwest Lantau (NWL) survey areas twice per month throughout the entire
construction period. The monitoring data
should be compatible with, and should be made available for, long-term studies
of small cetacean ecology in Hong Kong. In
order to provide a suitable long-term dataset for comparison, identical
methodology and line transects employed in baseline dolphin monitoring was
followed in the impact dolphin monitoring.
The impact
dolphin monitoring was carried out in the NEL and NWL along the line transect
as depicted in Figure 2.3. The co-ordinates of all transect lines are
shown in Table 2.8 below.
Table 2.8 Impact Dolphin
Monitoring Line Transect Co-ordinates
Line No. |
Easting |
Northing |
Line No. |
Easting |
Northing |
||
1 |
Start Point |
804671 |
815456 |
13 |
Start Point |
816506 |
819480 |
1 |
End Point |
804671 |
831404 |
13 |
End Point |
816506 |
824859 |
2 |
Start Point |
805476 |
820800* |
14 |
Start Point |
817537 |
820220 |
2 |
End Point |
805476 |
826654 |
14 |
End Point |
817537 |
824613 |
3 |
Start Point |
806464 |
821150* |
15 |
Start Point |
818568 |
820735 |
3 |
End Point |
806464 |
822911 |
15 |
End Point |
818568 |
824433 |
4 |
Start Point |
807518 |
821500* |
16 |
Start Point |
819532 |
821420 |
4 |
End Point |
807518 |
829230 |
16 |
End Point |
819532 |
824209 |
5 |
Start Point |
808504 |
821850* |
17 |
Start Point |
820451 |
822125 |
5 |
End Point |
808504 |
828602 |
17 |
End Point |
820451 |
823671 |
6 |
Start Point |
809490 |
822150* |
18 |
Start Point |
821504 |
822371 |
6 |
End Point |
809490 |
825352 |
18 |
End Point |
821504 |
823761 |
7 |
Start Point |
810499 |
822000* |
19 |
Start Point |
822513 |
823268 |
7 |
End Point |
810499 |
824613 |
19 |
End Point |
822513 |
824321 |
8 |
Start Point |
811508 |
821123 |
20 |
Start Point |
823477 |
823402 |
8 |
End Point |
811508 |
824254 |
20 |
End Point |
823477 |
824613 |
9 |
Start Point |
812516 |
821303 |
21 |
Start Point |
805476 |
827081 |
9 |
End Point |
812516 |
824254 |
21 |
End Point |
805476 |
830562 |
10 |
Start Point |
813525 |
821176 |
22 |
Start Point |
806464 |
824033 |
10 |
End Point |
813525 |
824657 |
22 |
End Point |
806464 |
829598 |
11 |
Start Point |
814556 |
818853 |
23 |
Start Point |
814559 |
821739 |
11 |
End Point |
814556 |
820992 |
23 |
End Point |
814559 |
824768 |
12 |
Start Point |
815542 |
818807 |
24* |
Start Point |
805476* |
815900* |
12 |
End Point |
815542 |
824882 |
24* |
End Point |
805476* |
819100* |
The Action
and Limit levels of impact dolphin monitoring are shown in Appendix D. The Event and Action plan is presented in Appendix K.
Dolphin
monitoring was carried out on 5, 12, 15 and 20 of December 2017. The dolphin monitoring schedule for the
reporting month is shown in Appendix F.
Four groups
of 13 Chinese White Dolphins sightings were recorded during the two sets of surveys
in December 2017. All dolphin sightings were
made in NWL, while none was sighted in NEL. All dolphin sightings were made during
on-effort search and were made on primary lines. None of the dolphin groups were associated with
any operating fishing vessel.
No dolphin sighting was made in the
proximity of the TM-CLKL alignment. The
distribution of dolphin sightings during the reporting month is shown in Figure 2.4.
Encounter
rates of Chinese White Dolphins are deduced from the survey effort and
on-effort sighting data made under favourable
conditions (Beaufort 3 or below) in December 2017 with the results present in Tables 2.9 and 2.10.
Table 2.9 Individual
Survey Event Encounter Rates
|
Encounter
rate (STG) (no.
of on-effort dolphin sightings per 100 km of survey effort) |
Encounter
rate (ANI) (no.
of dolphins from all on-effort sightings per 100 km of survey effort) |
|
Primary
Lines Only |
Primary
Lines Only |
||
NEL |
Set
1: December 5th / 12th |
0.0 |
0.0 |
Set
2: December 15th / 20th |
0.0 |
0.0 |
|
NWL |
Set
1: December 5th / 12th |
1.7 |
8.3 |
Set
2: December 15th / 20th |
8.4 |
22.4 |
Note: Dolphin Encounter Rates are deduced from the Two Sets of Surveys
(Two Surveys in Each Set) in December
2017 in Northeast (NEL) and Northwest Lantau
(NWL)
Table 2.10 Monthly Average
Encounter Rates
|
Encounter
rate (STG) (no. of on-effort dolphin sightings per 100
km of survey effort) |
Encounter
rate (ANI) (no. of dolphins
from all on-effort sightings per 100 km of survey effort) |
||
Primary Lines Only |
Both
Primary and Secondary Lines |
Primary Lines Only |
Both
Primary and Secondary Lines |
|
Northeast
Lantau |
0.0 |
0.0 |
0.0 |
0.0 |
Northwest
Lantau |
4.2 |
2.9 |
13.6 |
9.4 |
Note: Overall dolphin encounter
rates (sightings per 100 km of survey effort) from all four surveys are
conducted in December
2017 on primary lines only as well as both primary
lines and secondary lines in Northeast and Northwest Lantau.
Due to monthly variation in dolphin
occurrence within the survey area, it would be more appropriate to draw
conclusion on whether any unacceptable impacts on dolphins have been detected
in relation to the construction activities of this Project in the quarterly
EM&A reports, where comparison on distribution, group size and encounter
rates of dolphins between the quarterly impact monitoring period and baseline
monitoring period will be made.
Daily
marine mammal exclusion zone was in effect during the period of dredging,
reclamation or marine sheet piling works in open waters under this
Contract. No sighting of the
Indo-Pacific humpback dolphin Sousa chinensis (i.e.
Chinese White Dolphin) was recorded in December 2017 during the exclusion zone
monitoring.
Site
inspections were carried out on a weekly basis to monitor the implementation of
proper environmental pollution control and mitigation measures under the
Contract. In the reporting month, four (4)
site inspections were carried out on 6, 13, 20 and 27 December 2017.
Key
observations and recommendations during the site inspections in this reporting
period are summarized in Table 2.11.
Table 2.11 Specific
Observations and Recommendations during the Weekly Site Inspection in this
Reporting Month
Inspection Date |
Observations |
Recommendations/ Remarks |
6 December
2017 |
Works Area – TBM tunnel Cement bags should be covered
with tarpaulin sheets. Drip tray and proper chemical
label should be provided to the chemical containers. Works Area - Portion S-A Drip tray and proper chemical
label should be provided to the chemical containers. |
Works Area – TBM tunnel The Contractor was reminded to
cover the cement bags with tarpaulin sheets. The Contractor was reminded to
provide drip tray and proper chemical label to the chemical containers. Works Area - Portion S-A The Contractor was reminded to
provide drip tray and proper chemical label to the chemical containers. |
13 December 2017 |
Works Area –Portion S-B Drip tray and proper chemical
label should be provided to the chemical containers. Works Area - Portion N-C Drip tray and proper chemical
label should be provided to the chemical containers. Works Area –Portion N-B Proper NRMM label should be
displayed on the soil compacter. Chemical label should be
displayed on the chemical container. |
Works Area –Portion S-B The Contractor was reminded to
provide drip tray and proper chemical label to the chemical containers. Works Area - Portion N-C The Contractor was reminded to
provide drip tray and proper chemical label to the chemical containers. Works Area –Portion N-B The Contractor was reminded to
display proper NRMM label on the soil compacter. The Contractor was reminded to
display chemical label on the chemical container. |
20 December
2017 |
Works Area – Portion S-B Chemical waste should be removed
or stored in chemical storage area. |
Works Area – Portion S-B The Contractor was reminded to
remove or store the chemical waste in chemical storage area. |
27 December 2017 |
Works Area – Portion N-C Drip tray and proper chemical
label should be provided to the oil drums. |
Works Area – Portion N-C The Contractor was reminded to
provide drip tray and proper chemical label to the oil drums. |
The
Contractor has rectified all of the observations as identified during
environmental site inspections in the reporting month.
The
Contractor had submitted application form for registration as chemical waste
producer under the Contract. Sufficient
numbers of receptacles were available for general refuse collection and
sorting.
Wastes
generated during this reporting period included mainly construction wastes
(inert and non-inert). Reference has
been made to the waste flow table prepared by the Contractor (Appendix M). The
quantities of different types of wastes are summarized in Table 2.12.
Table 2.12 Quantities of
Different Waste Generated in the Reporting Month
Month/Year |
Inert Construction Waste (a) (tonnes) |
Inert Construction Waste Re-used (tonnes) |
Non-inert Construction Waste (b) (tonnes) |
Recyclable Materials (c)
(kg) |
Chemical Wastes (kg) |
Marine Sediment (m3) |
||
Category L |
Category M (Mp & Mf) |
|||||||
December 2017 |
3574 |
0 |
121 |
0 |
0 |
0 |
0 |
|
Notes: |
|
|||||||
(a) Inert construction wastes include
hard rock and large broken concrete, and materials disposed as public fill. (b) Non-inert construction wastes
include general refuse disposed at landfill. (c) Recyclable materials include metals,
paper, cardboard, plastics, timber and others. |
|
|||||||
The
Contractor was advised to properly maintain on site C&D materials and waste
collection, sorting and recording system, dispose of C&D materials and
wastes at designated ground and maximize reuse/ recycle of C&D materials
and wastes. The Contractor was also
reminded to properly maintain the site tidiness and dispose of the wastes
accumulated on site regularly and properly.
For
chemical waste containers, the Contractor was reminded to treat properly and
store temporarily in designated chemical waste storage area on site in
accordance with the Code of Practice on the Packaging, Labelling and Storage of
Chemical Wastes.
The status
of environmental licensing and permit is summarized in Table 2.13 below.
Table 2.13 Summary of
Environmental Licensing and Permit Status
License/
Permit |
License
or Permit No. |
Date
of Issue |
Date
of Expiry |
License/ Permit Holder |
Remarks |
Environmental Permit |
EP-354/2009/D |
13 March 2015 |
Throughout the Contract |
HyD |
Application
for VEP on 3 March 2015 to supersede EP-354/2009/C |
Construction Dust Notification |
363510 |
19 August 2013 |
Throughout the Contract |
DBJV |
Northern
Landfall |
Construction Dust Notification |
403620 |
10 June
2016 |
Throughout the Contract |
DBJV |
Southern
Landfall |
Chemical Waste Registration |
5213-422-D2516-02 |
18
January 2017 |
Throughout the Contract |
DBJV |
Northern
Landfall |
Chemical Waste Registration |
5213-951-D2591-01 |
25 May
2016 |
Throughout the Contract |
DBJV |
Southern
Landfall |
Construction Waste Disposal
Account |
7018108 |
28 August 2013 |
Throughout the Contract |
DBJV |
Waste
disposal in Contract No. HY/2012/08 |
Waste Water Discharge License |
WT00017707-2013 |
18 November 2013 |
30 November 2018 |
DBJV |
For site
WA18 |
Waste Water Discharge License |
WT00018433-2014 |
6 March
2014 |
31 March
2019 |
DBJV |
N6 Site |
Waste Water Discharge License |
WT00019248-2014 |
5 June 2014 |
30 June 2019 |
DBJV |
For site
Portion N6 and Reclamation Area E |
Waste Water Discharge License |
WT00025944-2016 |
15
December 2016 |
31
December 2021 |
DBJV |
Southern
Landfall |
Marine Dumping Permit |
EP/MD/18-098 |
21 December
2017 |
20 January
2018 |
DBJV |
Type 1
(Dedicated site) and Type 2 (Confined Marine Disposal) |
Construction Noise Permit |
GW-RW0538-17 |
16
October 2017 |
15 April
2018 |
DBJV |
For Urmston Road in front of
Pillar Point |
Construction Noise Permit |
GW-RW0641-17 |
16
December 2017 |
6 December
2018 |
DBJV |
WA23 @ Tsing Yi |
Construction
Noise Permit |
PP-RS0026-17 |
1 December
2017 |
29 March
2018 |
DBJV |
Southern
Landfall (Percussive Piling) |
Construction
Noise Permit |
GW-RS0878-17 |
11
October 2017 |
2 April
2018 |
DBJV |
Southern
Landfall |
Notes: |
|||||
HyD = Highways Department DBJV = Dragages – Bouygues
Joint Venture VEP = Variation of Environmental
Permit |
In response
to the site audit findings, the Contractors carried out all corrective actions.
A summary
of the Implementation Schedule of Environmental Mitigation Measures (EMIS) is
presented in Appendix C. The necessary
mitigation measures relevant to this Contract were implemented properly.
One (1)
Action Level of 1-hour TSP and two (2) Limit Level exceedances of 24-hour TSP were
recorded on 8 December 2017. Three (3)
Action Level exceedances of 1-hour TSP and one (1) Action Level exceedance of 24-hour
TSP were recorded on 11 December 2017.
One (1) Limit Level exceedance of 24-hour TSP was recorded on 17
December 2017. Two (2) Action Level exceedances
of 1-hour TSP were recorded on 20 December 2017. One (1) Action Level exceedance of 1-hour TSP
was recorded on 26 December 2017. One
(1) Action Level exceedance of 1-hour TSP was recorded on 29 December
2017.
Four (4)
Action Level exceedances of Suspended Solids (SS) were recorded in the water
quality monitoring of this reporting month.
Cumulative
statistics are provided in Appendix L.
The
Environmental Complaint Handling Procedure is provided in Figure 2.5.
No environmental complaint was
received in this reporting period.
No
environmental summons was received in this reporting period.
Statistics
on complaints, notifications of summons and successful prosecutions are
summarized in Appendix L.
As informed
by the Contractor, the major works for the Project in December 2017 are summarized in Table 3.1.
Table 3.1 Construction
Works to Be Undertaken in the Coming Month
Works to be undertaken |
Land-based Works ·
Box
Culvert Extension at Works Area – Portion N-A; ·
Construction
of North Ventilation Building – Portion N-C; ·
Construction
of Cross Passage Tympanum – TBM tunnel; ·
Cross
Passage Lining Installation – TBM Tunnel; ·
Excavation
of Sub-sea Tunnel – TBM tunnel; ·
Corbel
Construction – TBM Tunnel; ·
Bulk
Excavation – Portion S-A; ·
CSM
treatment, Jet Grouting works and D-wall Construction; and ·
Ground
Freezing Works – Portion S-A |
Potential
environmental impacts arising from the above upcoming construction activities in
the next reporting month of January 2018 are mainly associated with dust,
marine ecology and waste management issues.
The
tentative schedule for environmental monitoring in January 2018 is provided
in Appendix F.
This Fiftieth Monthly
EM&A Report presents the findings of the EM&A activities undertaken
during the period from 1 to 31 December 2017, in accordance with the Updated
EM&A Manual and the requirements of EP-354/2009/D.
Air quality
(including 1-hour TSP and 24-hour TSP), water quality and dolphin monitoring
were carried out in this reporting month.
One (1)
Action Level of 1-hour TSP and two (2) Limit Level exceedances of 24-hour TSP were
recorded on 8 December 2017. Three (3)
Action Level exceedances of 1-hour TSP and one (1) Action Level exceedance of 24-hour
TSP were recorded on 11 December 2017.
One (1) Limit Level exceedance of 24-hour TSP was recorded on 17
December 2017. Two (2) Action Level exceedances
of 1-hour TSP were recorded on 20 December 2017. One (1) Action Level exceedance of 1-hour TSP
was recorded on 26 December 2017. One
(1) Action Level exceedance of 1-hour TSP was recorded on 29 December
2017.
Four (4)
Action Level exceedances of Suspended Solids (SS) were recorded in the water
quality monitoring of this reporting month.
Four groups
of 13 Chinese White Dolphins sightings were recorded during the two sets of
surveys in December 2017. All dolphin
sightings were made in NWL, while none was sighted in NEL. All dolphin sightings were made during
on-effort search and were made on primary lines. None of the dolphin groups were associated
with any operating fishing vessel.
Environmental
site inspection was carried out four (4) times in December 2017. Remedial actions recommended
for the deficiencies identified during the site audits were properly
implemented by the Contractor.
No
non-compliance event was recorded during the reporting period.
No environmental complaint was
received in this reporting period.
No
environmental summons was received in this reporting period.
The ET will
keep track on the construction works to confirm compliance of environmental
requirements and the proper implementation of all necessary mitigation
measures.
