table
of Contents
1.1 Background
1.2 Scope of Report
1.3 Organization Structure
1.4 Summary of Construction Works
2.1 Air quality
2.2 Water Quality Monitoring
2.3 Dolphin Monitoring
2.4 Post Translocation Coral
Monitoring
2.5 EM&A Site Inspection
2.6 Waste Management Status
2.7 Environmental Licenses and
Permits
2.8 Implementation Status of
Environmental Mitigation Measures
2.9 Summary of Exceedances of the
Environmental Quality Performance Limit
2.10 Summary of Complaints,
Notification of Summons and Successful Prosecutions
3.1 Construction Activities for
the Coming Quarter
3.2 Key Issues for the Coming
Quarter
3.3 Monitoring Schedule for the
Coming Quarter
Appendix A |
|
Appendix B |
|
Appendix C |
Environmental
Mitigation And Enhancement Measure Implementation Schedules (EMIS) |
Appendix D |
|
Appendix E |
|
Appendix F |
|
Appendix G |
|
Appendix H |
|
Appendix I |
|
Appendix J |
|
Appendix K |
Under Contract No. HY/2012/08,
Dragages ¡V Bouygues Joint Venture (DBJV) is
commissioned by the Highways Department (HyD) to
undertake the design and construction of the Northern Connection Sub-sea Tunnel
Section of the Tuen Mun ¡V Chek Lap Kok Link Project (TM-CLK
Link Project) while AECOM Asia Company Limited was appointed by HyD as the Supervising Officer. For implementation of the environmental
monitoring and audit (EM&A) programme under the
Contract, ERM-Hong Kong, Limited (ERM) has been appointed as the Environmental
Team (ET) in accordance with Environmental
Permit No. EP-354/2009/A. ENVIRON Hong Kong Ltd. was employed by HyD as the Independent Environmental Checker (IEC) and Environmental
Project Office (ENPO). Another
application for variation of environmental permit (VEP) (EP-354/2009/B) was granted on 28 January 2014.
The
construction phase of the Project commenced on 1 November 2013 and will
tentatively be completed by the end of 2018. The impact monitoring of the EM&A programme, including air quality, water quality, marine
ecological monitoring and environmental site inspections, were commenced on 1
November 2013.
This
is the Third Quarterly EM&A report presenting the EM&A works carried
out during the period from 1 June 2014 to 31 August 2014 for the Contract No. HY/2012/08 Northern Connection Sub-sea
Tunnel Section (the ¡§Project¡¨) in accordance
with the Updated EM&A Manual of the TM-CLK Link
Project. As informed by the
Contractor, the major activities in the reporting quarter included:
Marine-based Works
¡P Dredging
at Portion N-C
¡P Reclamation
Filling at Portions N-A and N-B
¡P Construction
of Vertical Seawall and Sloping Seawall at Portions N-B and N-C
¡P Marine
Sheet Piling for Box Culvert extension at Portion N-A
Land-based Works
Portion N6
¡P CLP
Substation structure works
¡P CLP
Substation E&M works
¡P Bored
Piling
¡P Pile
Cap Construction
Reclamation
Works Area ¡V Portion N-A
¡P Construction
of temporary access
¡P Diaphragm
Wall Construction
¡P Vibro-Compaction
A summary of
monitoring and audit activities conducted in the reporting period is listed
below:
24-hour TSP
Monitoring 16
sessions
1-hour TSP
Monitoring 16
sessions
Impact Water
Quality Monitoring 38
sessions
Impact Dolphin
Monitoring 6
sessions
Joint
Environmental Site Inspection 13
sessions
Post
Translocation Coral Monitoring 1
session
Implementation of Marine Mammal Exclusion Zone
Daily
marine mammal exclusion zone was in effect during the period of marine works
under this Contract. Passive
Acoustic Monitoring (PAM) was also implemented for the detection of marine
mammal when marine works are carried out outside the daylight hours under this
Contract. No sighting of the
Indo-Pacific humpback dolphin Sousa chinensis (i.e. Chinese White Dolphin) was recorded
during the reporting period from June to August 2014 during both day-time
marine mammal exclusion zone and passive acoustic monitoring.
Summary of
Breaches of Action/Limit Levels
Breaches of Action and Limit Levels for Air Quality
No exceedances
were recorded from the air quality monitoring in this reporting period.
Breaches of Action and Limit Levels for Water Quality
No exceedances
were recorded from the water quality monitoring in this reporting period.
Dolphin Monitoring
Whilst two
Action Level exceedances were observed for the quarterly dolphin monitoring
data between June 2014 and August 2014, no unacceptable impact from the
construction activities of the TM-CLKL Northern Connection Sub-sea Tunnel
Section on Chinese White Dolphins was noticeable from general observations
during the dolphin monitoring in this reporting quarter. The
exceedances are considered to be the natural variation of Chinese White Dolphin
ranging pattern.
Post Translocation Coral Monitoring
The
Third quarterly Coral Post-Translocation Monitoring was conducted on 24 July
2014 and the results were provided in the Third Quarterly Post-Translocation
Coral Monitoring Report. No
exceedances were recorded from the third quarterly coral post-translocation
monitoring in this reporting period.
Environmental
Complaints, Non-compliance & Summons
No
non-compliance with EIA recommendations, EP conditions and other requirements associated with
the construction of this Contract was recorded in this reporting period.
No
complaint/ enquiry case was record during the reporting period.
No
environmental summons was received in this reporting period.
Reporting
Change
There was no
reporting change required in the reporting period.
Upcoming Works for the Next Reporting Period
Works to be
undertaken in the coming quarterly period include the following:
Marine-based works
¡P Reclamation
Filling
¡P Vertical
seawall construction
¡P Sloping
seawall construction
¡P Marine
sheet piling for box culvert extension
¡P Predrilling
for box culvert foundation
Land-based works
Portion N6
¡P CLP
substation utilities works; and
¡P Pile
Cap Construction
Reclamation
Works Area ¡V Portion N-A
¡P Diaphragm
Wall Construction
¡P Construction
of temporary access; and,
¡P Vibro-Compaction
Future Key
Issues
Potential
environmental impacts arising from the above upcoming construction activities
in the coming quarterly period are expected to be mainly associated with dust,
marine water quality, marine ecology and waste management.
According to
the findings of the Northwest New Territories (NWNT) Traffic and Infrastructure
Review conducted by the Transport Department, Tuen Mun Road, Ting Kau Bridge, Lantau
Link and North Lantau Highway would be operating beyond capacity after
2016. This forecast has been based
on the estimated increase in cross boundary traffic, developments in the
Northwest New Territories (NWNT), and possible developments in North Lantau,
including the Airport developments, the Lantau Logistics Park (LLP) and the
Hong Kong ¡V Zhuhai ¡V Macao Bridge (HZMB).
In order to cope with the anticipated traffic demand, two new road
sections between NWNT and North Lantau ¡V Tuen Mun ¡V Chek Lap Kok Link (TM-CLKL) and Tuen Mun Western Bypass (TMWB) are proposed.
An
Environmental Impact Assessment (EIA) of TM-CLKL (the Project) was prepared in
accordance with the EIA Study Brief (No. ESB-175/2007) and
the Technical Memorandum of the
Environmental Impact Assessment Process (EIAO-TM). The
EIA Report was submitted under the Environmental Impact Assessment Ordinance
(EIAO) in August 2009. Subsequent
to the approval of the EIA Report (EIAO Register Number AEIAR-146/2009), an
Environmental Permit (EP-354/2009) for TM-CLKL was granted by the Director of
Environmental Protection (DEP) on 4 November 2009, and EP variation (VEP)
(EP-354/2009A) was issued on 8 December 2010. Another application for VEP
(EP-354/2009/B) was granted on 28 January 2014.
Under
Contract No. HY/2012/08,
Dragages ¡V Bouygues Joint Venture (DBJV) is
commissioned by the Highways Department (HyD) to
undertake the design and construction of the Northern Connection Sub-sea Tunnel
Section of TM-CLKL while AECOM Asia Company Limited was appointed by HyD as the Supervising Officer. For implementation of the environmental
monitoring and audit (EM&A) programme under the
Contract, ERM-Hong Kong, Limited (ERM) has been appointed as the Environmental
Team (ET) in accordance with Environmental Permit No. EP-354/2009/A. ENVIRON
Hong Kong Ltd. was employed by HyD as the Independent
Environmental Checker (IEC) and Environmental Project Office (ENPO).
Layout of the
Contract components is presented in Figure 1.1.
The
organization structure of the Contract is shown in Appendix A. The key personnel contact names and
contact details are summarized in Table
1.1 below.
Table 1.1 Contact
Information of Key Personnel
Party |
Position |
Name |
Telephone |
Fax |
Highways
Department |
Engr
16/HZMB |
Kenneth Lee |
2762
4996 |
3188
6614 |
SOR (AECOM Asia
Company Limited) |
Chief
Resident Engineer |
Edwin
Ching Andrew
Westmoreland |
2450
3111 2450
3511 |
2450
3099 2450
3099 |
ENPO / IEC (ENVIRON
Hong Kong Ltd.) |
ENPO Leader |
Y.H. Hui |
3465 2888 |
3465 2899 |
IEC |
F. C. Tsang |
3465 2828 |
3465 2899 |
|
Contractor (Dragages ¡V
Bouygues Joint Venture) |
Environmental
Manager |
C.F. Kwong |
2293
7322 |
2670
2798 |
Environmental
Officer 24-hour
complaint hotline |
Bryan Lee Rachel Lam |
2293
7323 2293
7342 |
2670
2798 |
|
ET (ERM-HK) |
ET Leader |
Jovy Tam |
2271 3113 |
2723 5660 |
The
general layout plan of the site showing the detailed works areas is shown in Figure 1.2. The Environmental Sensitive Receivers in
the vicinity of the Project are shown in Figure 1.3.
Table 1.2 Summary
of Construction Activities Undertaken during the Reporting Period
Construction Activities Undertaken |
Marine-based Works |
¡P
Dredging at Portion N-C |
¡P
Reclamation Filling at Portions N-A and N-B |
¡P
Construction of Vertical Seawall and Sloping Seawall
at Portions N-B and N-C |
¡P
Marine Sheet Piling for Box Culvert extension at
Portion N-A |
Land-based Works |
Portion N6 |
¡P
CLP Substation structure works |
¡P
CLP Substation E&M works |
¡P
Bored Piling |
¡P
Pile Cap Construction |
Reclamation
Area ¡V Portion N-A |
¡P
Construction of temporary access |
¡P
Diaphragm Wall Construction ¡P
Vibro-Compaction |

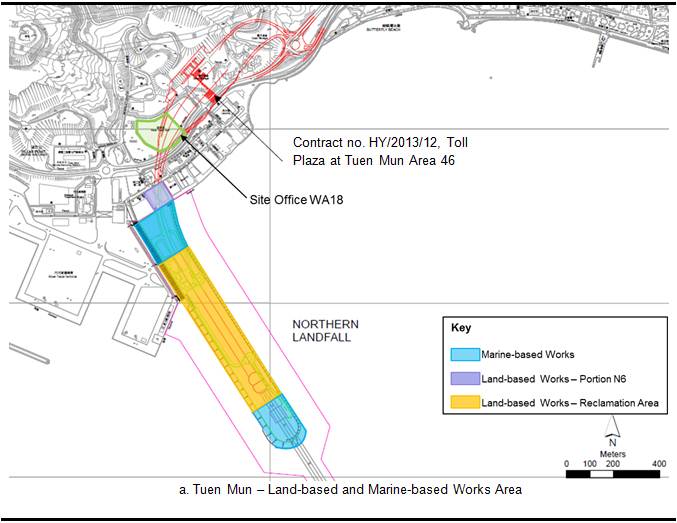

Figure 1.2 Locations
of Construction Activities ¡V June 2014 to August 2014
The EM&A programme required environmental monitoring for air
quality, water quality and marine ecology as well as environmental site
inspections for air quality, noise, water quality, waste management, marine
ecology and landscape and visual impacts.
The EM&A requirements and related findings for each component are
summarized in the following sections
As per the requirements under Condition
2.4 of EP-354/2009/A and EP-354/2009/B, the Enhanced TSP
Monitoring Plan has been prepared under Contract
No. HY/2012/08. Details of the monitoring plan are
presented in the Enhanced TSP Monitoring
Plan ([1]).
In accordance
with the Updated EM&A Manual and the Enhanced TSP Monitoring Plan,
impact 1-hour TSP monitoring was conducted three (3) times in every six (6)
days and impact 24-hour TSP monitoring was carried out once in every six (6)
days when the highest dust impact was expected.
High volume
samplers (HVSs) were used to carry out the 1-hour and 24-hour TSP monitoring in
the reporting quarter at the five (5) air quality monitoring stations in
accordance with the requirements stipulated in the Updated EM&A Manual (Figure 2.1; Table 2.1). Wind
anemometer was installed at the rooftop of ASR5 for logging wind speed and wind
direction. Details of the equipment
deployed are provided in Table 2.2.
Table 2.1 Locations
of Impact Air Quality Monitoring Stations and Monitoring Dates in this
Reporting Period
Monitoring
Station |
Location |
Description |
Parameters & Frequency |
Monitoring Dates |
ASR1 |
Tuen Mun Fireboat Station |
Office |
1-hour Total Suspended Particulates (1-hour
TSP, µg/m3), 3 times per day in every 6 days
24-hour Total Suspended Particulates
(24-hour TSP, µg/m3), daily for 24-hour in every 6 days |
3, 9, 13, 19, 25 and 30 June 2014; 5, 11, 19, 23 and 29 July 2014; 4, 8, 14, 20 and 26 August 2014 |
ASR5 |
Pillar
Point Fire Station |
Office |
||
AQMS1 |
Previous
River Trade Golf |
Bare
ground |
||
ASR6 |
Butterfly
Beach Laundry |
Office |
||
ASR10 |
Butterfly
Beach Park |
Recreational
uses |
Table 2.2 Air
Quality Monitoring Equipment
Equipment |
Brand and Model |
High Volume Sampler |
Tisch Environmental Mass Flow Controlled Total Suspended Particulate (TSP)
High Volume Sampler (Model No. TE-5170) |
Wind Meter |
MetPak (Model: MetPak II (S/N: 13130002) |
Wind Anemometer for calibration |
Lutron (Model No. AM-4201) |
The Action and
Limit Levels of the air quality monitoring is provided in Appendix D. The Event and Action plan is presented
in Appendix I.
The schedules
for air quality monitoring in the reporting quarter are provided in Appendix E.
Impact air
quality monitoring was conducted at all designated monitoring stations in the
reporting period under favourable weather
conditions. The major dust sources
in the reporting period include construction activities under the Contract as
well as nearby traffic emissions.
The monitoring
results for 1-hour TSP and 24-hour TSP are summarized in Tables 2.3 and 2.4,
respectively. Monitoring results
are presented graphically in Appendix F and
detailed impact air quality monitoring data were reported in the Eighth to Tenth Monthly EM&A Report.
Table 2.3 Summary
of 1-hour TSP Monitoring Results in this Reporting Period
Month/Year |
Station |
Average (µg/m3) |
Range (µg/m3) |
Action Level (µg/m3) |
Limit Level (µg/m3) |
June 2014 to
August 2014 |
ASR 1 |
158 |
83
¡V 321 |
331 |
500 |
ASR 5 |
150 |
65
¡V 287 |
340 |
500 |
|
AQMS1 |
88 |
48
¡V 148 |
335 |
500 |
|
ASR6 |
120 |
60
¡V 224 |
338 |
500 |
|
ASR10 |
86 |
43
¡V 183 |
337 |
500 |
Table 2.4 Summary
of 24-hour TSP Monitoring Results in this Reporting Period
Month/Year |
Station |
Average (µg/m3) |
Range (µg/m3) |
Action Level (µg/m3) |
Limit Level (µg/m3) |
June 2014 to
August 2014 |
ASR 1 |
87 |
49
¡V 152 |
213 |
260 |
ASR 5 |
80 |
56
¡V 120 |
238 |
260 |
|
AQMS1 |
52 |
38
¡V 85 |
213 |
260 |
|
ASR6 |
66 |
43
¡V 135 |
238 |
260 |
|
ASR10 |
51 |
40
¡V 68 |
214 |
260 |
In this
reporting period, a total of sixteen monitoring events were undertaken in which
no Action Level exceedances or Limit Level exceedances for 1-hr TSP; no Action Level
exceedances or Limit Level exceedances for 24-hr TSP were recorded. Summary of Exceedances for Air Quality
Impact Monitoring in this Reporting Quarter is detailed in Table 2.15.
The baseline water
quality monitoring undertaken by the Hong Kong ¡V Zhuhai ¡V Macao Bridge Hong
Kong Projects (HKZMB) between 6 and 31 October 2011 has included all monitoring
stations for the Project.
Thus, the baseline monitoring results and Action/Limit Levels presented
in HKZMB Baseline Monitoring Report ([2]) are
adopted for this Project.
In accordance
with the Updated EM&A Manual, impact water quality monitoring was carried out
three days per week during the construction period at nine (9) water quality
monitoring stations (Figure 2.2; Table 2.5).
Table 2.5 Locations
of Water Quality Monitoring Stations and the Corresponding Monitoring
Requirements
Station ID |
Type |
Coordinates |
*Parameters, unit |
Depth |
Frequency |
|
|
|
Easting |
Northing |
|
|
|
IS12 |
Impact
Station |
813218 |
823681 |
Temperature(¢XC)
pH(pH unit)
Turbidity (NTU)
Water depth (m)
Salinity (ppt)
DO (mg/L and % of saturation) ¡P
SS (mg/L) |
3 water depths: 1m below sea surface, mid-depth and 1m above sea bed. If the water
depth is less than 3m, mid-depth sampling only. If water depth less than 6m, mid-depth
may be omitted. |
Impact monitoring: 3 days per week, at mid-flood
and mid-ebb tides during the construction period of the Contract. |
IS13 |
Impact Station |
813667 |
824325 |
|||
IS14 |
Impact Station |
812592 |
824172 |
|||
IS15 |
Impact Station |
813356 |
825008 |
|||
CS4 |
Control /
Far Field Station |
810025 |
824004 |
|||
CS6 |
Control /
Far Field Station |
817028 |
823992 |
|||
SR8 |
Sensitive
receiver (Gazettal beaches in Tuen Mun) |
816306 |
825715 |
|||
SR9 |
Sensitive
receiver |
813601 |
825858 |
|||
SR10A |
Sensitive
receiver |
823741 |
823495 |
|||
*Notes: In addition to the parameters presented monitoring location/position,
time, water depth, sampling depth, tidal stages, weather conditions and any special
phenomena or works underway nearby were also recorded. |
Table 2.6 summarizes the equipment used in the impact water
quality monitoring programme.
Table 2.6 Water
Quality Monitoring Equipment
Equipment |
Model |
Qty. |
Water Sampler |
Kahlsico Water-Bottle Model 135DW 150 |
1 |
Dissolved Oxygen Meter |
YSI Pro 2030 |
1 |
pH Meter |
HANNA HI 8314 |
1 |
Turbidity Meter |
HACH 2100Q |
1 |
Monitoring Position Equipment |
¡§Magellan¡¨ Handheld GPS Model eXplorist GC |
4 |
DGPS Koden KGP913MK2 (1) |
1 |
The Action and
Limit Levels of the water quality monitoring is provided in Appendix D.
The Event and Action plan is presented in Appendix I.
The schedules
for water quality monitoring in the reporting period are provided in Appendix E.
During this
reporting period, major marine dredging activities included dredging at Portions
N-C, seawall construction at Portions N-B and N-C, and reclamation filling at
Portions N-A and N-B. A closed grab
dredger was used and silt curtains (cage-type and single floating type) were
deployed during dredging works in accordance with the EP. The level of dredging activities was
within the working rate described in the EP and the approved EIA Report. In addition, reclamation filling was
undertaken between the 200 m of leading seawalls using filling materials
specified in the EP and the approved EIA Report with a single layer silt
curtain being deployed as a precautionary measure to reduce dispersion of
suspended solids. It is useful to
note that heavy marine traffic (not associated with the Project) was commonly
observed nearby the Project site and its vicinity.
Impact water
quality monitoring was conducted at all designated monitoring stations in the
reporting period under favourable weather
conditions. Monitoring results are
presented graphically in Appendix G [JY1] and
detailed impact water quality monitoring data were reported in the Eighth to Tenth Monthly EM&A Report.
In this
reporting period, a total of thirty-eight monitoring events were undertaken in
which no exceedances were recorded.
Summary of
Exceedances for Water Quality Impact Monitoring in this Reporting Quarter is
detailed in Table 2.17.
Impact dolphin
monitoring is required to be conducted by a qualified dolphin specialist team
to evaluate whether there have been any effects on the dolphins. In order to fulfil the EM&A
requirements and make good use of available resources, the on-going impact line
transect dolphin monitoring data collected by HyD¡¦s Contract No. HY/2011/03 Hong Kong-Zhuhai-Macao Bridge. Hong
Kong Link Road - Section between Scenic Hill and Hong Kong Boundary Crossing
Facilities on the monthly basis is adopted to avoid duplicates of survey
effort.
Table 2.7 summarises the equipment
used for the impact dolphin monitoring.
Table 2.7 Dolphin
Monitoring Equipment
Equipment |
Model |
Global Positioning
System (GPS) Camera Laser Binoculars Marine Binocular Vessel for Monitoring |
Garmin 18X-PC Geo One Phottix Nikon D90 300m 2.8D fixed focus Nikon D90 20-300m zoom lens Infinitor LRF 1000 Bushell 7 x 50 marine binocular with compass and
reticules 65 foot single
engine motor vessel with viewing platform 4.5m above water level |
|
|
Dolphin
monitoring should cover all transect lines in Northeast Lantau (NEL) and the
Northwest Lantau (NWL) survey areas twice per month throughout the entire
construction period. The monitoring
data should be compatible with, and should be made available for, long-term
studies of small cetacean ecology in Hong Kong. In order to provide a suitable long-term
dataset for comparison, identical methodology and line transects employed in
baseline dolphin monitoring was followed in the impact dolphin monitoring.
The impact
dolphin monitoring was carried out in the NEL and NWL along the line transect
as depicted in Figure 2.3. The co-ordinates of all transect lines
are shown in Table 2.8 below.
Table 2.8 Impact
Dolphin Monitoring Line Transect Co-ordinates
Line No. |
Easting |
Northing |
Line No. |
Easting |
Northing |
||
1 |
Start Point |
804671 |
814577 |
13 |
Start Point |
816506 |
819480 |
1 |
End Point |
804671 |
831404 |
13 |
End Point |
816506 |
824859 |
2 |
Start Point |
805475 |
815457 |
14 |
Start Point |
817537 |
820220 |
2 |
End Point |
805477 |
826654 |
14 |
End Point |
817537 |
824613 |
3 |
Start Point |
806464 |
819435 |
15 |
Start Point |
818568 |
820735 |
3 |
End Point |
806464 |
822911 |
15 |
End Point |
818568 |
824433 |
4 |
Start Point |
807518 |
819771 |
16 |
Start Point |
819532 |
821420 |
4 |
End Point |
807518 |
829230 |
16 |
End Point |
819532 |
824209 |
5 |
Start Point |
808504 |
820220 |
17 |
Start Point |
820451 |
822125 |
5 |
End Point |
808504 |
828602 |
17 |
End Point |
820451 |
823671 |
6 |
Start Point |
809490 |
820466 |
18 |
Start Point |
821504 |
822371 |
6 |
End Point |
809490 |
825352 |
18 |
End Point |
821504 |
823761 |
7 |
Start Point |
810499 |
820690 |
19 |
Start Point |
822513 |
823268 |
7 |
End Point |
810499 |
824613 |
19 |
End Point |
822513 |
824321 |
8 |
Start Point |
811508 |
820847 |
20 |
Start Point |
823477 |
823402 |
8 |
End Point |
811508 |
824254 |
20 |
End Point |
823477 |
824613 |
9 |
Start Point |
812516 |
820892 |
21 |
Start Point |
805476 |
827081 |
9 |
End Point |
812516 |
824254 |
21 |
End Point |
805476 |
830562 |
10 |
Start Point |
813525 |
820872 |
22 |
Start Point |
806464 |
824033 |
10 |
End Point |
813525 |
824657 |
22 |
End Point |
806464 |
829598 |
11 |
Start Point |
814556 |
818449 |
23 |
Start Point |
814559 |
821739 |
11 |
End Point |
814556 |
820992 |
23 |
End Point |
814559 |
824768 |
12 |
Start Point |
815542 |
818807 |
|
|
|
|
12 |
End Point |
815542 |
824882 |
|
|
|
|
The Action and
Limit levels of dolphin impact monitoring are shown in Appendix D. The Event and Action plan is presented
in Appendix I.
The dolphin
monitoring schedules for the reporting period are shown in Appendix E.
A total of
894.40 km of survey effort was collected, with 93.6% of the total survey effort
being conducted under favourable weather conditions (ie Beaufort Sea State 3 or below with good visibility) in
this reporting quarter. Amongst the
two areas, 343.21 km and 551.19 km of survey effort were collected from NEL and
NWL survey areas, respectively. The
total survey effort conducted on primary and secondary lines were 647.96 km and
246.44 km, respectively. The survey
efforts are summarized in Appendix H.
A total of 28 groups of 96 Chinese
White Dolphin sightings were recorded
during the six sets
of surveys in this reporting quarter.
All except two sighting were made during on-effort search. Twenty on-effort sightings were made on
primary lines, while six other on-effort sightings were made on secondary
lines. During this reporting
quarter, almost all dolphin
groups were sighted in NWL, with the exception of one group of four dolphins
being sighted in NEL.
For the
detailed comparison of dolphin occurrence and usage of NEL and NWL survey area
between the impact phase and baseline phase monitoring, only the quarterly data
of June 2014 to August 2014 from the impact phase monitoring was used in the
present report to tally with the three-month period of baseline monitoring
(September 2011 to November 2011).
As the
baseline monitoring period was in the autumn season (September 2011 to November
2011) while the present monitoring period was in the summer season (June 2014
to August 2014), a direct comparison in dolphin distribution between the two
quarterly periods of summer months in 2013 and 2014 was also made to avoid the
potential bias in seasonal variation.
Between the two summer periods, none of the
dolphin sightings was made in NEL in summer 2014, while there were five
sightings made in summer 2013.
Moreover, more dolphin sightings were made in the middle and western
portions of North Lantau waters and to the north of the airport platform in
summer 2013 than in summer 2014.
Encounter
rates of Chinese White Dolphins are deduced from the survey effort and
on-effort sighting data made under favourable
conditions (Beaufort 3 or below with good visibility) in the reporting quarter
with the results and comparison with baseline results present in Tables 2.9 and 2.10.
Table 2.9 Individual
Survey Event Encounter Rates
|
Encounter rate (STG) (no. of on-effort dolphin sightings per 100 km of survey effort) |
Encounter rate (ANI)
(no. of dolphins from all on-effort sightings per
100 km of survey effort) |
|
Primary Lines Only |
Primary Lines Only |
||
NEL |
Set 1: Jun
3rd/5th |
0.0 |
0.0 |
Set 2: Jun
10th/16th |
0.0 |
0.0 |
|
Set 3: Jul
3rd/9th/10th |
2.54 |
10.16 |
|
Set 4: Jul
14th/21st |
0.0 |
0.0 |
|
Set 5: Aug
5nd/6th |
0.0 |
0.0 |
|
Set 6: Aug
15th/19th |
0.0 |
0.0 |
|
NWL |
Set 1: Jun
3rd/5th |
1.67 |
5.00 |
Set 2: Jun
10th/16th |
0.0 |
0.00 |
|
Set 3: Jul
3rd/9th/10th |
3.03 |
10.61 |
|
Set 4: Jul
14th/21st |
8.40 |
26.60 |
|
Set 5: Aug
5nd/6th |
5.63 |
22.52 |
|
Set 6: Aug
15th/19th |
9.70 |
40.40 |
Note:
Dolphin Encounter Rates are
deduced from the Two Sets of Surveys (Two Surveys in Each Set) in the reporting
quarter in Northeast (NEL) and Northwest Lantau (NWL)
Table 2.10 Monthly
Average Encounter Rates
|
Encounter rate (STG) (no. of on-effort dolphin sightings per 100 km of survey effort) |
Encounter rate (ANI)
(no. of dolphins from all on-effort sightings per 100 km of survey
effort) |
||
June 2014 ¡V August 2014 |
September 2011 ¡V November 2011 |
June 2014 ¡V August 2014 |
September 2011 ¡V November 2011 |
|
Northeast Lantau |
0.42
¡Ó 1.04 |
6.00 ¡Ó 5.05 |
1.69
¡Ó 4.15 |
22.19 ¡Ó 26.81 |
Northwest Lantau |
4.74
¡Ó 3.84 |
9.85 ¡Ó 5.85 |
17.52
¡Ó 15.12 |
44.66 ¡Ó 29.85 |
Note: Encounter rates deduced
from the baseline monitoring period have been recalculated based only on survey
effort and on-effort sighting data made along the primary transect lines under
favourable conditions.
Group size of Chinese White Dolphins ranged from 1 - 8 individuals per
group in North Lantau region during June 2014 to August 2014. The average dolphin group sizes from
these three months were compared with the ones deduced from the baseline period
in September to November 2011, as shown in Table
2.11.
Table 2.11 Average
Dolphin Group Size
|
Average Dolphin Group Size |
|
June 2014 ¡V August 2014 |
September 2011 ¡V November 2011 |
|
Overall |
3.43
¡Ó 1.95 |
3.72 ¡Ó 3.13 |
Northeast Lantau |
4.00
¡Ó 0.00 |
3.18 ¡Ó 2.16 |
Northwest Lantau |
3.41 ¡Ó 1.99 |
3.92 ¡Ó 3.40 |
Whilst two
Action Level exceedances were observed for the quarterly dolphin monitoring
data between June 2014 and August 2014, no unacceptable impact from the construction
activities of this Contract was recorded from the general observations.[JY2]
Although the
dolphins infrequently occurred along the alignment of TM-CLKL Northern
Connection Sub-Sea Tunnel Section in the past and during the baseline
monitoring period, it is apparent that dolphin usage has been significantly
reduced in NEL.
It is critical
to monitor the dolphin usage in North Lantau region in the upcoming quarters to
determine whether the dolphins are continuously affected by the various
construction activities in relation to the HZMB-related works, and whether
suitable mitigation measure can be applied to revert the situation.
Daily 250 m marine mammal
exclusion zone monitoring was undertaken during the period of dredging
activities under this Contract. Passive Acoustic Monitoring (PAM) was
also implemented for the detection of marine mammal when marine works are
carried out outside the daylight hours during the reporting period. No
sighting of the Indo-Pacific humpback dolphin Sousa chinensis (i.e. Chinese White
Dolphin) was recorded during the reporting period during both day-time marine
mammal exclusion zone and passive acoustic monitoring.
The Third
quarterly Coral Post-Translocation Monitoring was conducted on 24 July 2014 and
the results were provided in the Third
Quarterly Post-Translocation Coral Monitoring Report under a separate
cover. The findings indicated that
the Action or Limit Levels for coral monitoring were not exceeded as increase
in percentage of partial mortality was not detected for both the tagged translocated and natural coral colonies when comparing to
the pre-translocation dataset.
Site
inspections were carried out on a weekly basis to monitor the implementation of
proper environmental pollution control and mitigation measures under the
Contract. Thirteen (13) site
inspections were carried out in the reporting quarter on 3, 10, 18 and 25 June;
2, 9, 16, 23 and 30 July; 6, 13, 20 and 27 August 2014.
Key
observations during the site inspections in this reporting period are
summarized in Table 2.12.
Table 2.12 Specific
Observations and Recommendations during the Weekly Site Inspection in this
Reporting Period
Inspection Date |
Environmental Observations |
Recommendations/ Remarks |
||
3 June 2014 |
Reclamation
Area ¡V Portion N-A Oil
was observed in the water adjacent to the works site.
Water
spraying should be applied to the dust generating area more frequently. |
Reclamation
Area ¡V Portion N-A The
Contractor was reminded to clean up the oil spill in the water as chemical
waste.
The
Contractor was reminded to provide adequate water spraying to prevent dust
generation. |
||
10
June 2014 |
Works Area ¡V Portion N6
Adequate water spraying should be applied.
Oil-stained soil should be cleaned up as chemical waste.
Stockpile should be covered. |
Works Area ¡V Portion N6
The Contractor was reminded to ensure adequate water spraying on dust
generating area.
The Contractor was reminded to clean up oil-stained soil as chemical
waste.
The Contractor was reminded to either apply water spraying or cover
the stockpile in dry or windy condition. |
||
18 June 2014 |
Barge
- GBFC Drip
tray should be provided to the chemical container. Reclamation
Area ¡V Portion N-A Excess
sandy materials should be cleared regularly to avoid runoff. Silt
curtain should be properly maintained.
|
Barge
- GBFC The
Contractor was reminded to provide drip tray to the chemical container. Reclamation
Area ¡V Portion N-A The
Contractor was reminded to clear the excess sandy materials regularly. The
Contractor was reminded to properly maintain the silt curtain.
|
||
25
June 2014 |
Reclamation
Area ¡V Portion N-A General
refuse should be placed in proper waste container. Drip tray
should be maintained in good conditions. |
Reclamation
Area ¡V Portion N-A The
Contractor was reminded to provide waste container for general refuse. The Contractor
was reminded to regular check for the capacity of drip trays. |
||
2 July 2014 |
Marine
Works Area - Portion N-C The
remaining seawall block should be installed. Reclamation
Area - Portion N-A
Drip
tray should be maintained in good conditions. |
Marine
Works Area - Portion N-C The
Contractor was reminded to install the remaining seawall block. Reclamation
Area - Portion N-A
The
Contractor was reminded to conduct regular check for the capacity of drip
tray. |
||
9
July 2014 |
Reclamation Area - Portion N-A
Accumulated general refuse was observed.
Litter was presented in the water adjacent to the works site.
Drip tray should be provided to the chemical containers. Works Area - Portion N6
Sedimentation tank should be maintained regularly. |
Reclamation Area - Portion N-A
The Contractor was reminded to regularly clear the general refuse.
The Contractor was reminded to clean up litter more often.
The Contractor was reminded to provide drip tray to the chemical
containers. Works Area - Portion N6
The Contractor was reminded to clear the slurry in the sedimentation
tank. |
||
16 July 2014 |
Reclamation
Area - Portion N-A Wheel
washing facilities should be maintained properly. Excess
muddy water was observed in the mud pit. |
Reclamation
Area - Portion N-A The
Contractor was reminded to clear the muddy water at the site entrance. The
Contractor was reminded to remove excess muddy water in the mud pit. |
||
23
July 2014 |
Reclamation
Area ¡V Portion N-A Accumulated
muddy water was observed near the drainage. Marine
Works Area - Portion N-A Silt
curtain should be maintained properly. Barge
- GBFC Excess
water was observed in the drip tray. |
Reclamation
Area ¡V Portion N-A The
Contractor was reminded to clear the muddy water near the drainage. Marine
Works Area - Portion N-A The
Contractor was reminded to regularly maintain the silt curtain. Barge
- GBFC The
Contractor was reminded to clear the excess water in the drip tray. |
||
30
July 2014 |
Reclamation
Area ¡V Portion N-A Accumulated
litter was observed on water near the marine works area. Reclamation
Works Area - Portion N-B Silt curtain
should be maintained properly. Reclamation
Works Area - Portion N-A Excess
muddy water was observed near the site entrance. |
Reclamation
Area ¡V Portion N-A The
Contractor was reminded to clear the accumulated litter. Reclamation
Works Area - Portion N-B The
Contractor was reminded to regularly check and maintain the silt curtain. Reclamation
Works Area - Portion N-A The
Contractor was reminded to remove excess muddy water near the site entrance. |
||
6 August
2014 |
Reclamation
Works Area - Portion N-A Excess
muddy water should be cleared in the wheel washing area. Accumulated
general refuse should be cleared regularly. |
Reclamation
Works Area - Portion N-A The
Contractor was reminded to clear the excess muddy water on a regular basis. The
Contractor was reminded to clear the general refuse regularly. |
||
13
August 2014 |
Marine Works Area - Portion N-A
Accumulated general refuse near the marine works area should be
cleared. Reclamation Works Area - Portion N-A
General site maintenance should be kept more regularly. |
Marine Works Area - Portion N-A
The Contractor was reminded to clear the accumulated general refuse. Reclamation Works Area - Portion N-A
The Contractor was reminded to maintain site tidiness more regularly. |
||
20 August
2014 |
Reclamation
Works Area - Portion N-A Sedimentation
tank should be in place to treat the excess muddy water. |
Reclamation
Works Area - Portion N-A The
Contractor was reminded to provide sedimentation tank with sufficient capacity. |
||
27
August 2014 |
Reclamation
Works Area - Portion N-A Sandy
materials near the seawall should be cleared. Reclamation
Works Area - Portion N-B The
Contractor was reminded to clear the excess muddy water after heavy
rainstorm. |
Reclamation
Works Area - Portion N-A The
Contractor was reminded to clear the sandy materials near the seawall. Reclamation
Works Area - Portion N-B The
Contractor was reminded to clear the excess muddy water after heavy
rainstorm. |
||
The Contractor
had submitted application form for registration as chemical waste producer
under the Contract. Sufficient
numbers of receptacles were available for general refuse collection and
sorting.
Wastes
generated during this reporting period include mainly construction wastes
(inert and non-inert), imported fill, recyclable materials, and marine
sediments. Reference has been made
to the waste flow table prepared by the Contractor (Appendix K). The quantities of different types of
wastes are summarized in Table 2.13.
Table 2.13 Quantities
of Different Waste Generated in the Reporting Period
Month/Year |
Inert Construction Waste (a)
(tonnes) |
Imported Fill (tonnes) |
Inert Construction Waste
Re-used (tonnes) |
Non-inert Construction Waste (b)
(tonnes) |
Recyclable Materials (c) (kg) |
Chemical Wastes (kg) |
Marine Sediment (m3) |
|
Category L |
Category M |
|||||||
June 2014 |
4,393 |
407,489 |
0 |
30 |
0 |
30 |
40,700 |
7,700 |
July 2014 |
14,405 |
428,392 |
0 |
33 |
300 |
0 |
37,950 |
7,150 |
August 2014 |
12,728 |
623,029 |
0 |
22 |
0 |
0 |
12,100 |
0 |
Total |
31,526 |
1,458,910 |
0 |
85 |
300 |
30 |
90,750 |
14,850 |
Notes: |
||||||||
(a) Inert
construction wastes include hard rock and large broken concrete, and
materials disposed as public fill. (b) Non-inert
construction wastes include general refuse disposed at landfill. (c) Recyclable
materials include metals, paper, cardboard, plastics, timber and others. |
The Contractor
was advised to properly maintain on site C&D materials and waste collection,
sorting and recording system, dispose of C&D materials and wastes at
designated ground and maximize reuse/ recycle of C&D materials and
wastes. The Contractor was also
reminded to properly maintain the site tidiness and dispose of the wastes accumulated
on site regularly and properly.
For chemical
waste containers, the Contractor was reminded to treat properly and store
temporarily in designated chemical waste storage area on site in accordance
with the Code of Practice on the Packaging, Labelling and Storage of Chemical
Wastes.
The status of
environmental licensing and permit is summarized in Table 2.14 below.
Table 2.14 Summary
of Environmental Licensing and Permit Status
License/
Permit |
License
or Permit No. |
Date of Issue |
Date of Expiry |
License/
Permit Holder |
Remarks |
Environmental Permit
|
EP-354/2009/B |
28
January 2014 |
Throughout
the Contract |
HyD |
Application for VEP
on 20 January 2014 to replace EP-354/2009/A |
Construction Dust Notification |
363510 |
19 August
2013 |
Throughout
the Contract |
DBJV |
- |
Chemical Waste Registration |
5213-422-D2516-01 |
10
September 2013 |
Throughout the
Contract |
DBJV |
- |
Construction Waste Disposal Account |
7018108 |
19 August
2013 |
Throughout
the Contract |
DBJV |
Waste disposal in Contract HY/2012/08 |
Waste Water Discharge License |
WT00017707-2013 |
18 November
2013 |
30 November
2018 |
DBJV |
For works in site WA18 |
Waste Water Discharge License |
WT00018433-2014 |
6 March
2014 |
31 March
2019 |
DBJV |
For works in site Portion N6 |
Construction Noise Permit |
GW-RW0223-14 |
29 March 2014 |
28 September 2014 |
DBJV |
For works in site Portion N6 |
Construction Noise Permit |
GW-RW0234-14 |
29 March 2014 |
28 September 2014 |
DBJV |
For Dredging and Reclamation Works |
Construction Noise Permit |
GW-RW0550-14 |
25 July 2014 |
24 January 2015 |
DBJV |
For Dredging and Reclamation Works |
Construction Noise Permit |
GW-RS0362-14 |
11
May 2014 |
10 November 2014 |
DBJV |
For works in site WA23 |
Marine Dumping Permit |
EP/MD/15-006 |
1 May 2014 |
31 October
2014 |
DBJV |
For Type 1 |
Marine Dumping Permit |
EP/MD/15-007 |
31 May 2014 |
29 June
2014 |
DBJV |
For Type 1 (dedicated site) and Type
2 |
Marine Dumping Permit |
EP/MD/15-045 |
30 June
2014 |
29 July
2014 |
DBJV |
For Type 1 (dedicated site) and Type
2 |
Marine Dumping Permit |
EP/MD/15-061 |
1 August
2014 |
31 August
2014 |
DBJV |
For Type 1 (dedicated site) and Type
2 |
Notes: |
|
|
|
|
|
HyD = Highways
Department DBJV = Dragages
¡V Bouygues Joint Venture VEP = Variation of Environmental
Permit |
In response to
the site audit findings, the Contractors carried out all corrective actions.
A summary of
the Implementation Schedule of Environmental Mitigation Measures (EMIS) is
presented in Appendix C. The necessary mitigation measures
relevant to this Contract were implemented properly.
For air
quality impact monitoring, a total of sixteen monitoring events were undertaken
in which no exceedances were recorded. (Table 2.15).
Table 2.15 Summary
of Exceedances for Air Quality Impact Monitoring in this Reporting Quarter
Station |
Exceedance
Level |
1-hr TSP |
24-hr TSP |
Number of
Exceedances |
|
1-hr TSP |
24-hr TSP |
||||
AQMS1 |
Action Level |
- |
- |
0 |
0 |
Limit Level |
- |
- |
0 |
0 |
|
ASR1 |
Action Level |
- |
- |
0 |
0 |
Limit Level |
- |
- |
0 |
0 |
|
ASR5 |
Action Level |
- |
- |
0 |
0 |
Limit Level |
- |
- |
0 |
0 |
|
ASR6 |
Action Level |
- |
- |
0 |
0 |
Limit Level |
- |
- |
0 |
0 |
|
ASR10 |
Action Level |
- |
- |
0 |
0 |
Limit Level |
- |
- |
0 |
0 |
|
Total number
of Action level Exceedances: |
0 |
0 |
|||
Total number
of Limit level Exceedances: |
0 |
0 |
For marine
water quality impact monitoring, a total of thirty-eight monitoring events were
undertaken in which no exceedances were recorded (Table 2.17).
In addition, the
construction impact on depth-averaged SS was assessed to compare the quarterly
mean values of depth-averaged SS with the relevant ambient mean values. Results showed that the quarterly mean
values of depth-averaged SS at all monitoring stations are well below the
ambient mean values (Table 2.16),
thus no further action is required in accordance with the Updated EM&A
Manual.
Table 2.16 Comparison
between Quarterly Mean and Ambient Mean Values of Depth-averaged Suspended
Solids (mg/L)
Station |
Baseline Mean |
Ambient Mean (a) |
Quarterly Mean (June 2014 to August 2014) |
|||
Mid-ebb |
Mid-flood |
Mid-ebb |
Mid-flood |
Mid-ebb |
Mid-flood |
|
CS4 |
10.2 |
9.0 |
13.3 |
11.7 |
4.2 |
4.3 |
CS6 |
10.9 |
11.7 |
14.1 |
15.2 |
4.3 |
4.5 |
IS12 |
9.2 |
9.5 |
12.0 |
12.3 |
4.2 |
3.9 |
IS13 |
10.0 |
10.5 |
13.0 |
13.7 |
4.1 |
3.9 |
IS14 |
10.4 |
9.7 |
13.5 |
12.6 |
4.3 |
4.0 |
IS15 |
9.6 |
11.0 |
12.5 |
14.2 |
4.2 |
4.0 |
SR10A |
10.3 |
10.2 |
13.3 |
13.3 |
4.4 |
3.9 |
SR8 |
10.1 |
11.3 |
13.1 |
14.7 |
4.1 |
4.3 |
SR9 |
8.8 |
9.9 |
11.4 |
12.8 |
4.2 |
4.3 |
Grand Total |
10.0 |
10.3 |
13.0 |
13.4 |
4.2 |
4.1 |
Notes: |
||||||
(a) Ambient mean value is defined as a 30%
increase of the baseline mean value |
Table 2.17 Summary
of Exceedances for Marine Water Quality Impact Monitoring in this Reporting
Quarter
Station |
Exceedance
Level (a) |
DO (Surface
and Middle) |
DO (Bottom) |
Turbidity
(depth-averaged) |
SS
(depth-averaged) |
||||
Mid-ebb |
Mid-flood |
Mid-ebb |
Mid-flood |
Mid-ebb |
Mid-flood |
Mid-ebb |
Mid-flood |
||
CS4 |
AL |
- |
- |
- |
- |
- |
- |
- |
- |
LL |
- |
- |
- |
- |
- |
- |
- |
- |
|
CS6 |
AL |
- |
- |
- |
- |
- |
- |
- |
- |
LL |
- |
- |
- |
- |
- |
- |
- |
- |
|
IS12 |
AL |
- |
- |
- |
- |
- |
- |
- |
- |
LL |
- |
- |
- |
- |
- |
- |
- |
- |
|
IS13 |
AL |
- |
- |
- |
- |
- |
- |
- |
- |
LL |
- |
- |
- |
- |
- |
- |
- |
- |
|
IS14 |
AL |
- |
- |
- |
- |
- |
- |
- |
- |
LL |
- |
- |
- |
- |
- |
- |
- |
- |
|
IS15 |
AL |
- |
- |
- |
- |
- |
- |
- |
- |
LL |
- |
- |
- |
- |
- |
- |
- |
- |
|
SR8 |
AL |
- |
- |
- |
- |
- |
- |
- |
- |
LL |
- |
- |
- |
- |
- |
- |
- |
- |
|
SR9 |
AL |
- |
- |
- |
- |
- |
- |
- |
- |
LL |
- |
- |
- |
- |
- |
- |
- |
- |
|
SR10 |
AL |
- |
- |
- |
- |
- |
- |
- |
- |
LL |
- |
- |
- |
- |
- |
- |
- |
- |
|
Total AL
Exceedances: |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
|
Total LL
Exceedances: |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
|
Notes: |
|||||||||
(a) AL = Action Level; LL = Limit Level |
Two Action Level
exceedances of impact dolphin monitoring were recorded in this reporting
quarter. Following the review of
monitoring data and marine works details in accordance with the procedures
stipulated in the Event and Action Plan of the Updated EM&A Manual, the
recorded exceedances were considered to be due to natural variation of dolphin
ranging pattern. Detailed
investigation findings are presented in Appendix J.
Cumulative
statistics are provided in Appendix J.
The
Environmental Complaint Handling Procedure is provided in Figure 2.4.
No
non-compliance event was recorded during the reporting period.
No
complaint/ enquiry case was record during the reporting period.
No summons/ prosecution
was received during the reporting period.
Statistics on
complaints, notifications of summons and successful prosecutions are summarized
in Appendix J.
As informed
by the Contractor, the major works for the Project in the coming quarter are
summarized in Table 3.1.
Table 3.1 Construction
Works to Be Undertaken in the Coming Quarter
Works to be undertaken |
Marine-based Works |
¡P
Reclamation Filling |
¡P
Vertical Seawall construction |
¡P
Sloping Seawall construction |
¡P
Marine Sheet Piling for Box Culvert extension |
¡P
Predrilling
for Box culvert Foundation |
Land-based Works |
Works Area -
Portion N6 |
¡P
CLP Substation utilities works ¡P
Pile Cap Construction |
Reclamation
Area ¡V Portion N-A ¡P
Construction
of temporary access ¡P
Diaphragm
Wall Construction ¡P
Vibro-Compaction |
Potential environmental
impacts arising from the above upcoming construction activities are mainly
associated with dust, marine water quality, marine ecology and waste management
issues.
Impact
monitoring for air quality, marine water quality and marine ecology (include
dolphin monitoring and post-translocation coral monitoring) are scheduled to
continue for the next reporting period.
This Third
Quarterly EM&A Report presents the findings of the EM&A activities
undertaken during the period from 1 June 2014 to 31 August 2014, in accordance
with the Updated EM&A Manual and the requirements of EP-354/2009/B.
Air quality
(including 1-hour TSP and 24-hour TSP), marine water quality, coral and dolphin
monitoring were carried out in the reporting period. No Action Level or Limit Level
exceedances for 1-hr TSP, and no Action Level or Limit Level exceedances for
24-hr TSP were recorded during the reporting period. No Action Level or Limit Level
exceedances were recorded in marine water quality impact monitoring during the
reporting period. No Action Level
or Limit Level exceedances were recorded in the post-translocation coral
monitoring in the reporting period.
Nevertheless, the Contractor was reminded to ensure that all dust
mitigation measures are provided at the construction sites and the proper
deployment of cage-type silt curtains at the dredging site.
A total of 28 groups of 96 Chinese
White Dolphin sightings were recorded
during the six sets
of surveys from June 2014 to August 2014. Whilst two Action Level exceedances were
recorded for the quarterly dolphin monitoring data between June and August
2014, no unacceptable impact from the construction activities of the TM-CLKL
Northern Connection Sub-sea Tunnel Section on Chinese White Dolphins was
noticeable from general observations.
Although the dolphins infrequently occurred along the alignment of TM-CLKL
Northern Connection Sub-Sea Tunnel Section in the past and during the baseline
monitoring period, it is apparent that dolphin usage has been significantly
reduced in NEL. It is critical to
monitor the dolphin usage in North Lantau region in the upcoming quarters, to
determine whether the dolphins are continuously affected by the various
construction activities in relation to the construction works of the Contract,
and whether suitable mitigation measure can be applied to improve the
situation.
Thirteen
weekly environmental site inspections were carried out in the reporting
period. Recommendations on remedial
actions provided for the deficiencies identified during the site audits were
properly implemented by the Contractor. No non-compliance event was
recorded during the reporting period.
No complaint/ enquiry was received during the reporting period.
No summons/
prosecution was received during the reporting period.
The monitoring
programme has been reviewed and was considered as
adequate to cater for the nature of works in progress. Change to the
monitoring programme was thus not recommended at this stage. The monitoring programme will be
evaluated as appropriate in the next reporting period. The ET will keep track on the construction
works to confirm compliance of environmental requirements and the proper implementation
of all necessary mitigation measures.
