Executive Summary

Under Agreement No. HMWSD 1/2021 (EP), ERM-Hong Kong, Limited (ERM) has been appointed as the Environmental Team (ET) by the Highways Department (HyD) to undertaken the implementation of post-construction monitoring for the Chinese White Dolphin (CWD) in accordance with Environmental Permit No. EP-354/2009/D for the Tuen Mun – Chek Lap Kok Link Project (TM-CLK Link Project).  AECOM Asia Company Limited was appointed by HyD as the Supervising Officer while Ramboll Hong Kong Ltd. was employed by HyD as the Independent Environmental Checker (IEC) and Environmental Project Office (ENPO).

The post-construction monitoring for the CWD commenced on June 2020 and completed in May 2022.

This is the Final EM&A report presenting a summary of the post-construction (operational) dolphin monitoring works from 1 June 2020 to 31 May 2022 for the Agreement No. HMWSD 1/2021 (EP) Post-Construction Monitoring of Chinese White Dolphin (Line-transect Vessel Surveys) for Tuen Mun – Chek Lap Kok Link in Northeast and Northwest Lantau Survey Area – Investigation (the “Contract”) in accordance with the Updated EM&A Manual of the TM-CLK Link Contract.

In order to fulfil the EP’s and EM&A Manual’s requirements for TM-CLKL Project, Agreement No. HMWSD 1/2021 (EP) took over the responsibility for implementation of operational phase dolphin monitoring from Contract No. HY/2012/08 from 1 September 2021 to 31 May 2022.

A summary of monitoring and audit activities conducted during the course of this Contract is listed below:

Operational phase dolphin monitoring                   48 sessions

Summary of Breaches of Action/Limit Levels

Eight (8) Limit Level exceedances were recorded for the post-construction (operational) dolphin monitoring between June 2020 and May 2022

Environmental Complaints, Non-compliance & Summons

No environmental complaint, non-compliance with EIA recommendations, EP conditions and other requirements and environmental summons was received between June 2020 and May 2022.

1                                    Introduction

1.1                               Background

According to the findings of the Northwest New Territories (NWNT) Traffic and Infrastructure Review conducted by the Transport Department, Tuen Mun Road, Ting Kau Bridge, Lantau Link and North Lantau Highway would be operating beyond capacity after 2016.  This forecast has been based on the estimated increase in cross boundary traffic, developments in the Northwest New Territories (NWNT), and possible developments in North Lantau, including the Airport developments, the Lantau Logistics Park (LLP) and the Hong Kong – Zhuhai – Macao Bridge (HZMB).  In order to cope with the anticipated traffic demand, two new road sections between NWNT and North Lantau – Tuen Mun – Chek Lap Kok Link (TM-CLKL) and Tuen Mun Western Bypass (TMWB) are proposed.

An Environmental Impact Assessment (EIA) of TM-CLKL (the Project) was prepared in accordance with the EIA Study Brief (No. ESB-175/2007) and the Technical Memorandum of the Environmental Impact Assessment Process (EIAO-TM).  The EIA Report was submitted under the Environmental Impact Assessment Ordinance (EIAO) in August 2009.  Subsequent to the approval of the EIA Report (EIAO Register Number AEIAR-146/2009), an Environmental Permit (EP-354/2009) for TM-CLKL was granted by the Director of Environmental Protection (DEP) on 4 November 2009, and EP variation (VEP) (EP-354/2009/A) was issued on 8 December 2010.  Subsequent applications for variation of environmental permits (VEPs), EP-354/2009/B, EP-354/2009/C and EP-354/2009/D, were granted on 28 January 2014, 10 December 2014 and 13 March 2015, respectively.

Under Agreement No. HMWSD 1/2021 (EP), ERM-Hong Kong, Limited (ERM) has been appointed as the Environmental Team (ET) by the Highways Department (HyD) to undertaken the implementation of post-construction monitoring for the Chinese White Dolphin (CWD) in accordance with Environmental Permit No. EP-354/2009/D for the Tuen Mun – Chek Lap Kok Link Project (TM-CLK Link Project).  AECOM Asia Company Limited was appointed by HyD as the Supervising Officer while Ramboll Hong Kong Ltd. was employed by HyD as the Independent Environmental Checker (IEC) and Environmental Project Office (ENPO).

The post-construction monitoring for the CWD commenced on June 2020 and completed in May 2022.

In order to fulfil the EP’s and EM&A Manual’s requirements for TM-CLKL Project, Agreement No. HMWSD 1/2021 (EP) took over the responsibility for implementation of operational phase dolphin monitoring from Contract No. HY/2012/08 from 1 September 2021 to 31 May 2022.





1.2                               Scope of This Report

This is the Final EM&A Report under the Agreement No. HMWSD 1/2021 (EP) Post-Construction Monitoring of Chinese White Dolphin (Line-transect Vessel Surveys) for Tuen Mun – Chek Lap Kok Link in Northeast and Northwest Lantau Survey Area – Investigation.  This report presents a summary of the post-construction (operational) dolphin monitoring works from 1 June 2020 to 31 May 2022.

1.3                               Organization Structure

The organization structure of the Contract is shown in Appendix A.  The key personnel contact names and contact details are summarized in Table 1.1 below.

Table 1.1        Contact Information of Key Personnel

Party

Position

Name

Telephone

Fax

Highways Department



PC 16/SD

Sally W.M. Choi

2762 3643

3188 6614

SOR

(AECOM Asia Company Limited)



Senior Resident Engineer

K P Wong





2293 6403





2293 6300





ENPO / IEC

(Ramboll Hong Kong Ltd.)

ENPO Leader



Y.H. Hui

3465 2850

3465 2899

IEC



Mr. Brian Tam (1)

9700 6767

3465 2899

ET (ERM-HK)

ET Leader

Jasmine Ng

2271 3311

2723 5660



Note: Role and responsibilities as the IEC of the Contract was taken up by Mr. Brian Tam from 25 July 2022.




1.4                               Summary of EM&A Programme Requirements

The EM&A programme required environmental monitoring for post-construction (operational) dolphin monitoring.  The EM&A requirements and related findings are described in the following sections, which include:

·              Monitoring parameters;

·              Action and Limit levels for all environmental parameters;

·              Event Action Plan;

·              Tested environmental impact hypotheses;

·              Environmental mitigation measures, as recommended in the approved EIA Report; and

·              Environmental requirement in contract documents.

2                                    EM&A RESULTS

The EM&A programme required environmental monitoring for marine ecology.  The EM&A requirements and related findings for the component are summarized in the following sections.

2.1                           Dolphin Monitoring

2.1.1                      Monitoring Requirements

Operational Phase dolphin monitoring is required to be conducted by a qualified dolphin specialist team to evaluate whether there have been any effects on the dolphins.  According to the EM&A Manual, Operational Phase Monitoring on dolphin monitoring shall be undertaken based upon the frequency of forty-eight, one-day survey events at a frequency of 2 per month over a period of 24 months following cessation of the construction.

In order to fulfil the EM&A requirements and make good use of available resources, Agreement No. HMWSD 1/2021 (EP) has taken over the responsibility for implementation of dolphin monitoring from HZMB HKLR Contract No. HY/2011/03 since October 2019 and Contract No. HY/2012/08 since September 2021.

2.1.2                      Monitoring Equipment

Table 2.1 summarize the equipment used for the impact and operational phase dolphin monitoring.

Table 2.1        Dolphin Monitoring Equipment

Equipment

Model

Global Positioning System (GPS)

Garmin eTrex Legend

Camera

Canon EOS 7D model

Laser Binocular

Infinitor LRF 1000

Marine Binocular

7 x 50 Fuijnon marine binoculars

Vessel for Monitoring

15-m inboard vessel with an open upper deck (about 4.5 m above water surface)

2.1.3                      Monitoring Parameter, Frequencies & Duration

Dolphin monitoring should cover all transect lines in Northeast Lantau (NEL) and the Northwest Lantau (NWL) survey areas twice per month throughout the entire construction period and operational phase.  The monitoring data should be compatible with, and should be made available for, long-term studies of small cetacean ecology in Hong Kong.  In order to provide a suitable long-term dataset for comparison, identical methodology and line transects employed in baseline dolphin monitoring was followed in the impact dolphin monitoring and operational phase dolphin monitoring.

2.1.4                      Monitoring Location

The operational phase dolphin monitoring were carried out in the NEL and NWL along the line transect as depicted in Figure 2.1.  The co-ordinates of all transect lines are shown in Table 2.2 below.

Table 2.2        Operational Dolphin Monitoring Line Transect Co-ordinates

Line No.

Easting

Northing

Line No.

Easting

Northing

1

Start Point

804671

815456

13

Start Point

816506

819480

1

End Point

804671

831404

13

End Point

816506

824859

2

Start Point

805476

820800*

14

Start Point

817537

820220

2

End Point

805476

826654

14

End Point

817537

824613

3

Start Point

806464

821150*

15

Start Point

818568

820735

3

End Point

806464

822911

15

End Point

818568

824433

4

Start Point

807518

821500*

16

Start Point

819532

821420

4

End Point

807518

829230

16

End Point

819532

824209

5

Start Point

808504

821850*

17

Start Point

820451

822125

5

End Point

808504

828602

17

End Point

820451

823671

6

Start Point

809490

822150*

18

Start Point

821504

822371

6

End Point

809490

825352

18

End Point

821504

823761

7

Start Point

810499

822000*

19

Start Point

822513

823268

7

End Point

810499

824613

19

End Point

822513

824321

8

Start Point

811508

821123

20

Start Point

823477

823402

8

End Point

811508

824254

20

End Point

823477

824613

9

Start Point

812516

821303

21

Start Point

805476

827081

9

End Point

812516

824254

21

End Point

805476

830562

10

Start Point

813525

821176

22

Start Point

806464

824033

10

End Point

813525

824657

22

End Point

806464

829598

11

Start Point

814556

818853

23

Start Point

814559

821739

11

End Point

814556

820992

23

End Point

814559

824768

12

Start Point

815542

818807

24*

Start Point

805476*

815900*

12

End Point

815542

824882

24*

End Point

805476*

819100*

Remarks: The coordinates of several starting and ending points have been revised since August 2017 due to the presence of a work zone to the north of the airport platform with intense construction activities in association with the construction of the third runway expansion for the Hong Kong International Airport.  Co-ordinates in red and marked with asterisk are revised co-ordinates of transect line.

2.1.5                      Monitoring Schedule for the Monitoring Period

The dolphin monitoring schedules for the reporting period are shown in Appendix B.

2.1.6                      Results & Observations

A total of 48 monitoring events for operational phase dolphin monitoring were undertaken between June 2020 and May 2022.  Details of the operational phase dolphin monitoring between June 2020 and August 2021 were presented in Eighty to Ninety-fourth Monthly EM&A Reports under Contract No. HY/2012/08.

A total of 6,465.46 km of survey effort was collected, with 99.7% of the total survey effort being conducted under favourable weather conditions (ie Beaufort Sea State 3 or below with good visibility) in the first year of operational phase monitoring.  Amongst the two areas, 2,468.48 km and 3,996.98 km of survey effort were collected from NEL and NWL survey areas, respectively.  The total survey effort conducted on primary and secondary lines were 4,632.73.24 km and 1,832.73 km, respectively.  The survey efforts are summarized in Appendix C.

Distribution

During the operational phase monitoring, all dolphin groups were sighted in NWL, while none of them were sighted in NEL.  The dolphin sighting was mainly concentrated around Lung Kwu Chau and to the west of the airport platform, while other sightings scattered within the Umston Road section between Lung Kwu Tan and Lung Kwu Chau and near Sha Chau.

Encounter Rate

Comparison of average encounter rates of Chinese White Dolphins in NEL and NWL survey areas during baseline, transitional, impact and operational phases is shown in Table 2.3.

Table 2.3        Average Dolphin Encounter Rates



Encounter rate (STG)

(no. of on-effort dolphin sightings per 100 km of survey effort)

Encounter rate (ANI)            (no. of dolphins from all on-effort sightings per 100 km of survey effort)

Northeast Lantau

Northwest Lantau

Northeast Lantau

Northwest Lantau

Operational Phase

(2021-22)

0.00

0.73 ± 1.24

0.00

1.46 ± 2.82

Operational Phase

(2020-21)

0.00

1.31 ± 1.88

0.00

3.39 ± 5.73

Impact Phase (2018-19)

0.00

1.42 ± 1.80

0.00

3.62 ± 4.93

Impact Phase (2017-18)

0.00

2.68 ± 3.04

0.00

9.02 ± 14.63

Impact Phase (2016-17)

0.00

2.35 ± 2.62

0.00

8.57 ± 11.05

Impact Phase (2015-16)

0.00

2.10 ± 1.83

0.00

8.54 ± 8.53

Impact Phase (2014-15)

0.11 ± 0.54

2.54 ± 2.49

0.11 ± 0.54

11.64 ± 14.04

Impact Phase (2013-14)

0.22 ± 0.74

6.93 ± 4.08

0.76 ± 2.59

26.31 ± 17.56

Transitional Phase (2012-13)

1.70 ± 2.26

7.68 ± 4.36

4.75 ± 7.61

27.51 ± 18.06

Baseline Phase (2011-12)

6.05 ± 5.04

7.75 ± 5.69

19.91 ± 21.30

29.57 ± 26.96

Comparison of average daily dolphin encounter rates from operational phase monitoring period (June 2020 – May 2022), six years of impact monitoring phases (November 2013 – October 2019), transitional phase (November 2012 – October 2013) and baseline phase monitoring periods (February 2011 – January 2012). (± denotes the standard deviation of the value)

Density and Abundance

In NEL, the baseline and transitional phases recorded the highest dolphin density and abundance, with 45.73 individuals per 100 km2.  During impact and operational phases, the dolphin density and abundance was 13.08 and 2.96 individuals per 100 km2, respectively.

In NWL, the baseline and transitional phases recorded the highest dolphin density and abundance, with 44.76 individuals per 100 km2.  During impact and operational phases, the dolphin density and abundance was 2.95-12.99 and 0.13-4.59 individuals per 100 km2, respectively.

Group Size

A total of 33 groups of 81 Chinese White Dolphin sightings were recorded during the 24-month operational phase monitoring.  All sightings were made during on-effort search.  Twenty-eight (28) on-effort sightings were made on primary lines, while five (5) other on-effort sightings were made on secondary lines.

Comparison of average dolphin group size is shown in Table 2.4.

Table 2.4        Comparison of Average Dolphin Group Size



Average Dolphin Group Size

Overall

Northeast Lantau

Northwest Lantau

Operational Phase (2021-22)

2.09 ± 1.64

(n = 11)

0.00

2.09 ± 1.64

(n = 11)

Operational Phase (2020-21)

2.64 ± 2.08

(n = 22)

0.00

2.64 ± 2.08

(n = 22)

Impact Phase (2018-19)

2.52 ± 1.45

(n = 27)

0.00

2.52 ± 1.45

(n = 27)

Impact Phase (2017-18)

3.12 ± 2.86

(n = 42)

0.00

3.12 ± 2.86

(n = 42)

Impact Phase (2016-17)

3.51 ± 2.68

(n = 43)

0.00

3.51 ± 2.68

(n = 43)

Impact Phase (2015-16)

3.73 ± 3.14

(n = 45)

1.00 (n = 1)

3.80 ± 3.14

(n = 44)

Impact Phase (2014-15)

4.24 ± 3.15

(n = 54)

1.00 (n = 1)

4.30 ± 3.15

(n = 53)

Impact Phase (2013-14)

3.76 ± 2.57

(n = 136)

5.00 ± 2.71

(n = 4)

3.73 ± 2.57

(n = 132)

Transitional Phase (2012-13)

3.37 ± 2.98

(n = 186)

2.64 ± 2.38

(n = 22)

3.47 ± 3.05

(n = 164)

Baseline Phase (2011-12)

3.32 ± 2.86

(n = 288)

2.80 ± 2.35

(n = 79)

3.52 ± 3.01

(n = 209)

Comparison of average dolphin group size from operational phase monitoring period (June 2020 – May 2022), six years of impact monitoring phases (November 2013 – October 2019), transitional phase (November 2012 – October 2013) and baseline phase monitoring periods (February 2011 – January 2012). (± denotes the standard deviation of the value)

Habitat Use

Dolphins occurred around the Brothers Islands and to the north of Lung Kwu Chau during the baseline and transitional periods, while dolphins occurred around western end of NL region during operational phase.

Mother-Calf Pairs

The occurrences of dolphin calves were widespread distributed throughout the NL region (including the Brothers Islands in NEL) during baseline and transitional phases.  Occurrences during the impact phase was recorded around Lung Kwu Chau and western portion of NL region.  During operational phase, a mother-calf pair was sighted near the Pillar Point.

Activities and Associations with Fishing Boats

A total of 5 groups of dolphins were observed engaged in feeding activities and none was engaged in socializing, traveling or milling/resting activities during operational phase.  None of them was associated with any operating fishing vessels.

Summary of Photo-Identification Works

33 individuals were sighted 61 times during the operational phase.

Individual Range Use

The re-sightings of dolphins were primarily centered in NL waters or covering both NL and WL regions.

Summary

During the operational phase monitoring, dolphin sightings were mainly concentrated toward the western end of the NL region, in particular, near waters around Lung Kwu Chau and Sha Chau.  According to the baseline results of the approved EIA Report, the dolphin groups were largely sighted near waters around Lung Kwu Chau and Sha Chau.  There was no dolphin sighted along the alignment of Northern Connection Sub-sea Tunnel Section of the Tuen Mun – Chek Lap Kok Link Project.   The monitoring results showed that dolphins are observed heavily utilized area around Lung Kwu Chau and less frequently in the North Lantau region where Northern Connection Sub-sea Tunnel Section of the Tuen Mun – Chek Lap Kok Link Project located.

A decline in dolphin occurrence in NEL and NWL regions was observed in the operational phase monitoring compared with the baseline results of the approved EIA Report.  Eight (8) Limit Level exceedances were recorded for quarterly post-construction (operational) dolphin monitoring data between June 2020 and May 2022.  Detailed investigation reports on exceedances were presented in Twenty-seventh to Thirty-first Quarterly EM&A Reports under Contract No. HY/2012/08 and First to Third Quarterly EM&A Reports under this Contract.

The post-construction (operational) dolphin monitoring works from 1 June 2020 to 31 May 2022 were undertaken in accordance with the Updated EM&A Manual and the requirements of the Environmental Permits.  Overall, the EM&A programme was considered as effective to monitor the potential impacts of Tuen Mun – Chek Lap Kok Link Project.

2.2                           Environmental Licenses and Permits

A summary of the environmental licenses and permits for this Contract is presented in Table 2.5 below.


Table 2.5        Summary of Environmental Licenses and Permits

License/ Permit

License or Permit No.

Date of Issue

Date of Expiry

License/ Permit Holder

Remarks

Environmental Permit

EP-354/2009/D

13-Mar-15

N/A

HyD

Application for VEP on 3 March 2015 to supersede EP-354/2009/C

Notes:











HyD = Highways Department

DBJV = Dragages – Bouygues Joint Venture

VEP = Variation of Environmental Permit
















2.3                           Summary of Exceedances of the Environmental Quality Performance Limit

Eight (8) Limit Level exceedances were recorded for quarterly post-construction (operational) dolphin monitoring data between June 2020 and May 2022.

Detailed investigation reports on exceedances were presented in Twenty-seventh to Thirty-first Quarterly EM&A Reports under Contract No. HY/2012/08 and First to Third Quarterly EM&A Reports under this Contract.

Cumulative statistics are provided in Appendix D.

2.4                           Summary of Complaints, Notification of Summons and Successful Prosecutions

No environmental complaint, non-compliance with EIA recommendations, EP conditions and other requirements and environmental summons was received between June 2020 and May 2022.

Statistics on complaints, notifications of summons, successful prosecutions are summarised in Annex D.

3                                    Conclusion and Recommendations

The post-construction monitoring for the CWD commenced on June 2020 and completed in May 2022.

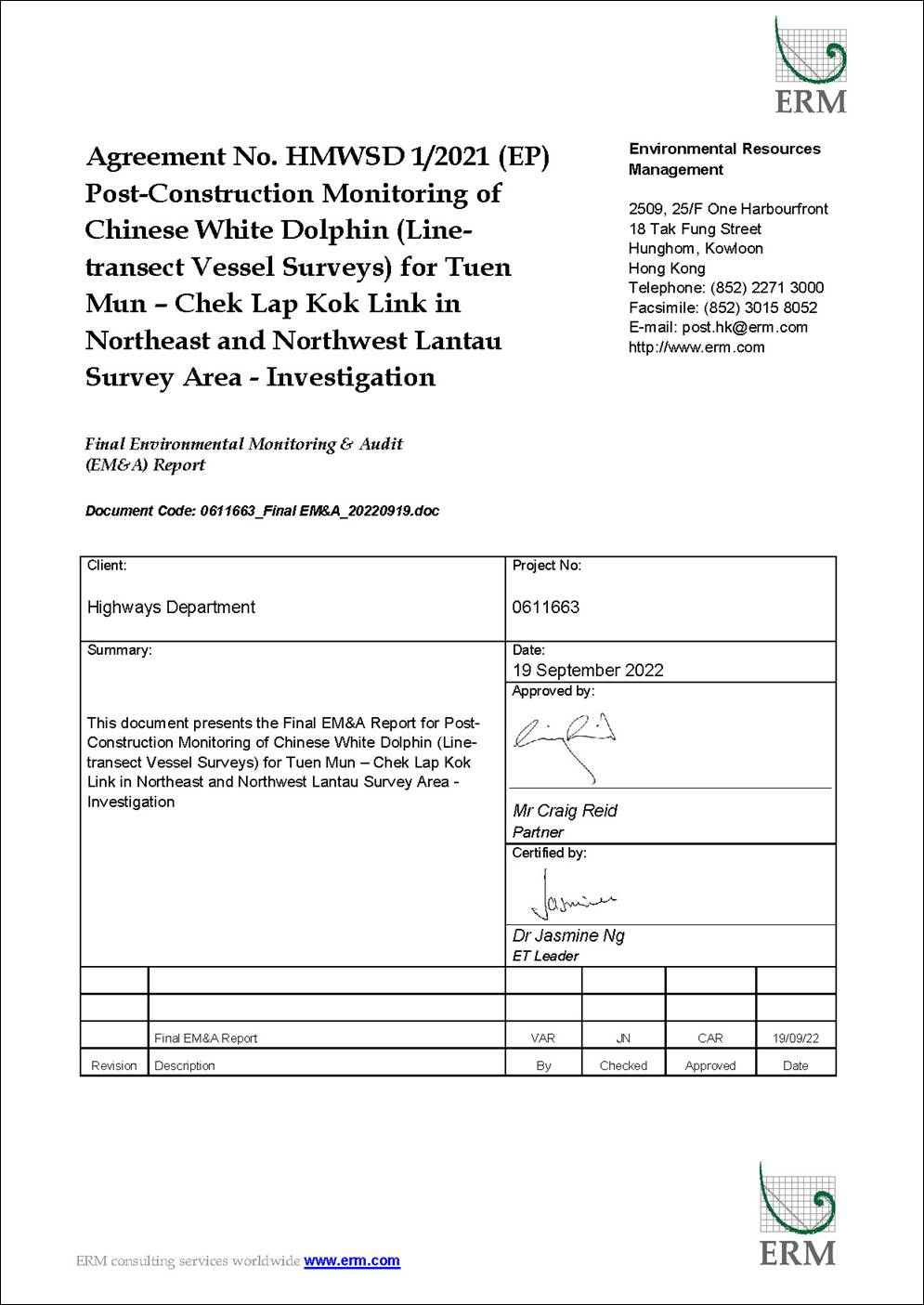

This is the Final EM&A Report under the Agreement No. HMWSD 1/2021 (EP) Post-Construction Monitoring of Chinese White Dolphin (Line-transect Vessel Surveys) for Tuen Mun – Chek Lap Kok Link in Northeast and Northwest Lantau Survey Area – Investigation presents a summary of the post-construction (operational) dolphin monitoring works from 1 June 2020 to 31 May 2022, in accordance with the Updated EM&A Manual and the requirements of the Environmental Permits.

No environmental complaint, non-compliance with EIA recommendations, EP conditions and other requirements and environmental summons was received between June 2020 and May 2022.

The EM&A programme was considered as effective to monitor the potential impacts of Tuen Mun – Chek Lap Kok Link Project.
