TABLE
OF CONTENTS
|
||
1 |
1-2 |
|
1.1 |
Basic Project Information |
1 |
1.2 |
Project Organization |
2 |
1.3 |
Construction Programme |
2 |
1.4 |
Construction Works
Undertaken During the Reporting Period |
2 |
|
|
|
2 |
3-4 |
|
2.1 |
Monitoring Locations |
3 |
2.2 |
Monitoring Requirements |
3 |
2.3 |
Monitoring Results |
4 |
|
|
|
3 |
5 |
|
3.1 |
Monitoring Locations |
5 |
3.2 |
Monitoring Requirements |
5 |
3.3 |
Monitoring Results |
5 |
|
|
|
4
|
6-7 |
|
4.1 |
Monitoring Locations |
6 |
4.2 |
Monitoring Requirements |
6-7 |
4.3 |
Monitoring Results |
7 |
|
|
|
5
|
8 |
|
5.1 |
Monitoring Locations |
8 |
5.2 |
Monitoring Requirements |
8 |
5.3 |
Monitoring Results |
8 |
|
|
|
6 |
9-12 |
|
6.1 |
Site
Inspection |
9 |
6.2 |
Advice on
the Solid and Liquid Waste Management Status |
9-10 |
6.3 |
Environmental Licenses and Permits |
10 |
6.4 |
Implementation Status of Environmental Mitigation Measures
|
10-11 |
6.5 |
Summary of Exceedance of the Environmental Quality Performance Limit |
11 |
6.6 |
Summary of Complaints, Notification of Summons and Successful
Prosecution |
11-12 |
|
|
|
7 |
12-13 |
|
7.1 |
Construction Programme for the Coming Months |
12-13 |
7.2 |
Environmental Site
Inspection Schedule for the Coming Month |
13 |
|
|
|
8 |
13 |
|
8.1 |
Conclusions |
13 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
||||||
Figure 1 |
Air Quality and Noise
Monitoring Stations for HKBCF |
|
||||
Figure 2 |
Water Quality Monitoring Stations (construction phases) |
|
||||
Figure 3 |
Dolphin
Monitoring Transect Line
and Layout
Map |
|
||||
|
|
|
||||
|
|
|
||||
|
|
|
||||
Table |
|
|
||||
Table 1.1 |
Contact Information of Key Personnel |
|
||||
Table 2.1 |
Air Quality Monitoring Locations |
|
||||
Table 2.2 |
Action and Limit Levels for 1-hour TSP |
|
||||
Table 2.3 |
Action and Limit Levels for 24-hour TSP |
|
||||
Table 3.1 |
Construction Noise Monitoring Locations |
|
||||
Table 3.2 |
Action and Limit Levels for Construction Noise |
|
||||
Table 4.1 |
Water Quality Monitoring Stations (construction
phases) |
|
||||
Table 4.2 |
Action and Limit Levels for Water Quality |
|
||||
Table |
Action and Limit Levels for Chinese White Dolphin
Monitoring ¡V Approach to Define Action Level ( |
|
||||
Table 5.1b |
Action and Limit Levels for Chinese White Dolphin
Monitoring - |
|
||||
Table 6.1 |
Summary of marine sediment disposed to dumping
site via Contract No. HY/2013/03 |
|
||||
Table 7.1 |
Construction Activities for coming month |
|
||||
|
|
|
||||
|
|
|
||||
|
|
|
||||
APPENDICES |
|
|||||
Location of Works Areas |
|
|||||
Project Organization for Environmental Works |
|
|||||
Construction Programme |
|
|||||
Event and Action Plan |
|
|||||
Monthly Summery of Waste Flow Table & Monthly
Summery of Marine Sediment |
|
|||||
Environmental Licenses and Permits |
|
|||||
Implementation Schedule for Environmental
Mitigation Measures (EMIS) |
|
|||||
Statistics on Environmental Complaints,
Notification of Summons and Successful Prosecutions |
|
|||||
Environmental Site Inspection Schedule |
|
|||||
Complaint Investigation Report |
|
|||||
|
|
|
||||
|
|
|
|
|||
|
|
|
|
|||
|
|

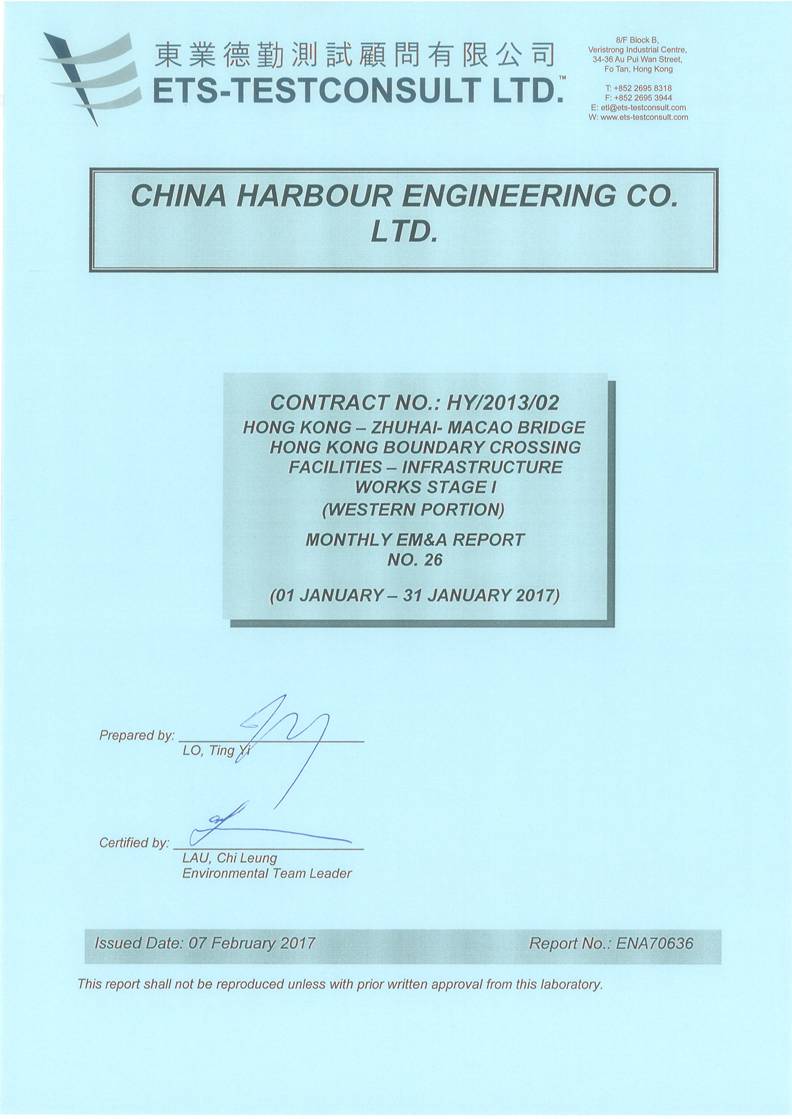

This Monthly Environmental
Monitoring and Audit (EM&A) Report is
prepared for Contract HY/2013/02 ¡§Hong Kong¡VZhuhai-Macao Bridge Hong Kong
Boundary Crossing Facilities (HKBCF) ¡V Infrastructure Works Stage I (Western
Portion)¡¨ (hereafter referred to as ¡§the Contract¡¨) for the Highways Department
of Hong Kong Special Administrative Region (HKSAR). The Contract was awarded to
China Harbour Engineering Co., Ltd. (hereafter referred to as ¡§the Contractor¡¨)
and ETS-Testconsult Limited was appointed as the Environmental Team (ET) by the
Contractor.
The Contract is part of
Hong Kong¡VZhuhai¡VMacao Bridge HKBCF which is a ¡§Designated Project¡¨, under
Schedule 2 of the Environmental Impact Assessment Ordinance (EIAO) (Cap 499)
and Environmental Impact Assessment (EIA) Report (Register No. AEIAR-145/2009)
was prepared for the Project. The current Environmental Permit (EP) No. EP-353/2009/K for HKBCF was issued on 11 April 2016.
These documents are available through the EIA Ordinance Register. Site
preparation works of the Contract was started on 25 July 2014 and the construction
works of the Contract commenced on 24 November 2014.
ETS-Testconsult Limited
has been appointed by the Contractor to implement the Environmental Monitoring
& Audit (EM&A) programme for the Contract in accordance with the
Updated EM&A Manual for HKBCF (Version 1.0) and provide environmental team
services to the Contract.
This is the Twenty-sixth Monthly Environmental
Monitoring and Audit (EM&A) Report for the Contract which summaries
findings of the EM&A works conducted during the reporting
period from 01 January to 31 January 2017.
Site Activities
As
informed by the Contractor, site
activities were carried out in
this reporting month:
¡±
Bored piles works in Portion C;
¡±
Pier / Abutment in Portion C & F;
¡±
Pile Cap in Portion C & F;
¡±
Pre-bored H-pile for sign gantries in Portion C & F;
¡±
Storm drain and water main construction;
¡±
Retaining wall, slop and earth works;
¡±
Footing construction of directional signs, cable trench and ducting;
¡±
Marine Delivery of precast segment & Construction of bridge
deck in Portion D, A, E, C & F.
Environmental Monitoring and Audit Progress
The monthly EM&A programme was
undertaken in accordance with the Updated EM&A Manual for HKBCF (Version
1.0). It should be noted that the air quality and noise monitoring works for
the Contract are covered by Contract No. HY/2010/02 ¡§Hong Kong-Zhuhai-Macao
Bridge HKBCF ¡V Reclamation Works¡¨ and Contract No. HY/2011/03 ¡§
Environmental Site Inspection:
05, 12, 16
& 26 January 2017
Breaches of
Action and Limit Levels
Summary
of Action and Limit Level exceedance of 1-hr TSP level and 24-hr TSP level at
AMS6 shall be referred to the monthly EM&A report prepared by Contract No.
HY/2011/03.
There was no Action and Limit Level exceedance
of 1-hr TSP level and 24-hr TSP level
recorded at station AMS7 by the Environmental Team of Contract No. HY/2010/02 during the reporting period.
There was no Action and Limit Level exceedance
for noise recorded at
station NMS2 and station NMS3B by the Environmental Team of Contract No. HY/2010/02
during the reporting period.
There was no Action and Limit Level exceedance
for water quality recorded
at the monitoring stations showed at Table 4.1 by
the Environmental Team of Contract No. HY/2010/02 during the reporting period.
Impact dolphin monitoring results at all transects are reported in the EM&A Report prepared for Contract
No. HY/2010/02.
Complaint Log
Follow-up action to the complaint received by
Highways Department and referred by Highways Department to Contract No. HY/2010/02
on 28 December 2016. The
complaint investigation report (Log No. 009) was issued by the ET of Contract
No. HY/2013/02 on 31 December 2016 and verified by
the IEC/ENPO on 11 January 2017. According to the
investigation, the site environment of the working areas were found acceptable that
no mosquito was observed and cleanness of portable toilets were also found
acceptable but it will have some improvement. Hence, the complaint was found
non-related to Contract No. HY/2013/02. The complaint investigation report (Log No. 009) was provided in Appendix J.
During
January 2017, there was a complaint received by Environmental Protection Department from
a bus operator at the Hong Kong International Airport recently and referred to
the ENPO.
Then the ENPO forwarded the complaint by email to the R.E. (AECOM), the
Contractor (China Harbour) and the ET (ETS-Testconsult Ltd.) of Contract No.
HY/2013/02 at 12:17 on 09 January
2017.
The
complainant complained that the external bodies of buses
& vehicles were seriously stained by the heavy dusts and mud produced from
the construction sites onto the East Coast Road & Tung Fai Road, Airport
Road Interchange and Sky City Interchange.
The
above mentioned complaint follow-up inspection was performed by the Environmental Officer and the RE of Contract No. HY/2013/02 and EPD¡¦s senior
inspector Dionne Leung on 10 January 2017. The complaint investigation report (Log No. 010)
was issued by the ET of Contract No. HY/2013/02 and verified by the IEC/ENPO on
23 January 2017.
According to the investigation, no mud/slurry was observed
around the East Coast Road site entrance during the site inspection on 10 January 2017.
Mitigation measures under the item A2 and W2 of EMIS were implemented including
provide vehicle
washing facilities with high pressure water jet at vehicle exit point and the
area where vehicle washing takes place, the portion of road to construction
site of the vehicle entrance or exit was kept clear of dusty materials, all
vehicles and plant were cleaned before they leave the construction site, wheel
overflow was directed to silt removal facilities before being discharged, the
road section between the washing facilities and the exit point was hard paved
and reminders were provided at the wheel washing basin and exit to remind all
Contract(s) vehicles using the site exit for proper wheel washing etc. Besides, after received the last complaint from the EPD on 01 December
2016, the cleaning actions were reinforced such as providing one person at the
site entrance for cleaning up the mud/slurry, frequently checking the East Coast Road site entrance. Hence, the complaint was found
non-related to Contract No. HY/2013/02. The complaint investigation report (Log No. 010) was provided in Appendix J.
Notifications of Summons and Successful
Prosecutions
There were no
notifications of summons or prosecutions received during the reporting period.
Reporting Change
There were no
reporting changes during the reporting period.
Future
Key Issues
The future key
issues to be undertaken in the upcoming month are as follows:
¡±
Bored Piling in Portion C;
¡±
Pier / Abutment in Portion C & F;
¡±
Pile Cap in Portion C & F;
¡±
Pre-bored H-pile for sign gantries in Portion C & F;
¡±
Storm drain and water main construction;
¡±
Retaining wall, slop and earth works
¡±
Footing construction of directional signs, cable trench and ducting;
¡±
Delivery of precast segment & Construction of bridge deck in Portion
D, A, E, C & F
¡±
Marine sediment excavation
activities from the land-based works and corresponding disposal at the designated disposal
sites.
1.1.
Basic Project Information
1.1.1.
This Monthly Environmental
Monitoring and Audit (EM&A) Report is
prepared for Contract HY/2013/02 ¡§Hong Kong¡VZhuhai-Macao Bridge Hong Kong
Boundary Crossing Facilities (HKBCF) ¡V Infrastructure Works Stage I (Western
Portion)¡¨ (hereafter referred to as ¡§the Contract¡¨) for the Highways Department
of Hong Kong Special Administrative Region (HKSAR). The Contract was awarded to
China Harbour Engineering Co., Ltd. (hereafter referred to as ¡§the Contractor¡¨)
and ETS-Testconsult Limited was appointed as the Environmental Team (ET) by the
Contractor.
1.1.2.
The Contract is part of
Hong Kong¡VZhuhai¡VMacao Bridge HKBCF which is a ¡§Designated Project¡¨, under
Schedule 2 of the Environmental Impact Assessment Ordinance (EIAO) (Cap 499)
and Environmental Impact Assessment (EIA) Report (Register No. AEIAR-145/2009)
was prepared for the Project. The current Environmental Permit (EP) No. EP-353/2009/K for HKBCF was issued on 11 April 2016.
These documents are available through the EIA Ordinance Register. Site
preparation works of the Contract started on 25 July 2014 and the construction
works of the Contract commenced on 24 November 2014. The works area of the
Contract is shown in Appendix A.
1.1.3.
The proposed works under this
Contract comprise the following:
¡±
Construction of the
viaducts and roads at the western portion of Hong Kong Boundary Crossing
Facilities (HKBCF) mainly for connection with the Hong Kong¡VZhuhai¡VMacao
Bridge (HZMB), Hong Kong Link Road (HKLR), Hong Kong International Airport
(HKIA) and the Tuen Mun-Chek Lap Kok Link (TM-CLKL);
¡±
Construction of the road modification at the
SkyCity Interchange at Airport Island;
¡±
Construction of associated street lighting,
street furniture, road marking, road signage, drainage, sewerage, fresh water
and flushing water supply, irrigation, landscape, electrical and mechanical
(E&M), utilities and services works;
¡±
Provisioning of civil engineering works and power
supply installation for the Traffic Control and Surveillance System TCSS;
¡±
Other works in accordance with the
Contract.
1.1.4.
This is the Twenty-sixth Monthly
Environmental Monitoring and Audit (EM&A) Report for the Contract which
summaries the audit findings of the EM&A programme during the reporting period from 01 January to 31 January 2017.
1.2.
Project Organization
1.2.1.
The project
organization
structure and lines of communication with respect to the on-site environmental
management structure is shown in Appendix B. The key personnel contact
names and numbers are summarized in Table
1.1.
Table 1.1 Contact Information of Key Personnel
Party |
Position |
Name of Key Staff |
Tel. No. |
Fax No. |
Engineer or Engineer¡¦s Representative (AECOM Asia Co. Ltd.) |
Resident Engineer |
Mr. Dominic Mow |
6274 0909 |
3152 5116 |
Mr. Winston Wong |
6330 8293 |
|||
Environmental Project Office / Independent Environmental Checker (Ramboll Environ Hong Kong Limited) |
Environmental Project Office Leader |
Mr. Y. H. Hui |
3465 2888 |
3465 2899 |
Independent Environmental Checker |
Mr. Raymond Dai |
3465 2888 |
3465 2899 |
|
Environmental Site Supervisor |
Mr. Ray Yan |
5181 8165 |
3465 2899 |
|
Contractor (China Harbour Engineering Co., Ltd.) |
Environmental Officer |
Mr. Richard Ng |
5977 0593 |
3915 0300 |
Assistant Environmental Officer |
Mr. Paper Chan |
6486 8967 |
3915 0300 |
|
Environmental Supervisor |
Mr. Endy Tse |
5512 2662 |
3915 0300 |
|
Environmental
Team (ETS-Testconsult Ltd.) |
Environmental
Team Leader |
Mr. C. L. Lau |
2946
7791 |
2695
3944 |
1.3 Construction
Programme
1.3.1 A copy of the Contractor¡¦s construction programme is provided in Appendix
C.
1.4 Construction
Works Undertaken During the Reporting Period
1.4.1
A
summary of the construction activities undertaken during this reporting period is
shown below:
¡±
Bored piles works in Portion C;
¡±
Pier / Abutment in Portion C & F;
¡±
Pile Cap in Portion C & F;
¡±
Pre-bored H-pile for sign gantries in Portion C & F;
¡±
Storm drain and water main construction;
¡±
Retaining wall, slop and earth works;
¡±
Footing construction of directional signs, cable trench and ducting;
¡±
Marine Delivery of precast segment & Construction of bridge
deck in Portion D, A, E, C & F
2.1 Monitoring
Locations
2.1.1 The air
quality monitoring works for the Contract are covered by Contract No.
HY/2010/02 Hong Kong-Zhuhai-Macao Bridge HKBCF ¡V Reclamation Works and Contract
No. HY/2011/03 Hong Kong-Zhuhai-Macao Bridge Hong Kong Link Road ¡V Section
between Scenic Hill and HKBCF. The ET of the Contract or another ET of the HZMB
project is required to conduct impact air quality monitoring at AMS6 and AMS7
as part of EM&A programme if these air quality monitoring stations are no
longer covered under Contract No. HY/2010/02 and HY/2011/03. Table 2.1 and
Figure 1 shows the locations of air monitoring stations.
Table 2.1 Air Quality Monitoring Locations
Identification No. |
Location Description |
AMS6(1) |
Dragonair / CNAC (Group)
Building
|
AMS7(1) (2) |
Hong Kong SkyCity Marriott Hotel |
Remarks: |
(1)
The ET of this Contract should conduct impact air quality
monitoring at the AMS listed in the table as part of EM&A programme according
to latest notification from ENPO when the monitoring station(s) is/are no
longer covered by another ET of the HZMB project. |
(2)
The air quality monitoring location
AMS7A was relocated back to the original monitoring location AMS7 of
the updated EM&A Manual started from January 2016. |
2.2 Monitoring
Requirements
2.2.1 The monitoring
requirements, monitoring equipment, monitoring parameters, frequency and
duration, monitoring methodology, monitoring schedule, meteorological
information are detailed in the monthly EM&A Reports prepared for Contract
Nos. HY/2010/02 and HY/2011/03.
2.2.2 The Action and Limit Levels for 1-hr TSP and 24-hr TSP are
provided in Table 2.2 and Table 2.3 respectively. The Action and
Limit Levels of AMS7 are as same as its original levels and AMS7A.
Table 2.2 Action and Limit Levels for 1-hour TSP
Monitoring Station |
Action Level,mg/m3 |
Limit Level,mg/m3 |
AMS6
¡V Dragnair / SNAC (Group) Building (HKIA) |
360 |
500 |
AMS7
¡V Hong Kong SkyCity
Marriott Hotel |
370 |
500 |
Table
2.3
Action and
Limit Levels for 24-hour TSP
Monitoring Station |
Action Level,mg/m3 |
Limit Level,mg/m3 |
AMS6
¡V Dragnair / SNAC (Group) Building (HKIA) |
173 |
260 |
AMS7
¡V Hong Kong SkyCity
Marriott Hotel |
183 |
260 |
2.2.3 The event and action plan is provided in Appendix D.
2.2.4 If exceedance(s) at these stations is/are recorded by the ET of the
Contract or referred by the other ET under the HZMB project to the Contract,
the ET of the Contract will carry out an investigation and findings will be
reported in the monthly EM&A Report.
2.3 Monitoring
Results
2.3.1 The monitoring results for AMS6 and AMS7 are reported in the monthly
EM&A Reports prepared for Contract Nos. HY/2011/03 and HY/2010/02
respectively.
2.3.2 Summary
of Action and Limit Level exceedance of 1-hr TSP level and 24-hr TSP level at
AMS6 shall be referred to the monthly EM&A report prepared by Contract No.
HY/2011/03.
2.3.3 There was no Action and Limit Level exceedance
of 1-hr TSP level and 24-hr TSP level
recorded at station AMS7 by the Environmental Team of Contract No. HY/2010/02 during the reporting period.
3.1 Monitoring Locations
3.1.1 The noise
monitoring works for the Contract are covered by Contract No. HY/2010/02 Hong
Kong-Zhuhai-Macao Bridge HKBCF ¡V Reclamation Works. The ET of the Contract or
another ET of the HZMB project is required to conduct noise monitoring at NMS2
and NMS3B as part of EM&A programme if these monitoring stations are no
longer covered under Contract No. HY/2010/02. Table 3.1 and Figure 1 shows the locations of noise monitoring stations.
Table
3.1 Construction Noise Monitoring Locations
Identification No. |
Location Description |
|
NMS2(1) |
Sea View
Crescent |
|
NMS3B(1) (2) |
Site Boundary of Site Office Area at Works
Area WA2 |
|
Remarks: |
||
(1)
The ET of this Contract should conduct impact noise monitoring
at the NMS listed in the table as part of EM&A programme according to
latest notification from ENPO when the monitoring station(s) is/are no longer
covered by another ET of the HZMB project. |
||
(2)
The Action and Limit Levels for schools will be applied for this
alternative monitoring location. |
3.2 Monitoring
Requirements
3.2.1 The monitoring requirements, monitoring equipment, monitoring
parameters, frequency and duration, monitoring methodology, monitoring
schedule, meteorological information are detailed in the monthly EM&A
Reports prepared for Contract No. HY/2010/02.
3.2.2 The Action and Limit Levels for construction noise are provided in Table 3.2
Table 3.2 Action and Limit Levels for Construction
Noise
Parameter |
Action Level |
Limit Level |
|
07:00 ¡V 19:00 hours on normal weekdays |
When one documented
complaint is received |
75
dB(A)* |
|
Notes: |
|
||
If works are to be carried out during restricted hours, the conditions stipulated in the construction noise permit issued by the Noise Control Authority have to be followed. |
|
||
* Reduce
to 70
dB(A) for schools and 65 dB(A) during school examination period. |
|
||
3.2.3 The event and action plan is provided in Appendix
D.
3.2.4 If exceedance(s) at these stations is/are recorded by
the ET of the Contract or referred by the other ET under the HZMB project to
the Contract, the ET of the Contract will carry out an investigation and
findings will be reported in the monthly EM&A Report.
3.3 Monitoring
Results
3.3.1 The monitoring results for NMS2 and NMS3B are
reported in the monthly EM&A Reports prepared for Contract No. HY/2010/02. There was no exceedance for noise recorded at station NMS2 and
station NMS3B by the Environmental Team of Contract No. HY/2010/02 during the reporting period.
4.1
Monitoring
Locations
The water monitoring
works for the Contract are covered by Contract No. HY/2010/02 Hong
Kong-Zhuhai-Macao Bridge HKBCF ¡V Reclamation Works. The ET of the Contract or
another ET of the HZMB project is required to conduct water quality monitoring at twenty
one stations (9 Impact Stations, 7
Sensitive Receiver Stations and 5 Control/Far Field Stations). Table 4.1 and Figure
2 shows the locations of water quality monitoring stations.
Table 4.1 Water Quality
Monitoring Stations (construction phases)
Station |
Description |
East |
North |
|
IS5 |
Impact Station (Close to HKBCF
construction site) |
811579 |
817106 |
|
IS(Mf)6 |
Impact Station (Close to HKBCF
construction site) |
812101 |
817873 |
|
IS7 |
Impact Station (Close to HKBCF
construction site) |
812244 |
818777 |
|
IS8 |
Impact Station (Close to HKBCF
construction site) |
814251 |
818412 |
|
IS(Mf)9 |
Impact Station (Close to HKBCF
construction site) |
813273 |
818850 |
|
IS10 |
Impact Station (Close to HKBCF
construction site) |
812577 |
820670 |
|
IS(Mf)11 |
Impact Station (Close to HKBCF
construction site) |
813562 |
820716 |
|
IS(Mf)16 |
Impact Station (Close to HKBCF
construction site) |
814328 |
819497 |
|
IS17 |
Impact Station (Close to HKBCF
construction site) |
814539 |
820391 |
|
SR3 |
Sensitive receivers (San Tau SSSI) |
810525 |
816456 |
|
SR4(N) |
Sensitive receivers (Tai Ho) |
814705 |
817859 |
|
SR5 |
Sensitive receivers (Artificial Reef in
NE Airport) |
811489 |
820455 |
|
SR6 |
Sensitive receivers (Sha Chau and Lung
Kwu Chau Marine Park) |
805837 |
821818 |
|
SR7 |
Sensitive receivers (Tai Mo Do) |
814293 |
821431 |
|
SR10A [1] |
Sensitive receivers (Ma Wan FCZ)1 |
823741 |
823495 |
|
SR10B(N)[1] |
Sensitive receivers (Ma Wan FCZ)2 |
823683 |
823187 |
|
CS(Mf)3 |
Control Station |
809989 |
821117 |
|
CS(Mf)5 |
Control Station |
817990 |
821129 |
|
CS4 |
Control Station |
810025 |
824004 |
|
CS6 |
Control Station |
817028 |
823992 |
|
CSA [2] |
Control Station |
818103 |
823064 |
|
Note: |
|
|||
(1) Additional monitoring station for Ma Wan
FCZ. |
|
|||
(2)
Additional
control monitoring station for Ma Wan FCZ |
|
|||
Remarks: |
|
|||
The ET of this Contract should conduct impact water quality
monitoring at the WQMS listed in the table as part of EM&A programme
according to latest notification from ENPO when the monitoring station(s)
is/are no longer covered by another ET of the HZMB project. The ET of the Contract
shall communicate and share the monitoring data to the ET(s) of other works contracts
if the water quality monitoring station(s) is/are as part of EM&A
programme. |
|
|||
4.2
Monitoring
Requirements
The
monitoring requirements, monitoring equipment, monitoring parameters, frequency
and duration, monitoring methodology, monitoring schedule, meteorological
information are detailed in the monthly EM&A Reports prepared for Contract
No. HY/2010/02.
4.2.1 The event and action plan is provided in Appendix
D.
4.2.2 The Action and Limit Levels for Water Quality are provided in Table 4.2
Table 4.2 Action and Limit
Levels for Water Quality
|
Parameters |
Action |
Limit |
|
|
DO in mg/L (Surface, Middle & Bottom) |
Surface and Middle 5.0 Bottom 4.7 |
Surface and Middle 4.2 (except 5 mg/L for FCZ) Bottom 3.6 |
|
|
SS in mg/L (depth-averaged) at all monitoring
stations and control stations |
23.5 and 120% of upstream control station's SS at
the same tide of the same day* |
34.4 and 130% of upstream control station's SS at
the same tide of the same day and 10mg/L for WSD Seawater intakes* |
|
|
Turbidity in NTU (depth-averaged) |
27.5 and 120% of upstream control station's
turbidity at the same tide of the same day* |
47.0 and 130% of upstream control station's
turbidity at the same tide of the same day* |
|
* Remarks: Reference is made to EPD
approval of adjustment of water quality assessment criteria issued and became
effective on 18 February 2013. |
|
|||
Notes:
1.
"depth-averaged" is calculated by taking the arithmetic
means of reading of all three depths. |
|
|||
2. For DO, non-compliance of
the water quality limits occurs when monitoring result is lower than the
limits. |
|
|||
3. For turbidity, SS, non-compliance of the
water quality limits occurs when monitoring result is higher than the limits. |
|
|||
4. All the figures given in
the table are used for reference only and the EPD may amend the figures
whenever it is considered as necessary. |
|
|||
5. The 1%-ile of baseline
data for dissolved oxygen (surface and middle) and dissolved oxygen (bottom)
are 4.2mg/L and 3.6mg/L respectively. |
|
|||
4.2.3 If
exceedance(s) at these stations is/are recorded by the ET of the Contract or
referred by the other ET under the HZMB project to the Contract, the ET of the
Contract will carry out an investigation and findings will be reported in the
monthly EM&A Report.
4.3
Monitoring Result
4.3.1 The monitoring
results for the monitoring stations showed in Table 4.1 are reported in
the monthly EM&A Report prepared for Contract No. HY/2010/02. There was no Action and Limit Level exceedance
recorded by the Environmental Team of Contract No. HY/2010/02 during the
reporting period.
5 DOLPHIN MONITORING
5.1 Monitoring Locations
The dolphin monitoring works for the Contract are covered by
Contract No. HY/2010/02 Hong Kong-Zhuhai-Macao Bridge HKBCF ¡V Reclamation
Works. The ET of the Contract or another ET of the HZMB project is required to
conduct dolphin monitoring at 23 transects as part of EM&A programme if
these transects are no longer covered under Contract No. HY/2010/02. The dolphin monitoring should adopt line-transect
vessel survey method.
The survey follows pre-set and fixed transect lines in the two areas defined by
AFCD as: Northeast Lantau survey area; and Northwest Lantau survey area. Figure 3
shows the
co-ordinates for the transect lines and layout map.
Remarks:
The ET
of this Contract should conduct impact dolphin monitoring as part of EM&A
programme according to latest notification from ENPO when the monitoring
transect(s) is/are no longer covered by another ET of the HZMB project.
5.2 Monitoring
Requirements
The
monitoring requirements, monitoring equipment, monitoring parameters, frequency
and duration, monitoring methodology, monitoring schedule, meteorological
information are detailed in the monthly EM&A Reports prepared for Contract
No. HY/2010/02.
5.2.1 The event and action plan is provided in Appendix
D.
5.2.2 The Action and Limit Levels for Chinese White Dolphin
Monitoring are provided in Table 5.1a & Table 5.1b
Table 5.1a Action and Limit Levels for
Chinese White Dolphin Monitoring ¡V Approach to
Define
Action Level (AL) and Limit Level (LL)
|
North Lantau Social Cluster |
|
NEL |
NWL |
|
Action Level |
(STG < 70% of baseline) & (ANI < 70% of
baseline) |
(STG < 70% of baseline) & (ANI < 70% of baseline) |
Limit Level |
[(STG < 40% of baseline) & (ANI < 40%
of baseline)] AND [(STG < 40% of baseline) & (ANI <
40% of baseline)] |
For North Lantau Social
Cluster, action level will be trigger if either NEL or NWL fall below the
criteria; limit level will be triggered if both NEL and NWL fall below the
criteria.
Table 5.1b Derived
Value of Action Level (AL) and Limit Level (LL) for Chinese White
Dolphin
Monitoring
|
North Lantau Social Cluster |
|
NEL |
NWL |
|
Action Level |
(STG < 4.2) & (ANI < 15.5) |
(STG < 6.9) & (ANI < 31.3) |
Limit Level |
[(STG < 2.4) & (ANI < 8.9)] AND [(STG
< 3.9) & (ANI < 17.9)] |
5.2.3 If exceedance(s) at these transects
is/are recorded by the ET of the Contract or referred by the other ET under the
HZMB project to the Contract, the ET of the Contract will carry out an
investigation and findings will be reported in the monthly EM&A Report.
5.3
Monitoring Result
The
dolphin survey results for all transects are reported in the monthly
EM&A Reports prepared for Contract No. HY/2010/02.
6 ENVIRONMENTAL
SITE INSPECTION AND AUDIT
6. 1 Site
Inspection
6.1.1 Site Inspections were carried out on a weekly
basis to monitor the implementation of proper environmental pollution control
mitigation measures for the project. During the reporting period, site
inspections were carried out on 05, 12, 16 & 26 January 2017.
6.1.2 Particular observations during
the site inspections are described below:
29 December 2016
(a)
Improper disposal of
general refuses was observed at Portion A. The general refuse was
collected at Portion A. The observation was closed on 05 January 2017.
(b)
Improper disposal of
general refuses was observed at Portion D. The general refuse was collected at
Portion D. The observation was closed on 05 January 2017.
05 January 2017
(a)
Oil containers without
drip tray were observed at Portion C. Oil containers were removed at Portion C.
The observation was closed on 12
January 2017.
(b)
C & D materials with
general refuse was observed at Portion A. C & D materials and general
refuse was sorted at Portion A. The observation was closed on 12 January 2017.
12 January 2017
(a)
Improper disposal of
general refuse was observed at Portion C. The general refuse was collected at
Portion C. The observation was closed on 16 January 2017.
(b)
Improper disposal of
general refuse was observed at Portion A. The general refuse was sorted at
Portion A. The observation was closed on 16 January 2017.
16 January 2017
(a)
Chemical containers
without drip tray were observed at Portion C. Chemical containers were removed
at Portion C. The observation was closed on 26 January 2017.
(b)
Discoloured label for
NRMM was observed on a generator at Portion C. Coloured NRMM label was provided
on a generator at Portion C. The observation was closed on 26 January 2017.
(c)
General refuse disposed
improperly was observed at Portion C. General refuse was collected at Portion
C. The observation was closed on 26
January 2017.
26 January 2017
(a)
Chemical container without drip tray was observed at Portion C. Follow-actions for outstanding observation will be inspected during the
next site inspection.
(b)
Improper disposal of general refuse was observed at Portion A. Follow-actions for outstanding observation will be inspected during the
next site inspection.
6. 2 Advice on
the Solid and Liquid Waste Management Status
6.2.1 The
Contractor registered as a chemical waste producer for the Contract.
Sufficient numbers of receptacles were available for general refuse collection
and sorting.
6.2.2 There was no excavated marine sediment generated in this
reporting period. The excavated marine
sediment was stored properly on site during this reporting period until further
instruction by the Engineer. The disposal of excavated sediment as per EP-353/2009/K
to be implemented subject to confirmation.
6.2.3 Disposal of Marine
Sediment
6.2.3.1 For the marine sediment disposal,
after the acceptance of the review of the approved Sediment Quality Report
(SQR) for this Project under EPD letter dated 19 August 2015, an approval to
dispose the marine sediment extracted from bored piling for this Project was
then approved under memo from Secretary, Marine Fill Committee of CEDD dated 20
August 2015 for the disposal of marine sediment extracted from bored piling
works. The disposal sites allocated to this Project are the Mud Pit CMP2 of the
Confined Marine Sediment Disposal Facility to the South of The Brothers (or at
the East of Sha Chau). As advised by CEDD in the memo dated 19 February 2016,
from 00:00 on 22 March 2016 onward, the disposal space at CMP2 of the South of
The Brothers is closed and all disposal of contaminated sediment is to be
carried out at CMP Vd to the East of Sha Chau (ESC). As a practical means, the
disposal operation is managed by one contractor who is also responsible for
applying dumping permit and its subsequent extension applications from EPD.
Contract No. HY/2013/03 has been assigned to coordinate and arrange for
disposal of extracted marine sediment from Contract No. HY/2013/02, HY/2013/03 and HY/2013/04.
6.2.3.2 For the dumping arrangement, the barge
for disposal of marine sediment will moor at the temporary loading and
unloading at the east shore of the HKBCF Island, which has been being used by
contractor Contract No. HY/2010/02 for reclamation activities. In terms of
safety consideration and to avoid mixing of sediment between contracts, each
dumping date will be allocated to one Contract. The quantity of marine sediment
disposed on each date is from one Contract.
6.2.3.3 During dumping, HY/2013/02 is
responsible for transporting the marine sediment from his site area to the
barge by Land transportation. The estimated quantity of marine sediment in each
truck is confirmed by Resident Site Staff of each
Contract. The trip tickets for transportation and disposal of marine sediment
are collected and checked. Contract No. HY/2013/03 as the dumping permit holder
is responsible for reporting to EPD the quantity disposed of as the
condition stipulated in the dumping permit.
6.2.4 There was no marine sediment extracted from bored piling in this Contract disposed to allocated
dumping site via Contract
No. HY/2013/03 in this reporting
period. The quantity disposed up to end of January 2017 was 18520 m3. The
Monthly Summary of Marine sediment disposed to dumping site was provided in Appendix
E and Table 6.1.
Table 6.1 Summary of marine
sediment disposed to dumping site via Contract No.
HY/2013/03
Month/Year |
Quantity disposed (m3) |
January 2016 |
1272 |
February 2016 |
2816 |
March 2016 |
600 |
April 2016 |
5128 |
May 2016 |
0 |
June 2016 |
1200 |
July 2016 |
728 |
August 2016 |
1784 |
September 2016 |
2328 |
October 2016 |
1096 |
November 2016 |
0 |
December 2016 |
1568 |
January 2017 |
0 |
Total = |
18520 |
6.2.5 The Contractor shall ensure no
spilling and overflowing of materials during loading / unloading /
transportation is allowed.
6.2.6 The
monthly summary of waste flow table is detailed in Appendix E.
6.2.7 The Contractor was reminded that chemical waste
containers should be properly treated and stored temporarily in designated chemical
waste storage area on site in accordance with the Code of Practice on the
Packing, Labelling and Storage of Chemical Waste.
6.3 Environmental
Licenses and Permits
The
valid environmental licenses and permits during the reporting period are
summarized in Appendix F.
6.4 Implementation Status of
Environmental Mitigation Measures
6.4.1 In response to the site audit findings, the
Contractor carried out corrective actions.
6.4.2 The Contractor waters 8 times per day on all exposed
soil within the project site and associated works areas when construction
activities are being undertaken.
6.4.3 The Contractor was reminded to provide
well-maintained plant operated on-site and plant served regularly;
6.4.4 The Contractor was reminded to switch
off vehicles and equipment while not in use;
6.4.5 The Contractor was reminded to
schedule the construction works to minimize noise nuisance etc.
6.4.6 The implementation status of Regular Marine Travel
Route Plan (RMTRP) was checked by ET. Training
material of Regular Marine Travel Route Plan was prepared and given to relevant
staff. Those records were kept properly. Since the marine delivery of precast segments
was commenced and the RMTRP training was provided for the Captain on 21 July 2016, the Captain was reminded to use regular travel routes in order to
minimize the chance of vessel collision
and the routes would not go through the dolphin hotspot in Brothers Islands. The marine traffic records and geographical plots of
all the vessels tracks to demonstrate the conformance of the vessel to the
proposed route in January 2017 would be provided to ER, ETL, IEC/ENPO for
checking within the month of February 2017.
6.4.7 The tool box training of dolphin was carried out in
Dec 2015. According to the action plan and communication flow chart of dolphin
instruction, if any dolphin intruded BCF perimeter silt curtain, ETL should be
informed. There was no notification received on any dolphin intrusion during
the reporting period.
6.4.8 A summary of the implementation Schedule of
Environmental Mitigation Measures (EMIS) is presented in Appendix G.
Most of the necessary mitigation measures were implemented properly.
6.5 Summary
of Exceedance of the Environmental Quality Performance Limit
6.5.1 Summary
of Action and Limit Level exceedance of 1-hr TSP level and 24-hr TSP level at
AMS6 shall be referred to the monthly EM&A report prepared by Contract No.
HY/2011/03.
6.5.2 There was no Action and Limit Level exceedance
of 1-hr TSP level and 24-hr TSP level
recorded at station AMS7 by the Environmental Team of Contract No. HY/2010/02 during the reporting period.
6.5.3 There was no Action and Limit Level exceedance
for noise recorded at
station NMS2 and station NMS3B by the Environmental Team of Contract No.
HY/2010/02 during the reporting period.
6.5.4 There was no Action and Limit Level
exceedance for water quality recorded
at the monitoring stations showed at Table 4.1 by
the Environmental Team of Contract No. HY/2010/02 during the reporting period.
6.5.5 Impact dolphin monitoring results at all transects are reported in the EM&A Reports
prepared for Contract No. HY/2010/02.
6.6 Summary of Complaints,
Notification of Summons and Successful Prosecution
6.6.1 Follow-up action to the complaint received by Highways Department and
referred by Highways Department to Contract No. HY/2010/02 on 28 December 2016.
The complaint investigation report (Log No. 009)
was issued by the ET of Contract No. HY/2013/02 on 31 December 2016 and
verified by the IEC/ENPO on 11 January 2017. According
to the investigation, the site environment of the working areas were found
acceptable that no mosquito was observed and cleanness of portable toilets were
also found acceptable but it will have some improvement. Hence, the complaint
was found non-related to Contract No. HY/2013/02. The complaint investigation report (Log No. 009) was provided in Appendix J.
6.6.2 Although
this complaint was non-related to Contract No. HY/2013/02, the Contractor of
HY/2013/02 was reminded to provide appropriate mitigation measures to prevent
mosquito breeding, such as to clear potential stagnant pools or add mosquito
oil into the pools, provide sufficient facilities for the toilets cleaning and
arrange the cleaning of toilets more frequently.
6.6.3 During
January 2017, there was a complaint received by Environmental Protection Department from
a bus operator at the Hong Kong International Airport recently and referred to
the ENPO.
Then the ENPO forwarded the complaint by email to the R.E. (AECOM), the
Contractor (China Harbour) and the ET (ETS-Testconsult Ltd.) of Contract No.
HY/2013/02 at 12:17 on 09 January
2017.
The
complainant complained that the external bodies of buses
& vehicles were seriously stained by the heavy dusts and mud produced from
the construction sites onto the East Coast Road & Tung Fai Road, Airport
Road Interchange and Sky City Interchange. The above
mentioned complaint follow-up inspection was performed by the Environmental Officer and the RE of Contract No. HY/2013/02 and EPD¡¦s senior
inspector Dionne Leung on 10 January 2017. The complaint investigation report (Log No. 010)
was issued by the ET of Contract No. HY/2013/02 and verified by the IEC/ENPO on
23 January 2017.
6.6.4 According
to the investigation, no mud/slurry was observed around the East Coast Road
site entrance during the site inspection on 10 January 2017. Mitigation
measures under the item A2 and W2 of EMIS were implemented including provide vehicle washing
facilities with high pressure water jet at vehicle exit point and the area
where vehicle washing takes place, the portion of road to construction site of
the vehicle entrance or exit was kept clear of dusty materials, all vehicles
and plant were cleaned before they leave the construction site, wheel overflow
was directed to silt removal facilities before being discharged, the road
section between the washing facilities and the exit point was hard paved and
reminders were provided at the wheel washing basin and exit to remind all
Contract(s) vehicles using the site exit for proper wheel washing
etc. Besides, after received the last complaint from the EPD on 01 December
2016, the cleaning actions were reinforced such as providing one person at the
site entrance for cleaning up the mud/slurry, frequently checking the East Coast Road site
entrance. Hence, the complaint was found non-related to Contract No. HY/2013/02.
The complaint investigation report (Log No. 010) was provided in Appendix J.
6.6.3.
Although this complaint was non-related to Contract
No. HY/2013/02, the Contractor of HY/2013/02 was reminded to assign a person to check and clear sand/mud, clean up the mud/slurry immediately
by washing
lorry & sweeper to avoid public nuisance, check all vehicles
and plant were cleaned before they leave the construction site, treat the washing water by sedimentation tanks and Wetsep, enhance daily cleaning for the precipitate at Wheel Washing Bay (WWB) and the haul road lead
to site entrance and purify and recycle the
water at WWB by Wetsep before discharge. The Contractor of HY/2013/02 was also reminded to
keep the reminders at the wheel washing basin and exit to remind all Contract(s)
vehicles using the site exit for proper wheel washing
for the proper implementation of environmental mitigation measures associated
with the site exit.
6.6.4 There were no
notifications of summons or prosecutions received during the reporting period.
6.6.5 Statistics
on environmental complaints,
notifications of summons and successful prosecutions are summarized in Appendix H.
7.1 Construction
Programme for the Coming Months
7.1.1 As informed by the Contractor, the major
construction activities for February 2017 are summarized in Table 7.1.
Table 7.1 Construction Activities
for Coming Month
Site Area |
Description of Activities |
Portion C |
Bored
Piling |
Portion C & F |
Pier / Abutment |
Pile Cap |
|
Pre-bored H-pile for
sign gantries |
|
Portion D, A, E, C & F |
Marine delivery of precast
segment & Construction of bridge deck |
|
Footing
construction of directional signs and dust laying |
|
Storm
drain and water main construction |
|
Retaining
wall, slop and earth works |
|
Marine
sediment excavation
activities from the land-based works and corresponding
disposal at the designated disposal sites |
7.2 Environmental
Site Inspection Schedule for the Coming Month
7.2.1 The tentative schedule for weekly site inspections
for February 2017 is provided in Appendix I.
8.1 Conclusions
8.1.1 The site preparation work of the Contract was started on 25 July 2014 and
the construction works of the Contract commenced on 24 November 2014.
8.1.2 Summary of
Action and Limit Level exceedance of 1-hr TSP level and 24-hr TSP level at AMS6
shall be referred to the monthly EM&A report prepared by Contract No.
HY/2011/03.
8.1.3 There was no Action and Limit Level
exceedance of 1-hr TSP level and 24-hr TSP
level recorded at station AMS7 by the Environmental Team of Contract
No. HY/2010/02 during the reporting period.
8.1.4
There was no Action and Limit Level exceedance for noise recorded at station NMS2 and station
NMS3B by the Environmental Team of Contract No. HY/2010/02 during the reporting period.
8.1.5
There was no
Action and Limit Level
exceedance for water quality recorded
at the monitoring stations showed at Table 4.1 by
the Environmental Team of Contract No. HY/2010/02 during the reporting period.
8.1.6 Impact dolphin monitoring
results at all transects are reported in the EM&A
Reports prepared for Contract No. HY/2010/02.
8.1.7 Follow-up action to the complaint received by Highways
Department and referred by Highways Department to Contract No. HY/2010/02 on 28
December 2016. The
complaint investigation report (Log No. 009) was issued by the ET of Contract
No. HY/2013/02 on 31 December 2016 and verified by
the IEC/ENPO on 11 January 2017. According to the
investigation, the site environment of the working areas were found acceptable that
no mosquito was observed and cleanness of portable toilets were also found
acceptable but it will have some improvement. Hence, the complaint was found
non-related to Contract No. HY/2013/02. During
January 2017, there was a complaint received by Environmental Protection Department from
a bus operator at the Hong Kong International Airport recently and referred to
the ENPO. Then the ENPO forwarded the complaint by
email to the R.E. (AECOM), the Contractor (China Harbour) and the ET
(ETS-Testconsult Ltd.) of Contract No. HY/2013/02 at 12:17 on 09 January 2017. The complainant complained that the external bodies of buses & vehicles were seriously stained
by the heavy dusts and mud produced from the construction sites onto the East
Coast Road & Tung Fai Road, Airport Road Interchange and Sky City
Interchange. The above mentioned complaint follow-up
inspection was performed by the
Environmental Officer and the RE of Contract No. HY/2013/02 and EPD¡¦s
senior inspector Dionne Leung on 10 January 2017. After
the investigation, the complaint was found non-related to Contract No.
HY/2013/02. The complaint investigation report (Log No.
010) was issued by the ET of Contract No. HY/2013/02 and verified by the
IEC/ENPO on 23 January 2017. The complaint investigation reports (Log No. 009
and 010) were provided in Appendix J.
8.1.8 There were no
notifications of summons or prosecutions received during the reporting period.
- END OF REPORT -
