TABLE OF CONTENTS
Page |
|||
1 |
1-2 |
||
1.1 |
Basic
Project Information |
1 |
|
1.2 |
Project
Organization |
1 |
|
1.3 |
Construction Programme |
2 |
|
1.4 |
Construction Works
Undertaken During the Reporting Period |
2 |
|
|
|
|
|
2 |
3-6 |
||
2.1 |
Summary of EM&A Requirements |
3-4 |
|
2.2 |
Monitoring Requirements |
4 |
|
2.3 |
Action and Limit Levels |
4-6 |
|
2.4 |
Event
Action plans |
6 |
|
2.5 |
Mitigation Measures |
6 |
|
|
|
|
|
3 |
7-10 |
||
3.1 |
Air
Quality Monitoring Result |
7 |
|
3.2 |
Noise Monitoring Results |
7 |
|
3.3 |
Water
Quality Monitoring
Results |
7-8 |
|
3.4 |
Dolphin Monitoring |
8 |
|
3.5 |
Implementation Status of Environmental
Mitigation Measures |
8-9 |
|
3.6 |
Advice on the Solid and Liquid
Waste Management Status |
9-10 |
|
3.7 |
Environmental
Licenses and Permits |
10 |
|
|
|
|
|
4 |
Summary of Exceedance,
Complaint, notification of summons and sucessful prosecution |
11-13 |
|
4.1 |
Summary of Exceedance of the Environmental
Quality Performance Limit |
11 |
|
4.2 |
Summary
of Complaints, Notification of Summons and Successful Prosecution |
11-13 |
|
|
|
|
|
5 |
14-15 |
||
5.1 |
Comments |
14 |
|
5.2 |
Recommendations |
14 |
|
5.3
|
Conclusions |
14-15 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
Figure
1 |
Air
Quality and Noise Monitoring
Stations for HKBCF |
|
|
Figure
2.1 |
Water Quality Monitoring Stations(construction phases) on or before 15 May 2017
|
|
|
Figure
2.2 |
Water Quality Monitoring Stations(construction phases) after 15 May 2017 |
|
|
Figure
3.1 |
Dolphin Monitoring Transect Line and Layout Map on or before
15 May 2017 |
|
|
Figure
3.2 |
Dolphin Monitoring Transect Line and Layout Map after 15 May 2017 |
|
|
|
|
|
|
TABLE |
|
Table 1.1 |
Contact
Information of Key Personnel |
Table 2.1 |
Air
Quality and Noise Monitoring Locations |
Table 2.2 |
Water
Quality Monitoring Stations (construction phases) |
Table 2.3 |
Action
and Limit Levels for 1-hour TSP |
Table 2.4 |
Action
and Limit Levels for 24-hour TSP |
Table 2.5 |
Action
and Limit Levels for Construction Noise |
Table 2.6 |
Action
and Limit Levels for Water Quality |
Table 2.7 |
Action
and Limit Levels for Chinese White Dolphin Monitoring ¡V Approach to Define
Action |
|
Level ( |
Table 2.8 |
Derived
Value of Action Level ( |
Table 3.1 |
Summary
of marine sediment disposed to dumping site via Contract No. HY/2013/03 |
APPENDIX |
|
Location
of Works Areas |
|
Project
Organization for Environmental Works |
|
Construction
Programme |
|
Event
and Action Plan |
|
Implementation
Schedule for Environmental Mitigation Measures (EMIS) |
|
Site Audit Findings and Corrective Actions |
|
Waste Flow
Table |
|
Environmental
Licenses and Permits |
|
Statistics on
Environmental Complaints, Notification of Summons and Successful
Prosecutions |
|
Investigation Reports on Action Level or Limit
Level Non-compliance |
|
Complaint Investigation Report |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

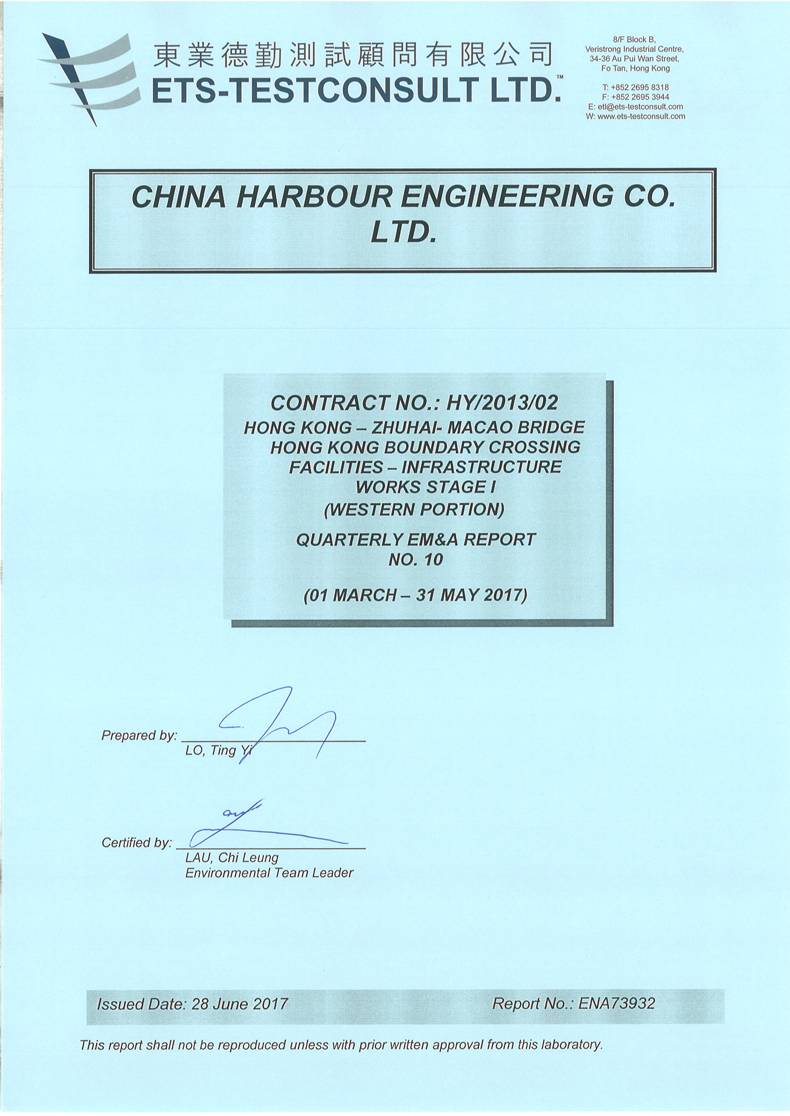

This Quarterly Environmental Monitoring and Audit (EM&A) Report is prepared for Contract HY/2013/02 Hong Kong-Zhuhai-Macao
Bridge Hong Kong Boundary Crossing Facilities (HKBCF) ¡V Infrastructure Works
Stage I (Western Portion) (hereafter referred to as ¡§the Contract¡¨) for the
Highways Department of Hong Kong Special Administrative Region (HKSAR). The
Contract was awarded to China Harbour Engineering Co., Ltd. (hereafter referred
to as ¡§the Contractor¡¨) and ETS-Testconsult Limited was appointed as the
Environmental Team (ET) by the Contractor.
The Contract is part of
ETS-Testconsult Limited has been appointed by the Contractor to implement
the Environmental Monitoring & Audit (EM&A) programme for the Contract
in accordance with the Updated EM&A Manual for HKBCF (Version 1.0) and
provide environmental team services to the Contract.
This is
the Tenth Quarterly Environmental Monitoring and
Audit (EM&A) Report for the Contract which summaries findings of the
EM&A works conducted during the reporting period from 01 March to 31 May 2017.
Environmental Monitoring and Audit Progress
The EM&A programme was undertaken in
accordance with the Updated EM&A Manual for HKBCF (Version 1.0). It should
be noted that the air quality and noise monitoring works for the Contract are
covered by Contract No. HY/2010/02 ¡§Hong Kong-Zhuhai-
The dates of environmental site inspections
during the reporting period are listed below:
Environmental Site Inspection Date |
||
March 2017 |
April 2017 |
May 2017 |
02,
09, 16,
23 and 30 |
05,
13, 20
and 27 |
04,
11, 18
and 25 |
Breaches of Action and Limit
Levels
Summary of
Action and Limit Level exceedance of 1-hr TSP level and 24-hr TSP level at AMS6
shall be referred to the monthly EM&A report prepared by Contract No.
HY/2011/03.
There was no Action and Limit Level exceedance
of 1-hr TSP level and 24-hr TSP level
recorded at station AMS7 by the Environmental Team of Contract No. HY/2010/02 during the reporting period.
There was no Action and Limit Level exceedance
for noise recorded at
station NMS2 and station NMS3B by the Environmental Team of Contract No.
HY/2010/02 during the reporting period.
For water quality monitoring, there were seven
exceedances recorded during the reporting period. In March 2017, two action level exceedances of turbidity, one action level exceedance
of suspended solid and one limit level
exceedance of suspended solid on impact
water quality monitoring at station SR4(N)
and IS8 during mid-flood tide were recorded
on 24 March 2017. Besides, there were two action level exceedances of suspended solid on impact water quality monitoring at
station SR4(N) and IS8 during mid-ebb tide recorded on 24 March 2017. In April
2017, there was one action level exceedance of suspended solid on impact
water quality monitoring at station IS(Mf)11 during mid-flood tide recorded on 28 April 2017. In May
2017, there was no Action and Limit Level
exceedance for water quality recorded
at the monitoring stations. After investigation, there was concluded that the exceedances were not relevant to this
Contract. The Investigation Reports No. 014,
015 and 016 (including the causes of exceedance, action taken and
recommendation for mitigation) on Action or Limit Level Non-compliance are
provided in Appendix J. There was no Action and Limit Level
exceedance recorded on other monitoring
date at the monitoring stations showed in Table 2.2 by
the Environmental Team of Contract No. HY/2010/02 during the reporting period.
Impact
dolphin monitoring results at all transects are reported in the EM&A Report
prepared for Contract No. HY/2010/02.
Implementation of Environmental Measures
Site inspections
were carried out on a weekly basis to monitor the implementation of proper
environmental pollution control and mitigation measures for the Project.
Potential environmental impacts due to the construction activities were
monitored and reviewed.
Complaint Log
There
were two complaints received during the reporting period.
1.
One
complaint was received by the RSS for Contract No. HY/2011/03 on 28 February 2017 from
Airport Authority Hong Kong (AAHK)
and referred to the ENPO by Highways Department on 1 March 2017. Then the ENPO forwarded the complaint by
email to the R.E. (AECOM), the Contractor (
The
follow-up inspection for the above mentioned complaint on 01 March 2017 was
performed by the ET of Contract No. HY/2013/02 on 02 March 2017.
The complaint investigation report (Log No. 011) was issued by the ET of
Contract No. HY/2013/02 and verified by the IEC/ENPO on 15 March 2017.
According to the site inspection between
15:00 to 16:00 on 02 March 2017, the site entrance had just been cleaned that
no mud/slurry was observed around the
2.
One
complaint was received by Environmental Protection
Department on 27 March 2017 from a resident of Century Link and
referred to the ENPO. Then the ENPO forwarded the complaint by email to
the R.E. (AECOM), the Contractor (
The
follow-up inspections for the above mentioned complaint on 27 March 2017 was
performed by the ET of Contract No. HY/2013/02 on 28 March 2017.
The complaint investigation report (Log No. 012) was issued by the ET of
Contract No. HY/2013/02 and verified by the IEC/ENPO on 30 March 2017.
After
checked with the Contractor of Contract No. HY/2013/02, there was no construction works with power mechanical
equipment carried out beyond 22:00 on 27 March 2017. Besides, no marine works and marine
delivery were launched at the complaint period.
Hence, the complaint was found non-related to Contract No. HY/2013/02. The
complaint investigation reports (Log No. 012) for
the above mentioned complaint on 27 March 2017 were provided
in Appendix K.
Notifications of Summons and Successful
Prosecutions
There were no
notification of summon or prosecution received during the reporting period.
Reporting Change
There was a reporting change informed by the IEC/ENPO on 15 May 2017 via
e-mail. Since several water quality monitoring (WQM) stations for WQM and
vessel-based transect lines for dolphin monitoring being conducted by Contract
No. HY/2010/02 under the EM&A Programme for the HZMB HKBCF Project has been
occupied by the marine works of a designated project - Expansion of Hong Kong
International Airport into a Three-Runway System (3RS Project).
As such, proposal for
changes to the EM&A Programme was justified and verified by the ET
Leader for Contract No. HY/2010/02 and the IEC respectively on 24 March
2017, and it was approved by EPD on 12 May 2017.
1.1 Basic Project
Information
1.2 Project Organization
Table 1.1 Contact Information
of Key Personnel
Party |
Position |
Name of Key Staff |
Tel. No. |
Fax No. |
Engineer or Engineer¡¦s
Representative (AECOM Asia
Co. Ltd.) |
Resident
Engineer |
Mr. Winston Wong |
6330 8293 |
3152
5116 |
Environmental Project Office
/ Independent Environmental Checker (Ramboll Environ Hong Kong Limited) |
Environmental
Project Office Leader |
Mr. Y. H. Hui |
3465
2888 |
3465
2899 |
Independent
Environmental Checker |
Mr.
Raymond Dai |
3465
2888 |
3465
2899 |
|
Environmental
Site Supervisor |
Mr.
Ray Yan |
5181
8165 |
3465
2899 |
|
Contractor
(China Harbour Engineering Co., Ltd.) |
Environmental
Officer |
Mr.
Richard Ng |
5977
0593 |
3915
0300 |
Environmental
Officer* |
Mr.
Paper Chan |
6486
8967 |
3915
0300 |
|
Environmental
Supervisor |
Mr.
Endy Tse |
5512
2662 |
3915
0300 |
|
Environmental Team (ETS-Testconsult
Ltd.) |
Environmental Team Leader |
Mr. C. L. Lau |
2946 7791 |
2695 3944 |
Remarks: (*)Change to Environmental Officer in
May2017 |
1.3 Construction Programme
1.4 Construction Works Undertaken
During the Reporting Period
l
Bored piles works in Portion
C;
l
Pier / Abutment in Portion C
& F;
l
Pile Cap in Portion C & F;
l
Pre-bored H-pile for sign
gantries in Portion C, D & F;
l
Storm drain and water main
construction;
l
Retaining wall, slop and earth
works;
l
Footing construction of
directional signs, cable trench and ducting;
l
Marine
Delivery of precast segment &
Construction of bridge deck in Portion D, A, E, C & F
l
Marine sediment excavation activities from the land-based works and corresponding
disposal at the designated disposal sites
2.1 Summary of EM&A Requirements
Since
several water quality monitoring (WQM) stations including IS10, SR5 and CS(Mf)3 will be occupied by the marine works of a designated
project - Expansion of Hong Kong International Airport into a Three-Runway
System (3RS Project), alternative
WQM stations named as IS10(N), SR5(N)
and CS(Mf)3(N) were proposed to replace the occupied stations. The proposal
for changes of the EM&A
Programme was justified and verified by the ET Leader for Contract No.
HY/2010/02 and the IEC respectively on 24 March 2017, and it was approved by
EPD on 12 May 2017.
The ET of the Contract or
another ET of the HZMB project is required to conduct dolphin monitoring at 23
transects as part of EM&A programme if these transects are no longer
covered under Contract No. HY/2010/02. The
dolphin monitoring should adopt line-transect vessel survey method. The survey follows pre-set and fixed
transect lines in the two areas defined by AFCD as: Northeast Lantau survey
area; and
Table 2.1 Air Quality and
Noise Monitoring Locations
Environmental Monitoring |
Identification No. |
Location Description |
|
Air
Quality |
AMS6(1) |
Dragonair / CNAC
(Group) Building |
|
AMS7(1)(2) |
Hong Kong SkyCity Marriott Hotel |
||
Noise |
NMS2(3) |
|
|
NMS3B(3)(4) |
Site Boundary of Site Office Area at
Works Area WA2 |
||
Remarks: |
|
||
(1) The ET of this Contract should
conduct impact air quality monitoring at the AMS listed in the table as part
of EM&A programme according to latest notification from ENPO when the
monitoring station(s) is/are no longer covered by another ET of the HZMB
project. |
|
||
(2) The
air quality monitoring location AMS |
|
||
(3) ET of this Contract should
conduct impact noise monitoring at the NMS listed in the table as part of
EM&A programme according to latest notification from ENPO when the
monitoring station(s) is/are no longer covered by another ET of the HZMB
project. |
|
||
(4) The Action and Limit Levels
for schools will be applied for this alternative monitoring location. |
|
||
Table 2.2 Water Quality Monitoring
Stations (construction phases)
Station |
Description |
East |
North |
IS5 |
Impact Station (Close
to HKBCF construction site) |
811579 |
817106 |
IS(Mf)6 |
Impact Station (Close
to HKBCF construction site) |
812101 |
817873 |
IS7 |
Impact Station (Close
to HKBCF construction site) |
812244 |
818777 |
IS8 |
Impact Station (Close
to HKBCF construction site) |
814251 |
818412 |
IS(Mf)9 |
Impact Station (Close
to HKBCF construction site) |
813273 |
818850 |
IS10 |
Impact Station (Close
to HKBCF construction site) |
812577 |
820670 |
IS10(N)[3] |
Impact Station (Close to HKBCF construction site) |
812942 |
820881 |
IS(Mf)11 |
Impact Station (Close
to HKBCF construction site) |
813562 |
820716 |
IS(Mf)16 |
Impact Station (Close
to HKBCF construction site) |
814328 |
819497 |
IS17 |
Impact Station (Close
to HKBCF construction site) |
814539 |
820391 |
SR3 |
Sensitive receivers
(San Tau SSSI) |
810525 |
816456 |
SR4(N) |
Sensitive receivers
(Tai Ho) |
814705 |
817859 |
SR5 |
Sensitive receivers
(Artificial Reef in NE Airport) |
811489 |
820455 |
SR5(N)[3] |
Sensitive receiver (Artificial Reef in NE Airport) |
812569 |
821475 |
SR6 |
Sensitive receivers
(Sha Chau and |
805837 |
821818 |
SR7 |
Sensitive receivers
(Tai Mo Do) |
814293 |
821431 |
SR |
Sensitive receivers (Ma
Wan FCZ)1 |
823741 |
823495 |
SR10B(N)[1] |
Sensitive receivers (Ma
Wan FCZ)2 |
823683 |
823187 |
CS(Mf)3 |
Control Station |
809989 |
821117 |
CS(Mf)3(N)[3] |
Control Station |
808814 |
822355 |
CS(Mf)5 |
Control Station |
817990 |
821129 |
CS4 |
Control Station |
810025 |
824004 |
CS6 |
Control Station |
817028 |
823992 |
CSA [2] |
Control Station |
818103 |
823064 |
Note: |
|||
(1)
Additional
monitoring station for Ma Wan FCZ. |
|||
(2)
Additional
control monitoring station for Ma Wan FCZ |
|||
(3)
Alternative
WQM Stations with effect from 15
May 2017 |
|||
Remarks: |
|||
The ET of
this Contract should conduct impact water quality monitoring at the WQMS
listed in the table as part of EM&A programme according to latest
notification from ENPO when the monitoring station(s) is/are no longer
covered by another ET of the HZMB project. The ET of the Contract shall communicate and share the monitoring
data to the ET(s) of other works contracts if the water quality monitoring
station(s) is/are as part of EM&A programme. |
2.1.4
The dolphin monitoring works for the Contract are covered by Contract No.
HY/2010/02 Hong Kong-Zhuhai-
Table 2.3 New co-ordinates of changed vessel-based transect lines
Line No. |
Easting |
Northing |
|
2 |
Start Point |
805476 |
820800 |
End Point |
805476 |
826654 |
|
3 |
Start Point |
806464 |
821150 |
End Point |
806464 |
822911 |
|
4 |
Start Point |
807518 |
821500 |
End Point |
807518 |
829230 |
|
5 |
Start Point |
808504 |
821850 |
End Point |
808504 |
828602 |
|
6 |
Start Point |
809490 |
822150 |
End Point |
809490 |
825352 |
|
7 |
Start Point |
810499 |
822000 |
End Point |
810499 |
824613 |
|
24 |
Start Point |
805476 |
815900 |
End Point |
805476 |
819100 |
2.2
Monitoring Requirements
2.3 Action and Limit Levels
Table
2.4 Action
and Limit Levels for 1-hour TSP
Monitoring
Station |
Action Level,mg/m3 |
Limit Level,mg/m3 |
AMS6 ¡V Dragnair / SNAC (Group) Building
(HKIA) |
360 |
500 |
AMS7 ¡V Hong Kong SkyCity Marriott Hotel |
370 |
500 |
Table 2.5 Action and Limit Levels for 24-hour TSP
Monitoring
Station |
Action
Level, mg/m3 |
Limit
Level,mg/m3 |
AMS6 ¡V
Dragnair / SNAC (Group) Building (HKIA) |
173 |
260 |
AMS7 ¡V Hong Kong SkyCity Marriott Hotel |
183 |
260 |
Table 2.6 Action and Limit
Levels for Construction Noise
Parameter |
Action Level |
Limit Level |
||
07:00 ¡V
19:00 hours on normal weekdays |
When one
documented complaint is received |
75 dB(A)* |
||
Notes: |
|
|||
If works are to be carried out during restricted hours, the conditions stipulated in the construction noise permit issued by the Noise Control Authority have to be followed. * Reduce to 70 dB(A)
for schools and 65 dB(A) during school examination period. |
|
|||
2.3.5
The Action and Limit Levels for Water Quality are provided in Table 2.7
Table 2.7 Action and Limit
Levels for Water Quality
Parameters |
Action |
Limit |
|
DO in mg/L (Surface, Middle & Bottom) |
Surface and Middle 5.0 Bottom 4.7 |
Surface and Middle 4.2 (except 5 mg/L for FCZ) Bottom 3.6 |
|
SS in mg/L (depth-averaged) at all monitoring stations and control
stations |
23.5 and 120% of upstream control station's SS at the same tide of the
same day* |
34.4 and 130% of upstream control station's SS at the same tide of the
same day and 10mg/L for WSD Seawater intakes* |
|
Turbidity in NTU (depth-averaged) |
27.5 and 120% of upstream control station's turbidity at the same tide
of the same day* |
47.0 and 130% of upstream control station's turbidity at the same tide
of the same day* |
|
*Remarks: |
Reference is made to EPD approval of adjustment
of water quality assessment criteria |
||
|
issued and
became effective on 18 February 2013. |
||
Notes: |
1.
"depth-averaged"
is calculated by taking the arithmetic means of reading of all three depths. |
||
|
2.
For DO,
non-compliance of the water quality limits occurs when monitoring result is lower
than the limits. |
||
|
3.
For
turbidity, SS, non-compliance of the water quality limits occurs when
monitoring result is higher than the limits. |
||
|
4.
All the
figures given in the table are used for reference only and the EPD may amend
the figures whenever it is considered as necessary. |
||
|
5.
The
1%-ile of baseline data for dissolved oxygen (surface and middle) and
dissolved oxygen (bottom) are 4.2mg/L and 3.6mg/L respectively. |
||
2.3.6
If
exceedance(s) at these station(s) is/are recorded by the ET of the Contract or
referred by the other ET under the HZMB project to the Contract, the ET of the
Contract will carry out an investigation and findings will be reported in the
quarterly EM&A Report.
2.3.7
The Action and Limit Levels for Chinese White Dolphin Monitoring are provided in Table 2.8 & Table 2.9
Table 2.8 Action and Limit
Levels for Chinese White Dolphin Monitoring ¡V Approach to Define Action Level (
|
|
|
NEL |
NWL |
|
Action Level |
(STG < 70% of baseline) & (ANI < 70% of baseline) |
(STG < 70% of baseline) & (ANI < 70% of baseline) |
Limit Level |
[(STG < 40% of baseline) & (ANI < 40% of baseline)] AND [ (STG < 40% of baseline) & (ANI < 40% of baseline)] |
For North Lantau Social Cluster, action level will be trigger if either
NEL or NWL fall below the criteria; limit level will be triggered if both NEL
and NWL fall below the criteria.
Table 2.9 Derived Value of
Action Level (
|
|
|
NEL |
NWL |
|
Action Level |
(STG < 4.2) & (ANI < 15.5 ) |
(STG < 6.9) & (ANI < 31.3) |
Limit Level |
[(STG < 2.4) & (ANI < 8.9)] AND [(STG
< 3.9) & (ANI < 17.9)] |
The ET
of this Contract should conduct impact dolphin monitoring as part of EM&A
programme according to latest notification from ENPO when the monitoring transect(s) is/are no longer covered by
another ET of the HZMB project.
2.4 Event
Action Plans
2.5 Mitigation Measures
3 Environmental
Monitoring and Audit
3.1 Air
Quality Monitoring Results
3.2 Noise Monitoring Results
3.3 Water
Quality Monitoring Result
3.3.2
March 2017
There
were two action level exceedances of turbidity, one action level exceedance of suspended
solid and one limit level exceedance of suspended solid on impact water quality
monitoring at station SR4(N) and IS8 during mid-flood tide
recorded on 24 March 2017. Besides, there were two action level exceedances of suspended
solid on impact water quality monitoring at station SR4(N)
and IS8 during
mid-ebb tide recorded on 24 March 2017. After investigation, there was
concluded that the six exceedances were not relevant to this Contract since
there was no marine works or barge of
this Contract worked at HKBCF reclamation site near the sea area or area near
the monitoring station SR4(N) and IS8
from 22 March 2017 to the water quality monitoring period on 24 March 2017
which was unlikely to generate suspended solid and thus deteriorate the
turbidity in the marine water to cause the suspended solid and turbidity exceedances recorded at the
monitoring station SR4(N) and IS8 during mid-flood tide and mid-ebb tide on 24
March 2017.
There was one action level exceedance of suspended
solid on impact water quality monitoring at station IS(Mf)11
during mid-flood tide recorded on 28 April 2017. After investigation, there was concluded that the exceedance was not relevant to this Contract since
there was no marine works or barge of
this Contract worked at HKBCF reclamation site near the sea area or area near
the monitoring station IS(Mf)11 from 26 April 2017
to the water
quality monitoring period on 28 April 2017 which was unlikely to generate suspended solid to cause the suspended solid exceedance
recorded at the monitoring station IS(Mf)11 during
mid-flood tide on 28 April 2017.
There was no Action
and Limit Level
exceedance for water quality recorded at the monitoring
stations.
3.3.5
There
was no exceedance
recorded on other monitoring date at the monitoring stations showed in Table 2.2 by the Environmental Team of Contract No.
HY/2010/02 during the reporting period.
3.3.6
Although the above mentioned exceedances were not relevant to this
Contract, the Contractor was reminded to ensure all construction activities
that generate wastewater with high concentrations of suspended solid (SS)
should be collected to sedimentation tanks or package treatment systems for
proper treatment prior to disposal. The Contractor was also reminded to ensure
that all silt removal facilities, channels and manholes shall be maintained and
any deposited silt and grit shall be removed regularly.
3.4
Dolphin monitoring Result
3.4.1
Impact dolphin monitoring results at
all transects were reported in the EM&A Report prepared for Contract No.
HY/2010/02. One limit level exceedance was recorded in the monitoring period (March
2017 ¡V May 2017).
3.4.2
During this reporting period, no marine base construction work
was conducted by Contract No. HY/2013/02. After checked the Contractor¡¦s
3.4.3
The exceedance is still under investigation by Contract No.
HY/2010/02. The Investigation Report (including the causes of exceedance,
action taken and recommendation for mitigation) for Action or Limit Level
Non-compliance will be prepared by the ET of Contract No. HY/2010/02 and
detailed in the quarterly EM&A Report prepared for Contract No. HY/2010/02. The implementation of Regular Marine Travel Route
Plan (RMTRP) for the above mentioned dry cargo barges of marine transportation undertaken by Contract
No. HY/2013/02 during the reporting period were checked by the ET. The Regular Marine Travel Route Plan were prepared
and given to the Caption to use in order
to minimize the chance of vessel collision and the routes would not go through
the dolphin hotspot in
3.5
Implementation of Environmental Measures
3.6 Advice on the Solid and
Liquid Waste Management Status
3.6.2
Table 3.1 Summary of
marine sediment disposed to dumping site via Contract No. HY/2013/03
Month/Year |
Quantity disposed (m3) |
January
2016 |
1272 |
February 2016 |
2816 |
March
2016 |
600 |
April
2016 |
5128 |
May
2016 |
0 |
June
2016 |
1200 |
July
2016 |
728 |
August
2016 |
1784 |
September
2016 |
2328 |
October
2016 |
1096 |
November
2016 |
0 |
December
2016 |
1568 |
January
2017 |
0 |
February
2017 |
88 |
March
2017 |
0 |
April
2017 |
624 |
May
2017 |
0 |
Total = |
19232 |
3.7 Environmental Licenses and
Permits
4 Summary
of exceedance, complaint, notification of summons and successful prosecution
4.1 Summary of
Exceedance of the Environmental Quality Performance Limit
4.1.3
There was no
Action and Limit Level
exceedance of noise recorded at
station NMS2 and station NMS3B by the Environmental Team of Contract No.
HY/2010/02 during the reporting period.
4.1.4
For water
quality monitoring, there were seven exceedances recorded during the reporting
period. In March 2017, two action level
exceedances of turbidity, one action level exceedance
of suspended solid and one limit level
exceedance of suspended solid on impact
water quality monitoring at station SR4(N)
and IS8 during mid-flood tide were recorded
on 24 March 2017. Besides, there were two action level exceedances of suspended solid on impact water quality monitoring at
station SR4(N) and IS8 during mid-ebb tide recorded on 24 March 2017. In April
2017, there was one action level exceedance of suspended solid on impact
water quality monitoring at station IS(Mf)11 during mid-flood tide recorded on 28 April 2017. In May
2017, there was no Action and Limit Level
exceedance for water quality recorded
at the monitoring stations. After investigation, there was concluded that the exceedances were not relevant to this
Contract. The Investigation Reports No. 014,
015 and 016 (including the causes of exceedance, action taken and
recommendation for mitigation) on Action or Limit Level Non-compliance are
provided in Appendix J. There was no Action and Limit Level
exceedance recorded on other monitoring
date at the monitoring stations showed in Table 2.2 by
the Environmental Team of Contract No. HY/2010/02 during the reporting period.
4.1.5
Impact
dolphin monitoring results at all transects are reported in the EM&A Report
prepared for Contract No. HY/2010/02.
4.2
Summary of Complaints, Notification of Summons and
Successful Prosecution
4.2.1
There were two complaints received
during the reporting period.
1.
One
complaint was received by the RSS for Contract No. HY/2011/03 on 28 February 2017 from
Airport Authority Hong Kong (AAHK)
and referred to the ENPO by Highways Department on 1 March 2017. Then the ENPO forwarded the complaint by
email to the R.E. (AECOM), the Contractor (
The
follow-up inspection for the above mentioned complaint on 01 March 2017 was
performed by the ET of Contract No. HY/2013/02 on 02 March 2017.
The complaint investigation report (Log No. 011) was issued by the ET of Contract
No. HY/2013/02 and verified by the IEC/ENPO on 15 March 2017.
According
to the site inspection between 15:00 to 16:00 on 02 March 2017, the site
entrance had just been cleaned that no mud/slurry was observed around the
2.
One
complaint was received by Environmental Protection
Department on 27 March 2017 from a resident of Century Link and
referred to the ENPO. Then the ENPO forwarded the complaint by email to
the R.E. (AECOM), the Contractor (
The follow-up
inspections for the above mentioned complaint on 27 March 2017 was performed by
the ET of Contract No. HY/2013/02 on 28 March 2017.
The complaint investigation report (Log No. 012) was issued by the ET of
Contract No. HY/2013/02 and verified by the IEC/ENPO on 30 March 2017.
After checked
with the Contractor of Contract No. HY/2013/02, there was no construction works with power mechanical
equipment carried out beyond 22:00 on 27 March 2017. Besides, no marine works and marine
delivery were launched at the complaint period.
Hence, the complaint was found non-related to Contract No. HY/2013/02. The complaint
investigation reports (Log No. 012) for
the above mentioned complaint on 27 March 2017 were provided
in Appendix K.
4.2.2.
Although the complaints were non-related to
Contract No. HY/2013/02, the Contractor of Contract No. HY/2013/02 was reminded
to provide appropriate mitigation measures such as:
1.
Deploy washing lorry & sweeper at the site entrance to
clear the road;
2.
Designate a person to check and clear sand/mud remains once found
at the site entrance;
3.
Lengthen the cleansing time;
4.
Wash the water barriers located around
the site entrance frequently;
5.
Enhance daily cleaning for the precipitate at Wheel Washing Bay
(WWB) and the haul road lead to site entrance;
6.
Reminders were provided at the wheel washing basin and exit to
remind all Contract(s) vehicles using the site exit for proper wheel washing;
7.
Increase the number of cleaning the road between the wheel
washing bay and the site exit by washing lorry;
8.
Increase the manpower to clean the stagnant water
on the paved road;
9.
Remove stockpiling beside the haul road for water
drains improvement;
10.
Increase the frequency of the two washing bay
cleaning and servicing rate;
11.
Provide well-maintained plant operated on-site and
plant served regularly;
12.
Switched off vehicles and equipment while not in
use;
13.
Scheduled the construction works to minimize noise
nuisance;
14.
Prevent using hammering equipment during any night
works;
15.
Comply with the valid CNP for overnight operation;
16.
Provide appropriate instruction to all Captains of
the vessels to avoid arranging vessels to travel in the area during low tide;
17.
To remind all Captains of the vessels to avoid to
discharge waste water to the sea.
4.2.9
There were no notifications of summons
or prosecutions received during the reporting period.
4.2.10
Statistics on
environmental complaints,
notifications of summons and successful prosecutions are summarized in Appendix I.
5 Comments,
recommendations and conclusion
5.1 Comments
n
The Contractor was reminded to dispose the general refuse
properly;
n
The Contractor was reminded to sort the C & D
materials and general refuse;
n
The Contractor was reminded to provide drip tray for the chemical containers;
n
The Contractor was reminded to provide appropriate NRMM label
for the machines;
n
The Contractor was reminded to ensure plants and equipments are well
maintained;
n
The Contractor was reminded to spray water when demolition activities were undergoing.
5.2 Recommendations
5.3
Conclusions
5.3.2
Summary of Action and
Limit Level exceedance of 1-hr TSP level and 24-hr TSP level at AMS6 shall be
referred to the monthly EM&A report prepared by Contract No. HY/2011/03.
5.3.3
There was no
Action and Limit Level
exceedance of 1-hr TSP level and 24-hr TSP
level recorded at station AMS7 by the Environmental Team of Contract
No. HY/2010/02 during the reporting period.
5.3.4
There was no
Action and Limit Level
exceedance of noise recorded at
station NMS2 and station NMS3B by the Environmental Team of Contract No.
HY/2010/02 during the reporting period.
5.3.5
There were seven
exceedances recorded during the reporting period. In March 2017, two action level exceedances of turbidity, one action level exceedance
of suspended solid and one limit level
exceedance of suspended solid on impact
water quality monitoring at station SR4(N)
and IS8 during mid-flood tide were recorded
on 24 March 2017. Besides, there were two action level exceedances of suspended solid on impact water quality monitoring at
station SR4(N) and IS8 during mid-ebb tide recorded on 24 March 2017. In April
2017, there was one action level exceedance of suspended solid on impact
water quality monitoring at station IS(Mf)11 during mid-flood tide recorded on 28 April 2017. In May
2017, there was no Action and Limit Level
exceedance for water quality recorded
at the monitoring stations. After investigation, there was concluded that the exceedances were not relevant to this
Contract. The Investigation Reports No. 014,
015 and 016 (including the causes of exceedance, action taken and
recommendation for mitigation) on Action or Limit Level Non-compliance are
provided in Appendix J. There was no Action and Limit Level
exceedance recorded on other monitoring
date at the monitoring stations showed in Table 2.2 by
the Environmental Team of Contract No. HY/2010/02 during the reporting period.
5.3.6
Impact
dolphin monitoring results at all transects are reported in the EM&A Report
prepared for Contract No. HY/2010/02.
5.3.7
Environmental
site inspections were carried out on 02, 09, 16, 23 and 30
March 2017, 05, 13, 20 and 27 April
2017 and 04, 11, 18 and 25 May
2017.
Recommendations on remedial actions were given to the Contractors for the
deficiencies identified during the site inspections.
5.3.8
There were two complaints received in relation to the
environmental impact during the reporting period. The complaints were found non-related
to Contract No. HY/2013/02. The complaint investigation reports
(Log No. 011 and 012)
were provided in Appendix K.
5.3.9
There was no notification of summons and successful prosecution received
during the reporting period.
