Under Contract No. HY/2012/07,
Gammon Construction Limited (GCL) is commissioned by the Highways Department (HyD) to undertake the design and construction of the Southern
Connection Viaduct Section of the Tuen Mun ¡V Chek Lap Kok Link Project (TM-CLK Link Project) while AECOM
Asia Company Limited was appointed by HyD as the
Supervising Officer. For
implementation of the environmental monitoring and audit (EM&A) programme
under the Contract, ERM-Hong Kong, Limited (ERM) has been appointed as the
Environmental Team (ET). ENVIRON
Hong Kong Ltd. was employed by the HyD as the
Independent Environmental Checker (IEC) and Environmental Project Office (ENPO)
in accordance with Environmental Permit
No. EP-354/2009/A.
Another application
for variation of environmental permit (VEP) (EP-354/2009/B) was granted on 28 January 2014.
The
construction phase of the Contract commenced on 31 October 2013 and will
tentatively be completed by 2018.
The impact monitoring of the EM&A programme, including air quality,
noise, water quality and marine ecological monitoring as well as environmental
site inspections, commenced on 31 October 2013.
This
is the Twelfth Monthly EM&A report presenting the EM&A works carried
out during the period from 1 to 31 October 2014 for the Southern
Connection Viaduct Section in accordance with the Updated EM&A Manual of the
TM-CLK Link Project. As informed by the Contractor, major
activities in the reporting period included:
Land-Based Works
¡P
Construction of pile cap superstructure of Viaduct B;
¡P
Channel re-construction at Area 1;
¡P
Land Piling at Viaducts B, C & D;
¡P
Construction of pile cap at Viaducts B & D;
¡P
Additional land GI, trial pits & lab testing;
¡P
Utility surveys; and
¡P
Slope work of Slopes 9SE-B/C8, 9SE-B/C9 & 9SE-B/F9
Marine-based
Works
¡P
Construction of Pile caps at Viaduct B;
¡P
Marine piling platform installation for Viaducts A, B,
C & D;
¡P
Marine Piling at Viaducts B, C, D & E; and
¡P
Additional marine ground investigation (GI) and
laboratory testing.
A summary of
monitoring and audit activities conducted in the reporting period is listed
below:
24-hour TSP
monitoring 6
sessions
1-hour TSP
monitoring 6
sessions
Noise
monitoring 6
sessions
Impact Water
Quality Monitoring 13
sessions
Impact Dolphin
Monitoring 2
sessions
Joint
Environmental site inspection 4
sessions
Post-Translocation
Coral Monitoring 1
session
Breaches of Action and Limit Levels for Air Quality
No exceedance
of Action and Limit Levels was recorded for construction air monitoring in the
reporting month.
Breaches of Action and Limit Levels for Noise
No exceedance
of Action and Limit Levels was recorded for construction noise monitoring in
the reporting month.
Breaches of Action and Limit Levels for Water Quality
No exceedance
of Action and Limit Levels was recorded for impact water quality monitoring in
the reporting month.
Impact Dolphin Monitoring
During
this month of dolphin monitoring, no unacceptable impact from the construction activities
of the TM-CLKL Southern Connection Viaduct Section on Chinese White Dolphins
was noticeable from general observations.
Due to monthly variation in dolphin occurrence within the study area, it
would be more appropriate to draw conclusion on whether any impacts on dolphins
have been detected related to the construction activities of the TM-CLKL
Southern Connection Viaduct Section in the quarterly EM&A reports, where
comparison on distribution, group size and encounter rates of dolphins between
the quarterly impact monitoring period and baseline monitoring period will be
made.
Daily
marine mammal exclusion zone monitoring was undertaken during the period of
marine works under this Contract. Passive
Acoustic Monitoring (PAM) was also implemented for the detection of marine
mammal when marine works were carried out outside the daylight hours under this
Contract. No sighting of the Indo-Pacific
humpback dolphin Sousa chinensis (i.e. Chinese White Dolphin) was recorded in October
2014 during the exclusion zone monitoring.
Coral Monitoring
The Fourth
Quarterly Post-translocation Coral Monitoring was conducted on 23 October 2014 and
the results will be detailed in the Fourth
Quarterly Post-Translocation Coral Monitoring Report.
Environmental Complaints, Non-compliance & Summons
No environmental
complaint, notification of summons and successful prosecution was received in
the reporting month.
Reporting Change
There was no
reporting change required in the reporting period.
Upcoming Works for the Next Reporting Period
Works to be
undertaken in the next monitoring period of November 2014 include the
following:
Marine
Works
¡P
Construction of Pile caps at Viaduct B;
¡P
Marine piling platform installation for Viaducts A, B,
C & D;
¡P
Marine Piling at Viaducts B, C, D & E; and
¡P
Additional marine ground investigation (GI) and
laboratory testing.
Land-based
Works
¡P
Construction of pile cap superstructure of Viaduct B;
¡P
Channel re-construction at Area 1;
¡P
Land Piling at Viaducts B, C & D;
¡P
Construction of pile cap at Viaducts B & D;
¡P
Additional land GI, trial pits & lab testing;
¡P
Utility surveys; and
¡P
Slope work of Slopes 9SE-B/C8, 9SE-B/C9 &
9SE-B/F9.
Future Key Issues
Potential
environmental impacts arising from the above upcoming construction activities
in the next reporting month of November 2014 are mainly associated with dust, noise,
marine water quality, marine ecology and waste management issues.
According to
the findings of the Northwest New Territories (NWNT) Traffic and Infrastructure
Review conducted by the Transport Department, Tuen Mun Road, Ting Kau Bridge, Lantau Link and North Lantau Highway would be
operating beyond capacity after 2016.
This forecast has been based on the estimated increase in cross boundary
traffic, developments in the Northwest New Territories (NWNT), and possible
developments in North Lantau, including the Airport developments, the Lantau
Logistics Park (LLP) and the Hong Kong ¡V Zhuhai ¡V Macao Bridge (HZMB). In order to cope with the anticipated
traffic demand, two new road sections between NWNT and North Lantau ¡V Tuen Mun
¡V Chek Lap Kok Link
(TM-CLKL) and Tuen Mun Western Bypass (TMWB) are proposed.
An
Environmental Impact Assessment (EIA) of TM-CLKL (the Project) was prepared in
accordance with the EIA Study Brief (No. ESB-175/2007) and
the Technical Memorandum of the
Environmental Impact Assessment Process (EIAO-TM). The
EIA Report was submitted under the Environmental Impact Assessment Ordinance
(EIAO) in August 2009. Subsequent to
the approval of the EIA Report (EIAO Register Number AEIAR-146/2009), an
Environmental Permit (EP-354/2009) for TM-CLKL was granted by the Director of
Environmental Protection (DEP) on 4 November 2009, and EP variation
(EP-354/2009A) was issued on 8 December 2010.
Under
Contract No. HY/2012/07,
Gammon Construction Limited (GCL) is commissioned by the Highways Department (HyD) to undertake the design and construction of the
Southern Connection Viaduct Section of TM-CLKL (¡§the Contract¡¨) while AECOM
Asia Company Limited was appointed by HyD as the
Supervising Officer. For
implementation of the environmental monitoring and audit (EM&A) programme
under the Contract, ERM-Hong Kong, Limited (ERM) has been appointed as the
Environmental Team (ET). ENVIRON
Hong Kong Ltd. was employed by HyD as the Independent
Environmental Checker (IEC) and Environmental Project Office (ENPO) in
accordance with Environmental Permit No. EP-354/2009/A. Another application for variation of
environmental permit (VEP) (EP-354/2009/B)
was granted on 28 January 2014.
The
organization structure of the Contract is shown in Appendix A.
The key personnel contact names and
contact details are summarized in Table
1.1 below.
Table 1.1 Contact
Information of Key Personnel
Party |
Position |
Name |
Telephone |
Fax |
HyD
(Highways Department) |
Project
Coordinator |
Stanley Chan |
2762 3406 |
3188 6614 |
|
Senior
Engineer |
Steven Shum |
2762 4133 |
3188 6614 |
SOR (AECOM Asia
Company Limited) |
Chief
Resident Engineer |
Daniel Ip |
3553 3800 |
2492 2057 |
|
Resident
Engineer |
Kingman Chan |
3691 3950 |
3691 2899 |
ENPO / IEC (ENVIRON
Hong Kong Ltd.) |
ENPO Leader |
Y.H. Hui |
3465 2888 |
3465 2899 |
IEC |
Dr. F.C.
Tsang |
3465 2828 |
3465 2899 |
|
Contractor (Gammon
Construction Limited) |
Environmental
Manager |
Brian Kam |
3520 0387 |
3520 0486 |
Environmental
Officer |
Roy Leung |
3520 0387 |
3520 0486 |
|
|
24-hour
Complaint Hotline |
|
9738 4332 |
|
ET (ERM-HK) |
ET Leader |
Jovy Tam |
2271 3113 |
2723 5660 |
Marine-based
Works
¡P
Construction of Pile caps at Viaduct B;
¡P
Marine piling platform installation for Viaducts A, B,
C & D;
¡P
Marine Piling at Viaducts B, C, D & E; and
¡P
Additional marine ground investigation (GI) and
laboratory testing.
Land-Based
Works
¡P
Construction of pile cap superstructure of Viaduct B;
¡P
Channel re-construction at Area 1;
¡P
Land Piling at Viaducts B, C & D;
¡P
Construction of pile cap at Viaducts B & D;
¡P
Additional land GI, trial pits & lab testing;
¡P
Utility surveys; and
¡P
Slope work of Slopes 9SE-B/C8, 9SE-B/C9 & 9SE-B/F9

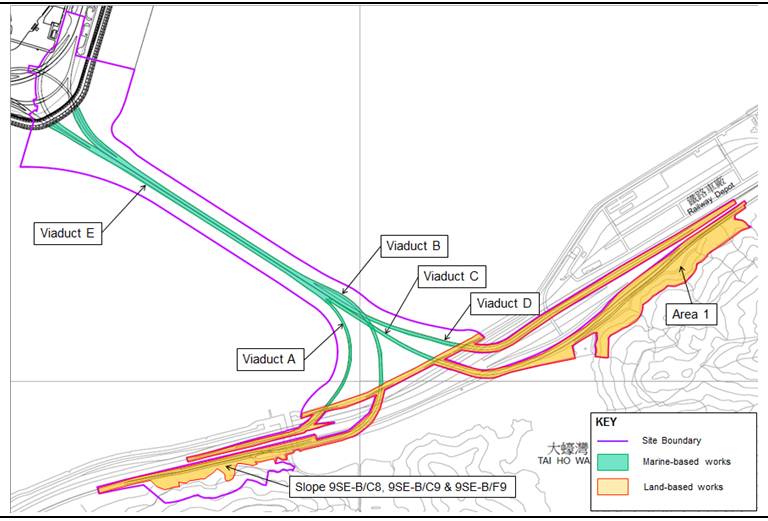

The
locations of the construction activities are shown in Figure 1.3. The Environmental Sensitive Receivers in
the vicinity of the Project are shown in Figure 1.4.
The EM&A
programme required environmental monitoring for air quality, noise, water
quality and marine ecology as well as environmental site inspections for air
quality, noise, water quality, waste management, marine ecology and landscape
and visual impacts. The EM&A
requirements and related findings for each component are summarized in the
following sections.
Table 2.1 Locations
of Impact Air Quality Monitoring Stations
Monitoring Station |
Location |
Description |
Monitoring Dates |
ASR 8 |
Pak Mong Village Watch Tower |
Rooftop of
the premise |
3, 9, 15, 21,
27 and 30 October 2014 |
ASR 8A |
Area 4 |
On ground at
the Area 4 |
Table 2.2 Air
Quality Monitoring Equipment
Equipment |
Brand and Model |
High Volume Sampler |
Tisch Environmental Mass Flow
Controlled Total Suspended Particulate (TSP) High
Volume Sampler (Model No. TE-5170) |
Wind Sensor |
Global Water (Wind
Speed Sensor: WE550; Wind Direction Sensor: WE570) |
Wind Anemometer for
calibration |
Lutron (Model No.
AM-4201) |
Table 2.3 Summary
of 1-hour TSP Monitoring Results in the Reporting Period
|
Average (µg/m3) |
Range (µg/m3) |
Action Level (µg/m3) |
Limit Level (µg/m3) |
ASR
8A |
106 |
54
- 175 |
394 |
500 |
ASR
8 |
130 |
67
- 243 |
393 |
500 |
Table 2.4 Summary
of 24-hour TSP Monitoring Results in the Reporting Period
|
Average (µg/m3) |
Range (µg/m3) |
Action Level (µg/m3) |
Limit Level (µg/m3) |
ASR
8A |
60 |
46
- 79 |
178 |
260 |
ASR
8 |
71 |
46
- 101 |
178 |
260 |
All
1-hour and 24-hour TSP results were below the Action and Limit levels at all
monitoring locations in the reporting period. No action is thus required to be
undertaken in accordance with the Event Action Plan presented in Appendix L.
Noise
monitoring was performed on 3, 9, 15, 21,
27 and 30 October 2014 using
sound level meter at the designated monitoring station NSR 1 (Figure 2.2; Table 2.5) in accordance with the
requirements stipulated in the Updated EM&A Manual. Acoustic calibrator was deployed to check
the sound level meters at a known sound pressure level. Details of the equipment deployed are provided
in Table 2.6. Copies of the calibration certificates
for the equipment are presented in Appendix E.
Table 2.5 Location
of Impact Noise Monitoring Station
Monitoring Station |
Location |
Description |
Parameter |
Frequency and Duration |
Monitoring Dates |
NSR 1 |
Pak Mong Village Watch Tower |
Rooftop of
the premise |
30-minute
measurement at each monitoring station between 0700 and 1900 on normal
weekdays (Monday to Saturday). Leq, L10
and L90 would be recorded. |
At least
once per week |
3, 9, 15,
21, 27 and 30 October 2014 |
Table 2.6 Noise
Monitoring Equipment
Equipment |
Brand and Model |
Integrated
Sound Level Meter |
Rion
NL-31 |
Acoustic
Calibrator |
Rion
NC-73 |
Table 2.7 Summary
of Construction Noise Monitoring Results in the Reporting Period
|
Average , dB(A), Leq
(30mins) |
Range, dB(A), Leq (30mins) |
Limit Level, dB(A), Leq
(30mins) |
NSR
1 |
57 |
56
- 59 |
75 |
Table 2.8 Locations
of Impact Water Quality Monitoring Stations and its Corresponding Monitoring
Requirements
Station ID |
Type |
Coordinates |
*Parameters, unit |
Frequency |
Depth |
|
|
|
Easting |
Northing |
|
|
|
IS(Mf)9 |
Impact
Station (Close to HKBCF construction site) |
813273 |
818850 |
Temperature(¢XC)
pH (pH unit)
Turbidity (NTU)
Water depth (m)
Salinity (ppt)
DO (mg/L and % of saturation) ¡P SS (mg/L) |
Impact monitoring: 3 days per week, at mid-flood
and mid-ebb tides during the construction period of the Contract |
3 water depths: 1m below
sea surface, mid-depth and 1m above sea bed. If the water depth is less than 3m,
mid-depth sampling only. If water
depth less than 6m, mid-depth may be omitted |
IS(Mf)16 |
Impact Station
(Close to HKBCF construction site) |
814328 |
819497 |
|||
IS8 |
Impact Station(Close
to HKBCF construction site) |
814251 |
818412 |
|||
SR4 |
Sensitive receiver
(Tai Ho Inlet) |
814760 |
817867 |
|||
SR4a |
Sensitive receiver |
815247 |
818067 |
|||
CS(Mf)3 |
Control
Station |
809989 |
821117 |
|||
CS(Mf)5 |
Control
Station |
817990 |
821129 |
|||
*Notes: |
Table 2.9 Water
Quality Monitoring Equipment
Equipment |
Brand and Model |
DO and Salinity |
YSI Pro2030 |
Turbidity meter |
HACH Model 2100Q |
pH meter |
HANNA HI8314 |
Positioning
Equipment |
Koden913MK2 with KBG-3 DGPS antenna |
Water Depth Detector |
Speedtech Instrument SM-5 |
Water Sampler |
Kemmerer 1520 (1520-C25) 2.2L with messenger |
No
Action and Limit levels exceedances was recorded at all monitoring stations for
impact water quality monitoring in the reporting month. No action is thus required to be
undertaken in accordance with the Event Action Plan presented in Appendix L.
Table
2.10 Dolphin
Monitoring Equipment
Equipment |
Model |
|
Global Positioning
System (GPS) Camera Laser Binoculars Marine Binocular Vessel for Monitoring |
Garmin 18X-PC Geo One Phottix Nikon D90 300m 2.8D fixed focus Nikon D90 20-300m zoom lens Infinitor LRF 1000 Bushell 7 x 50 marine binocular with compass and
reticules 65 foot single engine motor vessel with viewing platform 4.5m above
water level |
|
Table
2.11 Impact Dolphin
Monitoring Line Transect Co-ordinates
Line No. |
Easting |
Northing |
|
Line No. |
Easting |
Northing |
||
1 |
Start Point |
804671 |
814577 |
|
13 |
Start Point |
816506 |
819480 |
1 |
End Point |
804671 |
831404 |
|
13 |
End Point |
816506 |
824859 |
2 |
Start Point |
805475 |
815457 |
|
14 |
Start Point |
817537 |
820220 |
2 |
End Point |
805477 |
826654 |
|
14 |
End Point |
817537 |
824613 |
3 |
Start Point |
806464 |
819435 |
|
15 |
Start Point |
818568 |
820735 |
3 |
End Point |
806464 |
822911 |
|
15 |
End Point |
818568 |
824433 |
4 |
Start Point |
807518 |
819771 |
|
16 |
Start Point |
819532 |
821420 |
4 |
End Point |
807518 |
829230 |
|
16 |
End Point |
819532 |
824209 |
5 |
Start Point |
808504 |
820220 |
|
17 |
Start Point |
820451 |
822125 |
5 |
End Point |
808504 |
828602 |
|
17 |
End Point |
820451 |
823671 |
6 |
Start Point |
809490 |
820466 |
|
18 |
Start Point |
821504 |
822371 |
6 |
End Point |
809490 |
825352 |
|
18 |
End Point |
821504 |
823761 |
7 |
Start Point |
810499 |
820690 |
|
19 |
Start Point |
822513 |
823268 |
7 |
End Point |
810499 |
824613 |
|
19 |
End Point |
822513 |
824321 |
8 |
Start Point |
811508 |
820847 |
|
20 |
Start Point |
823477 |
823402 |
8 |
End Point |
811508 |
824254 |
|
20 |
End Point |
823477 |
824613 |
9 |
Start Point |
812516 |
820892 |
|
21 |
Start Point |
805476 |
827081 |
9 |
End Point |
812516 |
824254 |
|
21 |
End Point |
805476 |
830562 |
10 |
Start Point |
813525 |
820872 |
|
22 |
Start Point |
806464 |
824033 |
10 |
End Point |
813525 |
824657 |
|
22 |
End Point |
806464 |
829598 |
11 |
Start Point |
814556 |
818449 |
|
23 |
Start Point |
814559 |
821739 |
11 |
End Point |
814556 |
820992 |
|
23 |
End Point |
814559 |
824768 |
12 |
Start Point |
815542 |
818807 |
|
|
|
|
|
12 |
End Point |
815542 |
824882 |
|
|
|
|
|
The Action and
Limit levels of dolphin impact monitoring are shown in Appendix D. The Event and Action plan is presented
in Appendix L.
A total of ten (10) groups of thirty (30) Chinese
White Dolphins were sighted during the two sets of monitoring surveys in
October 2014. All sightings were
made in NWL during the two sets of surveys in October 2014, while no dolphin
was sighted at all in NEL in this month.
All except two (2) sightings were made on primary lines during on-effort
search, and none of the dolphin groups was associated with operating fishing
vessel. The distribution of dolphin
sightings during the reporting month is shown in Figure 2.5.
Encounter
rates of Chinese White Dolphins are deduced from the survey effort and
on-effort sighting data made under favourable
conditions (Beaufort 3 or below) in October 2014 are shown in Tables 2.12 and 2.13.
Table 2.12 Individual
Survey Event Encounter Rates
|
|
Encounter rate (STG) (no. of
on-effort dolphin sightings per 100 km of survey effort) |
Encounter rate (ANI)
(no. of dolphins from all on-effort sightings per 100 km of survey
effort) |
Primary
Lines Only |
Primary
Lines Only |
||
NEL |
Set 1: Oct 7th/13th |
0.0 |
0.0 |
|
Set 2: Oct 16th/23rd |
0.0 |
0.0 |
NWL |
Set 1: Oct
7th/13th |
13.1 |
42.7 |
|
Set 2: Oct 16th/23rd |
0.0 |
0.0 |
Note: Dolphin Encounter Rates are deduced
from the two sets of surveys ( two surveys in each set) in October 2014 in
Northeast (NEL) and Northwest Lantau (NWL) |
Table 2.13 Monthly
Average Encounter Rates
|
Encounter rate (STG)
(no. of
on-effort dolphin sightings per 100 km of survey effort) |
Encounter rate (ANI)
(no. of dolphins from all on-effort sightings per
100 km of survey effort) |
||
Primary Lines Only |
Both Primary and Secondary Lines |
Primary Lines Only |
Both Primary and Secondary Lines |
|
Northeast Lantau |
0.0 |
0.0 |
0.0 |
0.0 |
Northwest Lantau |
6.3 |
5.8 |
20.5 |
17.5 |
Note: Overall
dolphin encounter rates (sightings per 100km of survey effort) from all four
surveys are conducted in October 2014 on primary lines only as well as both
primary lines and secondary lines in Northeast and Northwest Lantau
The average group size of
Chinese White Dolphins in October 2014 was 3.0 individuals
per group, which was lower than the ones in previous months of dolphin
monitoring. Six (6) of the ten (10)
dolphin groups were composed of one to three (1-3) animals, while only one
slightly larger dolphin group with six (6) animals was sighted during the
monitoring period. Detailed results
of dolphin monitoring in this reporting month are
presented in Appendix K.
Daily 250 m marine
mammal exclusion zone monitoring was undertaken during the period of marine
works activities being undertaken. Passive Acoustic Monitoring (PAM) was also implemented for the detection
of marine mammal when marine works were carried out outside the daylight hours
under this Contract. No
sighting of Indo-Pacific humpback dolphin Sousa
chinensis (i.e. Chinese White Dolphin) were
recorded in October 2014 during the exclusion zone monitoring.
The Fourth
Quarterly Post-translocation Coral Monitoring was conducted on 23 October 2014 and
the results will be detailed in the Fourth
Quarterly Post- Translocation Coral Monitoring Report.
Table 2.14 Specific
Observations Identified during the Weekly Site Inspections in this Reporting
Month
Inspection Date |
Environmental Observations |
Recommendations/ Remarks |
8 October 2014 |
Seafront ¡P
Waste water was potentially discharged offsite. ¡P
Chemical containers were not placed in drip tray. ¡P
A drip tray for chemical container was unplugged. ¡P
Refuse was found on the sea nearby pier. Pier B3 ¡P
Refuse was found in the sea. ¡P
An air compressor was placed without decoupling pad. Pier B1 ¡P
Sediment was not labelled on barge. |
Seafront ¡P
The contractor should avoid the discharge offsite. ¡P
Drip tray should be provided to the chemical
containers. ¡P
The drip tray should be plugged. ¡P
Refuse on sea should be cleaned up Pier B3 ¡P
Refuse in sea should be cleaned up ¡P
Decoupling pad should be provided. Pier B1 ¡P
Category of sediment should be labelled. |
16 October 2014 |
Area 1 ¡P
Chemical containers were not placed in drip tray. ¡P
Waste was found disposed improperly onsite. ¡P
The traffic road was partially unpaved or not
covered. ¡P
A welder was placed too closed to drainage. Pak Mong ¡P
Refuse was found disposed improperly nearby Pier B12
and subway ¡P
Waste water was potentially discharged to Tai Ho
Stream. ¡P
A drip tray for generator was found unplugged. |
Area 1 ¡P
The chemical containers were put into drip tray
immediately. ¡P
Waste should be disposed properly. ¡P
The contractor should water or pave the unpaved
traffic road. ¡P
The welder should not be placed next to drainage. Pak Mong ¡P
The contractor was reminded to clean up the refuse. ¡P
The contractor should avoid waste water discharge to
Tai Ho Stream. ¡P
The drip tray should be plugged. |
23 October 2014 |
Pier B3 ¡P
A chemical container was placed without drip tray. ¡P
A generator on Gammon 39 emitted dark smoke. Gammon 23 ¡P
A generator was placed without decoupling pad. ¡P
A chemical container was not placed in drip tray. Pier B1 ¡P
Stagnant water was found in a drip tray. |
Pier B3 ¡P
The chemical container was removed immediately. ¡P
No dark smoke should be emitted from vessel for more
than 3 minutes. Gammon 23 ¡P
Decoupling pad should be provided to the generator. ¡P
The chemical container was put into drip tray
immediately. Pier B1 ¡P
The contractor should clean up drip tray regularly.. |
30 October 2014 |
Seafront ¡P
A rubbish bin was found full and refuse was found
disposed improperly. ¡P
A drip tray for generator was found unplugged. Pak Mong ¡P
Refuse was found disposed improperly nearby
drainage. ¡P
An unpaved slope was not well covered. ¡P
Trees at slope B/F8 were not fenced off properly. |
Seafront ¡P
The contractor was reminded to clean up the refuse
routinely. ¡P
A stopper should be provided to the drip tray. Pak Mong ¡P
The refuse should be disposed properly. ¡P
The unpaved slope should be covered properly. ¡P
The contractor was reminded to provide fencing to
trees. |
The
Contractor has rectified all of the observations identified during
environmental site inspections in the reporting month.
The Contractor
has submitted application form for registration as chemical waste producer
under the Contract. Sufficient
numbers of receptacles were available for general refuse collection and
sorting.
Wastes generated
during this reporting period include mainly construction wastes (inert and
non-inert), imported fill, recyclable materials and marine sediment. Reference has been made to the waste
flow table prepared by the Contractor (Appendix M). The quantities of different types of
wastes are summarized in Table 2.15.
Table 2.15 Quantities
of Different Waste Generated in the Reporting Period
Month/Year |
Inert C&D Materials (a)
(m3) |
Imported Fill (m3) |
Inert Construction Waste
Re-used (m3) |
Non-inert Construction Waste (b)
(kg) |
Recyclable Materials (c) (kg) |
Chemical Wastes (kg) |
Marine Sediment (m3) |
|
Category L |
Category M (Mp
& Mf) |
|||||||
October 2014 |
13,860 |
109 |
943 |
268,180 |
105 |
0 |
441 |
222 |
Notes: |
||||||||
(a) Inert
construction wastes include hard rock and large broken concrete, and
materials disposed as public fill. (b) Non-inert
construction wastes include general refuse disposed at landfill. (c) Recyclable
materials include metals, paper, cardboard, plastics, timber, felled trees and
others. |
The Contractor
was advised to properly maintain on site C&D materials and waste
collection, sorting and recording system, dispose of C&D materials and
wastes at designated ground and maximize reuse/ recycle of C&D materials
and wastes. The Contractor was also
reminded to properly maintain the site tidiness and dispose of the wastes
accumulated on site regularly and properly.
For chemical
waste containers, the Contractor was reminded to treat properly and store temporarily
in designated chemical waste storage area on site in accordance with the Code
of Practice on the Packaging, Labelling and Storage of Chemical Wastes.
The status of
environmental licensing and permit is summarized in Table 2.16 below.
Table 2.16 Summary
of Environmental Licensing and Permit Status
License/
Permit |
License
or Permit No. |
Date of Issue |
Date of Expiry |
License/
Permit Holder |
Remarks |
Environmental Permit |
EP-354/2009/B |
28 Jan 2014 |
N/A |
HyD |
Tuen Mun- Chek Lap Kok
Link |
Construction Dust Notification |
361571 |
5 Jul 2013 |
N/A |
GCL |
|
Construction Dust Notification |
362093 |
17 Jul 2013 |
N/A |
GCL |
For Area 23 |
Billing Account for Disposal |
7017735 |
10 Jul 2013 |
End of Project |
GCL |
- |
Chemical Waste Registration |
5213-961-G2380-13 |
10 Oct 2013 |
N/A |
GCL |
Chemical waste produced in Contract HY/2012/07 (Area 1 adjacent to Cheng Tung Road, Siu Ho Wan) |
Chemical Waste Registration |
5213-961-G2380-14 |
10 Oct 2013 |
N/A |
GCL |
Chemical waste produced in Contract HY/2012/07 (Area 2 adjacent to Cheung Tung Road, Pak Mong
Village) |
Chemical Waste Registration |
5213-974-G2588-03 |
4 Nov 2013 |
N/A |
GCL |
Chemical waste produced in Contract HY/2012/07 (WA5 adjacent to Cheung Tung Road, Yam O) |
Construction Waste Disposal Account |
7017735 |
10 Jul 2013 |
N/A |
GCL |
Waste disposal in Contract HY/2012/07 |
Waste Water Discharge License |
WT00019017-2014 |
13 May 2014 |
31 May 2019 |
GCL |
Discharge for marine portion |
Waste Water Discharge License |
WT00019018-2014 |
13 May 2014 |
31 May 2019 |
GCL |
Discharge for land portion |
Construction Noise Permit |
GW-RS0419-14 |
15 May 2014 |
13 Nov 2014 |
GCL |
For loading & unloading on NLH near Viaducts A & B |
Construction Noise Permit |
GW-RS0792-14 |
31 Jul 2014 |
24 Dec 2014 |
GCL |
Broad Permit for Works at Seafront & Marine Piers & Pier B9 |
Construction Noise Permit |
GW-RS0700-14 |
21 Jul 2014 |
31 Dec 2014 |
GCL |
For loading & unloading on NLH near Viaduct A & B |
Dumping Permit/ Loading Permit (Type 1 ¡V Open Sea Disposal) |
(4) in EP/MD/14-075 |
25 Sep 2013 |
N/A |
GCL |
- |
Chemical Waste Registration |
5213-951-G2380-17 |
12 Jun 2014 |
N/A |
GCL |
Viaducts A, B, C, D & E |
Construction Noise Permit for night works and works in general
holidays |
GW-RS0646-14 |
27 Jun 2014 |
26 Oct 2014 |
GCL |
Broad Permit for Works at Seafront & Marine Piers & Pier B9 |
Construction Noise Permit for night works and works in general holidays |
GW-RS0647-14 |
28 Jun 2014 |
26 Oct 2014 |
GCL |
Pier C7 & D8 at CEDD Access Road |
Construction Waste Disposal Account |
7017735 |
10 Jul 2013 |
N/A |
GCL |
- |
Construction Noise Permit |
GW-RW0640-14 |
28 Aug 2014 |
27 Feb 2015 |
GCL |
General works at WA5 |
Marine Dumping Permit |
EP/MD/15-066 |
28 Jul 2014 |
27 Jan 2015 |
GCL |
For dumping Type I sediment |
Construction Noise Permit for night works and works in general
holidays |
GW-RS0942-14 |
11 Sep 2014 |
14 Mar 2015 |
GCL |
For Plant mobilization using tractor |
Construction Noise Permit for night works and works in general
holidays |
GW-RS1032-14 |
25 Sep 2014 |
28 Mar 2015 |
GCL |
For Load unload at NLH near Viaduct D |
Construction Noise Permit for night works and works in general
holidays |
GW-RS1129-14 |
17 Oct 2014 |
31 Dec 2014 |
GCL |
For Safety Fences at Pier D9 |
Construction Noise Permit for night works and works in general
holidays |
GW-RS1130-14 |
20 Oct 2014 |
22 Apr 2015 |
GCL |
For Plant mobilization using tractor |
Construction Noise Permit for night works and works in general
holidays |
GW-RS1135-14 |
17 Oct 2014 |
15 Dec 2014 |
GCL |
For TTA Case 60-2 Ch.1.3E-3.6E |
Construction Noise Permit for night works and works in general
holidays |
GW-RS1188-14 |
30 Oct 2014 |
31 Dec 2014 |
GCL |
For TTA Cases 50 Airport Road-5.3 |
Marine Dumping Permit |
EP/MD/15-120 |
1 Oct 2014 |
31 Oct 2014 |
GCL |
For dumping Type I (Dedicated Site) and Type II sediment |
|
|
|
|
|
|
No complaint, notification
of summons and prosecution was received in the reporting period.
Statistics on
complaints, notifications of summons, successful prosecutions are summarized in
Appendix N.
Marine
Works
¡P
Construction of Pile caps at Viaduct B;
¡P
Marine piling platform installation for Viaducts A, B,
C & D;
¡P
Marine Piling at Viaducts B, C, D & E; and
¡P
Additional marine ground investigation (GI) and
laboratory testing.
Land-based
Works
¡P
Construction of pile cap superstructure of Viaduct B;
¡P
Channel re-construction at Area 1;
¡P
Land Piling at Viaducts B, C & D;
¡P
Construction of pile cap at Viaducts B & D;
¡P
Additional land GI, trial pits & lab testing;
¡P
Utility surveys; and
¡P
Slope work of Slopes 9SE-B/C8, 9SE-B/C9 &
9SE-B/F9.
Potential
environmental impacts arising from the above upcoming construction activities
in the next reporting month of November 2014 are mainly associated with dust, noise,
marine water quality, marine ecology and waste management issues.

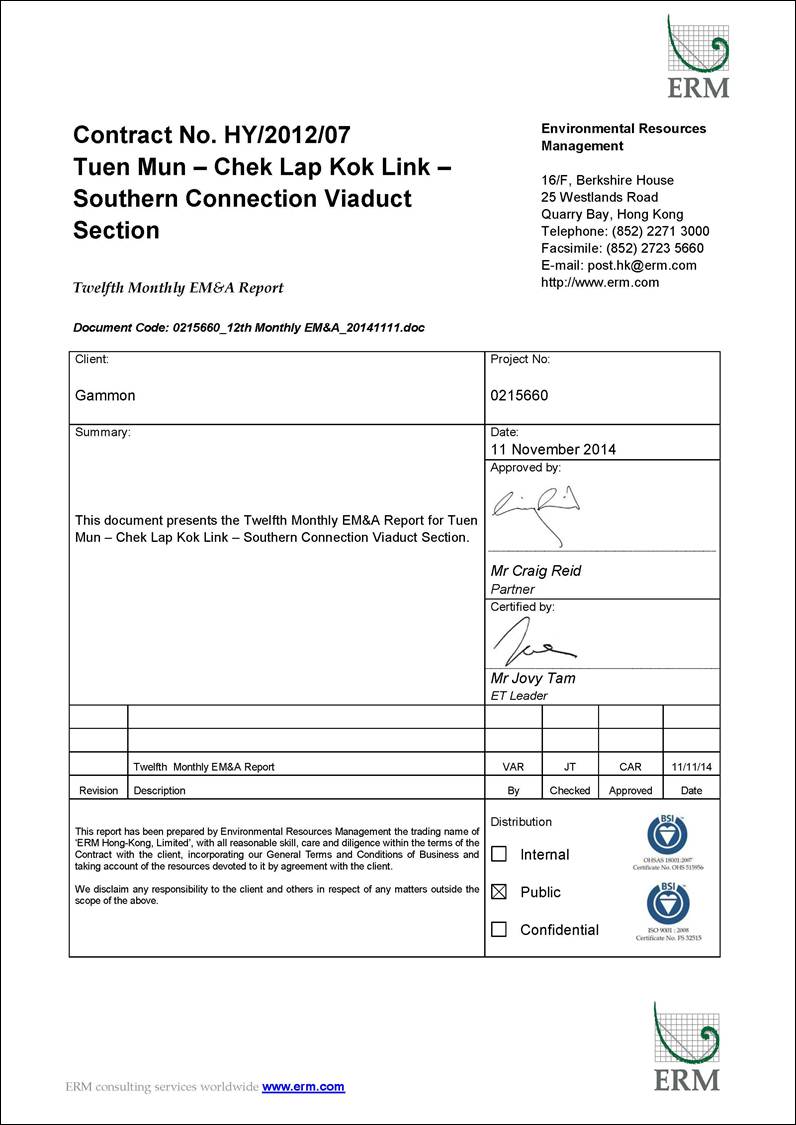

This Twelfth Monthly
EM&A Report presents the findings of the EM&A activities undertaken
during the period from 1 to 31 October 2014, in accordance with the Updated
EM&A Manual and the requirements of EP-354/2009/B.
A total of ten
groups of thirty (30) Chinese White Dolphins were sighted during the two sets
of monitoring surveys in October 2014.
All sightings were made in NWL during the two sets of surveys in October
2014, while no dolphin was sighted at all in NEL in this month. All except two (2) sightings were made on
primary lines during on-effort search, and none of the dolphin groups was
associated with operating fishing vessel.
During this month of dolphin monitoring, no unacceptable impact from the
construction activities of the TM-CLKL Southern Connection Viaduct Section on
Chinese White Dolphins were noticeable from general observations.
The ET will
keep track on the construction works to confirm compliance of environmental requirements
and the proper implementation of all necessary mitigation measures.
