Under Contract No. HY/2012/07,
Gammon Construction Limited (GCL) is commissioned by the Highways Department (HyD) to undertake the design and construction of the Southern
Connection Viaduct Section of the Tuen Mun ¡V Chek Lap Kok Link Project (TM-CLK Link Project) while AECOM
Asia Company Limited was appointed by HyD as the
Supervising Officer. For
implementation of the environmental monitoring and audit (EM&A) programme
under the Contract, ERM-Hong Kong, Limited (ERM) has been appointed as the
Environmental Team (ET). ENVIRON
Hong Kong Ltd. was employed by the HyD as the
Independent Environmental Checker (IEC) and Environmental Project Office (ENPO)
in accordance with Environmental Permit
No. EP-354/2009/A.
Another application for variation of
environmental permit (VEP) (EP-354/2009/B)
was granted on 28 January 2014.
The
construction phase of the Contract commenced on 31 October 2013 and will be
tentatively be completed by 2018.
The impact monitoring of the EM&A programme, including air quality,
noise, water quality and marine ecological monitoring as well as environmental
site inspections, commenced on 31 October 2013.
This
is the fourth quarterly EM&A report presenting the EM&A works carried
out during the period from 1 September to 30 November 2014 for the Southern
Connection Viaduct Section in accordance with the Updated EM&A Manual of the
TM-CLK Link Project. As informed by the Contractor, major
activities in the reporting period included:
September
2014
Marine-based Works
¡P
Construction of Pile caps at Viaduct B;
¡P
Marine piling platform installation;
¡P
Marine Piling at Viaducts B & E; and
¡P
Additional marine ground investigation (GI) and laboratory testing.
Land-based
Works
¡P
Construction of pile cap superstructure of Viaduct B;
¡P
Fence installation and relocation of Area 2, Viaducts A, B, C
& D;
¡P
Land Piling at Viaducts B & C;
¡P
Piling platform installation for Viaducts B, C, D & E;
¡P
Additional land GI, trial pits & lab testing
¡P
Utility surveys; and
¡P
Slope work of Slope 9SE-B/C8, 9SE-B/C9 & 9SE-B/F9.
October 2014
Marine-based
Works
¡P
Construction of Pile caps at Viaduct B;
¡P
Marine piling platform installation for Viaducts A, B, C, D &
E;
¡P
Marine Piling at Viaducts B, C, D & E; and
¡P
Additional marine ground investigation (GI) and laboratory
testing.
Land-based
Works
¡P
Construction of pile cap superstructure of Viaduct B;
¡P
Channel re-construction at Area 1;
¡P
Land Piling at Viaducts B, C & D;
¡P
Construction of pile cap at Viaducts B & D;
¡P
Additional land GI, trial pits & lab testing;
¡P
Utility surveys; and
¡P
Slope work of Slopes 9SE-B/C8, 9SE-B/C9 & 9SE-B/F9.
November 2014
Marine-based
Works
¡P
Construction of Pile caps at Viaducts B & E;
¡P
Marine piling platform installation for Viaducts A, B, C, D &
E;
¡P
Marine Piling at Viaducts B, C, D & E; and
¡P
Additional marine ground investigation (GI) and laboratory
testing.
Land-based
Works
¡P
Construction of pile cap superstructure of Viaduct B;
¡P
Channel re-construction at Area 1;
¡P
Land Piling at Viaducts B, C & D;
¡P
Pre-drilling works at Viaduct A;
¡P
Construction of pile cap at Viaducts B & D;
¡P
Additional land GI, trial pits & lab testing;
¡P
Utility surveys; and
¡P
Slope work of Slopes 9SE-B/C8, 9SE-B/C9 & 9SE-B/F9.
A summary of
monitoring and audit activities conducted in the reporting period is listed
below:
24-hour
TSP monitoring 16
sessions at ASR8; 17 sessions at ASR8A
1-hour
TSP monitoring 16
sessions at ASR8; 17 sessions at ASR8A
Noise
monitoring 16
sessions
Water quality monitoring 37
sessions
Dolphin monitoring 6
sessions
Joint Environmental site
inspection 13
sessions
Post-Translocation
Coral monitoring 1
session
Breaches of Action and Limit Levels for Air Quality
No exceedance of Action and Limit Levels was recorded
for air quality monitoring in the reporting period.
Breaches of Action and Limit Levels for Noise
No exceedance of Action and Limit Levels was recorded
for construction noise monitoring in the reporting period.
Breaches of Action and Limit Levels for Water Quality
No exceedance
of Action and Limit Levels was recorded for impact water quality monitoring in
the reporting period.
Impact Dolphin Monitoring
Whilst two (2) Action
Level exceedances were observed for the quarterly dolphin monitoring data
between September and November 2014, no unacceptable impact from the construction
activities of the TM-CLKL Southern Connection Viaduct Section on Chinese White
Dolphins was noticeable from general observations during the dolphin monitoring
in this reporting quarter. The
exceedances are considered to be the natural variation of Chinese White Dolphin
ranging pattern upon further investigation.
Daily
marine mammal exclusion zone monitoring was undertaken during the period of
marine works under this Contract. Passive
Acoustic Monitoring (PAM) was also implemented for the detection of marine
mammal when marine works were carried out outside the daylight hours under this
Contract. No sighting of the
Indo-Pacific humpback dolphin Sousa chinensis (i.e. Chinese White Dolphin) was recorded in
the monitoring period during the exclusion zone monitoring.
Post-Translcoation Coral Monitoring
The Fourth Quarterly Post-Translocation Coral
Monitoring was conducted on 23 October 2014 and no exceedance of Action and
Limit Levels was recorded. The results were detailed in the Fourth Quarterly Post- Translocation Coral
Monitoring Report and were submitted
under a separate cover.
Environmental Complaints, Non-compliance & Summons
No environmental
complaint, notification of summons and successful prosecution was received in
the reporting period.
Reporting Change
There was no
reporting change required in the reporting period.
Upcoming Works for the Next Reporting Period
Works to be
undertaken in the coming quarter include the following:
December 2014
Marine
Works
¡P
Construction of Pile caps at Viaducts B & E;
¡P
Marine piling platform installation for Viaducts A, B, C, D &
E;
¡P
Marine Piling at Viaducts B, C, D & E; and
¡P
Additional marine ground investigation (GI) and laboratory
testing.
Land-based
Works
¡P
Construction of pile cap superstructure of Viaduct B;
¡P
Channel re-construction at Area 1;
¡P
Land Piling at Viaducts B, C & D;
¡P
Pre-drilling works at Viaduct A;
¡P
Construction of pile cap at Viaducts B & D;
¡P
Additional land GI, trial pits & lab testing;
¡P
Utility surveys; and
¡P
Slope work of Slopes 9SE-B/C8, 9SE-B/C9 & 9SE-B/F9.
January 2015
Marine
Works
¡P
Construction of Pile caps at Viaducts B & E;
¡P
Marine piling platform installation for Viaducts A, B, C, D &
E;
¡P
Marine Piling at Viaducts B, C, D & E; and
¡P
Additional marine ground investigation (GI) and laboratory
testing.
Land-based
Works
¡P
Construction of pile cap superstructure of Viaduct B;
¡P
Channel re-construction at Area 1;
¡P
Land Piling at Viaducts B, C & D;
¡P
Pre-drilling works at Viaduct A;
¡P
Construction of pile cap at Viaducts B & D;
¡P
Additional land GI, trial pits & lab testing;
¡P
Utility surveys; and
¡P
Slope work of Slopes 9SE-B/C8, 9SE-B/C9 & 9SE-B/F9.
February 2015
Marine
Works
¡P
Construction of Pile caps at Viaducts B & E;
¡P
Marine piling platform installation for Viaducts A, B, C, D &
E;
¡P
Marine Piling at Viaducts B, C, D & E; and
¡P
Additional marine ground investigation (GI) and laboratory
testing.
Land-based
Works
¡P
Construction of pile cap superstructure of Viaduct B;
¡P
Channel re-construction at Area 1;
¡P
Land Piling at Viaducts B, C & D;
¡P
Pre-drilling works at Viaduct A;
¡P
Construction of pile cap at Viaducts B & D;
¡P
Additional land GI, trial pits & lab testing;
¡P
Utility surveys; and
¡P
Slope work of Slopes 9SE-B/C8, 9SE-B/C9 & 9SE-B/F9.
Future Key Issues
Potential
environmental impacts arising from the above upcoming construction activities
in the coming quarterly period are mainly associated with air quality, noise, marine
water quality, marine ecology and waste management issue.
According to
the findings of the Northwest New Territories (NWNT) Traffic and Infrastructure
Review conducted by the Transport Department, Tuen Mun Road, Ting Kau Bridge, Lantau
Link and North Lantau Highway would be operating beyond capacity after
2016. This forecast has been based
on the estimated increase in cross boundary traffic, developments in the
Northwest New Territories (NWNT), and possible developments in North Lantau,
including the Airport developments, the Lantau Logistics Park (LLP) and the
Hong Kong ¡V Zhuhai ¡V Macao Bridge (HZMB).
In order to cope with the anticipated traffic demand, two new road
sections between NWNT and North Lantau ¡V Tuen Mun ¡V Chek Lap Kok Link (TM-CLKL) and Tuen Mun Western Bypass (TMWB) are proposed.
An
Environmental Impact Assessment (EIA) of TM-CLKL (the Project) was prepared in
accordance with the EIA Study Brief (No. ESB-175/2007) and the Technical
Memorandum of the Environmental Impact Assessment Process (EIAO-TM). The EIA Report was submitted under the
Environmental Impact Assessment Ordinance (EIAO) in August 2009. Subsequent to the approval of the EIA
Report (EIAO Register Number: AEIAR-146/2009),
an Environmental Permit (EP-354/2009) for TM-CLKL was granted by the Director
of Environmental Protection (DEP) on 4 November 2009, and EP variation (EP-354/2009A) was issued on 8 December
2010. Another application
for variation of environmental permit (VEP) (EP-354/2009/B) was granted on 28 January 2014.
Under
Contract No. HY/2012/07,
Gammon Construction Limited (GCL) is commissioned by the Highways Department (HyD) to undertake the design and construction of the
Southern Connection Viaduct Section of TM-CLKL (¡§the Contract¡¨) while AECOM
Asia Company Limited was appointed by HyD as the
Supervising Officer. For
implementation of the environmental monitoring and audit (EM&A) programme
under the Contract, ERM-Hong Kong, Limited (ERM) has been appointed as the
Environmental Team (ET). ENVIRON
Hong Kong Ltd. was employed by HyD as the Independent
Environmental Checker (IEC) and Environmental Project Office (ENPO) in
accordance with Environmental Permit No. EP-354/2009/A.
The
organization structure of the Contract is shown in Appendix A.
The key personnel contact names and
contact details are summarized in Table
1.1 below.
Table 1.1 Contact
Information of Key Personnel
Party |
Position |
Name |
Telephone |
Fax |
SOR (AECOM Asia
Company Limited) |
Chief
Resident Engineer |
Daniel Ip |
3553 3800 |
2492 2057 |
|
Resident
Engineer |
Kingman Chan |
3691 2950 |
3691 2899 |
ENPO / IEC (ENVIRON
Hong Kong Ltd.) |
ENPO Leader |
Y.H. Hui |
3465 2888 |
3465 2899 |
IEC |
Dr. F.C.
Tsang |
3465 2828 |
3465 2899 |
|
Contractor (Gammon
Construction Limited) |
Environmental
Manager |
Brian Kam |
3520 0387 |
3520 0486 |
Environmental
Officer |
Roy Leung |
3520 0387 |
3520 0486 |
|
|
24-hour
Complaint Hotline |
|
9738 4332 |
|
ET (ERM-HK) |
ET Leader |
Jovy Tam |
2271 3113 |
2723 5660 |
September
2014
Marine-based Works
¡P
Construction of Pile caps at Viaduct B;
¡P
Marine piling platform installation;
¡P
Marine Piling at Viaducts B & E; and
¡P
Additional marine ground investigation (GI) and laboratory testing.
Land-based
Works
¡P
Construction of pile cap superstructure of Viaduct B;
¡P
Fence installation and relocation of Area 2, Viaducts A, B, C
& D;
¡P
Land Piling at Viaducts B & C;
¡P
Piling platform installation for Viaducts B, C, D & E;
¡P
Additional land GI, trial pits & lab testing
¡P
Utility surveys; and
¡P
Slope work of Slope 9SE-B/C8, 9SE-B/C9 & 9SE-B/F9.
October 2014
Marine-based
Works
¡P
Construction of Pile caps at Viaducts B & E;
¡P
Marine piling platform installation for Viaducts A, B, C, D &
E;
¡P
Marine Piling at Viaducts B, C, D & E; and
¡P
Additional marine ground investigation (GI) and laboratory
testing.
Land-based
Works
¡P
Construction of pile cap superstructure of Viaduct B;
¡P
Channel re-construction at Area 1;
¡P
Land Piling at Viaducts B, C & D;
¡P
Construction of pile cap at Viaducts B & D;
¡P
Additional land GI, trial pits & lab testing;not
wa
¡P
Utility surveys; and
¡P
Slope work of Slopes 9SE-B/C8, 9SE-B/C9 & 9SE-B/F9.
November 2014
Marine-based
Works
¡P
Construction of Pile caps at Viaduct B & E;
¡P
Marine piling platform installation for Viaducts A, B, C, D &
E;
¡P
Marine Piling at Viaducts B, C, D & E; and
¡P
Additional marine ground investigation (GI) and laboratory
testing.
Land-based
Works
¡P
Construction of pile cap superstructure of Viaduct B;
¡P
Channel re-construction at Area 1;
¡P
Land Piling at Viaducts B, C & D;
¡P
Pre-drilling works at Viaduct A;
¡P
Construction of pile cap at Viaducts B & D;
¡P
Additional land GI, trial pits & lab testing;
¡P
Utility surveys; and
¡P
Slope work of Slopes 9SE-B/C8, 9SE-B/C9 & 9SE-B/F9.
The

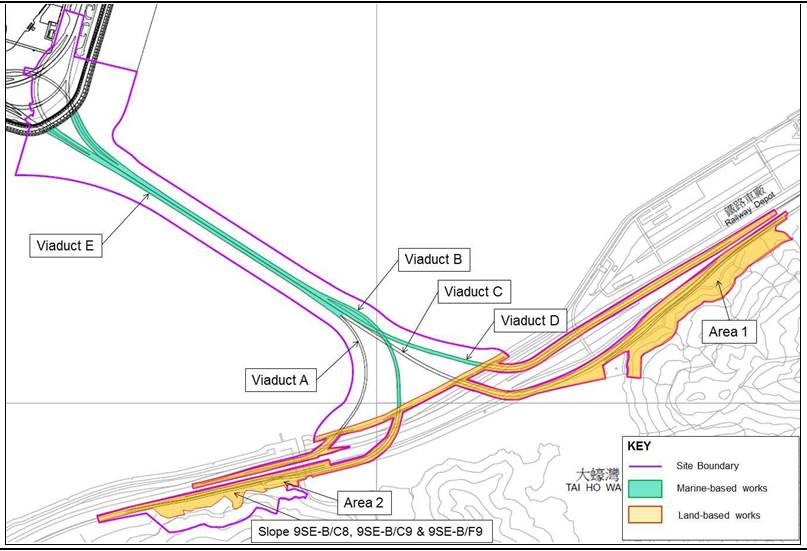

locations of the construction activities are shown in Figure 1.3. The Environmental Sensitive Receivers in
the vicinity of the Project are shown in Figure 1.4.
The EM&A
programme required environmental monitoring for air quality, noise, water
quality and marine ecology as well as environmental site inspections for air
quality, noise, water quality, waste management, marine ecology and landscape
and visual impacts. The EM&A
requirements and related findings for each component are described in the
following sections, which include:
¡P
Monitoring parameters;
¡P
Monitoring schedules for the reporting months and
forthcoming months;
¡P
Action and Limit levels for all environmental
parameters;
¡P
Event Action Plan;
¡P
Results and observations;
¡P
Environmental mitigation measures, as recommended in
the approved EIA Report; and
¡P
Environmental requirement in contract documents.
The EM&A
programme required environmental monitoring for air quality, noise, water
quality and marine ecology as well as environmental site inspections for air
quality, noise, water quality, waste management, marine ecology and landscape
and visual impacts. The EM&A requirements
and related findings for each component are summarized in the following
sections.
The baseline
air quality monitoring undertaken by the Hong Kong ¡V Zhuhai ¡VMacao Bridge Hong
Kong Projects (HKZMB) during October 2011 has included the two monitoring
stations ASR9A and ASR9C for this project.
Thus, the baseline monitoring results and Action/ Limit Level presented
in HKZMB Baseline Monitoring Report ([1]) are
adopted for this Project.
Wind
data monitoring equipment has been installed at the rooftop of Pak Mong Village Watch Tower during the reporting period for
logging wind speed and wind direction.
The wind sensor was setup such as it was clear of obstructions or
turbulence caused by building. The
wind data monitoring equipment is recalibrated at least once every six months.
Due to the rejection of access to Pak Mong Village, monitoring results of 1-hour TSP and 24-hour
TSP at ASR 8 and meteorological data was not recorded on 26 November 2014. The Proposal of Alternative Dust and Noise Monitoring Stations ([2])
was submitted to EPD on 2 December 2014, in which the HVS at ASR 8 was proposed to be relocated to
Entrance of MTR Depot and the wind anemometer to be relocated to ASR 8A in
accordance with the requirements of the Updated EM&A Manual.
Table 2.1 Locations
of Impact Air Quality Monitoring Stations and Monitoring Dates in this
Reporting Period
Monitoring Station (1) |
Monitoring Period |
Location |
Description |
Parameters & Frequency |
ASR8A |
1, 5, 11,
17, 23 and 27 September 2014; 3, 9, 15, 21, 27 and 30 October 2014; 5, 11,
17, 20 and 26 November 2014 |
Area 4 |
On ground at
the Area 4 |
1-hour Total Suspended Particulates (1-hour
TSP, µg/m3), 3 times per day every 6 days 24-hour Total Suspended Particulates (24-hour TSP, µg/m3),
daily for 24-hour every 6 days |
ASR8 |
1, 5, 11,
17, 23 and 27 September 2014; 3, 9, 15, 21, 27 and 30 October 2014; 5, 11, 17
and 20 November 2014 |
Pak Mong Village Watch Tower |
Rooftop of
the premise |
Note:
(1)
Air
Quality Monitoring Stations ASR9A and ASR9C at Siu Ho Wan MTRC Depot proposed
in accordance with the Updated EM&A were temporarily relocated to ASR 8A
and ASR8, respectively.
(2)
Due to the rejection of access to ASR8, the monitoring
on 26 at ASR8 was cancelled.
Table
2.2 Air
Quality Monitoring Equipment
Equipment |
Brand and Model |
High Volume
Sampler |
Tisch Environmental
Mass Flow Controlled Total Suspended Particulate
(TSP) High Volume Sampler (Model No. TE-5170) |
Wind Sensor |
Global Water
(Wind Speed Sensor: WE550; Wind Direction Sensor: WE570) |
Wind
Anemometer for calibration |
Lutron (Model
No. AM-4201) |
The Action and
Limit Levels of the air quality monitoring are provided in Appendix D. The Event and Action plan is presented
in Appendix J.
The schedules
for air quality monitoring in the reporting quarter are provided in Appendix E.
The monitoring
results for 1-hour TSP and 24-hour TSP are summarized in Tables 2.3 and 2.4,
respectively. Monitoring results
are presented graphically in Appendix F and
detailed impact air quality monitoring results and meteorological information were
reported in the Eleventh to Thirteenth Monthly EM&A Report.
Table
2.3 Summary
of 1-hour TSP Monitoring Results in this Reporting Period
Month |
Station |
Average (µg/m3) |
Range (µg/m3) |
Action Level (µg/m3) |
Limit Level (µg/m3) |
September 2014 |
ASR 8A |
89 |
60 - 148 |
394 |
500 |
ASR 8 |
80 |
59 - 130 |
393 |
500 |
|
October 2014 |
ASR 8A |
106 |
54 - 175 |
394 |
500 |
|
ASR 8 |
130 |
67 - 243 |
393 |
500 |
November 2014 |
ASR 8A |
88 |
56 - 152 |
394 |
500 |
|
ASR 8 |
106 |
54 - 235 |
393 |
500 |
Table 2.4 Summary
of 24-hour TSP Monitoring Results in this Reporting Period
Month |
Station |
Average (µg/m3) |
Range (µg/m3) |
Action Level (µg/m3) |
Limit Level (µg/m3) |
September
2014 |
ASR 8A |
51 |
41
- 60 |
178 |
260 |
ASR 8 |
49 |
39
- 65 |
178 |
260 |
|
October 2014 |
ASR 8A |
60 |
46
- 79 |
178 |
260 |
|
ASR 8 |
71 |
46
- 101 |
178 |
260 |
November
2014 |
ASR 8A |
63 |
46
- 83 |
178 |
260 |
|
ASR 8 |
69 |
56
- 80 |
178 |
260 |
The major dust
sources in the reporting period include construction activities under the
Contract as well as nearby traffic emissions.
In this
reporting period, a total of sixteen (16) monitoring events at ASR8 and
seventeen (17) monitoring event at ASR8A were undertaken within the reporting
period, in which no Action or Limit Level exceedances for 1-hour and 24-hour
TSP for air quality were recorded during the reporting period.
The baseline
noise monitoring undertaken by the Hong Kong ¡V Zhuhai ¡V Macao Bridge Hong Kong
Projects (HKZMB) during the period of 18 October to 1 November 2011 has
included the monitoring station NSR1 for this project. Thus, the baseline monitoring results
and Action/ Limit Level presented in HKZMB
Baseline Monitoring Report ([3]) are
adopted for this Project.
Monitoring
location was set up at NSR1 in accordance with the Updated EM&A
Manual. Figure 2.2 shows
the location of the monitoring station.
Table 2.5 describes the
details of the monitoring station.
Noise
monitoring was performed using sound level meter at each designated monitoring
station. The sound level meters
deployed comply with the International Electrotechnical
Commission Publications (IEC) 651:1979 (Type 1) and 804:1985 (Type 1)
specifications. Acoustic calibrator
was deployed to check the sound level meters at a known sound pressure level. Brand and model of the equipment is given in Table 2.6.
Due to the rejection of access to Pak Mong
Village, no noise monitoring results at NSR1 was recorded on 26 November
2014. The Proposal of Alternative Dust and Noise Monitoring
Stations ([4])
was submitted to EPD on 2 December 2014, in which the noise monitoring
station was proposed to be
relocated to the Pak Mong Village Pavilion in
accordance with the requirements of the Updated EM&A Manual.
Table 2.5 Location of Impact Noise
Monitoring Station and Monitoring Dates in this Reporting Period
Monitoring Station |
Monitoring Period |
Location |
Parameters & Frequency |
NSR1 |
September
2014 to November 2014 |
Pak Mong Village Watch Tower |
30-mins
measurement at each monitoring station between 0700 and 1900 on normal
weekdays (Monday to Saturday). Leq, L10
and L90 would be recorded. At
least once a week |
Note: (1) Due
to the rejection of access to NSR1, the monitoring on 26 at NSR1 was
cancelled. |
Table 2.6 Noise Monitoring Equipment
Equipment |
Brand and Model |
Integrated
Sound Level Meter |
Rion
NL-31 |
Acoustic
Calibrator |
Rion
NC-73 |
The Action and
Limit levels of the noise monitoring are provided in Appendix D. The Event and Action plan is presented
in Appendix J.
The schedules
for noise monitoring in the reporting quarter are provided in Appendix E.
The monitoring
results for noise monitoring are summarized in Table 2.7. Monitoring
results are presented graphically in Appendix G and
detailed impact noise monitoring results are reported in the Eleventh to Thirteenth Monthly EM&A Report.
Table 2.7 Summary of Construction
Noise Monitoring Results at NSR1 in the Reporting Period
Month |
Average , dB(A), Leq (30mins) |
Range, dB(A), Leq (30mins) |
Limit Level, dB(A), Leq (30mins) |
September
2014 |
57 |
55 - 59 |
75 |
October 2014 |
57 |
56 - 59 |
75 |
November
2014 |
58 |
57 ¡V 59 |
75 |
The baseline
water quality monitoring undertaken by the Hong Kong ¡V Zhuhai ¡V Macao Bridge
Hong Kong Projects (HKZMB) between 6 and 31 October 2011 has included all
monitoring stations except SR4a for the Project. Thus, the baseline monitoring results
except for station SR4a and Action/Limit Level presented in HKZMB Baseline
Monitoring Report ([5]) are
adopted for this Project. Baseline
water quality monitoring was conducted at station SR4a from 29 August to 24
September 2013.
Table 2.8 Locations
of Water Quality Monitoring Stations and the Corresponding Monitoring
Requirements
Station ID |
Type |
Coordinates |
*Parameters, unit |
Depth |
Frequency |
|
|
|
Easting |
Northing |
|
|
|
IS(Mf)9 |
Impact
Station (Close to HKBCF construction site) |
813273 |
818850 |
Temperature(¢XC)
pH(pH unit)
Turbidity (NTU)
Water depth (m)
Salinity (ppt)
DO (mg/L and % of saturation) ¡P
SS (mg/L) |
3 water depths: 1m below sea surface, mid-depth and 1m above sea bed.
If the water depth is less than 3m, mid-depth sampling only. If water depth less than 6m, mid-depth
may be omitted. |
Impact monitoring: 3 days per week, at mid-flood
and mid-ebb tides during the construction period of the Contract. |
IS(Mf)16 |
Impact Station
(Close to HKBCF construction site) |
814328 |
819497 |
|||
IS8 |
Impact Station(Close
to HKBCF construction site) |
814251 |
818412 |
|||
SR4 |
Sensitive receiver
(Tai Ho Inlet) |
814760 |
817867 |
|||
SR4a |
Sensitive receiver |
815247 |
818067 |
|||
CS(Mf)3 |
Control
Station |
809989 |
821117 |
|||
CS(Mf)5 |
Control
Station |
817990 |
821129 |
|||
Notes: In addition to the parameters presented monitoring location/position,
time, water depth, sampling depth, tidal stages, weather conditions and any
special phenomena or works underway nearby were also recorded. |
Table 2.9 summarizes the equipment used in the impact water quality monitoring
programme.
Table
2.9 Water
Quality Monitoring Equipment
Equipment |
Brand and Model |
DO, Temperature meter and Salinity |
YSI Pro2030 |
Turbidimeter |
HACH Model 2100Q |
pH meter |
HANNA HI8314 |
Positioning
Equipment |
Koden913MK2 with KBG-3 DGPS antenna |
Water Depth Detector |
Speedtech Instrument SM-5 |
Water Sampler |
Kemmerer 1520 (1520-C25) 2.2L with messenger |
The schedules
for water quality monitoring in the reporting quarter are provided in Appendix E. No impact water quality monitoring was
conducted on 9 and 16 September 2014 due to suspension of marine works and
adverse weather condition, respectively.
Impact water
quality monitoring was conducted at all designated monitoring stations in the
reporting period. Monitoring
results are presented graphically in Appendix H and
detailed impact water quality monitoring results were reported in the Eleventh to Thirteenth Monthly EM&A Report.
In this
reporting period, a total of Thirty-nine (37) monitoring events were undertaken
in which no Action or Limit Level exceedance were recorded during the reporting
quarter.
Impact dolphin
monitoring is required to be conducted by a qualified dolphin specialist team
to evaluate whether there have been any effects on the dolphins. In order to fulfil the EM&A
requirements and make good use of available resources, the on-going impact line
transect dolphin monitoring data collected by HyD¡¦s Contract No. HY/2011/03 Hong Kong-Zhuhai-Macao Bridge. Hong
Kong Link Road - Section between Scenic Hill and Hong Kong Boundary Crossing
Facilities on the monthly basis is adopted to avoid duplicates of survey
effort.
Table 2.10 summarises the equipment
used for the impact dolphin monitoring.
Table 2.10 Dolphin Monitoring Equipment
Equipment |
Model |
Global Positioning
System (GPS) Camera Laser Binoculars Marine Binocular Vessel for Monitoring |
Garmin 18X-PC Geo One Phottix Nikon D90 300m 2.8D fixed focus Nikon D90 20-300m zoom lens Infinitor LRF 1000 Bushell 7 x 50 marine binocular with compass and
reticules 65 foot single
engine motor vessel with viewing platform 4.5m above water level |
Dolphin
monitoring should cover all transect lines in Northeast Lantau (NEL) and the
Northwest Lantau (NWL) survey areas twice per month throughout the entire
construction period. The monitoring
data should be compatible with, and should be made available for, long-term
studies of small cetacean ecology in Hong Kong. In order to provide a suitable long-term
dataset for comparison, identical methodology and line transects employed in
baseline dolphin monitoring was followed in the impact dolphin monitoring.
The impact
dolphin monitoring was carried out in the NEL and NWL along the line transect
as depicted in Figure 2.4. The co-ordinates of all transect lines
are shown in Table 2.11 below.
Table 2.11 Impact
Dolphin Monitoring Line Transect Co-ordinates
Line No. |
Easting |
Northing |
Line No. |
Easting |
Northing |
||
1 |
Start Point |
804671 |
814577 |
13 |
Start Point |
816506 |
819480 |
1 |
End Point |
804671 |
831404 |
13 |
End Point |
816506 |
824859 |
2 |
Start Point |
805475 |
815457 |
14 |
Start Point |
817537 |
820220 |
2 |
End Point |
805477 |
826654 |
14 |
End Point |
817537 |
824613 |
3 |
Start Point |
806464 |
819435 |
15 |
Start Point |
818568 |
820735 |
3 |
End Point |
806464 |
822911 |
15 |
End Point |
818568 |
824433 |
4 |
Start Point |
807518 |
819771 |
16 |
Start Point |
819532 |
821420 |
4 |
End Point |
807518 |
829230 |
16 |
End Point |
819532 |
824209 |
5 |
Start Point |
808504 |
820220 |
17 |
Start Point |
820451 |
822125 |
5 |
End Point |
808504 |
828602 |
17 |
End Point |
820451 |
823671 |
6 |
Start Point |
809490 |
820466 |
18 |
Start Point |
821504 |
822371 |
6 |
End Point |
809490 |
825352 |
18 |
End Point |
821504 |
823761 |
7 |
Start Point |
810499 |
820690 |
19 |
Start Point |
822513 |
823268 |
7 |
End Point |
810499 |
824613 |
19 |
End Point |
822513 |
824321 |
8 |
Start Point |
811508 |
820847 |
20 |
Start Point |
823477 |
823402 |
8 |
End Point |
811508 |
824254 |
20 |
End Point |
823477 |
824613 |
9 |
Start Point |
812516 |
820892 |
21 |
Start Point |
805476 |
827081 |
9 |
End Point |
812516 |
824254 |
21 |
End Point |
805476 |
830562 |
10 |
Start Point |
813525 |
820872 |
22 |
Start Point |
806464 |
824033 |
10 |
End Point |
813525 |
824657 |
22 |
End Point |
806464 |
829598 |
11 |
Start Point |
814556 |
818449 |
23 |
Start Point |
814559 |
821739 |
11 |
End Point |
814556 |
820992 |
23 |
End Point |
814559 |
824768 |
12 |
Start Point |
815542 |
818807 |
|
|
|
|
12 |
End Point |
815542 |
824882 |
|
|
|
|
The action and
limit levels of dolphin impact monitoring are shown in Appendix D. The Event and Action plan is presented
in Appendix J.
The dolphin
monitoring schedules for the reporting period are shown in Appendix E.
A total of
892.88 km of survey effort was conducted, with 97.1% of the total survey effort
being conducted under favourable weather conditions
(i.e. Beaufort Sea State 3 or below with good visibility). Among the two areas, 343.71 km and
549.17 km of survey effort were conducted in NEL and NWL survey areas respectively. The total survey effort conducted on
primary lines was 644.60 km, while the effort on secondary lines was 248.28
km. Both survey efforts conducted
on primary and secondary lines were considered as on-effort survey data. The survey efforts are summarized in Appendix I.
During the six
sets of monitoring surveys from September to November 2014, a total of twenty-four
(24) groups of ninety-three (93) Chinese White Dolphins were sighted. All except four (4) dolphin sightings
were made on primary lines during on-effort search and none of the dolphin
groups was associated with operating fishing vessel. No sighting was made in the proximity of
the Project¡¦s alignment. In this
quarterly period, all dolphin groups were sighted in NWL, while none of them
were sighted in NEL. Summary table
of the dolphin sightings is shown in Appendix I.
For the
detailed comparison of dolphin occurrence and usage of NEL and NWL survey area
between the impact phase and baseline phase monitoring, only the quarterly data
of September 2014 to November 2014 from the impact phase monitoring was used in
the present report to tally with the three-month period of baseline monitoring
(September 2011 to November 2011).
Another
comparison in dolphin distribution was made between the two quarterly periods
of autumn months in 2013 and 2014 was also made
Between
the two autumn periods, none of the dolphin sightings was made in NEL in autumn
2014, while there were two (2) sightings made in autumn 2013. Moreover, more dolphin sightings were
made in the middle and western portions of North Lantau waters in the autumn of
2013 than in the autumn of 2014.
Encounter
rates of Chinese White Dolphins deduced from the survey effort and on-effort
sighting data from the primary transect lines under favourable
conditions (Beaufort 3 or below) in the reporting period with the results
presented in Tables 2.12 and 2.13.
Table 2.12 Individual Survey Event Encounter
Rates
Survey Area |
Survey period |
Encounter rate (STG) (no. of
on-effort dolphin sightings per 100 km of survey effort) |
Encounter rate (ANI)
(no. of dolphins from all on-effort sightings per 100 km of survey
effort) |
Primary
Lines Only |
Primary
Lines Only |
||
NEL |
Set
1 (2 & 11 Sept 2014) Set
2 (19 & 22 Sept 2014) Set
3 (7 & 13 Oct 2014) Set
4 (16 & 23 Oct 2014) Set
5 (4 & 10 Nov 2014) Set
6 (12 & 18 Nov 2014) |
0.0 0.0 0.0 0.0 0.0 0.0 |
0.0 0.0 0.0 0.0 0.0 0.0 |
NWL |
Set
1 (2 & 11 Sept 2014) Set
2 (19 & 22 Sept 2014) Set
3 (7 & 13 Oct 2014) Set
4 (16 & 23 Oct 2014) Set
5 (4 & 10 Nov 2014) Set
6 (12 & 18 Nov 2014) |
5.7 4.3 13.1 0.0 4.6 2.8 |
28.6 18.8 42.7 0.0 24.5 8.5 |
Note: Dolphin Encounter Rates are deduced from
the six sets of surveys (two surveys in each set) in the reporting period in
Northeast (NEL) and Northwest Lantau (NWL)
Table 2.13 Quarterly Average Encounter Rates
Survey Area |
Encounter rate (STG) (no. of
on-effort dolphin sightings per 100 km of survey effort) |
Encounter rate (ANI)
(no. of dolphins from all on-effort sightings per
100 km of survey effort) |
||
September ¡V November 2014 |
September -November 2011 |
September ¡V November 2014 |
September -November 2011 |
|
Northeast Lantau |
0.00 |
6.00 ¡Ó 5.05 |
0.00 |
22.19 ¡Ó 26.81 |
Northwest Lantau |
5.10 ¡Ó 4.40 |
9.85 ¡Ó 5.85 |
20.52 ¡Ó 15.10 |
44.66 ¡Ó 29.85 |
Note:
encounter rates deduced from the baseline monitoring period have been
recalculated based only on survey effort and on-effort sighting data made along
the primary transect lines under favourable
conditions
Table 2.14 Comparison of Quarterly Average
Encounter Rates
|
Average Dolphin Group Size |
|
September ¡V November 2014 |
September -November 2011 |
|
Overall |
3.88 ¡Ó 2.69 (n = 24) |
3.72 ¡Ó 3.13 (n = 66) |
Northeast Lantau |
0.00 |
3.18 ¡Ó 2.16 (n = 17) |
Northwest Lantau |
3.88 ¡Ó 2.69 (n = 24) |
3.92 ¡Ó 3.40 (n = 49) |
Daily
marine mammal exclusion zone monitoring was undertaken during the period of
marine works under this Contract. Passive
Acoustic Monitoring (PAM) was also implemented for the detection of marine
mammal when marine works were carried out outside the daylight hours under this
Contract. No sighting of the
Indo-Pacific humpback dolphin Sousa chinensis (i.e. Chinese White Dolphin) was recorded in
the monitoring period during the exclusion zone monitoring.
The Fourth Quarterly Post-Translocation Coral
Monitoring was conducted on 23 October 2014 and no exceedance of Action and
Limit Levels was recorded. The results were detailed in the Fourth Quarterly Post- Translocation Coral
Monitoring Report and were submitted under a separate cover. The findings indicated that the Action or
Limit Levels for coral monitoring were not exceeded as increase in percentage
of partial mortality was not detected for both the tagged translocated and
natural coral colonies when comparing to the pre-translocation dataset.
Site
inspections were carried out on a weekly basis to monitor the implementation of
proper environmental pollution control and mitigation measures under the
Contract. Thirteen (13) site
inspections were carried out in the reporting quarter on 4, 10, 19, 25 and 30
September 2014; 8, 16, 23 and 30 October 2014; 5, 12, 20 and 27 November 2014.
Key
observations during the site inspections in this reporting period are summarized
in Table 2.15.
Table 2.15 Specific
Observations Identified during the Weekly Site Inspection in this Reporting
Period
Inspection Date |
Location & Environmental Observations |
Recommendations/ Remarks |
4 September
2014 |
Temporary
platform at seafront ¡P
Welding machine was not placed on decoupling pad. Pier E9 ¡P
Grouting material was observed on the platform. ¡P
Chemical container was found disposed improperly. ¡P
Dumping permit was expired. |
Temporary
platform at seafront ¡P
Decoupling pad should be provided to the machine. Pier E9 ¡P
The excessive grouting material should be cleaned
up. ¡P
The chemical container was removed immediately. ¡P
An updated dumping permit should be provided. |
10 September
2014 |
Site Access
9B ¡P
Refuse was accumulated in the drainage on slope. Pak Mong ¡P
EP was missing Pier D9 ¡P
A chemical container was not placed in drip tray. |
Site Access
9B ¡P
The container was reminded to remove the refuse in
drainage on slope. Pak Mong ¡P
The contractor should place the updated EP at the
gate. Pier D9 ¡P
The chemical container was removed immediately. |
19 September
2014 |
Seafront ¡P
Chemical containers were found placed without drip
tray. ¡P
Stagnant water was found ponding over the tarpaulin
sheet inside a skip on rockfill platform. Pier B6 ¡P
A drip tray for generator was nearly overflowing. Pier E12 ¡P
The dumping permit was found expired. |
Seafront ¡P
The chemical containers were removed immediately. ¡P
Stagnant water was removed immediately. Pier B6 ¡P
The contractor was reminded to clear stagnant water. Pier E12 ¡P
The contractor was reminded to update the dumping
permit. |
25 September
2014 |
Seafront ¡P
Stagnant water was accumulated in a drip tray for
welding machine. ¡P
Waste container was full. ¡P
Refuse was accumulated in drainage. Pier B1 ¡P
Oil stain was found dispersed in the sea. WA5 ¡P
Refuse was accumulated at the site entrance. General
reminder ¡P
The contractor was reminded to improve the watering
system |
Seafront ¡P
The contractor was reminded to clean up the stagnant
water. ¡P
The contractor should routinely dispose the waste on
site. ¡P
No waste should be accumulated in drainage. Pier B1 ¡P
The contractor should clean up the oil stain. WA5 ¡P
The contractor should remove the refuse. |
30 September
2014 |
WA5 ¡P
Chemical containers were found placed without drip
tray and oil stain was found at the bottom of them. ¡P
A locker was incorrectly labelled ¡¥Chemical Waste¡¦. ¡P
A drip tray for generator was unplugged. ¡P
Waste water from washing machine had no proper
treatment. ¡P
Waste paint was found on site. ¡P
Chemical waste locker was found damaged. Slope BC9 ¡P
A drip tray was found damaged. ¡P
Grouting material was found accumulated in the
grouting station. ¡P
Soil was accumulated on tarpaulin sheet. ¡P
Soil was accumulated near the bund on slope. ¡P
Refuse was found on slope. Pak Mong ¡P
Refuse was found in Tai Ho Steam Channel. ¡P
A chemical container was placed without drip tray. ¡P
Refuse was found on site. |
WA5 ¡P
The contractor removed the chemical containers
immediately and was reminded to remove the oil stain. ¡P
The incorrect label was removed immediately. ¡P
The drip tray should be plugged. ¡P
Proper treatment to waste water should be provided. ¡P
Waste paint should be disposed properly. ¡P
The contractor should repair the locker. Slope BC9 ¡P
The contractor should provide a drip tray which can
avoid waste water runoff. ¡P
The contractor should avoid any runoff from grouting
station. ¡P
Soil on tarpaulin sheet should be cleaned up
regularly. ¡P
The contractor should avoid soil runoff from slope
and accumulation at the bund. ¡P
Refuse should be removed. Pak Mong. ¡P
The contractor should avoid any disposal into water
body and clean up the refuse. ¡P
The chemical container should be placed in drip
tray. ¡P
Refuse should be disposed properly. |
8 October
2014 |
Seafront ¡P
Waste water was potentially discharged offsite. ¡P
Chemical containers were not placed in drip tray. ¡P
A drip tray for chemical container was unplugged. ¡P
Refuse was found on the sea nearby pier. Pier B3 ¡P
Refuse was found in the sea. ¡P
An air compressor was placed without decoupling pad. Pier B1 ¡P
Sediment was not labelled on barge. |
Seafront ¡P
The contractor should avoid the discharge offsite. ¡P
Drip tray should be provided to the chemical
containers. ¡P
The drip tray should be plugged. ¡P
Refuse on sea should be cleaned up Pier B3 ¡P
Refuse in sea should be cleaned up ¡P
Decoupling pad should be provided. Pier B1 ¡P
Category of sediment should be labelled. |
16 October
2014 |
Area 1 ¡P
Chemical containers were not placed in drip tray. ¡P
Waste was found disposed improperly onsite. ¡P
The traffic road was partially unpaved or not
covered. ¡P
A welder was placed too closed to drainage. Pak Mong ¡P
Refuse was found disposed improperly nearby Pier B12
and subway ¡P
Waste water was potentially discharged to Tai Ho
Stream. ¡P
A drip tray for generator was found unplugged. |
Area 1 ¡P
The chemical containers were put into drip tray
immediately. ¡P
Waste should be disposed properly. ¡P
The contractor should water or pave the unpaved
traffic road. ¡P
The welder should not be placed next to drainage. Pak Mong ¡P
The contractor was reminded to clean up the refuse. ¡P
The contractor should avoid waste water discharge to
Tai Ho Stream. ¡P
The drip tray should be plugged. |
23 October
2014 |
Pier B3 ¡P
A chemical container was placed without drip tray. ¡P
A generator on Gammon 39 emitted dark smoke. Gammon 23 ¡P
A generator was placed without decoupling pad. ¡P
A chemical container was not placed in drip tray. Pier B1 ¡P
Stagnant water was found in a drip tray. |
Pier B3 ¡P
The chemical container was removed immediately. ¡P
No dark smoke should be emitted from vessel for more
than 3 minutes. Gammon 23 ¡P
Decoupling pad should be provided to the generator. ¡P
The chemical container was put into drip tray
immediately. Pier B1 ¡P
The contractor should clean up drip tray regularly. |
30 October
2014 |
Seafront ¡P
A rubbish bin was found full and refuse was found
disposed improperly. ¡P
A drip tray for generator was found unplugged. Pak Mong ¡P
Refuse was found disposed improperly nearby
drainage. ¡P
An unpaved slope was not well covered. ¡P
Trees at slope B/F8 were not fenced off properly. |
Seafront ¡P
The contractor was reminded to clean up the refuse routinely. ¡P
A stopper should be provided to the drip tray. Pak Mong ¡P
The refuse should be disposed properly. ¡P
The unpaved slope should be covered properly. ¡P
The contractor was reminded to provide fencing to
trees. |
5 November
2014 |
Pier D13 ¡P
A drip tray for generator was not plugged. Pier D9 ¡P
A chemical container was not placed in drip tray. Pier D14 ¡P
Some chemical containers were not placed in drip
tray. General
reminder: ¡P
The unpaved area should be watered 8 times a day. |
Pier D13 ¡P
The drip tray should be plugged. Pier D9 and
D14 ¡P
Chemical containers should be placed in drip tray. |
12 November
2014 |
Seafront ¡P
Stagnant water was accumulated in a drip tray for
welder. |
Seafront ¡P
Drip tray should have enough capacity to avoid
leakage or runoff of chemical waste. The contractor was reminded to remove
stagnant water regularly. |
20 November
2014 |
Area 1 ¡P
A skip for waste was nearly full. ¡P
The traffic road was partially dry. Area 2 ¡P
Water dripping was observed and caused stagnant
water in the works area. |
Area 1 ¡P
The contractor was reminded to clean the refuse
regularly. ¡P
The unpaved area should be watered or covered. Area 2 ¡P
The contractor was advised to avoid such leakage and
clean up the stagnant water. |
27 November
2014 |
Seafront ¡P
Oil stain was observed on the ground of project
area. ¡P
Some chemical containers were not placed in drip
tray. Barge M015
(Tung Shun 88) ¡P
Category of sediment was not labelled. Barge M021
(Kin Yip) ¡P
Sediment was not properly separated. |
Seafront ¡P
The contractor should remove the oil stain. ¡P
Chemical containers should be placed in drip tray. Barge M015
(Tung Shun 88) ¡P
Category of sediment should be properly labelled. Barge M021
(Kin Yip) ¡P
Different categories of sediment should be properly
separated. |
Wastes
generated during this reporting period include mainly construction wastes
(inert and non-inert), imported fill, recyclable materials, and marine
sediments. Reference has been made
to the waste flow table prepared by the Contractor (Appendix K). The quantities of different types of
wastes are summarized in Table 2.16.
Table 2.16 Quantities
of Different Waste Generated in the Reporting Period
Month / Year |
Inert Construction Waste (a)
(m3) |
Imported Fill (m3) |
Inert Construction Waste
Re-used (m3) |
Non-inert Construction Waste (b)
(tonnes) |
Recyclable Materials (c) (kg) |
Chemical Wastes (kg) |
Marine Sediment (m3) |
|
Category L |
Category M |
|||||||
September
2014 |
7,722 |
140 |
175 |
238,010 |
34,351 |
0 |
400 |
133 |
October 2014 |
13,860 |
109 |
943 |
268,180 |
105 |
0 |
441 |
222 |
November 2014 |
12,474 |
0 |
3,141 |
114,370 |
133 |
0 |
0 |
234 |
Total |
34,056 |
249 |
4,259 |
620,560 |
34,589 |
0 |
841 |
589 |
Notes: |
||||||||
(a) Inert
construction wastes include hard rock and large broken concrete, and
materials disposed as public fill. (b) Non-inert
construction wastes include general refuse disposed at landfill. (c) Recyclable
materials include metals, paper, cardboard, plastics, timber and others. |
The Contractor
was advised to properly maintain on site C&D materials and waste
collection, sorting and recording system, dispose of C&D materials and
wastes at designated ground and maximize reuse/ recycle of C&D materials
and wastes. The Contractor was also
reminded to properly maintain the site tidiness and dispose of the wastes
accumulated on site regularly and properly.
For
chemical waste containers, the Contractor was reminded to treat properly and
store temporarily in designated chemical waste storage area on site in
accordance with the Code of Practice on
the Packaging, Labelling and Storage of Chemical Wastes.
The status of
environmental licensing and permit is summarized in Table 2.17 below.
Table
2.17 Summary
of Environmental Licensing and Permit Status
License/
Permit |
License or Permit No. |
Date of Issue |
Date of Expiry |
License/
Permit Holder |
Remarks |
Environmental Permit |
EP-354/2009/B |
28 Jan 2014 |
N/A |
HyD |
Tuen Mun- Chek Lap Kok Link |
Construction Dust Notification |
361571 |
5 Jul 2013 |
N/A |
GCL |
- |
Construction Dust Notification |
362093 |
17 Jul 2013 |
N/A |
GCL |
For Area 23 |
Billing Account for Disposal |
7017735 |
10 Jul 2013 |
End of Project |
GCL |
- |
Chemical Waste Registration |
5213-961-G2380-13 |
10 Oct 2013 |
N/A |
GCL |
Chemical waste produced in Contract HY/2012/07 (Area 1 adjacent to Cheng Tung Road, Siu Ho Wan) |
Chemical Waste Registration |
5213-961-G2380-14 |
10 Oct 2013 |
N/A |
GCL |
Chemical waste produced in Contract HY/2012/07 (Area 2 adjacent to Cheung Tung Road, Pak Mong
Village) |
Chemical Waste Registration |
5213-974-G2588-03 |
4 Nov 2013 |
N/A |
GCL |
Chemical waste produced in Contract HY/2012/07 (WA5 adjacent to Cheung Tung Road, Yam O) |
Construction Waste Disposal Account |
7017735 |
10 Jul 2013 |
N/A |
GCL |
Waste disposal in Contract HY/2012/07 |
Waste Water Discharge License |
WT00019017-2014 |
13 May 2014 |
31 May 2019 |
GCL |
Discharge for marine portion |
Waste Water Discharge License |
WT00019018-2014 |
13 May 2014 |
31 May 2019 |
GCL |
Discharge for land portion |
Construction Noise Permit |
GW-RS0419-14 |
15 May 2014 |
13 Nov 2014 |
GCL |
For loading & unloading on NLH near Viaducts A & B |
Construction Noise Permit |
GW-RS0226-14 |
30 Mar 2014 |
29 Sep 2014 |
GCL |
For loading & unloading on NLH near Viaduct D |
Construction Noise Permit |
GW-RS0792-14 |
31 Jul 2014 |
24 Dec 2014 |
GCL |
Broad Permit for Works at Seafront & Marine Piers & Pier B9 |
Construction Noise Permit |
GW-RS0700-14 |
21 Jul 2014 |
31 Dec 2014 |
GCL |
For loading & unloading on NLH near Viaduct A & B |
Dumping Permit/ Loading Permit (Type 1 ¡V Open Sea Disposal) |
(4) in EP/MD/14-075 |
25 Sep 2013 |
N/A |
GCL |
- |
Chemical Waste Registration |
5213-951-G2380-17 |
12 Jun 2014 |
N/A |
GCL |
Viaducts A, B, C, D & E |
Construction Noise Permit for night works and works in general
holidays |
GW-RS0646-14 |
27 Jun 2014 |
26 Oct 2014 |
GCL |
Broad Permit for Works at Seafront & Marine Piers & Pier B9 |
Construction Noise Permit for night works and works in general holidays |
GW-RS0647-14 |
28 Jun 2014 |
26 Oct 2014 |
GCL |
Pier C7 & D8 at CEDD Access Road |
Construction Waste Disposal Account |
7017735 |
10 Jul 2013 |
N/A |
GCL |
- |
Construction Noise Permit |
GW-RW0640-14 |
28 Aug 2014 |
27 Feb 2015 |
GCL |
General works at WA5 |
Marine Dumping Permit |
EP/MD/15-066 |
28 Jul 2014 |
27 Jan 2015 |
GCL |
For dumping Type I sediment |
Construction Noise Permit for night works and works in general
holidays |
GW-RS0942-14 |
11 Sep 2014 |
14 Mar 2015 |
GCL |
For Plant mobilization using tractor |
Construction Noise Permit for night works and works in general
holidays |
GW-RS1032-14 |
25 Sep 2014 |
28 Mar 2015 |
GCL |
For Load unload at NLH near Viaduct D |
Marine Dumping Permit |
EP/MD/15-098 |
1 Sep 2014 |
30 Sep 2014 |
GCL |
For dumping Type I (Dedicated Site) and Type II sediment |
Construction Noise Permit for night works and works in general
holidays |
GW-RS1129-14 |
17 Oct 2014 |
31 Dec 2014 |
GCL |
For Safety Fences at Pier D9 |
Construction Noise Permit for night works and works in general
holidays |
GW-RS1130-14 |
20 Oct 2014 |
22 Apr 2015 |
GCL |
For Plant mobilization using tractor |
Construction Noise Permit for night works and works in general
holidays |
GW-RS1135-14 |
17 Oct 2014 |
15 Dec 2014 |
GCL |
For TTA Case 60-2 Ch.1.3E-3.6E |
Construction Noise Permit for night works and works in general
holidays |
GW-RS1188-14 |
30 Oct 2014 |
31 Dec 2014 |
GCL |
For TTA Cases 50 Airport Road-5.3 |
Marine Dumping Permit |
EP/MD/15-120 |
1 Oct 2014 |
31 Oct 2014 |
GCL |
For dumping Type I (Dedicated Site) and Type II sediment |
Table 2.18 Comparison
between Quarterly Mean and Ambient Mean Values of Depth-averaged Suspended
Solids
Station |
Baseline Mean |
Ambient Mean (a) |
Quarterly Mean (September to
November 2014) |
|||
Mid-ebb |
Mid-flood |
Mid-ebb |
Mid-flood |
Mid-ebb |
Mid-flood |
|
CS(Mf)3 |
9.2 |
12.8 |
12.0 |
16.6 |
9.5 |
9.1 |
CS(Mf)5 |
9.2 |
11.5 |
11.9 |
14.9 |
9.3 |
9.2 |
SR4 |
10.3 |
12.3 |
13.4 |
16.0 |
9.3 |
9.0 |
SR4a |
9.1 |
9.8 |
11.9 |
12.7 |
9.2 |
8.9 |
IS8 |
11.3 |
13.5 |
14.6 |
17.6 |
9.2 |
8.9 |
IS(Mf)9 |
10.9 |
14.3 |
14.2 |
18.5 |
9.2 |
8.9 |
IS(Mf)16 |
11.4 |
10.3 |
14.8 |
13.4 |
9.4 |
9.1 |
Notes: |
||||||
(a)
Ambient mean value is defined as a 30% increase of the baseline mean value |
Two (2) Action
Level exceedances were recorded for impact dolphin monitoring in this reporting
quarter. Following the review of
the monitoring data and marine works details as per the procedure stipulated in
the Event and Action Plan of the Updated EM&A Manual, there is no evidence
showing that the sources of impact directly related to the construction works under
this Contract that may have affected the dolphin usage in the NEL region. Investigation findings are detailed in Appendix L.
December
2014
Marine Works
¡P
Construction of Pile caps at Viaducts B & E;
¡P
Marine piling platform installation for Viaducts A, B,
C, D & E;
¡P
Marine Piling at Viaducts B, C, D & E; and
¡P
Additional marine ground investigation (GI) and
laboratory testing.
Land-based
Works
¡P
Construction of pile cap superstructure of Viaduct B;
¡P
Channel re-construction at Area 1;
¡P
Land Piling at Viaducts B, C & D;
¡P
Pre-drilling works at Viaduct A;
¡P
Construction of pile cap at Viaducts B & D;
¡P
Additional land GI, trial pits & lab testing;
¡P
Utility surveys; and
¡P
Slope work of Slopes 9SE-B/C8, 9SE-B/C9 &
9SE-B/F9.
January 2015
Marine
Works
¡P
Construction of Pile caps at Viaducts B & E;
¡P
Marine piling platform installation for Viaducts A, B,
C, D & E;
¡P
Marine Piling at Viaducts B, C, D & E; and
¡P
Additional marine ground investigation (GI) and
laboratory testing.
Land-based
Works
¡P
Construction of pile cap superstructure of Viaduct B;
¡P
Channel re-construction at Area 1;
¡P
Land Piling at Viaducts B, C & D;
¡P
Pre-drilling works at Viaduct A;
¡P
Construction of pile cap at Viaducts B & D;
¡P
Additional land GI, trial pits & lab testing;
¡P
Utility surveys; and
¡P
Slope work of Slopes 9SE-B/C8, 9SE-B/C9 &
9SE-B/F9.
February 2015
Marine
Works
¡P
Construction of Pile caps at Viaducts B & E;
¡P
Marine piling platform installation for Viaducts A, B,
C, D & E;
¡P
Marine Piling at Viaducts B, C, D & E; and
¡P
Additional marine ground investigation (GI) and
laboratory testing.
Land-based
Works
¡P
Construction of pile cap superstructure of Viaduct B;
¡P
Channel re-construction at Area 1;
¡P
Land Piling at Viaducts B, C & D;
¡P
Pre-drilling works at Viaduct A;
¡P
Construction of pile cap at Viaducts B & D;
¡P
Additional land GI, trial pits & lab testing;
¡P
Utility surveys; and
¡P
Slope work of Slopes 9SE-B/C8, 9SE-B/C9 &
9SE-B/F9.
Potential
environmental impacts arising from the above upcoming construction activities are
mainly associated with air quality, noise, marine water quality, marine ecology
and waste management issues.
Impact
monitoring for air quality, noise, marine water quality and marine ecology
(include dolphin monitoring and post-translocation coral monitoring) are
scheduled to continue for the next reporting period.
The monitoring
programme has been reviewed and was considered as adequate to cater for the
nature of works in progress.
This Fourth Quarterly
EM&A Report presents the findings of the EM&A activities undertaken
during the period from 1 September to 30 November 2014, in accordance with the
Updated EM&A Manual and the requirements of the Environmental Permit (EP-354/2009/B).
Neither Action
Level nor Limit Level exceedances were observed for air quality, noise, water
quality impact monitoring and post-translocation coral monitoring in this
reporting period.
A total of twenty-four
(24) groups of ninety-three (93) Chinese White Dolphins were sighted during the
six sets of surveys from September 2014 to November 2014. Whilst two (2) Action Level exceedances
were recorded for the quarterly dolphin monitoring data between September and
November 2014, no unacceptable impact from the activities of this Contract on
Chinese White Dolphins was noticeable from the general observations. It is critical to monitor the dolphin
usage in North Lantau region in the upcoming quarters, to determine whether the
dolphins are continuously affected by the various construction activities in
relation to the HZMB-related works, and whether suitable mitigation measure can
be applied to revert the situation.
Environmental
site inspection was carried out thirteen (13) times in the reporting period. Recommendations on remedial actions were
given to the Contractor for the deficiencies identified during the site audits.
The monitoring
programme has been reviewed and was considered as adequate to cater for the
nature of works in progress. Change
to the monitoring programme was thus not recommended at this stage. The monitoring programme will be
evaluated as appropriate in the next reporting period. The ET will keep track on the
construction works to confirm compliance of environmental requirements and the
proper implementation of all necessary mitigation measures.
([1])
Agreement No. CE 35/2011 (EP)
Baseline Environmental Monitoring for Hong Kong - Zhuhai - Macao Bridge Hong
Kong Projects - Investigation. Baseline
Environmental Monitoring Report (Version C). Submitted on 8 March 2012 and
subsequently approved by EPD.
([2])
The Proposal of Alternative Dust and Noise
Monitoring Stations with the agreement letter from IEC and SOR was
submitted to EPD on 2 December 2014, and subsequently replied with no objection
on 4 December 2014.
(1)
Agreement No. CE 35/2011 (EP)
Baseline Environmental Monitoring for Hong Kong - Zhuhai - Macao Bridge Hong
Kong Projects - Investigation. Baseline
Environmental Monitoring Report (Version C). Submitted on 8 March 2012 and
subsequently approved by EPD.
