Under Contract No. HY/2017/10, Gammon
Construction Limited (GCL) is commissioned by the Highways Department (HyD) to
undertake Northern Connection Tunnel Buildings, Electrical and Mechanical Works
of the Tuen Mun – Chek Lap Kok Link Project (TM-CLK Link Project) while AECOM Asia
Company Limited was appointed by HyD as the Engineer. For implementation
of the environmental monitoring and audit (EM&A) programme under the
Contract, ERM-Hong Kong, Limited (ERM) has been appointed as the Environmental
Team (ET) in accordance with Environmental Permit No. EP-354/2009/A. Ramboll Hong Kong Ltd. was employed by HyD
as the Independent Environmental Checker (IEC) and Environmental Project Office
(ENPO). Subsequent applications for variation of environmental permits (VEP), EP-354/2009/B,
EP-354/2009/C and EP-354/2009/D, were granted on 28 January 2014, 10
December 2014 and 13 March 2015, respectively.
The
construction phase of the Project commenced on 7 June 2018 and will tentatively
be completed by 2021. The impact monitoring of the EM&A programme,
including air quality and environmental site inspections, were commenced on 7
June 2018.
This is the
Sixth Monthly EM&A report presenting the EM&A works carried out during
the period from 1 to 30 November 2018 for the Contract No. HY/2017/10 Northern Connection Tunnel Buildings, Electrical
and Mechanical Works (the “Project”) in
accordance with the Updated EM&A Manual of the TM-CLK Link Project. As informed by the Contractor,
major activities in the reporting period included:
Land-based
Works
·
Bar
bending, timber formwork and concreting at Toll Control Building;
·
Architectual,
Builder’s Work and Finishing and Electrical
and Mechanical Works at Ventilation Plant Room;
·
Electrical and Mechanical Works at Northern
Ventilation Building;
·
Excavation
at Administration Building;
·
Excavation
at Maintainence Depot;
·
Pre-drilling
and socket H-piling at Customs & Excise Department Building; and
·
Trial
pits, pre-drilling and socket H-piling at Fire Service Department Building.
A summary of
monitoring and audit activities conducted in the reporting period is listed
below ([1]):
24-hour TSP
Monitoring
10 sessions
1-hour TSP
Monitoring 10
sessions
Joint
Environmental Site Inspection 5 sessions
Summary of
Breaches of Action/Limit Levels
Breaches of
Action and Limit Levels for Air Quality
Six (6)
Action Level exceedances for 1-hour TSP were recorded by the Environmental Team
of Contract No. HY/2012/08 during the reporting period.
Environmental
Complaints, Non-compliance & Summons
There was no
environmental complaint, notification of summons or successful prosecution
recorded in the reporting period.
Reporting
Change
There was no
reporting change in the reporting period.
Upcoming
Works for the Next Reporting Month
Works to be
undertaken in the next monitoring period of December 2018 include the
following:
Land-based
Works
·
Bar
bending, timber formwork and concreting at Toll Control Building;
·
Architectual,
Builder’s Work and Finishing and Electrical
and Mechanical Works at Ventilation Plant Room;
·
Electrical and Mechanical Works at Northern
Ventilation Building;
·
Foundation
building at Administration Building;
·
Foundation
building at Maintenance Depot; and
·
Socket
H-piling at Fire Services Department Building and Customs and Excise Department
Building.
Future Key
Issues
Potential
environmental impacts arising from the above upcoming construction activities
in the next reporting month of December 2018 are mainly associated with dust
and waste management issues.
According to
the findings of the Northwest New Territories (NWNT) Traffic and Infrastructure
Review conducted by the Transport Department, Tuen Mun Road, Ting Kau Bridge,
Lantau Link and North Lantau Highway would be operating beyond capacity after
2016. This forecast has been based on the estimated increase in cross
boundary traffic, developments in the Northwest New Territories (NWNT), and
possible developments in North Lantau, including the Airport developments, the
Lantau Logistics Park (LLP) and the Hong Kong – Zhuhai – Macao Bridge (HZMB).
In order to cope with the anticipated traffic demand, two new road
sections between NWNT and North Lantau – Tuen Mun – Chek Lap Kok Link (TM-CLKL)
and Tuen Mun Western Bypass (TMWB) are proposed.
An
Environmental Impact Assessment (EIA) of TM-CLKL (the Project) was prepared in
accordance with the EIA Study Brief (No. ESB-175/2007) and the Technical
Memorandum of the Environmental Impact Assessment Process (EIAO-TM).
The EIA Report was submitted under the Environmental Impact Assessment
Ordinance (EIAO) in August 2009. Subsequent to the approval of the EIA
Report (EIAO Register Number AEIAR-146/2009), an Environmental Permit
(EP-354/2009) for TM-CLKL was granted by the Director of Environmental
Protection (DEP) on 4 November 2009, and EP variation (VEP) (EP-354/2009/A) was
issued on 8 December 2010. Subsequent applications for variation of
environmental permits (VEPs), EP-354/2009/B, EP-354/2009/C and
EP-354/2009/D, were granted on 28 January 2014, 10 December 2014 and 13
March 2015, respectively.
Under Contract No. HY/2017/10, Gammon
Construction Limited (GCL) is commissioned by the Highways Department (HyD) to
undertake the Northern Connection Tunnel Buildings, Electrical and Mechanical
Works of TM-CLKL while AECOM Asia Company Limited was appointed by HyD as
the Engineer. For implementation of the environmental monitoring and
audit (EM&A) programme under the Contract, ERM-Hong Kong, Limited (ERM) has
been appointed as the Environmental Team (ET). Ramboll Hong Kong Ltd. was employed
by HyD as the Independent Environmental Checker (IEC) and Environmental Project
Office (ENPO).
The
construction phase of the Contract commenced on 7 June 2018 and will be
tentatively completed by 2021. The impact monitoring phase of the
EM&A programme, including air quality and environmental site inspections,
commenced on 7 June 2018.

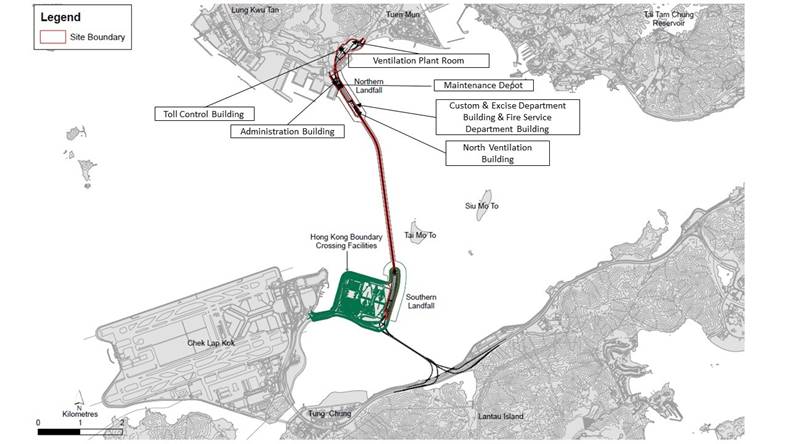

The general
layout plan of the Contract components is presented in Figures 1.1 & 1.2a to c.
The
organization structure of the Contract is shown in Appendix A. The
key personnel contact names and contact details are summarized in Table 1.1
below.
Table 1.1
Contact Information of Key Personnel
Party |
Position |
Name |
Telephone |
Fax |
HyD (Highways Department) |
Project Coordinator |
Joseph Lee |
2762 4958 |
3188 6614 |
|
Senior Engineer |
Cheng Pan
|
2762 3383 |
3188 6614 |
ER (AECOM Asia Company Limited)
|
Principle Resident Engineer |
S. W. Fok |
2293 6200 |
2293 6300 |
|
Resident Engineer
|
Desmond Fung |
2293 6200 |
2293 6300 |
ENPO / IEC (Ramboll Hong Kong Ltd.) |
ENPO Leader
|
Y.H. Hui |
3465 2850 |
3465 2899 |
IEC
|
Dr. F.C. Tsang |
3465 2851 |
3465 2899 |
|
Contractor (Gammon Construction Limited) |
Site Agent
|
Kenneth Tai |
9039 4723 |
- |
Environmental Officer |
Max Poon |
9103 6303 |
- |
|
|
|
|
|
|
ET (ERM-HK) |
ET Leader |
Dr. Jasmine Ng |
2271 3311 |
2723 5660 |
The
construction phase of the Contract commenced on 7 June 2018. The
three-month rolling construction programme is shown in Appendix B.
As informed
by the Contractor, details of the major works carried out in this reporting
month are listed below:
Land-based
Works
·
Bar
bending, timber formwork and concreting at Toll Control Building;
·
Architectual,
Builder’s Work and Finishing and Electrical
and Mechanical Works at Ventilation Plant Room;
·
Electrical and Mechanical Works at Northern
Ventilation Building;
·
Excavation
at Administration Building;
·
Excavation
at Maintainence Depot;
·
Pre-drilling
and socket H-piling at Customs & Excise Department Building; and
·
Trial
pits, pre-drilling and socket H-piling at Fires Service Department Building.
The locations
of the construction activities are shown in Figure 1.3.
The Environmental Sensitive Receivers in the vicinity of the Project are shown
in Figure 1.4.
Figure 1.3 Locations of Major Construction
Activities in the Reporting Month
|
The EM&A
programme required environmental monitoring for air quality and environmental
site inspections for air quality, water quality and waste management. The
EM&A requirements and related findings for each component are summarized in
the following sections
In accordance
with the Updated EM&A Manual and the Enhanced TSP Monitoring Plan, impact 1-hour
TSP monitoring was conducted three (3) times every six (6) days and impact
24-hour TSP monitoring was carried out once every six (6) days when the highest
dust impact was expected. 1-hr and 24-hr TSP monitoring frequency was
increased to three times per day every three days and daily every three days,
respectively, as excavation works for launching shaft under Contract No.
HY/2012/08 Tuen Mun-Chek Lap Kok Link – Northern Connection Sub-sea Tunnel
Section commenced on 24 October 2014.
Results of air quality monitoring were adopted from
the published EM&A data of Contract No. HY/2012/08 Tuen Mun-Chek Lap Kok
Link – Northern Connection Sub-sea Tunnel Section ([2]).
The locations
of the monitoring stations overlapped with Contract No. HY/2012/08 are shown in
Figure 2.1 and
presented in Table 2.1.
Table 2.1
Locations of Impact Air Quality Monitoring Stations and and its Corresponding
Monitoring Requirements
Monitoring Station |
Monitoring Dates |
Location |
Description |
Parameters & Frequency |
ASR1 |
3, 6, 9, 12, 15, 18, 21, 24, 27 and 30 November 2018 |
Tuen Mun Fireboat Station
|
Office |
TSP monitoring 1-hour Total Suspended Particulates (1-hour TSP, µg/m3), 3 times in every 6 days 24-hour Total Suspended Particulates (24-hour TSP, µg/m3), daily for 24-hour in every 6 days Enhanced TSP monitoring (commenced on 24 October 2014 under Contract No. HY/2012/08) 1-hour Total Suspended Particulates (1-hour TSP, µg/m3), 3 times in every 3 days 24-hour Total Suspended Particulates (24-hour TSP, µg/m3), daily for 24-hour in every 3 days |
ASR5 |
|
Pillar Point Fire Station
|
Office |
|
AQMS1 |
|
Previous River Trade Golf
|
Bare ground |
|
ASR6 |
|
Butterfly Beach Laundry
|
Office |
|
ASR10 |
|
Butterfly Beach Park |
Recreational uses |
Six (6)
Action Level exceedances for 1-hour TSP on 6 and 12 November 2018 were
recorded by the Environmental Team of Contract No. HY/2012/08 during the
reporting period. The exceedances
were considered not related to this Contract upon further investigation and the
investigation report is presented in Appendix G. No action is required to be undertaken in
accordance with the Event Action Plan as presented in Appendix E. The exceedance
recorded on 31 October 2018 was under investigation during the preparation of
the last Monthly EM&A report, thus the investigation report is also
presented in Appendix G.
No exceedance
of Action and Limit Levels for 24-hour TSP was recorded in the reporting month.
Site
inspections were carried out on a weekly basis to monitor the implementation of
proper environmental pollution control and mitigation measures under the
Contract. In the reporting month, five (5) site inspections were carried
out on 2, 9, 16, 23 and 30 November 2018.
Key
observations and recommendations during the site inspections in this reporting
period are summarized in Table 2.2.
Table 2.2 Specific Observations and
Recommendations during the Weekly Site Inspection in this Reporting Month
Inspection Date |
Observations |
Recommendations/ Remarks |
2 November 2018 |
Administration Building Stagnant water in drip tray should be cleared. Stagnant water is observed near grouting station.
Toll Control Building The refuse skip should be cleared regularly to prevent overloading.
|
Administration Building Clear stagnant water in drip tray Improve the drainage near the works area of the grouting station.
Toll Control Building The refuse skip should be cleared regularly to prevent overloading. |
9 November 2018 |
Administration Builiding Ÿ Stockpile of
cement bags should be covered with tarpaulin. Ÿ Stagnant
water in drip tray should be discharged. Fire Services Department Building Ÿ Oil leakage
was observed in the pipe of the water pump. |
Administration Building. The Contractor was reminded to cover stockpile of cement bags with tarpaulin. The Contractor was reminded to discharge stagnant water in drip tray.
Fire Services Department Building The Contractor has been reminded to fix the oil leakage in the pipe of the water pump. |
16 November 2018 |
Fire Services Department
Building Decolorized NRMM label should be replaced on the generator.
|
Fire Services Department
Building The Contractor has been reminded to replace NRMM label on the generator. |
23 November 2018
|
Maintenance Depot Water should be applied on unpaved road.
North Ventilation Building Accumulated refuse should be cleared. |
Maintenance Depot The Contractor has been reminded to water unpaved road.
North Ventilation Building The Contractor has been reminded to clear accumulated refuse. |
30 November 2018 |
Toll Control Building General refuse and silt should be cleared in the drainage. General refuse bin should be properly placed on the ground. |
Toll Control Building The Contractor has been reminded to clear general refuse and silt in the drainage. The Contractor has been reminded to place general refuse bin properly on the ground.
|
The
Contractor has rectified all of the observations as identified during
environmental site inspections in the reporting month.
No
excavation work was conducted at the excavation area in November 2018 and thus
landfill gas hazard monitoring was temporary suspended in November 2018.
The Contractor
had submitted application form for registration as chemical waste producer
under the Contract. Sufficient numbers of receptacles were available for
general refuse collection and sorting.
Wastes
generated during this reporting period included mainly construction wastes
(inert and non-inert). Reference has been made to the waste flow table
prepared by the Contractor (Appendix F). The quantities of different types of
wastes are summarized in Table 2.3.
Table 2.3
Quantities of Different Waste Generated in the Reporting Month
Month/Year |
Inert C&D Materials (a) (m3) |
Inert Construction Waste Re-used (m3) |
Non-inert Construction Waste (b) (kg) |
Imported Fill (m3) |
Recyclable Materials (c) (kg) |
Chemical Wastes (kg) |
|||
|
|||||||||
November 2018 |
253 |
10 |
11,720 |
0 |
0 |
|
0 |
|
|
|
Notes: |
|
|||||||
|
(a) Inert construction wastes include hard rock and large broken concrete, and materials disposed as public fill. (b) Non-inert construction wastes include general refuse disposed at landfill. (c) Recyclable materials include metals, paper, cardboard, plastics, timber and others. |
|
|||||||
The
Contractor was advised to properly maintain on site C&D materials and waste
collection, sorting and recording system, dispose of C&D materials and
wastes at designated ground and maximize reuse/ recycle of C&D materials
and wastes. The Contractor was also reminded to properly maintain the
site tidiness and dispose of the wastes accumulated on site regularly and
properly.
For chemical
waste containers, the Contractor was reminded to treat properly and store
temporarily in designated chemical waste storage area on site in accordance
with the Code of Practice on the Packaging, Labelling and Storage of
Chemical Wastes.
The status of
environmental licensing and permit is summarized in Table 2.4 below.
Table
2.4 Summary of Environmental Licensing
and Permit Status
License/ Permit |
License or Permit No. |
Date of Issue |
Date of Expiry |
License/ Permit Holder |
Remarks |
Environmental Permit |
EP-354/2009/D |
13 March 2015 |
N/A |
HyD |
Tuen Mun- Chek Lap Kok Link |
APCO Construction Dust Notification |
433493 |
14 May 2018 |
N/A |
GCL |
For Tuen Mun working area |
Construction Waste Billing Account |
7030836 |
15 May 2018 |
N/A |
GCL |
N/A |
Chemical Waste Producer Registration |
5213-422-G2827-01 |
13 June 2018 |
N/A |
GCL |
N/A |
WPCO Licence for Buildings at C2 area |
WT00031783-2018 |
22 October 2018 |
31 October 2023 |
GCL |
Sampling Frequency: Bimonthly |
WPCO Licence for Buildings at C3 area |
WT00032062-2018 |
30 October 2018 |
31 October 2023 |
GCL |
Sampling Frequency: Quarterly |
Construction Noise Permit |
GW-RW0451-18 |
2 November 2018 |
25 April 2019 |
GCL |
For Toll Control Building, Administration Building, Maintenance Depot and WA18 |
In response to
the site audit findings, the Contractors carried out all corrective actions.
A summary of
the Implementation Schedule of Environmental Mitigation Measures (EMIS) is
presented in Appendix C.
The necessary mitigation measures relevant to this Contract were implemented
properly.
The landscape
and visual (L&V) mitigation measures were also monitored on weekly basis in
the reporting period. The monitoring status is summarized in Appendix C.
Six (6)
Action Level exceedances for 1-hour TSP were recorded by the Environmental Team
of Contract No. HY/2012/08 during the reporting period. The
exceedances were considered not related to this Contract upon further
investigation and the investigation report is presented in Appendix G. The
exceedance recorded on 31 October 2018 was under investigation during the
preparation of the last Monthly EM&A report, thus the investigation report
is also presented in Appendix
G. No action is required to be undertaken in accordance with the
Event Action Plan as presented in Appendix E.
No exceedance
of 24-hour TSP was recorded in this reporting month.
Cumulative
statistics are provided in Appendix
G.
The
Environmental Complaint Handling Procedure is provided in Figure 2.2.
There was no
environmental complaint, notification of summons or successful prosecution
recorded in the reporting period.
Statistics on
complaints, notifications of summons, successful prosecutions are summarized in
Appendix G.
As informed by
the Contractor, the major works for the Project in December 2018 will be:
·
Bar
bending, timber formwork and concreting at Toll Control Building;
·
Architectual,
Builder’s Work and Finishing and Electrical
and Mechanical Works at Ventilation Plant Room;
·
Electrical and Mechanical Works at Northern
Ventilation Building;
·
Foundation
building at Administration Building;
·
Foundation
building at Maintenance Depot; and
·
Socket
H-piling at Fire Services Department Building and Customs and Excise Department
Building.
Potential environmental impacts arising from the
above upcoming construction activities in the next reporting month of December
2018 are mainly associated with dust and waste management issues.
This Sixth Monthly
EM&A Report presents the findings of the EM&A activities undertaken
during the period from 1 to 30 November 2018, in accordance with the Updated
EM&A Manual and the requirements of EP-354/2009/D.
Air quality (including 1-hour TSP and 24-hour TSP)
was carried out in this reporting month.
Six (6) Action Level exceedances for 1-hour TSP were
recorded by the Environmental Team of Contract No. HY/2012/08 during the
reporting period. The exceedances
were considered not related to this Contract upon further investigation and the
investigation report is presented in Appendix G. The exceedance recorded on 31 October 2018 was
under investigation during the preparation of the last Monthly EM&A report,
thus the investigation report is also presented in Appendix G. No
action is required to be undertaken in accordance with the Event Action Plan as
presented in Appendix E.
No exceedance
of Action and Limit Levels for 24-hour TSP was recorded in the reporting month.
Environmental site inspection was carried out five
(5) times in November 2018. Remedial
actions recommended for the deficiencies identified during the site audits were
properly implemented by the Contractor.
There was no
environmental complaint, notification of summons or successful prosecution
recorded in the reporting period.
The ET will keep track on the construction works to
confirm compliance of environmental requirements and the proper implementation
of all necessary mitigation measures.
