Under Contract No. HY/2017/10,
Gammon Construction Limited (GCL) is commissioned by the Highways Department (HyD) to undertake Northern Connection Tunnel Buildings, Electrical
and Mechanical Works of the Tuen Mun
– Chek Lap Kok Link Project
(TM-CLK Link Project) while AECOM
Asia Company Limited was appointed by HyD as the
Engineer. For implementation of the environmental monitoring and audit
(EM&A) programme under the Contract, ERM-Hong
Kong, Limited (ERM) has been appointed as the Environmental Team (ET) in
accordance with Environmental Permit No. EP-354/2009/A.
Ramboll Hong Kong Ltd. was employed by HyD as the Independent Environmental Checker (IEC) and
Environmental Project Office (ENPO). Subsequent applications for variation of environmental
permits (VEP), EP-354/2009/B, EP-354/2009/C and EP-354/2009/D,
were granted on 28 January 2014, 10 December 2014 and 13 March 2015,
respectively.
The
construction phase of the Contract commenced on 7 June 2018 and will
tentatively be completed by 2021. The impact monitoring of the EM&A programme, including air quality and environmental site
inspections, were commenced on 7 June 2018.
This
is the Twenty-fifth Monthly EM&A report presenting the EM&A works
carried out during the period from 1 to 30 June 2020 for the Contract No.
HY/2017/10 Northern Connection Tunnel Buildings, Electrical and
Mechanical Works (the “Contract”)
in accordance with the Updated EM&A Manual of the TM-CLK Link Project. As informed by the
Contractor, major activities in the reporting period included:
Land-based Works
·
Electrical and Mechanical Works and Architectural Builder’s Work and
Finishes at Main Control Building;
· Electrical
and Mechanical Works at Ventilation Plant Room;
·
Electrical and Mechanical Works at North Ventilation Building;
· Electrical
and Mechanical Works and Architectural Builder's Work and Finishes at
Administration Building;
· Electrical
and Mechanical Works and Architectural Builder's Work and Finishes at
Maintenance Depot;
· Electrical
and Mechanical Works and Architectural Builder's Work and Finishes at Fire
Services Department Building;
· Electrical
and Mechanical Works and Architectural Builder's Work and Finishes at Customs
and Excise Department Building;
· Electrical
and Mechanical Works and Architectural Builder's Work
and Finishes at N1;
· Electrical
and Mechanical Works at Kiosk N2;
· Electrical
and Mechanical Works and Architectural Builder's Work and Finishes at the
Tunnel;
· Electrical
and Mechanical Works and Architectural Builder’s Work and Finishes at underpass
at C3 area;
· Electrical
and Mechanical Works and Architectural Builder’s Work and Finishes at Satellite
Control Building;
· Electrical
and Mechanical Works and Architectural Builder’s Work and Finishes at Kiosk S2;
and
· Electrical
and Mechanical Works at South Ventilation Building.
A summary of monitoring and audit
activities conducted in the reporting period is listed below ([1]):
24-hour
TSP Monitoring
10 sessions
1-hour
TSP
Monitoring
10 sessions
Joint
Environmental Site Inspection 4
sessions
Summary
of Breaches of Action/Limit Levels
Breaches
of Action and Limit Levels for Air Quality
One
(1) Action Level exceedance for 1-hour TSP was recorded by the
Environmental Team of Contract No. HY/2012/08 during the reporting
period. No exceedance of Action and Limit Levels for 24-hour TSP were recorded.
Breaches
of Action Level for Landfill Gas Hazard Montioring
No
excavation work was conducted at the excavation area in the reporting period
and thus no landfill gas hazard monitoring was undertaken in the reporting
period.
Environmental
Complaints, Non-compliance & Summons
There
was no environmental complaint, notification of summons or successful
prosecution recorded in the reporting period.
Reporting Change
There was no reporting change in the
reporting period.
Upcoming
Works for the Next Reporting Month
Works
to be undertaken in the next monitoring period of July 2020 include the
following:
Land-based Works
·
Electrical and Mechanical Works and Architectural Builder’s Work and
Finishes at Main Control Building;
· Electrical
and Mechanical Works at Ventilation Plant Room;
·
Electrical and Mechanical Works at North Ventilation Building;
· Electrical
and Mechanical Works and Architectural Builder's Work and Finishes at
Administration Building;
· Electrical
and Mechanical Works and Architectural Builder's Work and Finishes at
Maintenance Depot;
· Electrical
and Mechanical Works and Architectural Builder's Work and Finishes at Fire
Services Department Building;
· Electrical
and Mechanical Works and Architectural Builder's Work and Finishes at Customs
and Excise Department Building;
· Electrical
and Mechanical Works and Architectural Builder's Work and Finishes at N1;
· Electrical
and Mechanical Works at Kiosk N2;
· Electrical
and Mechanical Works and Architectural Builder's Work and Finishes at the
Tunnel;
· Electrical
and Mechanical Works and Architectural Builder’s Work and Finishes at underpass
at C3 area;
· Electrical
and Mechanical Works and Architectural Builder’s Work and Finishes at Satellite
Control Building;
· Electrical
and Mechanical Works and Architectural Builder’s Work and Finishes at Kiosk S2;
· Electrical
and Mechanical Works at South Ventilation Building; and
· Landscape
Works at Northern Landfall and Southern Landfall.
Future
Key Issues
Potential
environmental impacts arising from the above upcoming construction activities
in the next reporting month of July 2020 are mainly associated with dust and
waste management issues.
According to the findings of the
Northwest New Territories (NWNT) Traffic and Infrastructure Review conducted by
the Transport Department, Tuen Mun
Road, Ting Kau Bridge, Lantau Link and North Lantau
Highway would be operating beyond capacity after 2016. This forecast has
been based on the estimated increase in cross boundary traffic, developments in
the Northwest New Territories (NWNT), and possible developments in North Lantau,
including the Airport developments, the Lantau Logistics Park (LLP) and the
Hong Kong – Zhuhai – Macao Bridge (HZMB). In order to cope with the
anticipated traffic demand, two new road sections between NWNT and North Lantau
– Tuen Mun – Chek Lap Kok Link (TM-CLKL) and Tuen Mun Western Bypass (TMWB)
are proposed.
An Environmental Impact Assessment (EIA)
of TM-CLKL (the Project) was prepared in accordance with the EIA Study Brief
(No. ESB-175/2007) and the Technical Memorandum of the Environmental Impact
Assessment Process (EIAO-TM). The EIA Report was submitted
under the Environmental Impact Assessment Ordinance (EIAO) in August 2009.
Subsequent to the approval of the EIA Report (EIAO Register Number
AEIAR-146/2009), an Environmental Permit (EP-354/2009) for TM-CLKL was granted
by the Director of Environmental Protection (DEP) on 4 November 2009, and EP
variation (VEP) (EP-354/2009/A) was issued on 8 December 2010. Subsequent
applications for variation of environmental permits (VEPs), EP-354/2009/B,
EP-354/2009/C and EP-354/2009/D, were granted on 28 January 2014, 10
December 2014 and 13 March 2015, respectively.
Under
Contract No. HY/2017/10, Gammon Construction Limited (GCL) is
commissioned by the Highways Department (HyD) to
undertake the Northern Connection Tunnel Buildings, Electrical and Mechanical
Works of TM-CLKL while AECOM
Asia Company Limited was appointed by HyD as the
Engineer. For implementation of the environmental monitoring and audit
(EM&A) programme under the Contract, ERM-Hong
Kong, Limited (ERM) has been appointed as the Environmental Team (ET).
Ramboll Hong Kong Ltd.
was employed by HyD as the Independent Environmental
Checker (IEC) and Environmental Project Office (ENPO).
The construction phase of the Contract
commenced on 7 June 2018 and will be tentatively completed by 2021. The
impact monitoring phase of the EM&A programme,
including air quality and environmental site inspections, commenced on 7 June
2018.
The general layout plan of the Contract
components is presented in Figures
1.1 & 1.2a to c.
The organization structure of the
Contract is shown in Appendix
A. The key personnel contact names and contact details are
summarized in Table 1.1 below.
Table
1.1 Contact Information of Key
Personnel
Party |
Position |
Name |
Telephone |
Fax |
HyD (Highways Department) |
Project
Coordinator |
Joseph
Lee |
2762
4958 |
3188
6614 |
|
Senior
Engineer |
Cheng
Pan |
2762
3383 |
3188
6614 |
ER (AECOM
Asia Company Limited) |
Principle
Resident Engineer |
S.
W. Fok |
2293
6200 |
2293
6300 |
|
Resident
Engineer |
Desmond
Fung |
2293
6200 |
2293
6300 |
ENPO / IEC (Ramboll Hong Kong Ltd.) |
ENPO
Leader |
Y.H.
Hui |
3465 2850 |
3465
2899 |
IEC |
Manson
Yeung |
9700 6767 |
3465
2899 |
|
|
|
|
|
|
Contractor
(Gammon
Construction Limited) |
Site
Agent |
Kenneth
Tai |
9039
4723 |
- |
Environmental
Officer |
Max
Poon |
9103
6303 |
- |
|
|
|
|
|
|
ET
(ERM-HK) |
ET
Leader |
Dr.
Jasmine Ng |
2271
3311 |
2723
5660 |
|
|
|
|
|
|
The construction phase of the Contract
commenced on 7 June 2018. The three-month rolling construction programme is shown in Appendix B.
As informed by the Contractor, details
of the major works carried out in this reporting month are listed below:
Land-based Works
·
Electrical and Mechanical Works and Architectural Builder’s Work and
Finishes at Main Control Building;
· Electrical
and Mechanical Works at Ventilation Plant Room;
·
Electrical and Mechanical Works at North Ventilation Building;
· Electrical
and Mechanical Works and Architectural Builder's Work and Finishes at
Administration Building;
· Electrical
and Mechanical Works and Architectural Builder's Work and Finishes at
Maintenance Depot;
· Electrical
and Mechanical Works and Architectural Builder's Work and Finishes at Fire
Services Department Building;
· Electrical
and Mechanical Works and Architectural Builder's Work and Finishes at Customs
and Excise Department Building;
· Electrical
and Mechanical Works and Architectural Builder's Work and Finishes at N1;
· Electrical
and Mechanical Works at Kiosk N2;
· Electrical
and Mechanical Works and Architectural Builder's Work and Finishes at the
Tunnel;
· Electrical
and Mechanical Works and Architectural Builder’s Work and Finishes at underpass
at C3 area;
· Electrical
and Mechanical Works and Architectural Builder’s Work and Finishes at Satellite
Control Building;
· Electrical
and Mechanical Works and Architectural Builder’s Work and Finishes at Kiosk S2;
and
· Electrical
and Mechanical Works at South Ventilation Building.
The locations of the construction
activities are shown in Figure
1.3. The Environmental Sensitive Receivers in the vicinity of the
Contract are shown in Figure
1.4.
Figure 1.3 Locations of Major
Construction Activities in the Reporting Month
The EM&A programme
required environmental monitoring for air quality and environmental site
inspections for air quality, water quality and waste management. The
EM&A requirements and related findings for each component are summarized in
the following sections
In accordance with the Updated EM&A
Manual and the Enhanced TSP Monitoring Plan, impact 1-hour TSP monitoring was
conducted three (3) times every six (6) days and impact 24-hour TSP monitoring
was carried out once every six (6) days when the highest dust impact was
expected. 1-hr and 24-hr TSP monitoring frequency was increased to three
times per day every three days and daily every three days, respectively, as
excavation works for launching shaft under Contract No. HY/2012/08 Tuen Mun-Chek Lap Kok Link – Northern Connection Sub-sea Tunnel Section
commenced on 24 October 2014.
Results
of air quality monitoring were adopted from the published EM&A data of Contract
No. HY/2012/08 Tuen Mun-Chek
Lap Kok Link – Northern Connection Sub-sea Tunnel
Section ([2]).
The locations of the monitoring stations
overlapped with Contract No. HY/2012/08 are shown in Figure 2.1
and presented in Table 2.1.
Table 2.1 Locations of
Impact Air Quality Monitoring Stations and its Corresponding Monitoring
Requirements
Monitoring Station |
Monitoring Dates |
Location |
Description |
Parameters & Frequency |
ASR1 |
1,
4, 7, 10, 13, 16, 19, 22, 25 and 28 June 2020 |
Tuen Mun
Fireboat Station |
Office |
TSP
monitoring Ÿ 1-hour
Total Suspended Particulates (1-hour TSP, µg/m3), 3 times in every
6 days Ÿ 24-hour
Total Suspended Particulates (24-hour TSP, µg/m3), daily for
24-hour in every 6 days Enhanced
TSP monitoring (commenced on 24 October 2014 under Contract No. HY/2012/08) Ÿ 1-hour
Total Suspended Particulates (1-hour TSP, µg/m3), 3 times in every
3 days Ÿ 24-hour
Total Suspended Particulates (24-hour TSP, µg/m3), daily for
24-hour in every 3 days |
ASR5 |
|
Pillar
Point Fire Station |
Office |
|
AQMS1 |
|
Previous
River Trade Golf |
Bare
ground |
|
ASR6 |
|
Butterfly
Beach Laundry |
Office |
|
ASR10 |
|
Butterfly
Beach Park |
Recreational
uses |
One
(1) Action Level exceedance for 1-hour
TSP was recorded by the Environmental Team of Contract No. HY/2012/08
during the reporting period. No exceedance of Action
and Limit Levels for 24-hour
TSP were recorded. The exceedance was considered not related
to this Contract upon further investigation and the investigation report is
presented in Appendix G. No action is required to be undertaken in accordance with
the Event Action Plan as presented in Appendix E.
In accordance with the Updated EM&A
Manual of the TM-CLK Link
Project, landfill gas hazard monitoring should be perform to ensure that the
works area at Pillar Point Valley (PPV) Landfill is free of landfill gas during
any excavations works.
No excavation work was conducted at the
excavation area in the reporting period and thus no landfill gas hazard
monitoring was undertaken in the reporting period.
Site inspections were carried out on a
weekly basis to monitor the implementation of proper environmental pollution
control and mitigation measures under the Contract. In the reporting
month, four (4) site inspections were carried out on 5, 12, 19 and 26 June
2020.
Key observations and recommendations
during the site inspections in this reporting period are summarized in Table
2.2.
Table
2.2 Specific Observations and
Recommendations during the Weekly Site Inspection in this Reporting Month
Inspection Date |
Observations |
Recommendations/ Remarks |
5 June 2020 |
Fire
Services Department Building
Ÿ
Accumulated residuals were observed on site. Ÿ
Stagnant water was observed on site. Ÿ
Oil spillage was observed on site. Ÿ
Chemical was not placed on drip tray. Customs
and Excise Department Building Ÿ
Accumulated residuals were observed on site. Ÿ
Oil spillage was observed on site. Ÿ
Stagnant water was observed on site and on drip tray. Ÿ
A chemical was not placed on drip tray. |
Fire
Services Department Building
Ÿ
The Contractor was reminded to keep
better housekeeping. Ÿ
The Contractor was reminded to clean the
stagnant water. Ÿ
The Contractor was reminded to clean the
oil and place a drip tray beneath the machine. Ÿ
The Contractor was reminded to place the
chemical on a drip tray. Customs
and Excise Department Building Ÿ
The Contractor was reminded to keep
better housekeeping. Ÿ
The Contractor was reminded to clean the
oil and place a drip tray beneath the machine. Ÿ
The Contractor was reminded to clean the
stagnant water. Ÿ
The Contractor was reminded to place the
chemical on a drip tray. |
12 June 2020 |
Fire
Services Department Building
Ÿ
Chemical container should be placed on drip
tray. |
Fire
Services Department Building Ÿ
The Contractor was reminded to place
chemical container on drip tray. |
19 June 2020 |
Northern
landfall (Container Office) Ÿ
Better housekeeping should be maintained. Ÿ
Chemical container should be placed on drip
tray. Southern
landfall (Container Office) Ÿ
Chemical container should be placed on drip
tray. |
Northern
landfall (Container Office) Ÿ
The Contractor was reminded to keep
better housekeeping. Ÿ
The Contractor was reminded to place
chemicals on a drip tray. Southern
landfall (Container Office) Ÿ
The Contractor was reminded to place
chemicals on drip tray. |
26 June 2020 |
Customs
and Excise Department Building Ÿ
A few chemical containers were not
placed on drip tray. |
Customs
and Excise Department Building Ÿ
The Contractor was reminded to store the
chemicals properly. |
The Contractor has rectified all of the
observations as identified during environmental site inspections in the
reporting month.
The Contractor had submitted application
form for registration as chemical waste producer under the Contract.
Sufficient numbers of receptacles were available for general refuse
collection and sorting.
Wastes generated during this reporting
period included mainly construction wastes (inert and non-inert).
Reference has been made to the waste flow table prepared by the Contractor (Appendix F). The
quantities of different types of wastes are summarized in Table 2.3.
Table
2.3 Quantities of Different
Waste Generated in the Reporting Month
Month/Year |
Inert C&D Materials (a)
(m3) |
Inert Construction Waste Re-used (m3) |
Non-inert Construction Waste (b)
(kg) |
Imported
Fill (m3) |
Recyclable Materials (c)
(kg) |
Chemical Wastes (kg) |
|
|
|||||||
June
2020 |
17,749 |
0 |
255,300 |
17,294 |
0 |
0 |
|
|
Notes: |
|
|||||
|
(a)
Inert construction wastes
include hard rock and large broken concrete disposed as public fill. (b)
Non-inert construction
wastes include general refuse disposed at landfill. (c)
Recyclable materials
include metals, paper, cardboard, plastics, timber and others. |
|
|||||
The Contractor was advised to properly
maintain on site C&D materials and waste collection, sorting and recording
system, dispose of C&D materials and wastes at designated ground and
maximize reuse/ recycle of C&D materials and wastes. The Contractor
was also reminded to properly maintain the site tidiness and dispose of the
wastes accumulated on site regularly and properly.
For chemical waste containers, the
Contractor was reminded to treat properly and store temporarily in designated
chemical waste storage area on site in accordance with the Code of Practice
on the Packaging, Labelling and Storage of Chemical Wastes.
The status of environmental licensing
and permit is summarized in Table 2.4 below.
Table
2.4 Summary of Environmental Licensing and Permit Status
License/
Permit |
License or
Permit No. |
Date of Issue |
Date of
Expiry |
License/ Permit Holder |
Remarks |
Environmental
Permit |
EP-354/2009/D |
13 March 2015 |
N/A |
HyD |
Tuen Mun- Chek Lap Kok Link |
APCO
Construction Dust Notification |
433493 |
14 May 2018 |
N/A |
GCL |
For
Tuen Mun working area |
Construction
Waste Billing Account |
7030836 |
15
May 2018 |
N/A |
GCL |
N/A |
Chemical Waste
Producer Registration |
5213-422-G2827-01 |
13
June 2018 |
N/A |
GCL |
N/A |
Discharge
License under WPCO for Buildings at C2 area |
WT00031783-2018 |
22
October 2018 |
31 October
2023 |
GCL |
Sampling
Frequency: Bimonthly |
Discharge
License under WPCO for Buildings at C3 area |
WT00032062-2018 |
30
October 2018 |
31 October
2023 |
GCL |
Sampling
Frequency: Quarterly |
Discharge
License under WPCO for Southern Landfall |
WT00034878-2019 |
1
April 2020 |
31 March 2025 |
GCL |
Sampling
Frequency: Quarterly |
Construction
Noise Permit |
GW-RW0054-20 |
11 February
2020 |
11 August 2020 |
GCL |
For Northern
Landfall and Tunnel |
Construction
Noise Permit |
GW-RS0039-20 |
23 January
2020 |
22 July 2020 |
GCL |
For HKBCF Area |
Construction
Noise Permit |
GW-RS0413-20 |
19 June 2020 |
15 December
2020 |
GCL |
For HKBCF Area |
|
|
|
|
|
|
In response to the site audit findings,
the Contractors carried out all corrective actions.
A summary of the Implementation Schedule
of Environmental Mitigation Measures (EMIS) is presented in Appendix C. The
necessary mitigation measures relevant to this Contract were implemented
properly.
The landscape and visual (L&V)
mitigation measures were also monitored on weekly basis in the reporting
period. The monitoring status is summarized in Appendix C.
One (1) Action
Level exceedance for 1-hour
TSP was recorded by the Environmental Team of Contract No. HY/2012/08
during the reporting period. No exceedance of Action
and Limit Levels for 24-hour
TSP were recorded.
No excavation work was conducted at the
excavation area in the reporting period and thus no landfill gas hazard
monitoring was undertaken in the reporting period.
Cumulative statistics are provided in Appendix G.
The Environmental Complaint Handling
Procedure is provided in Figure
2.2.
There was no environmental complaint,
notification of summons or successful prosecution recorded in the reporting
period.
Statistics on complaints, notifications
of summons, successful prosecutions are summarized in Appendix G.
As informed by the Contractor, the major
works for the Contract in July 2020 will be:
·
Electrical and
Mechanical Works and Architectural Builder’s Work and Finishes at Main Control
Building;
·
Electrical and Mechanical Works at Ventilation Plant Room;
·
Electrical and Mechanical Works at North Ventilation Building;
·
Electrical and Mechanical Works and Architectural Builder's Work and
Finishes at Administration Building;
·
Electrical and Mechanical Works and Architectural Builder's Work and
Finishes at Maintenance Depot;
·
Electrical and Mechanical Works and Architectural Builder's Work and
Finishes at Fire Services Department Building;
·
Electrical and Mechanical Works and Architectural Builder's Work and
Finishes at Customs and Excise Department Building;
·
Electrical and Mechanical Works and Architectural Builder's Work and
Finishes at N1;
·
Electrical and Mechanical Works at Kiosk N2;
·
Electrical and Mechanical Works and Architectural Builder's Work and
Finishes at the Tunnel;
·
Electrical and Mechanical Works and Architectural Builder’s Work and
Finishes at underpass at C3 area;
·
Electrical and Mechanical Works and Architectural Builder’s Work and
Finishes at Satellite Control Building;
·
Electrical and Mechanical Works and Architectural Builder’s Work and
Finishes at Kiosk S2;
·
Electrical and Mechanical Works at South Ventilation Building; and
·
Landscape Works at Northern Landfall and Southern Landfall.
Potential
environmental impacts arising from the above upcoming construction activities
in the next reporting month of July 2020 are mainly associated with dust and
waste management issues.

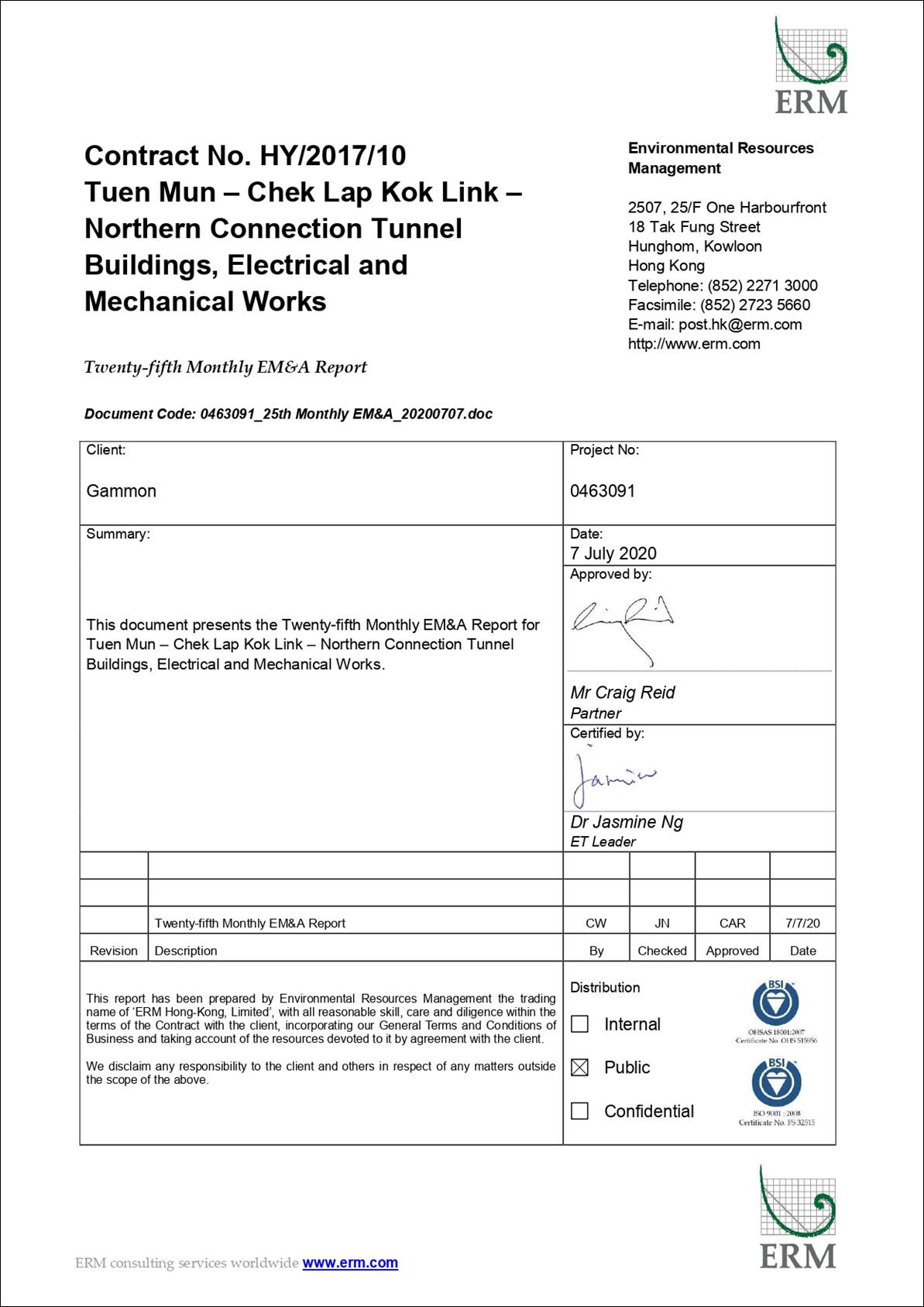

This Twenty-fifth Monthly EM&A
Report presents the findings of the EM&A activities undertaken during the
period from 1 to 30 June 2020, in accordance with the Updated EM&A Manual
and the requirements of EP-354/2009/D.
Air
quality (including 1-hour TSP and 24-hour TSP) monitoring were carried out in
this reporting month.
One (1) Action
Level exceedance for 1-hour
TSP was recorded by the Environmental Team of Contract No. HY/2012/08
during the reporting period. No exceedance of Action
and Limit Levels for 24-hour
TSP were recorded.
No excavation work was conducted at the
excavation area in the reporting period and thus no landfill gas hazard
monitoring was undertaken in the reporting period.
Environmental
site inspection was carried out four (4) times in June 2020. Remedial
actions recommended for the deficiencies identified during the site audits were
properly implemented by the Contractor.
There was no environmental complaint,
notification of summons or successful prosecution recorded in the reporting
period.
The
ET will keep track on the construction works to confirm compliance of
environmental requirements and the proper implementation of all necessary
mitigation measures.
