Under Contract No. HY/2012/07,
Gammon Construction Limited (GCL) is commissioned by the Highways Department (HyD) to undertake the design and construction of the Southern
Connection Viaduct Section of the Tuen Mun ¡V Chek Lap Kok Link Project (TM-CLK Link Project) while AECOM
Asia Company Limited was appointed by HyD as the
Supervising Officer. For
implementation of the environmental monitoring and audit (EM&A) programme under the Contract, ERM-Hong Kong, Limited (ERM)
has been appointed as the Environmental Team (ET). ENVIRON Hong Kong Ltd. was employed by
the HyD as the Independent Environmental Checker
(IEC) and Environmental Project Office (ENPO) in accordance with Environmental Permit No. EP-354/2009/A. Another application
for variation of environmental permit (VEP) (EP-354/2009/B) was granted on 28 January 2014.
The
construction phase of the Contract commenced on 31 October 2013 and will be
tentatively be completed by 2018.
The impact monitoring of the EM&A programme,
including air quality, noise, water quality and marine ecological monitoring as
well as environmental site inspections, commenced on 31 October 2013.
This
is the sixth monthly EM&A report presenting the EM&A works carried out
during the period from 1 to 30 April 2014 for the Southern
Connection Viaduct Section in accordance with the Updated EM&A Manual of the
TM-CLK Link Project. As informed by the Contractor, major
activities in the reporting period included:
Marine-based Works
¡P
Marine piling platform installation
¡P
Marine piling at Viaducts B & E
¡P
Construction of rockfill
platform at Viaduct D landing
¡P
Additional marine ground investigation (GI) and
laboratory testing
Land-based
Works
¡P
Satellite container offices erection along seawall
(i.e. CEDD Access Road)
¡P
Fence installation and relocation of Works Area 2,
Viaducts A, B, C & D
¡P
Land piling at Viaduct B
¡P
Piling platform installation for Viaducts B, D & E
¡P
Additional land GI, trial pits & lab testing
¡P
Utility surveys
¡P
Slope work of 9SE-B/C8 and 9SE-B/C9
A summary of
monitoring and audit activities conducted in the reporting period is listed
below:
24-hour TSP
monitoring 6
sessions
1-hour TSP
monitoring 6
sessions
Noise
monitoring 6
sessions
Impact Water
Quality Monitoring 13
sessions
Impact dolphin
monitoring 2
sessions
Joint
Environmental site inspection 5
sessions
Breaches of Action and Limit Levels for Air Quality
No exceedance of Action and Limit Levels was recorded for
construction noise monitoring in the reporting month.
Breaches of Action and Limit Levels for Noise
No exceedance of Action and Limit Levels was recorded for
construction noise monitoring in the reporting month.
Breaches of Action and Limit Levels for Water Quality
No exceedance of Action and Limit Levels was recorded for
impact water quality monitoring in the reporting month.
Impact Dolphin Monitoring
During this
month of dolphin monitoring, no unacceptable impact from the construction activities
of the TM-CLKL Southern Connection Viaduct Section on Chinese White Dolphins
was noticeable from general observations.
Due to monthly
variation in dolphin occurrence within the study area, it would be more
appropriate to draw conclusion on whether any impacts on dolphins have been
detected related to the construction activities of the TM-CLKL Southern Connection
Viaduct Section in the quarterly EM&A reports, where comparison on
distribution, group size and encounter rates of dolphins between the quarterly
impact monitoring period and baseline monitoring period will be made.
Marine bored
piling monitoring programme for dolphins (ie Land-based Theodolite Tracking, Underwater Noise
Monitoring and Acoustic Behavioural Monitoring) was commenced on 3 March
2014 and completed on 25 April 2014.
Data analysis was being undertaken for the marine bored piling monitoring
programme which will be presented in the Final Monitoring Reports for the
Land-based Theodolite Tracking and Underwater Noise and Dolphin Acoustic
Behavioural Monitoring.
Daily
marine mammal exclusion zone monitoring was undertaken. No sighting of the Indo-Pacific humpback
dolphin Sousa chinensis
(i.e. Chinese White Dolphin) was recorded in April 2014 during the exclusion
zone monitoring.
Coral Monitoring
The Second
Quarterly Post-Translocation Coral Monitoring was conducted on 16 April 2014
and the results were detailed in the Second
Quarterly Post-Translocation Coral Monitoring Report. The findings indicated that the Action
or Limit Levels for coral monitoring were not exceeded as increase in
percentage of partial mortality was not detected for both the tagged translocated and natural coral colonies when comparing to
the pre-translocation dataset.
Environmental Complaints, Non-compliance & Summons
No complaint,
notification of summons and successful prosecution was received in the
reporting month.
Reporting Change
There was no
reporting change required in the reporting period.
Upcoming Works for the Next Reporting Period
Works to be
undertaken in the next monitoring period of May 2014 include the following:
Marine
Works
¡P
Marine piling platform installation
¡P
Marine piling at Viaducts B & E
¡P
Construction of rockfill
platform at Viaduct D landing
¡P
Additional marine ground investigation (GI) and
laboratory testing
Land-based
Works
¡P
Satellite container offices erection along seawall
(i.e. CEDD Access Road)
¡P
Fence installation and relocation of Works Area 2,
Viaducts A, B, C & D
¡P
Land Piling at Viaduct B
¡P
Piling platform installation for Viaducts B, D & E
¡P
Additional land GI, trial pits & lab testing
¡P
Utility surveys
¡P
Slope work of 9SE-B/C8 and 9SE-B/C9
Future Key Issues
Potential
environmental impacts arising from the above upcoming construction activities
in the next reporting month of May 2014 are mainly associated with dust, noise,
marine water quality, marine ecology and waste management issues.
According to
the findings of the Northwest New Territories (NWNT) Traffic and Infrastructure
Review conducted by the Transport Department, Tuen Mun Road, Ting Kau Bridge, Lantau Link and North Lantau
Highway would be operating beyond capacity after 2016. This forecast has been based on the
estimated increase in cross boundary traffic, developments in the Northwest New
Territories (NWNT), and possible developments in North Lantau,
including the Airport developments, the Lantau
Logistics Park (LLP) and the Hong Kong ¡V Zhuhai ¡V Macao Bridge (HZMB). In order to cope with the anticipated
traffic demand, two new road sections between NWNT and North Lantau ¡V Tuen Mun
¡V Chek Lap Kok Link
(TM-CLKL) and Tuen Mun
Western Bypass (TMWB) are proposed.
An Environmental
Impact Assessment (EIA) of TM-CLKL (the Project) was prepared in accordance
with the EIA Study Brief (No. ESB-175/2007) and the Technical Memorandum of the Environmental
Impact Assessment Process (EIAO-TM). The EIA Report was submitted under the
Environmental Impact Assessment Ordinance (EIAO) in August 2009. Subsequent to the approval of the EIA
Report (EIAO Register Number AEIAR-145/2009), an Environmental Permit
(EP-354/2009) for TM-CLKL was granted by the Director of Environmental
Protection (DEP) on 4 November 2009, and EP variation (EP-354/2009A) was issued
on 8 December 2010.
Under
Contract No. HY/2012/07,
Gammon Construction Limited (GCL) is commissioned by the Highways Department (HyD) to undertake the design and construction of the Southern
Connection Viaduct Section of TM-CLKL (¡§the Contract¡¨) while AECOM
Asia Company Limited was appointed by HyD as the
Supervising Officer. For
implementation of the environmental monitoring and audit (EM&A) programme under the Contract, ERM-Hong Kong, Limited (ERM)
has been appointed as the Environmental Team (ET). ENVIRON Hong Kong Ltd. was employed by HyD as the Independent Environmental Checker (IEC) and
Environmental Project Office (ENPO) in accordance with Environmental Permit No. EP-354/2009/A. Another application for variation of
environmental permit (VEP) (EP-354/2009/B)
was granted on 28 January 2014.
The
organization structure of the Contract is shown in Appendix A.
The key personnel contact names and
contact details are summarized in Table
1.1 below.
Table 1.1 Contact
Information of Key Personnel
Party |
Position |
Name |
Telephone |
Fax |
HyD
(Highways Department) |
Project
Coordinator |
Stanley Chan |
2762 3406 |
3188 6614 |
|
Senior
Engineer |
Steven Shum |
2762 4133 |
3188 6614 |
SOR (AECOM Asia
Company Limited) |
Chief
Resident Engineer |
Daniel Ip |
3553 3800 |
2492 2057 |
|
Resident
Engineer |
Kingman Chan |
3691 3950 |
3691 2899 |
ENPO / IEC (ENVIRON
Hong Kong Ltd.) |
ENPO Leader |
Y.H. Hui |
3465 2888 |
3465 2899 |
IEC |
Dr. F.C.
Tsang |
3465 2828 |
3465 2899 |
|
Contractor (Gammon
Construction Limited) |
Environmental
Manager |
Brian Kam |
3520 0387 |
3520 0486 |
Environmental
Officer |
Roy Leung |
3520 0387 |
3520 0486 |
|
|
24-hour
Complaint Hotline |
|
9738 4332 |
|
ET (ERM-HK) |
ET Leader |
Jovy
Tam |
2271 3113 |
2723 5660 |
Marine-based
Works
¡P
Marine piling platform installation
¡P
Marine piling at Viaducts B & E
¡P
Construction of rockfill
platform at Viaduct D landing
¡P
Additional marine ground investigation (GI) and
laboratory testing
Land-based
Works
¡P
Satellite container offices erection along seawall
(i.e. CEDD Access Road)
¡P
Fence installation and relocation of Works Area 2,
Viaducts A, B, C & D
¡P
Land piling at Viaduct B
¡P
Piling platform installation for Viaducts B, D & E
¡P
Additional land GI, trial pits & lab testing
¡P
Utility surveys
¡P
Slope work of 9SE-B/C8 and 9SE-B/C9
The EM&A programme required environmental monitoring for air
quality, noise, water quality and marine ecology as well as environmental site
inspections for air quality, noise, water quality, waste management, marine
ecology and landscape and visual impacts.
The EM&A requirements and related findings for each component are summarized
in the following sections.
Table 2.1 Locations
of Impact Air Quality Monitoring Stations
Monitoring Station |
Location |
Description |
Monitoring Dates |
ASR 8 |
Pak Mong Village Watch Tower |
Rooftop of
the premise |
3, 9, 15,
18, 24 and 30 April 2014 |
ASR 8A |
Area 4 |
On ground at
the Area 4 |
Table 2.2 Air
Quality Monitoring Equipment
Equipment |
Brand and Model |
High Volume Sampler |
Tisch Environmental Mass Flow Controlled Total Suspended Particulate (TSP) High Volume Sampler (Model No. TE-5170) |
Wind Sensor |
Global Water (Wind Speed Sensor: WE550; Wind Direction: WE570) |
Table 2.3 Summary
of 1-hour TSP Monitoring Results in the Reporting Period
|
Average (µg/m3) |
Range (µg/m3) |
Action Level (µg/m3) |
Limit Level (µg/m3) |
ASR
8A |
101 |
61
- 165 |
394 |
500 |
ASR
8 |
106 |
66
- 173 |
393 |
500 |
Table 2.4 Summary
of 24-hour TSP Monitoring Results in the Reporting Period
|
Average (µg/m3) |
Range (µg/m3) |
Action Level (µg/m3) |
Limit Level (µg/m3) |
ASR
8A |
67 |
40
- 109 |
178 |
260 |
ASR
8 |
63 |
43
- 89 |
178 |
260 |
All
1-hour and 24-hour TSP results were below the Action and Limit levels at all
monitoring locations in the reporting period. No action is thus required to be
undertaken in accordance with the Event Action Plan presented in Appendix L.
Noise
monitoring was performed on 3, 9, 15, 18, 24 and 30
April 2014 using sound level meter at the designated monitoring
station NSR 1 (Figure 2.2; Table 2.5) in
accordance with the requirements stipulated in the Updated EM&A Manual. Acoustic calibrator was deployed to
check the sound level meters at a known sound pressure level. Details of the equipment deployed are provided
in Table 2.6. Copies of the calibration certificates
for the equipment are presented in Appendix E.
Table 2.5 Location
of Impact Noise Monitoring Station
Monitoring Station |
Location |
Description |
Parameter |
Frequency and Duration |
Monitoring Dates |
NSR 1 |
Pak Mong Village Watch Tower |
Rooftop of
the premise |
30-minute
measurement at each monitoring station between 0700 and 1900 on normal
weekdays (Monday to Saturday). Leq, L10
and L90 would be recorded. |
At least
once per week |
3, 9, 15,
18, 24 and 30 April 2014 |
Table 2.6 Noise
Monitoring Equipment
Equipment |
Brand and Model |
Integrated
Sound Level Meter |
Rion
NL-31 |
Acoustic
Calibrator |
Rion
NC-73 |
Table 2.7 Summary
of Construction Noise Monitoring Results in the Reporting Period
|
Average , dB(A), Leq
(30mins) |
Range, dB(A), Leq (30mins) |
Limit Level, dB(A), Leq
(30mins) |
NSR
1 |
58 |
56
¡V 59 |
75 |
Table 2.8 Locations
of Impact Water Quality Monitoring Stations and its Corresponding Monitoring
Requirements
Station ID |
Type |
Coordinates |
*Parameters, unit |
Frequency |
Depth |
|
|
|
Easting |
Northing |
|
|
|
IS(Mf)9 |
Impact
Station (Close to HKBCF construction site) |
813273 |
818850 |
Temperature(¢XC)
pH (pH unit)
Turbidity (NTU)
Water depth (m)
Salinity (ppt)
DO (mg/L and % of saturation) ¡P SS (mg/L) |
Impact monitoring: 3 days per week, at mid-flood
and mid-ebb tides during the construction period of the Contract |
3 water depths: 1m below sea surface, mid-depth and 1m above sea bed. If the water depth is less than 3m,
mid-depth sampling only. If water
depth less than 6m, mid-depth may be omitted |
IS(Mf)16 |
Impact Station
(Close to HKBCF construction site) |
814328 |
819497 |
|||
IS8 |
Impact Station(Close
to HKBCF construction site) |
814251 |
818412 |
|||
SR4 |
Sensitive receiver
(Tai Ho Inlet) |
814760 |
817867 |
|||
SR4a |
Sensitive receiver |
815247 |
818067 |
|||
CS(Mf)3 |
Control
Station |
809989 |
821117 |
|||
CS(Mf)5 |
Control
Station |
817990 |
821129 |
|||
*Notes: |
Table
2.9 Water
Quality Monitoring Equipment
Equipment |
Brand and Model |
DO, Temperature meter and Salinity |
YSI Pro2030 |
Turbidimeter |
HACH Model 2100Q |
pH meter |
HANNA HI8314 |
Positioning
Equipment |
Koden913MK2 with KBG-3 DGPS antenna |
Water Depth Detector |
Speedtech Instrument SM-5 |
Water Sampler |
Kemmerer 1520 (1520-C25) 2.2L with messenger |
No
Action and Limit levels exceedances was recorded at
all monitoring stations for impact water quality monitoring in the reporting
month. No action is thus required
to be undertaken in accordance with the Event Action Plan presented in Appendix L.
Table
2.10 Dolphin Monitoring Equipment
Equipment |
Model |
|
Global Positioning
System (GPS) Camera Laser Binoculars Marine Binocular Vessel for Monitoring |
Garmin 18X-PC Geo One Phottix Nikon D90 300m 2.8D fixed focus Nikon D90 20-300m zoom lens Infinitor LRF 1000 Bushell 7 x 50 marine binocular with compass and
reticules 65 foot single engine motor vessel with viewing platform 4.5m above
water level |
|
Table
2.11 Impact Dolphin Monitoring Line Transect
Co-ordinates
Line No. |
Easting |
Northing |
|
Line No. |
Easting |
Northing |
||
1 |
Start Point |
804671 |
814577 |
|
13 |
Start Point |
816506 |
819480 |
1 |
End Point |
804671 |
831404 |
|
13 |
End Point |
816506 |
824859 |
2 |
Start Point |
805475 |
815457 |
|
14 |
Start Point |
817537 |
820220 |
2 |
End Point |
805477 |
826654 |
|
14 |
End Point |
817537 |
824613 |
3 |
Start Point |
806464 |
819435 |
|
15 |
Start Point |
818568 |
820735 |
3 |
End Point |
806464 |
822911 |
|
15 |
End Point |
818568 |
824433 |
4 |
Start Point |
807518 |
819771 |
|
16 |
Start Point |
819532 |
821420 |
4 |
End Point |
807518 |
829230 |
|
16 |
End Point |
819532 |
824209 |
5 |
Start Point |
808504 |
820220 |
|
17 |
Start Point |
820451 |
822125 |
5 |
End Point |
808504 |
828602 |
|
17 |
End Point |
820451 |
823671 |
6 |
Start Point |
809490 |
820466 |
|
18 |
Start Point |
821504 |
822371 |
6 |
End Point |
809490 |
825352 |
|
18 |
End Point |
821504 |
823761 |
7 |
Start Point |
810499 |
820690 |
|
19 |
Start Point |
822513 |
823268 |
7 |
End Point |
810499 |
824613 |
|
19 |
End Point |
822513 |
824321 |
8 |
Start Point |
811508 |
820847 |
|
20 |
Start Point |
823477 |
823402 |
8 |
End Point |
811508 |
824254 |
|
20 |
End Point |
823477 |
824613 |
9 |
Start Point |
812516 |
820892 |
|
21 |
Start Point |
805476 |
827081 |
9 |
End Point |
812516 |
824254 |
|
21 |
End Point |
805476 |
830562 |
10 |
Start Point |
813525 |
820872 |
|
22 |
Start Point |
806464 |
824033 |
10 |
End Point |
813525 |
824657 |
|
22 |
End Point |
806464 |
829598 |
11 |
Start Point |
814556 |
818449 |
|
23 |
Start Point |
814559 |
821739 |
11 |
End Point |
814556 |
820992 |
|
23 |
End Point |
814559 |
824768 |
12 |
Start Point |
815542 |
818807 |
|
|
|
|
|
12 |
End Point |
815542 |
824882 |
|
|
|
|
|
The Action and
Limit levels of dolphin impact monitoring are shown in Appendix D. The Event and Action plan is presented
in Appendix L.
A
total of 8 groups
of 30 Chinese White Dolphin sightings were recorded
during the two sets
of surveys in April 2014. All
sightings were made in NWL during the two sets of surveys in April,
with no dolphin being sighted at all in NEL. Five of the eight sightings were made on
primary lines during on-effort search, and none of the dolphin groups was
associated with operating fishing vessel. No sighting was made in the proximity of
TM-CLKL Southern Connection Viaduct Section. The distribution of dolphin sightings
during the reporting month is shown in Figure 2.5.
Encounter
rates of Chinese White Dolphins are deduced from the survey effort and
on-effort sighting data made under favourable
conditions (Beaufort 3 or below) in April 2014 with the results presented in Tables 2.12 and 2.13.
Table 2.12 Individual Survey
Event Encounter Rates
|
|
Encounter rate (STG) (no. of
on-effort dolphin sightings per 100 km of survey effort) |
Encounter rate (ANI)
(no. of dolphins from all on-effort sightings per 100 km of survey
effort) |
Primary
Lines Only |
Primary
Lines Only |
||
NEL |
Set 1: Apr 4th / 14th |
0.0 |
0.0 |
|
Set 2: Apr
16th / 24th |
0.0 |
0.0 |
NWL |
Set 1: Apr 4th / 14th |
4.9 |
26.9 |
|
Set 2: Apr
16th / 24th
|
4.9 |
11.5 |
Note: Dolphin Encounter Rates are deduced
from the two sets of surveys ( two surveys in each set) in April 2014 in
Northeast (NEL) and Northwest Lantau (NWL) |
Table 2.13 Monthly Average
Encounter Rates
|
Encounter rate (STG)
(no. of
on-effort dolphin sightings per 100 km of survey effort) |
Encounter rate (ANI)
(no. of dolphins from all on-effort sightings per
100 km of survey effort) |
||
Primary Lines Only |
Both Primary and Secondary Lines |
Primary Lines Only |
Both Primary and Secondary Lines |
|
Northeast Lantau |
0.0 |
0.0 |
0.0 |
0.0 |
Northwest Lantau |
4.9 |
5.2 |
17.7 |
20.8 |
Note: Overall
dolphin encounter rates (sightings per 100km of survey effort) from all four surveys
are conducted in April 2014 on primary lines only as well as both primary lines
and secondary lines in Northeast and Northwest Lantau
Daily 250 m marine
mammal exclusion zone monitoring was undertaken during the period of dredging
activities being undertaken. No sighting of Indo-Pacific humpback
dolphin Sousa chinensis
(i.e. Chinese White Dolphin) were recorded in April 2014 during the exclusion
zone monitoring.
Marine bored
piling monitoring programme for dolphins (ie Land-based Theodolite Tracking, Underwater Noise
Monitoring and Acoustic Behavioural Monitoring) was commenced
on 3 March 2014 and completed on 25 April 2014. Data
analysis was being undertaken for the marine bored piling monitoring programme
which will be presented in the Final Monitoring Reports for the Land-based
Theodolite Tracking and Underwater Noise and Dolphin Acoustic Behavioural Monitoring.
The
monitoring schedule for bored piling monitoring in April 2014 is presented in Appendix F.
The Second
Quarterly Post-Translocation Coral Monitoring was conducted on 16 April 2014
and the results were detailed in the Second
Quarterly Post-Translocation Coral Monitoring Report. The findings indicated that the Action
or Limit Levels for coral monitoring were not exceeded as increase in
percentage of partial mortality was not detected for both the tagged translocated and natural coral colonies when comparing to
the pre-translocation dataset.
Table 2.14 Specific
Observations Identified during the Weekly Site Inspections in this Reporting
Month
Inspection Date |
Environmental Observations |
Recommendations/ Remarks |
2 April 2014 |
Area 1 |
Area 1 |
|
¡P
Stagnant water was found accumulating and
overflowing from drip tray of a generator |
¡P
The Contractor was reminded to take appropriate
action to clean up the stagnant water. |
|
B15 |
B15 |
|
¡P
Water leakage was observed from a pipe buried
underground which transport treated water from sedimentation tank to the
discharge point. |
¡P
The Contractor was reminded to take appropriate
action. |
9 April 2014 |
E12 |
E12 |
|
¡P
Stagnant water was found accumulated in the drip
tray of a generator |
¡P
The Contractor was reminded to take appropriate
action to clean up the stagnant water. |
|
G28 |
G28 |
|
¡P
Two chemical drums were not placed properly in drip
tray |
¡P
The Contractor was reminded to put the chemical
drums in place. |
|
|
¡P
The Contractor was reminded to implement the
acoustic decoupling measures during mechanical device operation. |
16 April
2014 |
Area 1 |
Area 1 |
|
¡P
Temporary stockpiles were found partially exposed |
¡P
The Contractor was reminded to cover the temporary
stockpiles properly. |
|
Pak Mong |
Pak Mong |
|
¡P
Existing trees in the project site shall be
carefully protected. |
¡P
The Contractor was reminded to protect/ transplant
the existing trees properly before works commencement. |
|
¡P
General refuse was observed in the project site
area. |
¡P
The Contractor was reminded to keep litter free in
the Project site. |
23 April
2014 |
E3 |
E3 |
|
¡P
One of the drip trays for holding the generator was
found unplugged with stagnant water leaked from the drain hole. |
¡P
The Contractor was advised to plug the drain hole of
the drip tray properly. |
|
B3 |
B3 |
|
¡P
The chemical waste drums were placed unattended
without drip tray. |
¡P
The Contractor was reminded to place the chemical
waste drums properly. |
|
¡P
Drip tray of a generator was not plugged properly. |
¡P
The Contractor was reminded to plug the drip tray
properly. |
|
B5/G23 |
B5/G23 |
|
¡P
Oily floor was observed on G23. |
¡P
The Contractor took immediate action to clean up oil
by chemical absorbance. |
|
¡P
Some chemical drums were not placed in drip trays. |
¡P
The Contractor was reminded to place the chemical
drums in drip trays. |
30 April
2014 |
B15 |
B15 |
|
¡P
Trash was observed. |
¡P
The Contractor was reminded to clean up the trash in
the project area regularly. |
|
B1 |
B1 |
|
¡P
The wielding machine was not placed on isolated
pad. |
¡P
The Contractor was advised to implement acoustic
decoupling plan properly. |
The Contractor
has rectified all of the observations identified during environmental site
inspections in the reporting month.
The Contractor
had submitted application form for registration as chemical waste producer
under the Contract. Sufficient
numbers of receptacles were available for general refuse collection and
sorting.
Wastes
generated during this reporting period include mainly construction wastes
(inert and non-inert), imported fill and recyclable materials. Reference has been made to the waste
flow table prepared by the Contractor (Appendix M). The quantities of different types of
wastes are summarized in Table 2.15.
Table 2.15 Quantities of
Different Waste Generated in the Reporting Period
Month/Year |
Inert C&D Materials (a)
(m3) |
Imported Fill (m3) |
Inert Construction Waste
Re-used (m3) |
Non-inert Construction Waste (b)
(kg) |
Recyclable Materials (c) (kg) |
Chemical Wastes (kg) |
Marine Sediment (m3) |
|
Category L |
Category M (Mp
& Mf) |
|||||||
April 2014 |
118 |
512 |
80 |
87,650 |
15,760 |
0 |
0 |
0 |
Notes: |
||||||||
(a) Inert
construction wastes include hard rock and large broken concrete, and
materials disposed as public fill. (b) Non-inert
construction wastes include general refuse disposed at landfill. (c) Recyclable
materials include metals, paper, cardboard, plastics, timber, felled trees and
others. |
The Contractor
was advised to properly maintain on site C&D materials and waste
collection, sorting and recording system, dispose of C&D materials and
wastes at designated ground and maximize reuse/ recycle of C&D materials
and wastes. The Contractor was also
reminded to properly maintain the site tidiness and dispose of the wastes
accumulated on site regularly and properly.
For chemical
waste containers, the Contractor was reminded to treat properly and store temporarily
in designated chemical waste storage area on site in accordance with the Code
of Practice on the Packaging, Labelling and Storage of Chemical Wastes.
The status of
environmental licensing and permit is summarized in Table 2.16 below.
Table 2.16 Summary of
Environmental Licensing and Permit Status
License/
Permit |
License
or Permit No. |
Date of Issue |
Date of Expiry |
License/
Permit Holder |
Remarks |
Environmental Permit |
EP-354/2009/A |
8 Dec 2010 |
NA |
HyD |
Tuen Mun- Chek Lap Kok Link |
Environmental Permit |
EP-354/2009/B |
28 Jan 2014 |
NA |
HyD |
Tuen Mun- Chek Lap Kok Link |
Construction Dust Notification |
361571 |
5 Jul 2013 |
NA |
GCL |
- |
Construction Dust Notification |
362093 |
17 Jul 2013 |
NA |
GCL |
For Area 23 |
Billing Account for Disposal |
7017735 |
10 Jul 2013 |
End of Project |
GCL |
- |
Chemical Waste Registration |
5213-961-G2380-13 |
10 Oct 2013 |
NA |
GCL |
Chemical waste produced in Contract HY/2012/07 (Area 1 adjacent to Cheng Tung Road, Siu Ho Wan) |
Chemical Waste Registration |
5213-961-G2380-14 |
10 Oct 2013 |
NA |
GCL |
Chemical waste produced in Contract HY/2012/07 (Area 2 adjacent to Cheung Tung Road, Pak Mong
Village) |
Chemical Waste Registration |
5213-974-G2588-03 |
4 Nov 2013 |
NA |
GCL |
Chemical waste produced in Contract HY/2012/07 (WA5 adjacent to Cheung Tung Road, Yam O) |
Construction Waste Disposal Account |
7017735 |
10 Jul 2013 |
NA |
GCL |
Waste disposal in Contract HY/2012/07 |
Waste Water Discharge License |
Nil |
Application
Ref. 368337 |
NA |
GCL |
Discharge for discharge points for Viaducts A & B |
Construction Noise Permit |
Nil |
Application
in process |
NA |
GCL |
For Piling Works |
Construction Noise Permit |
GW-RS0034-14 |
14 Jan 2014 |
29 Mar 2014 |
GCL |
For night works and works in general holiday |
Construction Noise Permit |
GW-RS0226-14 |
30 Mar 2014 |
29 Sep 2014 |
GCL |
For loading & unloading on NLH near Viaduct D |
Construction Noise Permit |
GW-RS0236-14 |
27 Mar 2014 |
14 May 2014 |
GCL |
For loading & unloading on NLH near Viaducts A & B |
Construction Noise Permit |
GW-RS0280-14 |
31 Mar 2014 |
31 May 2014 |
GCL |
For excavation at Pier B9 |
Construction Noise Permit |
GW-RS0299-14 |
7 Apr 2014 |
5 Jul 2014 |
GCL |
Pier B8 at CEDD Access Road |
Construction Noise Permit |
GW-RS0331-14 |
4 Apr 2014 |
6 Jul 2014 |
GCL |
Broad permit for works at seafront
& marine piers |
Construction Noise Permit |
GW-RS0338-14 |
4 Apr 2014 |
3 Jun 2014 |
GCL |
For bored piling works between Pier
E13 and HKBCF |
Construction Noise Permit |
GW-RS1129-13 |
31 Oct 2013 |
30 Apr 2014 |
GCL |
For night works and works in general
holidays |
Construction Noise Permit |
GW-RS1186-13 |
23 Oct 2013 |
24 Dec 2013 |
GCL |
For night works and works in general
holidays |
Construction Noise Permit |
GW-RS1187-13 |
24 Oct 2013 |
28 Feb 2014 |
GCL |
For night works and works in general
holidays |
Construction Noise Permit |
GW-RS1413-13 |
17 Dec 2013 |
26 Mar 2014 |
GCL |
For loading and unloading on NLH near Viaducts A & B |
Construction Noise Permit |
GW-RS1423-13 |
11 Dec 2013 |
30 Apr 2014 |
GCL |
Renewal for marine portion |
Construction Noise Permit |
GW-RW0123-14 |
27 Feb 2014 |
27 Aug 2014 |
GCL |
For night works and works in general holiday at WA5 |
Construction Noise Permit |
GW-RW0660-13 |
27 Sep 2013 |
02 Feb 2014 |
GCL |
For night works and works in general
holidays |
Construction Noise Permit |
GW-RW0925-13 |
19 Dec 2013 |
17 Apr 2014 |
GCL |
Renewal of WA5 site office erection |
Dumping Permit/ Loading Permit (Type 1 ¡V Open Sea Disposal) |
(4) in EP/MD/14-075 |
25 Sep 2013 |
NA |
GCL |
- |
Marine Dumping Permit |
EP/MD/14-075 |
28 Jan 2014 |
27 Jul 2014 |
GCL |
For dumping Type I Sediment |
Marine Dumping Permit |
EP/MD/14-155 |
1 Apr 2014 |
30 Apr 2014 |
GCL |
For dumping Type I (Dedicated Site) and Type II Sediment |
Marine
Works
¡P
Marine piling platform installation
¡P
Marine piling at Viaducts B & E
¡P
Construction of rockfill
platform at Viaduct D landing
¡P
Additional marine ground investigation (GI) and
laboratory testing
Land-based
Works
¡P
Satellite container offices erection along seawall
(i.e. CEDD Access Road)
¡P
Fence installation and relocation of Works Area 2,
Viaducts A, B, C & D
¡P
Land Piling at Viaduct B
¡P
Piling platform installation for Viaducts B, D & E
¡P
Additional land GI, trial pits & lab testing
¡P
Utility surveys
¡P
Slope work of 9SE-B/C8 and 9SE-B/C9
Potential
environmental impacts arising from the above upcoming construction activities
in the next reporting month of May 2014 are mainly associated with dust, noise,
marine water quality, marine ecology and waste management issues.

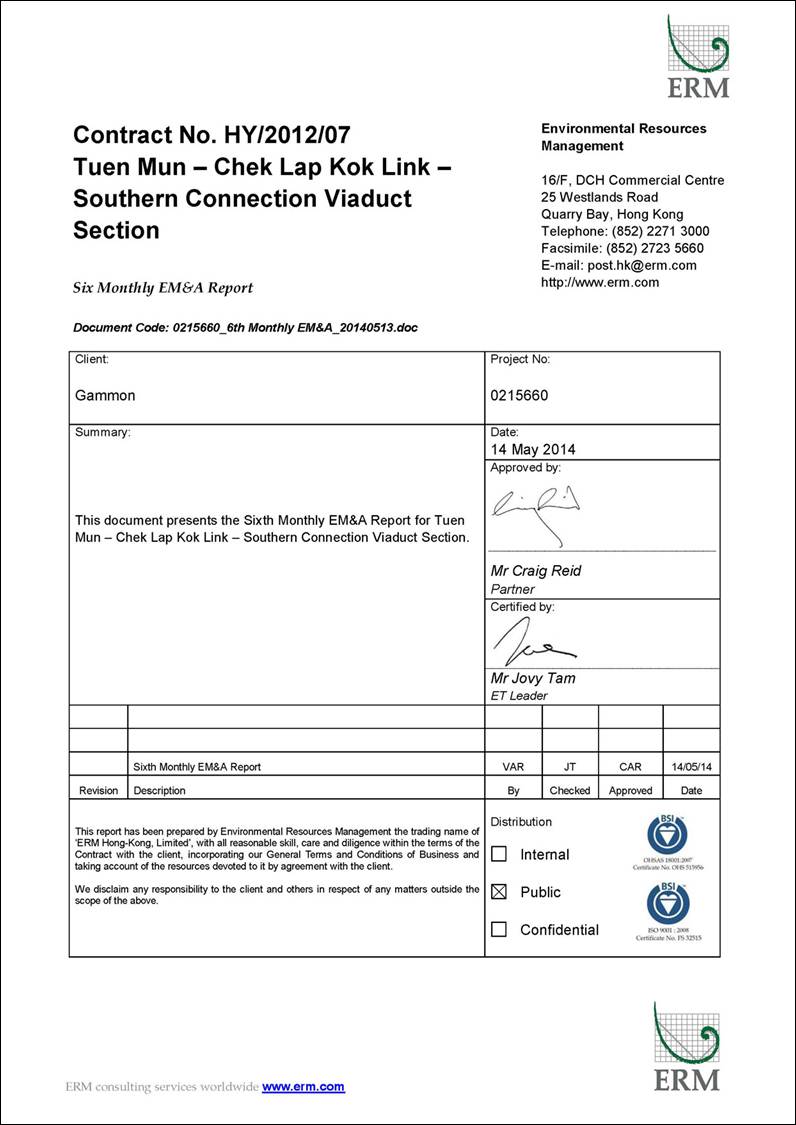

This Sixth Monthly
EM&A Report presents the findings of the EM&A activities undertaken
during the period from 1 to 30 April 2014, in accordance with the Updated
EM&A Manual and the requirements of EP-354/2009/B.
A total of eight
(8) groups of thirty (30) dolphin sightings were recorded during the two sets of
surveys. All sightings were made in NWL during
the two sets of surveys in April, with no dolphin being sighted at all in NEL. During this reporting
period of dolphin monitoring, no unacceptable impact from the construction activities
of the TM-CLKL Southern Connection Viaduct Section on Chinese
White Dolphins was noticeable from general observations.
Marine bored
piling monitoring programme for dolphins (ie Land-based Theodolite Tracking, Underwater Noise
Monitoring and Acoustic Behavioural Monitoring) was
commenced on 3 March 2014 and completed on 25 April 2014. Data
analysis was being undertaken for the marine bored piling monitoring programme
which will be presented in the Final Monitoring Reports for the Land-based
Theodolite Tracking and Underwater Noise and Dolphin Acoustic Behavioural Monitoring.
The ET will
keep track on the construction works to confirm compliance of environmental
requirements and the proper implementation of all necessary mitigation measures.
