Under Contract No. HY/2012/07, Gammon Construction Limited (GCL) is commissioned by the Highways Department (HyD) to undertake the design and construction of the Southern Connection Viaduct Section of the Tuen Mun – Chek Lap Kok Link Project (TM-CLK Link Project) while AECOM Asia Company Limited was appointed by HyD as the Supervising Officer. For implementation of the environmental monitoring and audit (EM&A) programme under the Contract, ERM-Hong Kong, Limited (ERM) has been appointed as the Environmental Team (ET). Ramboll Environ Hong Kong Ltd. was employed by the HyD as the Independent Environmental Checker (IEC) and Environmental Project Office (ENPO) in accordance with Environmental Permit No. EP-354/2009/A. Further applications for variation of environmental permit (VEP), EP-354/2009/B, EP-354/2009/C and EP-354/2009/D, were granted on 28 January 2014, 10 December 2014 and 13 March 2015, respectively.

The southern landfall of TM-CLK Link lies alongside the Hong Kong - Zhuhai - Macao Bridge Hong Kong Boundary Crossing Facilities (HKBCF) where a reclamation area is constructed by Contract No. HY/2010/02 under Environmental Permit No. EP-353/2009/K and EP-354/2009/D. Upon the agreement and confirmation between the Supervising Officer Representatives and Contractors of HY/2010/02 and HY/2012/07 in September 2015, part of the reclamation area for southern landfall under EP-353/2009/K and EP-354/2009/D was handed-over to Contract No. HY/2012/07. Another part of the southern landfall area under EP-354/2009/D was handed-over to Contract No. HY/2012/07 after completion of reclamation works by Contract No. HY/2010/02 in June 2016.

The construction phase of the Contract commenced on 31 October 2013 and will be tentatively completed by 2018. The impact monitoring of the EM&A programme, including air quality, noise, water quality and marine ecological monitoring as well as environmental site inspections, commenced on 31 October 2013.

This is the Forty-ninth Monthly EM&A report presenting the EM&A works carried out during the period from 1 to 30 November 2017 for the Southern Connection Viaduct Section in accordance with the Updated EM&A Manual of the TM-CLK Link Project. As informed by the Contractor, major activities in the reporting period included:

Land-based Works

· Pier construction;

· Re-alignment of Cheung Tung Road;

· Road works along North Lantau Highway;

· Launching gantry operation

· Installation of pier head and deck segments; and

· Slope work of Viaducts A, B & C.

A summary of monitoring and audit activities conducted in the reporting period is listed below:

24-hour TSP Monitoring 6 sessions

1-hour TSP Monitoring 6 sessions

Water Quality Monitoring 13 sessions

Noise Monitoring 6 sessions

Impact Dolphin Monitoring 2 sessions

Joint Environmental Site Inspection 4 sessions

Breaches of Action and Limit Levels for Air Quality

No exceedance of Action and Limit Levels was recorded for construction air quality monitoring in the reporting month.

Breaches of Action and Limit Levels for Noise

No exceedance of Action and Limit Levels was recorded for construction noise monitoring in the reporting month.

Breaches of Action and Limit Levels for Water Quality

Four (4) Action Level of Suspended Solids (SS) exceedances were recorded for water quality impact monitoring in the reporting month.

Impact Dolphin Monitoring

One (1) Limit Level exceedance was observed for the quarterly dolphin monitoring data between September and November 2017, whilst no unacceptable impact from the construction activities of the TM-CLKL Southern Connection Viaduct Section on Indo-Pacific humpback dolphin Sousa chinensis (i.e. Chinese White Dolphin) was noticeable from general observations. Due to monthly variation in dolphin occurrence within the Study Area, it would be more appropriate to draw conclusion on whether any impacts on dolphins have been detected related to the construction activities of the TM-CLKL Southern Connection Viaduct Section in the quarterly EM&A reports, in which comparison on distribution, group size and encounter rates of dolphins between the quarterly impact monitoring period and baseline monitoring period will be made.

Daily marine mammal exclusion zone monitoring was undertaken during the period of marine works under this Contract. No sighting of the Chinese White Dolphin was recorded in November 2017 during the exclusion zone monitoring.

Environmental Complaints, Non-compliance & Summons

There was one (1) complaint received from EPD on 24 November 2017 regarding construction dust nuisance at Hong Kong Boundary Crossing Facilities of Hong Kong-Zhuhai-Macau Bridge Projects in the reporting period. Upon investigation, there is no evidence to indicate that the complaint case is related to this Contract.

No notification of summons or successful prosecution recorded in the reporting period.

Reporting Change

There was no reporting change in the reporting period.

Upcoming Works for the Next Reporting Period

Works to be undertaken in the next monitoring period of December 2017 include the following:

Land-based Works

· Pier construction;

· Re-alignment of Cheung Tung Road;

· Road works along North Lantau Highway;

· Launching gantry operation

· Installation of pier head and deck segments; and

· Slope work of Viaducts A, B & C.

Future Key Issues

Potential environmental impacts arising from the above upcoming construction activities in the next reporting month of December 2017 are mainly associated with dust, noise, marine water quality, marine ecology and waste management issues.

1 Introduction

1.1 Background

According to the findings of the Northwest New Territories (NWNT) Traffic and Infrastructure Review conducted by the Transport Department, Tuen Mun Road, Ting Kau Bridge, Lantau Link and North Lantau Highway would be operating beyond capacity after 2016. This forecast has been based on the estimated increase in cross boundary traffic, developments in the Northwest New Territories (NWNT), and possible developments in North Lantau, including the Airport developments, the Lantau Logistics Park (LLP) and the Hong Kong – Zhuhai – Macao Bridge (HZMB). In order to cope with the anticipated traffic demand, two new road sections between NWNT and North Lantau – Tuen Mun – Chek Lap Kok Link (TM-CLKL) and Tuen Mun Western Bypass (TMWB) are proposed.

An Environmental Impact Assessment (EIA) of TM-CLKL (the Project) was prepared in accordance with the EIA Study Brief (No. ESB-175/2007) and the Technical Memorandum of the Environmental Impact Assessment Process (EIAO-TM). The EIA Report was submitted under the Environmental Impact Assessment Ordinance (EIAO) in August 2009. Subsequent to the approval of the EIA Report (EIAO Register Number AEIAR-146/2009), an Environmental Permit (EP-354/2009) for TM-CLKL was granted by the Director of Environmental Protection (DEP) on 4 November 2009, and EP variation (EP-354/2009/A) was issued on 8 December 2010.

Under Contract No. HY/2012/07, Gammon Construction Limited (GCL) is commissioned by the Highways Department (HyD) to undertake the design and construction of the Southern Connection Viaduct Section of TM-CLKL (“the Contract”) while AECOM Asia Company Limited was appointed by HyD as the Supervising Officer. For implementation of the environmental monitoring and audit (EM&A) programme under the Contract, ERM-Hong Kong, Limited (ERM) has been appointed as the Environmental Team (ET). Ramboll Environ Hong Kong Ltd. was employed by HyD as the Independent Environmental Checker (IEC) and Environmental Project Office (ENPO) in accordance with Environmental Permit No. EP-354/2009/A. Further applications for variation of environmental permit (VEP), EP-354/2009/B, EP-354/2009/C and EP-354/2009/D, were granted on 28 January 2014, 10 December 2014 and 13 March 2015, respectively.

The construction phase of the Contract commenced on 31 October 2013 and will be tentatively completed by 2018. The impact monitoring phase of the EM&A programme, including air quality, noise, water quality and marine ecological monitoring as well environmental site inspections, commenced on 31 October 2013.

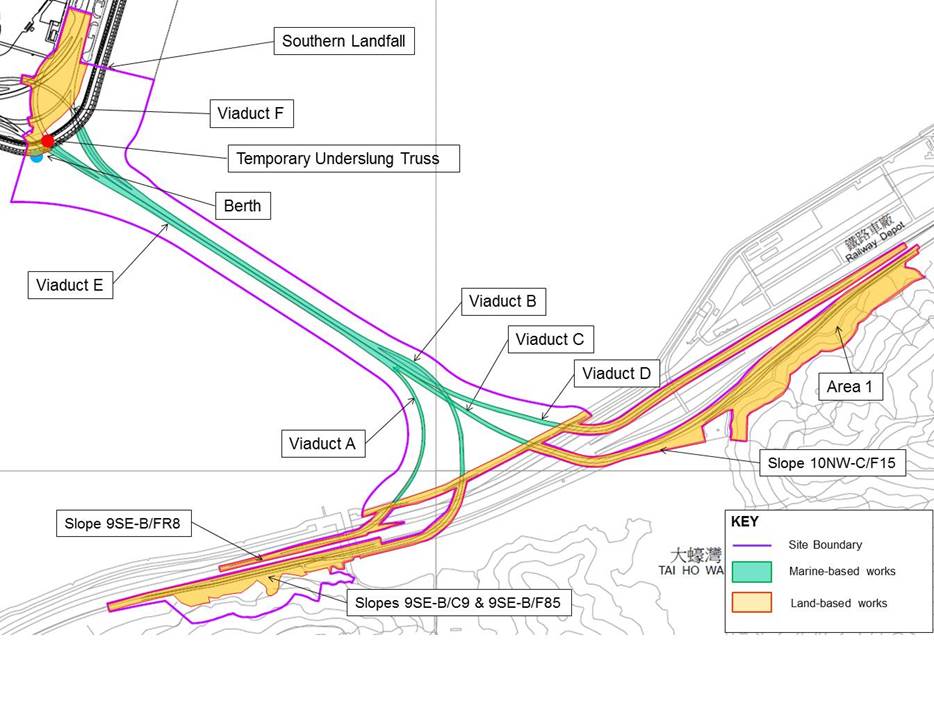

The general layout plan of the Contract components is presented in Figures 1.1 & 1.2a to l.

1.2 Scope of Report

This is the Forty-ninth Monthly EM&A Report under the Contract No. HY/2012/07 Tuen Mun – Chek Lap Kok Link – Southern Connection Viaduct Section. This report presents a summary of the environmental monitoring and audit works in November 2017.

1.3 Organization Structure

The organization structure of the Contract is shown in Appendix A. The key personnel contact names and contact details are summarized in Table 1.1 below.

Table 1.1 Contact Information of Key Personnel

Party	Position	Name	Telephone	Fax
HyD (Highways Department)	Project Coordinator	Stanley Chan	2762 3406	3188 6614
	Senior Engineer	Steven Shum	2762 4133	3188 6614
SOR (AECOM Asia Company Limited)	Chief Resident Engineer	Daniel Ip	3553 3800	2492 2057
	Resident Engineer	Kingman Chan	3691 3950	3691 2899
ENPO / IEC (Ramboll Environ Hong Kong Ltd.)	ENPO Leader	Y.H. Hui	3465 2850	3465 2899
ENPO / IEC (Ramboll Environ Hong Kong Ltd.)	IEC	Dr. F.C. Tsang	3465 2851	3465 2899
Contractor (Gammon Construction Limited)	Environmental Manager	Brian Kam	3520 0387	3520 0486
Contractor (Gammon Construction Limited)	Environmental Officer	Roy Leung	3520 0387	3520 0486
	24-hour Complaint Hotline		9738 4332
ET (ERM-HK)	ET Leader	Jovy Tam	2271 3113	2723 5660

1.4 Summary of Construction Works

The construction phase of the Contract commenced on 31 October 2013. The three-month rolling construction programme is shown in Appendix B.

As informed by the Contractor, details of the major works carried out in this reporting month are listed below:

Land-based Works

· Pier construction;

· Re-alignment of Cheung Tung Road;

· Road works along North Lantau Highway;

· Launching gantry operation;

· Installation of pier head and deck segments; and

· Slope work of Viaducts A, B & C.

The locations of the construction activities are shown in Figure 1.3. The Environmental Sensitive Receivers in the vicinity of the Project are shown in Figure 1.4.

The environmental mitigation measures implementation schedule is presented in Appendix C.

2 EM&A Results

The EM&A programme required environmental monitoring for air quality, noise, water quality and marine ecology as well as environmental site inspections for air quality, noise, water quality, waste management, marine ecology and landscape and visual impacts. The EM&A requirements and related findings for each component are summarized in the following sections.

2.1 Air Quality

2.1.1 Monitoring Requirements and Equipment

In accordance with the Updated EM&A Manual, impact 1-hour TSP monitoring was conducted three (3) times every six (6) days and impact 24-hour TSP monitoring was carried out once every six (6) days when the highest dust impact was expected. The Action and Limit Levels of the air quality monitoring is provided in Appendix D.

Table 2.1 Locations of Impact Air Quality Monitoring Stations

Monitoring Station	Location	Description	Monitoring Dates
ASR 9	MTR Depot	On the ground nearby MTR Depot Entrance	2, 8, 14, 20, 23 and 29 November 2017
ASR 8A	Area 4	On ground at the works area, Area 4	2, 8, 14, 20, 23 and 29 November 2017

High Volume Samplers (HVSs) were used for 1-hour TSP and 24-hour TSP monitoring at ASR8A and ASR9 in accordance with the requirements of the Updated EM&A Manual. The TSP monitoring stations are illustrated in Figure 2.1 and detailed in Table 2.1. Wind meter was deployed at Area 4 for logging wind speed and wind direction. Copies of the calibration certificates for the equipment are presented in Appendix E. Details of the deployed equipment are given in Table 2.2.

Table 2.2 Air Quality Monitoring Equipment

Equipment	Brand and Model
High Volume Sampler (1-hour TSP and 24-hour TSP)	Tisch Environmental Mass Flow Controlled Total Suspended Particulate (TSP) High Volume Sampler (Model No. TE-5170)
Wind Sensor	Global Water (Wind Speed Sensor: WE550; Wind Direction Sensor: WE570)
Wind Anemometer for calibration	Lutron (Model No. AM-4201)

2.1.2 Monitoring Schedule for the Reporting Month

The schedule for air quality monitoring in November 2017 is provided in Appendix F.

2.1.3 Results and Observations

The monitoring results for 1-hour TSP and 24-hour TSP are summarized in Tables 2.3 and 2.4 respectively. Detailed impact air quality monitoring results are presented in Appendix G.

Table 2.3 Summary of 1-hour TSP Monitoring Results in the Reporting Period

Monitoring Station	Average (µg/m³)	Range (µg/m³)	Action Level (µg/m³)	Limit Level (µg/m³)
ASR 8A	82	33-165	394	500
ASR 9	83	35-148	393	500

Table 2.4 Summary of 24-hour TSP Monitoring Results in the Reporting Period

Monitoring Station	Average (µg/m³)	Range (µg/m³)	Action Level (µg/m³)	Limit Level (µg/m³)
ASR 8A	64	30-109	178	260
ASR 9	59	35-92	178	260

The major dust sources in the reporting period included construction activities under the Contract as well as nearby traffic emissions.

All 1-hour and 24-hour TSP results were below the Action and Limit Levels at all monitoring locations in the reporting period. No action is thus required to be undertaken in accordance with the Event Action Plan presented in Appendix L.

Meteorological information collected at ASR8A including wind speed and wind direction is provided in Appendix H.

2.2 Noise Monitoring

2.2.1 Monitoring Requirements and Equipment

In accordance with the Updated EM&A Manual, impact noise monitoring was conducted once per week during the construction phase of the Contract. The Action and Limit Level of the noise monitoring is provided in Appendix D.

Noise monitoring was performed on 2, 8, 14, 20, 23 and 29 November 2017 using sound level meter at the designated monitoring station NSR1A (Figure 2.2; Table 2.5) in accordance with the requirements stipulated in the Updated EM&A Manual. Acoustic calibrator was deployed to check the sound level meters at a known sound pressure level. Details of the deployed equipment are provided in Table 2.6. Copies of the calibration certificates for the equipment are presented in Appendix E.

Table 2.5 Location of Impact Noise Monitoring Station

Monitoring Station	Location	Description	Parameter	Frequency and Duration	Monitoring Dates
NSR 1A	Pak Mong Village Pavilion	On the ground at the village entrance	30-minute measurement at each monitoring station between 0700 and 1900 on normal weekdays (Monday to Saturday). L_eq, L₁₀and L₉₀would be recorded.	At least once per week	2, 8, 14, 20, 23 and 29 November 2017

Table 2.6 Noise Monitoring Equipment

Equipment	Brand and Model
Integrated Sound Level Meter	Rion NL-52
Acoustic Calibrator	Rion NC-73

Equipment

Brand and Model

Integrated Sound Level Meter

Rion NL-52

Acoustic Calibrator

Rion NC-73

2.2.2 Monitoring Schedule for the Reporting Month

The schedule for construction noise monitoring in the reporting period is provided in Appendix F.

2.2.3 Results and Observations

Results for noise monitoring are summarized in Table 2.7 and the monitoring data is provided in Appendix I.

Table 2.7 Summary of Construction Noise Monitoring Results in the Reporting Period

	Average , dB(A), L_eq_(30mins)	Range, dB(A), L_eq_(30mins)	Limit Level, dB(A), L_eq_(30mins)
NSR 1A	63	62-64	75

Average , dB(A),

L_eq_(30mins)

Range, dB(A),

L_eq_(30mins)

Limit Level, dB(A),

L_eq_(30mins)

NSR 1A

62-64

No noise Action or Limit Level exceedance was recorded in the reporting month. No action is thus required to be undertaken in accordance with the Event Action Plan presented in Appendix L.

Major noise sources during the noise monitoring included noise from crane operation, sawing, nearby traffic noise and aircraft noise.

2.3 Water Quality Monitoring

2.3.1 Monitoring Requirements and Equipment

Impact water quality monitoring was carried out to ensure that any deterioration of water quality was detected, and that timely action was taken to rectify the situation. Impact water quality monitoring was undertaken three days per week during the construction period in accordance with the Updated EM&A Manual. The Action and Limit Levels of the water quality monitoring are provided in Appendix D.

The locations of the monitoring stations under the Contract are shown in Figure 2.3 and Table 2.8.
Table 2.8 Locations of Impact Water Quality Monitoring Stations and its Corresponding Monitoring Requirements

Station ID	Type	Coordinates		*Parameters, unit	Frequency	Depth
		Easting	Northing	*Parameters, unit
IS(Mf)9	Impact Station (Close to HKBCF construction site)	813273	818850	Ÿ Temperature(°C) Ÿ pH (pH unit) Ÿ Turbidity (NTU) Ÿ Water depth (m) Ÿ Salinity (ppt) Ÿ Dissolved Oxygen (DO) (mg/L and % of saturation) · Suspended Solid (SS) (mg/L)	Impact monitoring: 3 days per week, at mid-flood and mid-ebb tides during the construction period of the Contract	3 water depths: 1m below sea surface, mid-depth and 1m above sea bed. If the water depth is less than 3m, mid-depth sampling only. If water depth less than 6m, mid-depth may be omitted
IS(Mf)16	Impact Station (Close to HKBCF construction site)	814328	819497
IS8	Impact Station (Close to HKBCF construction site)	814251	818412
SR4	Sensitive receiver (Tai Ho Inlet)	814760	817867
SR4a	Sensitive receiver	815247	818067
CS(Mf)3(N)	Control Station	808814	822355
CS(Mf)5	Control Station	817990	821129
*Notes: In addition to the parameters presented monitoring location/position, time, water depth, sampling depth, tidal stages, weather conditions and any special phenomena or works underway nearby were also recorded. Water Quality Monitoring Station CS(Mf)3 was relocated to CS(Mf)3(N) since 2 May 2017.

Table 2.9 summarises the equipment used in the impact water quality monitoring programme. Copies of the calibration certificates are attached in Appendix E.

Table 2.9 Water Quality Monitoring Equipment

Equipment	Brand and Model
Multi-parameters (Dissolved Oxygen, Salinity, Turbidity, Temperature, pH)	YSI ProDSS / YSI 6920 V2 Sonde

Positioning Equipment	Furuno GP-170
Water Depth Detector	Lowrance Mark 5x / Garmin Striker 4
Water Sampler	WildCo Vertical Alpha Bottles 1120-2.2L /1120-3.2L Aquatic Research Instrument Vertical/Horizontal Point Water Sampler 2.2L / 3.0L

2.3.2 Monitoring Schedule for the Reporting Month

The schedule for water quality monitoring in November 2017 is provided in Appendix F.

2.3.3 Results and Observations

In total of 13 monitoring events for impact water quality monitoring were conducted at all designated monitoring stations in the reporting month. Impact water quality monitoring results and graphical presentations are provided in Appendix J.

Four (4) Action Level of Suspended Solids (SS) exceedances were recorded for water quality impact monitoring in the reporting month. Actions were taken in accordance with the Event Action Plan as presented in Appendix L.

2.4 Dolphin Monitoring

2.4.1 Monitoring Requirements

Impact dolphin monitoring is required to be conducted by a qualified dolphin specialist team to evaluate whether there have been any effects on the Indo-Pacific humpback dolphin Sousa chinensis (i.e. Chinese White Dolphin) from the Contract. In order to fulfil the EM&A requirements and make good use of available resources, the on-going impact line transect dolphin monitoring data collected by HyD’s Contract No. HY/2011/03 Hong Kong-Zhuhai-Macao Bridge. Hong Kong Link Road - Section between Scenic Hill and Hong Kong Boundary Crossing Facilities on the monthly basis is adopted to avoid duplicates of survey effort.

2.4.2 Monitoring Equipment

Table 2.10 summarizes the equipment used for the impact dolphin monitoring.

Table 2.10 Dolphin Monitoring Equipment

Equipment	Model
Global Positioning System (GPS) Camera Laser Binoculars Marine Binocular Vessel for Monitoring	Garmin 18X-PC Geo One Phottix Nikon D90 300m 2.8D fixed focus Nikon D90 20-300m zoom lens Infinitor LRF 1000 Bushell 7 x 50 marine binocular with compass and reticules 65 foot single engine motor vessel with viewing platform 4.5m above water level

2.4.3 Monitoring Parameter, Frequencies and Duration

Dolphin monitoring should cover all transect lines in Northeast Lantau (NEL) and the Northwest Lantau (NWL) survey areas twice per month throughout the entire construction period. The monitoring data should be compatible with, and should be made available for, long-term studies of small cetacean ecology in Hong Kong. In order to provide a suitable long-term dataset for comparison, identical methodology and line transects employed in baseline dolphin monitoring was followed in the impact dolphin monitoring.

2.4.4 Monitoring Location

The impact dolphin monitoring was carried out in the NEL and NWL along the line transect as depicted in Figure 2.4. The co-ordinates of all transect lines are shown in Table 2.11 below ^([1]).

Table 2.11 Impact Dolphin Monitoring Line Transect Co-ordinates

Line No.		Easting	Northing	Line No.		Easting	Northing
1	Start Point	804671	815456	13	Start Point	816506	819480
1	End Point	804671	831404	13	End Point	816506	824859
2	Start Point	805476	820800	14	Start Point	817537	820220
2	End Point	805476	826654	14	End Point	817537	824613
3	Start Point	806464	821150	15	Start Point	818568	820735
3	End Point	806464	822911	15	End Point	818568	824433
4	Start Point	807518	821500	16	Start Point	819532	821420
4	End Point	807518	829230	16	End Point	819532	824209
5	Start Point	808504	821850	17	Start Point	820451	822125
5	End Point	808504	828602	17	End Point	820451	823671
6	Start Point	809490	822150	18	Start Point	821504	822371
6	End Point	809490	825352	18	End Point	821504	823761
7	Start Point	810499	822000*	19	Start Point	822513	823268
7	End Point	810499	824613	19	End Point	822513	824321
8	Start Point	811508	821123	20	Start Point	823477	823402
8	End Point	811508	824254	20	End Point	823477	824613
9	Start Point	812516	821303	21	Start Point	805476	827081
9	End Point	812516	824254	21	End Point	805476	830562
10	Start Point	813525	821176	22	Start Point	806464	824033
10	End Point	813525	824657	22	End Point	806464	829598
11	Start Point	814556	818853	23	Start Point	814559	821739
11	End Point	814556	820992	23	End Point	814559	824768
12	Start Point	815542	818807	24	Start Point	805476	815900
12	End Point	815542	824882	24	End Point	805476	819100

2.4.5 Action & Limit Levels

The Action and Limit levels of dolphin impact monitoring are shown in Appendix D. The Event and Action plan is presented in Appendix L.

2.4.6 Monitoring Schedule for the Reporting Month

Dolphin monitoring was carried out on 1, 8, 17 and 24 November 2017 (Appendix F).

2.4.7 Results and Observations

A total of 261.46 km of survey effort was collected, with 100% of the total survey effort being conducted under favourable weather conditions (i.e. Beaufort Sea State 3 or below with good visibility) during the surveys in November 2017. Among the two areas, 94.40 km and 167.06 km of survey effort were collected from NEL and NWL survey areas, respectively. The total survey effort conducted on primary and secondary lines were 190.80 km and 70.66 km, respectively. The survey efforts are summarized in Appendix K.

Six (6) groups of 31 Chinese White Dolphins were sighted during the two sets of monitoring surveys in November 2017. All dolphin sightings were made in NWL, while none was sighted in NEL. During the surveys in November 2017, all sightings were made during on-effort search, while five of the six on-effort sightings were made on primary lines. None of the dolphin groups was associated with operating fishing vessel and was not sighted in the proximity of the Project’s alignment. The distribution of dolphin sighting during the reporting month is shown in Figure 2.5.

Encounter rates of Chinese White Dolphins are deduced from the survey effort and on-effort sighting data made under favourable conditions (Beaufort 3 or below) in November 2017 are shown in Tables 2.12 & 2.13.

Table 2.12 Individual Survey Event Encounter Rates

		Encounter rate (STG) (no. of on-effort dolphin sightings per 100 km of survey effort)	Encounter rate (ANI) (no. of dolphins from all on-effort sightings per 100 km of survey effort)
		Primary Lines Only	Primary Lines Only
NEL	Set 1: Nov 1^st / 8^th	0.0	0.0
NEL	Set 2: Nov 17^th / 24^th	0.0	0.0
NWL	Set 1: Nov 1^st / 8^th	5.0	26.6
NWL	Set 2: Nov 17^th / 24^th	5.3	5.0
Note: Dolphin Encounter Rates are deduced from the two sets of surveys ( two surveys in each set) in November 2017 in Northeast (NEL) and Northwest Lantau (NWL)

Table 2.13 Monthly Average Encounter Rates

	Encounter rate (STG) (no. of on-effort dolphin sightings per 100 km of survey effort)		Encounter rate (ANI) (no. of dolphins from all on-effort sightings per 100 km of survey effort)
	Primary Lines Only	Both Primary and Secondary Lines	Primary Lines Only	Both Primary and Secondary Lines
Northeast Lantau	0.0	0.0	0.0	0.0
Northwest Lantau	4.2	3.6	15.8	18.6

Note: Overall dolphin encounter rates (sightings per 100 km of survey effort) from all four surveys are conducted in November 2017 on primary lines only as well as both primary lines and secondary lines in Northeast and Northwest Lantau

2.4.8 Marine Mammal Exclusion Zone Monitoring

Daily 250 m marine mammal exclusion zone monitoring was undertaken during the period of daytime marine works activities. No sighting of Chinese White Dolphin was recorded in November 2017 during the exclusion zone monitoring.

Passive Acoustic Monitoring (PAM) had been decommissioned as no marine piling works was carried out outside the daylight hours since September 2015.

2.5 EM&A Site Inspection

Site inspections were carried out on a weekly basis to monitor the implementation of proper environmental pollution control and mitigation measures under the Contract. In the reporting month, four (4) site inspections were carried out on 8, 14, 22 and 30 November 2017.

Key observations during the site inspections are summarized in Table 2.14.

Table 2.14 Specific Observations Identified during the Weekly Site Inspections in this Reporting Month

Inspection Date	Environmental Observations	Recommendations/ Remarks
8 November 2017	Viaduct E (Pier E12) Ÿ Accumulated refuse should be cleared. Ÿ Chemical container was observed not placed in drip tray.	Viaduct E (Pier E12) Ÿ The Contractor was reminded to clear accumulated refuse. Ÿ The Contractor was reminded to place chemical container in drip tray.
14 November 2017	Viaduct A (Ramp A) (Area A) Ÿ Accumulated refuse should be cleared. Ÿ Chemical container was observed not placed in drip tray. Ÿ Drip tray should be provided for chemicals used in wetsep.	Viaduct A (Ramp A) (Area A) Ÿ The Contractor was reminded to clear accumulated refuse. Ÿ The Contractor was reminded to place chemical container in drip tray. Ÿ The Contractor was reminded to provide drip tray for chemicals used in wetsep.
22 November 2017	Viaduct E (Pier E13AB) Ÿ NRMM label on the generator should be replaced. Viaduct E (Pier E10) Ÿ Stagnant water was observed in the drip tray. Ÿ NRMM label on the generator should be replaced.	Viaduct E (Pier E13AB) Ÿ The Contractor was reminded to replace NRMM label on the generator. Viaduct E (Pier E10) Ÿ The Contractor was reminded to clear stagnant water in the drip tray. Ÿ The Contractor was reminded to replace NRMM label on the generator.
30 November 2017	Viaduct D (Ramp D) (Area I) Ÿ Watering should be provided on unpaved road. Ÿ Chemical containers were observed not placed in drip tray. Viaduct D (Pier D6) Ÿ Chemical containers were observed not placed in drip tray.	Viaduct D (Ramp D) (Area I) Ÿ The Contractor was reminded to maintain watering on unpaved road. Ÿ The Contractor was reminded to place chemical container in drip tray. Viaduct D (Pier D6) Ÿ The Contractor was reminded to place chemical container in drip tray.

Inspection Date

Environmental Observations

Recommendations/ Remarks

8 November 2017

Viaduct E (Pier E12)

Ÿ Accumulated refuse should be cleared.

Ÿ Chemical container was observed not placed in drip tray.

Viaduct E (Pier E12)

Ÿ The Contractor was reminded to clear accumulated refuse.

Ÿ The Contractor was reminded to place chemical container in drip tray.

14 November 2017

Viaduct A (Ramp A) (Area A)

Ÿ Accumulated refuse should be cleared.

Ÿ Chemical container was observed not placed in drip tray.

Ÿ Drip tray should be provided for chemicals used in wetsep.

Viaduct A (Ramp A) (Area A)

Ÿ The Contractor was reminded to clear accumulated refuse.

Ÿ The Contractor was reminded to place chemical container in drip tray.

Ÿ The Contractor was reminded to provide drip tray for chemicals used in wetsep.

22 November 2017

Viaduct E (Pier E13AB)

Ÿ NRMM label on the generator should be replaced.

Viaduct E (Pier E10)

Ÿ Stagnant water was observed in the drip tray.

Ÿ NRMM label on the generator should be replaced.

Viaduct E (Pier E13AB)

Ÿ The Contractor was reminded to replace NRMM label on the generator.

Viaduct E (Pier E10)

Ÿ The Contractor was reminded to clear stagnant water in the drip tray.

Ÿ The Contractor was reminded to replace NRMM label on the generator.

30 November 2017

Viaduct D (Ramp D) (Area I)

Ÿ Watering should be provided on unpaved road.

Ÿ Chemical containers were observed not placed in drip tray.

Viaduct D (Pier D6)

Ÿ Chemical containers were observed not placed in drip tray.

Viaduct D (Ramp D) (Area I)

Ÿ The Contractor was reminded to maintain watering on unpaved road.

Ÿ The Contractor was reminded to place chemical container in drip tray.

Viaduct D (Pier D6)

Ÿ The Contractor was reminded to place chemical container in drip tray.

The Contractor has rectified all of the observations identified during environmental site inspections in the reporting month.

2.6 Waste Management Status

The Contractor has submitted application form for registration as chemical waste producer under the Contract. Sufficient numbers of receptacles were available for general refuse collection and sorting.

Wastes generated during this reporting period include mainly construction wastes (inert and non-inert) and recyclable materials. Reference has been made to the waste flow table prepared by the Contractor (Appendix M). The quantities of different types of wastes are summarized in Table 2.15.

Table 2.15 Quantities of Different Waste Generated in the Reporting Period

Month/ Year	Inert C&D Materials ^(a) (m³)	Imported Fill (m³)	Inert Construction Waste Re-used (m³)	Non-inert Construction Waste ^(b) (kg)	Recyclable Materials ^(c) (kg)	Chemical Wastes (kg)	Marine Sediment (m³)
							Category L	Category M (M_p & M_f)	Category H
November 2017	3,354	0	23	159,650	5,868	5,400	0	0	0
Notes:
(a) Inert construction wastes include hard rock and large broken concrete, and materials disposed as public fill. (b) Non-inert construction wastes include general refuse disposed at landfill. (c) Recyclable materials include metals, paper, cardboard, plastics, timber, felled trees and others.

The Contractor was advised to properly maintain on site C&D materials and waste collection, sorting and recording system, dispose of C&D materials and wastes at designated ground and maximize reuse/ recycle of C&D materials and wastes. The Contractor was also reminded to properly maintain the site tidiness and dispose of the wastes accumulated on site regularly and properly.

For chemical waste containers, the Contractor was reminded to treat properly and store temporarily in designated chemical waste storage area on site in accordance with the Code of Practice on the Packaging, Labelling and Storage of Chemical Wastes.

2.7 Environmental Licenses and Permits

The status of environmental licensing and permit is summarized in Table 2.16 below.

License/ Permit	License or Permit No.	Date of Issue	Date of Expiry	License/ Permit Holder	Remarks
Environmental Permit	EP-354/2009/D	13 Mar 2015	N/A	HyD	Tuen Mun- Chek Lap Kok Link
Environmental Permit	EP-353/2009/K	11 Apr 2016	N/A	HyD	Hong Kong Boundary Crossing Facilities
Construction Dust Notification	361571	5 Jul 2013	N/A	GCL
Construction Dust Notification	362093	17 Jul 2013	N/A	GCL	For Area 23
Chemical Waste Registration	5213-961-G2380-13	10 Oct 2013	N/A	GCL	Chemical waste produced in Contract No. HY/2012/07 (Area 1 adjacent to Cheng Tung Road, Siu Ho Wan)
Chemical Waste Registration	5213-961-G2380-14	10 Oct 2013	N/A	GCL	Chemical waste produced in Contract No. HY/2012/07 (Area 2 adjacent to Cheung Tung Road, Pak Mong Village)
Chemical Waste Registration	5213-974-G2588-03	4 Nov 2013	N/A	GCL	Chemical waste produced in Contract No. HY/2012/07 (WA5 adjacent to Cheung Tung Road, Yam O)
Chemical Waste Registration	5213-951-G2380-17	12 Jun 2014	N/A	GCL	Viaducts A, B, C, D & E
Construction Waste Disposal Account	7017735	10 Jul 2013	N/A	GCL	-
Construction Waste Disposal Account	7019470	3 Mar 2014	N/A	GCL	Vessel CHIT Account
Waste Water Discharge License	WT00019017-2014	13 May 2014	31 May 2019	GCL	Discharge for marine portion
Waste Water Discharge License	WT00019018-2014	13 May 2014	31 May 2019	GCL	Discharge for land portion
Construction Noise Permit for night works and works in general holidays	GW-RW0294-17	19 Jun 2017	18 Dec 2017	GCL	General works at WA5
Construction Noise Permit for night works and works in general holidays	GW-RS0540-17	20 Jun 2017	15 Dec 2017	GCL	Broad Permit for Whole Site Areas
Construction Noise Permit for night works and works in general holidays Construction Noise Permit for night works and works in general holidays Construction Noise Permit for night works and works in general holidays	GW-RS0829-17 GW-RS0668-17 GW-RS0954-17	29 Sep 2017 7 Aug 2017 5 Nov 2017	30 Nov 2017 6 Feb 2018 30 Nov 2017	GCL GCL GCL	Broad Permit for Segment Launching at Land Portion Pre-casted pile cap shell installation at E8-E13 Contingency plan for DN800T works at Tung Chung Seafront Road
Marine Dumping Permit	EP/MD/18-031	1 Jul 2017	31 Dec 2017	GCL	For dumping Type I sediment

([1]) Proposal on the changes of transect lines for dolphin monitoring was approved by EPD on

28 July 2017 (Reference number: (19) in EP2/G/A/129 Pt. 8).

Executive Summary

1 Introduction

1.2 Scope of Report

1.4 Summary of Construction Works

2 EM&A Results

2.1.1 Monitoring Requirements and Equipment

2.1.2 Monitoring Schedule for the Reporting Month

2.1.3 Results and Observations

2.2.1 Monitoring Requirements and Equipment

2.2.2 Monitoring Schedule for the Reporting Month

2.2.3 Results and Observations

2.3.1 Monitoring Requirements and Equipment

The locations of the monitoring stations under the Contract are shown in Figure 2.3 and Table 2.8. Table 2.8 Locations of Impact Water Quality Monitoring Stations and its Corresponding Monitoring Requirements

Table 2.9 summarises the equipment used in the impact water quality monitoring programme. Copies of the calibration certificates are attached in Appendix E.

2.3.2 Monitoring Schedule for the Reporting Month

The schedule for water quality monitoring in November 2017 is provided in Appendix F.

2.3.3 Results and Observations

In total of 13 monitoring events for impact water quality monitoring were conducted at all designated monitoring stations in the reporting month. Impact water quality monitoring results and graphical presentations are provided in Appendix J.

2.4.1 Monitoring Requirements

2.4.2 Monitoring Equipment

2.4.3 Monitoring Parameter, Frequencies and Duration

2.4.4 Monitoring Location

2.4.5 Action & Limit Levels

2.4.6 Monitoring Schedule for the Reporting Month

2.4.7 Results and Observations

2.4.8 Marine Mammal Exclusion Zone Monitoring

2.5 EM&A Site Inspection

2.6 Waste Management Status

2.7 Environmental Licenses and Permits

3 Future Key Issues

3.2 Key Issues for the Coming Month

4 Conclusions and Recommendations

The locations of the monitoring stations under the Contract are shown in Figure 2.3 and Table 2.8.
Table 2.8 Locations of Impact Water Quality Monitoring Stations and its Corresponding Monitoring Requirements
