Under Contract No. HY/2012/08, Dragages – Bouygues Joint Venture (DBJV) is commissioned by the Highways Department (HyD) to undertake the design and construction of the Northern Connection Sub-sea Tunnel Section of the Tuen Mun – Chek Lap Kok Link Project (TM-CLK Link Project) while AECOM Asia Company Limited was appointed by HyD as the Supervising Officer. For implementation of the environmental monitoring and audit (EM&A) programme under the Contract, ERM-Hong Kong, Limited (ERM) has been appointed as the Environmental Team (ET) in accordance with Environmental Permit No. EP-354/2009/A. Ramboll Environ Hong Kong Ltd. was employed by HyD as the Independent Environmental Checker (IEC) and Environmental Project Office (ENPO). Subsequent applications for variation of environmental permits (VEP), EP-354/2009/B, EP-354/2009/C and EP-354/2009/D, were granted on 28 January 2014, 10 December 2014 and 13 March 2015, respectively.

The construction phase of the Project commenced on 1 November 2013 and will tentatively be completed by the end of 2018. The impact monitoring of the EM&A programme, including air quality, water quality, marine ecological monitoring and environmental site inspections, were commenced on 1 November 2013.

This is the Twenty-second Monthly EM&A report presenting the EM&A works carried out during the period from 1 to 31 August 2015 for the Contract No. HY/2012/08 Northern Connection Sub-sea Tunnel Section (the “Project”) in accordance with the Updated EM&A Manual of the TM-CLK Link Project. As informed by the Contractor, major activities in the reporting period included:

Land-based Works

· Surcharge Removal at Works Area – Portion N-C;

· Box Culvert Extension at Works Area – Portion N-A;

· Construction of capping beam and base slab for Ventilation Shaft at Works Area – Portion N-C;

· Installation of Tower Crane at Works Area – Portion N-C;

· TBM Tunnel Works at Works Area – Portion N-B; and

· Modification and Maintenance Works for Slurry Treatment Plant at Works Area – Portion N-C.

A summary of monitoring and audit activities conducted in the reporting period is listed below:

24-hour TSP Monitoring 10 sessions

1-hour TSP Monitoring 10 sessions

Impact Dolphin Monitoring 2 sessions

Joint Environmental Site Inspection 4 sessions

Implementation of Marine Mammal Exclusion Zone

There was no dredging, reclamation or marine sheet piling works in open waters during this reporting period. Thus, Passive Acoustic Monitoring (PAM) and the day-time monitoring of Dolphin Exclusion Zone (DEZ) by dolphin observers were not in effect during the reporting period.

Summary of Breaches of Action/Limit Levels

Breaches of Action and Limit Levels for Air Quality

No Action Level or Limit Level of air quality exceedances were recorded in the air quality monitoring of this reporting month.

Breaches of Action and Limit Levels for Dolphin Monitoring

Whilst one (1) Limit Level exceedance was observed for the quarterly dolphin monitoring data between June 2015 and August 2015, no unacceptable impact from the construction activities of the TM-CLKL Northern Connection Sub-sea Tunnel Section on Chinese White Dolphins was noticeable from general observations. Due to monthly variation in dolphin occurrence within the study area, it would be more appropriate to draw conclusion on whether any impacts on dolphins have been detected related to the construction activities of the TM-CLKL Northern Connection Sub-sea Tunnel Section in the quarterly EM&A reports, where comparison on distribution, group size and encounter rates of dolphins between the quarterly impact monitoring period and baseline monitoring period will be made.

Environmental Complaints, Non-compliance & Summons

No non-compliance with EIA recommendations, EP conditions and other requirements associated with the construction of this Contract was recorded in this reporting period.

No environmental complaint was received in this reporting period.

No environmental summons was received in this reporting period.

Reporting Change

There was no reporting change required in the reporting period.

Upcoming Works for the Next Reporting Month

Works to be undertaken in the next monitoring period of September 2015 include the following:

Land-based Works

· Box Culvert Extension at Works Area – Portion N-A;

· Installation of Tower Crane at Works Area – Portion N-C;

· Base Slap Construction for Ventilation Shaft at Works Area – Portion N-C;

· TBM Tunnel Works at Works Area – Portion N-B; and

· Modification and Maintenance Works for Slurry Treatment Plant at Works Area – Portion N-C.

Future Key Issues

Potential environmental impacts arising from the above upcoming construction activities in the next reporting month of September 2015 are expected to be mainly associated with dust, marine ecology and waste management.

1 Introduction

1.1 Background

According to the findings of the Northwest New Territories (NWNT) Traffic and Infrastructure Review conducted by the Transport Department, Tuen Mun Road, Ting Kau Bridge, Lantau Link and North Lantau Highway would be operating beyond capacity after 2016. This forecast has been based on the estimated increase in cross boundary traffic, developments in the Northwest New Territories (NWNT), and possible developments in North Lantau, including the Airport developments, the Lantau Logistics Park (LLP) and the Hong Kong – Zhuhai – Macao Bridge (HZMB). In order to cope with the anticipated traffic demand, two new road sections between NWNT and North Lantau – Tuen Mun – Chek Lap Kok Link (TM-CLKL) and Tuen Mun Western Bypass (TMWB) are proposed.

An Environmental Impact Assessment (EIA) of TM-CLKL (the Project) was prepared in accordance with the EIA Study Brief (No. ESB-175/2007) and the Technical Memorandum of the Environmental Impact Assessment Process (EIAO-TM). The EIA Report was submitted under the Environmental Impact Assessment Ordinance (EIAO) in August 2009. Subsequent to the approval of the EIA Report (EIAO Register Number AEIAR-146/2009), an Environmental Permit (EP-354/2009) for TM-CLKL was granted by the Director of Environmental Protection (DEP) on 4 November 2009, and EP variation (VEP) (EP-354/2009A) was issued on 8 December 2010. Subsequent applications for variation of environmental permits (VEPs), EP-354/2009/B, EP-354/2009/C and EP-354/2009/D, were granted on 28 January 2014, 10 December 2014 and 13 March 2015, respectively.

Under Contract No. HY/2012/08, Dragages – Bouygues Joint Venture (DBJV) is commissioned by the Highways Department (HyD) to undertake the design and construction of the Northern Connection Sub-sea Tunnel Section of TM-CLKL while AECOM Asia Company Limited was appointed by HyD as the Supervising Officer. For implementation of the environmental monitoring and audit (EM&A) programme under the Contract, ERM-Hong Kong, Limited (ERM) has been appointed as the Environmental Team (ET). Ramboll Environ Hong Kong Ltd. was employed by HyD as the Independent Environmental Checker (IEC) and Environmental Project Office (ENPO).

Layout of the Contract components is presented in Figure 1.1.

The construction phase of the Contract commenced on 1 November 2013 and will tentatively be completed by 2018. The impact monitoring phase of the EM&A programme, including air quality, water quality, marine ecological monitoring and environmental site inspections, were commenced on 1 November 2013.

1.2 Scope of Report

This is the Twenty-second Monthly EM&A Report under the Contract No. HY/2012/08 Tuen Mun – Chek Lap Kok Link – Northern Connection Sub-sea Tunnel Section. This report presents a summary of the environmental monitoring and audit works in August 2015.

1.3 Organization Structure

The organization structure of the Contract is shown in Appendix A. The key personnel contact names and contact details are summarized in Table 1.1 below.

Table 1.1 Contact Information of Key Personnel

Party	Position	Name	Telephone	Fax
Highways Department	Engr 16/HZMB	Kenneth Lee	2762 4996	3188 6614
SOR (AECOM Asia Company Limited)	Chief Resident Engineer	Edwin Ching Andrew Westmoreland	2293 6388 2293 6360	2293 6300 2293 6300
ENPO / IEC (Ramboll Environ Hong Kong Ltd.)	ENPO Leader	Y.H. Hui	3547 2133	3465 2899
ENPO / IEC (Ramboll Environ Hong Kong Ltd.)	IEC	Dr. F.C. Tsang	3547 2134	3465 2899
Contractor (Dragages – Bouygues Joint Venture)	Environmental Manager	C.F. Kwong	2293 7322	2293 7499
Contractor (Dragages – Bouygues Joint Venture)	Environmental Officer 24-hour complaint hotline	Bryan Lee Rachel Lam	2293 7323 2293 7330	2293 7499
ET (ERM-HK)	ET Leader	Jovy Tam	2271 3113	2723 5660

1.4 Summary of Construction Works

The construction phase of this Contract was commenced on 1 November 2013. The construction programme is shown in Appendix B.

As per DBJV’s information, details of major construction works carried out in this reporting period are summarized in Table 1.2.

The general layout plan of the site showing the detailed works areas is shown in Figure 1.2. The Environmental Sensitive Receivers in the vicinity of the Project are shown in Figure 1.3.

The implementation schedule of environmental mitigation measures is presented in Appendix C.

Table 1.2 Summary of Construction Activities Undertaken during the Reporting Period

Construction Activities Undertaken
Land-based Works
· Surcharge Removal at Works Area – Portion N-C; · Box Culvert Extension at Works Area – Portion N-A; · Construction of capping beam and base slab for Ventilation Shaft at Works Area – Portion N-C; · Installation of Tower Crane at Works Area – Portion N-C; · TBM Tunnel Works at Works Area – Portion N-B; and · Modification and Maintenance Works for Slurry Treatment Plant at Works Area – Portion N-C.

Construction Activities Undertaken

Land-based Works

· Surcharge Removal at Works Area – Portion N-C;

· Box Culvert Extension at Works Area – Portion N-A;

· Construction of capping beam and base slab for Ventilation Shaft at Works Area – Portion N-C;

· Installation of Tower Crane at Works Area – Portion N-C;

· TBM Tunnel Works at Works Area – Portion N-B; and

· Modification and Maintenance Works for Slurry Treatment Plant at Works Area – Portion N-C.

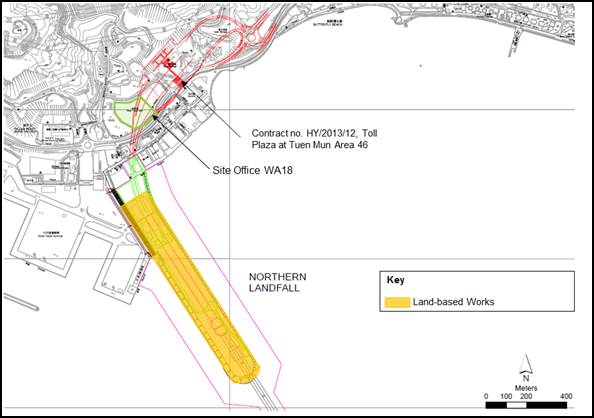

Figure 1.2 Locations of Construction Activities – August 2015

2 EM&A Results

The EM&A programme required environmental monitoring for air quality, water quality and marine ecology as well as environmental site inspections for air quality, noise, water quality, waste management, marine ecology and landscape and visual impacts. The EM&A requirements and related findings for each component are summarized in the following sections

2.1 Air quality

2.1.1 Monitoring Requirements and Equipment

In accordance with the Updated EM&A Manual and the Enhanced TSP Monitoring Plan, impact 1-hour TSP monitoring was conducted three (3) times every six (6) days and impact 24-hour TSP monitoring was carried out once every six (6) days when the highest dust impact was expected. 1-hr and 24-hr TSP monitoring frequency was increased to three times per day every three days and daily every three days, respectively, as excavation works for launching shaft commenced on 24 October 2014.

High volume samplers (HVSs) were used to carry out the 1-hour and 24-hour TSP monitoring on 3, 6, 9, 12, 15, 18, 21, 24, 27 and 30 August 2015 at the five (5) air quality monitoring stations in accordance with the requirements stipulated in the Updated EM&A Manual (Figure 2.1; Table 2.1). Wind meter was installed at the rooftop of ASR5 for logging wind speed and wind direction. Details of the equipment deployed are provided in Table 2.2. Copies of the calibration certificates for the equipment are presented in Appendix E.

Table 2.1 Locations of Impact Air Quality Monitoring Stations and Monitoring Dates in this Reporting Period

Monitoring Station	Monitoring Dates	Location	Description	Parameters & Frequency
ASR1	3, 6, 9, 12, 15, 18, 21, 24, 27 and 30 August 2015	Tuen Mun Fireboat Station	Office	TSP monitoring Ÿ 1-hour Total Suspended Particulates (1-hour TSP, µg/m³), 3 times in every 6 days Ÿ 24-hour Total Suspended Particulates (24-hour TSP, µg/m³), daily for 24-hour in every 6 days Enhanced TSP monitoring (commenced on 24 October 2014) Ÿ 1-hour Total Suspended Particulates (1-hour TSP, µg/m³), 3 times in every 3 days Ÿ 24-hour Total Suspended Particulates (24-hour TSP, µg/m³), daily for 24-hour in every 3 days
ASR5		Pillar Point Fire Station	Office
AQMS1		Previous River Trade Golf	Bare ground
ASR6		Butterfly Beach Laundry	Office
ASR10		Butterfly Beach Park	Recreational uses

Table 2.2 Air Quality Monitoring Equipment

Equipment	Brand and Model
High Volume Sampler (1-hour TSP and 24-hour TSP)	Tisch Environmental Mass Flow Controlled Total Suspended Particulate (TSP) High Volume Sampler (Model No. TE-5170)
Wind Meter	Davis (Model: Weather Wizard III (S/N: WE90911A30)
Wind Anemometer for calibration	Lutron (Model No. AM-4201)

2.1.2 Action & Limit Levels

The Action and Limit Levels of the air quality monitoring is provided in Appendix D. The Event and Action plan is presented in Appendix J.

2.1.3 Monitoring Schedule for the Reporting Month

The schedule for air quality monitoring in August 2015 is provided in Appendix F.

2.1.4 Results and Observations

The monitoring results for 1-hour TSP and 24-hour TSP are summarized in Tables 2.3 and 2.4, respectively. Detailed impact air quality monitoring results and graphical presentations are presented in Appendix G.

Table 2.3 Summary of 1-hour TSP Monitoring Results in this Reporting Period

Station	Average (µg/m³)	Range (µg/m³)	Action Level (µg/m³)	Limit Level (µg/m³)
ASR1	113	60 – 214	331	500
ASR5	143	66 – 241	340	500
AQMS1	97	54 – 165	335	500
ASR6	131	53 – 235	338	500
ASR10	87	52 – 143	337	500

Table 2.4 Summary of 24-hour TSP Monitoring Results in this Reporting Period

Station	Average (µg/m³)	Range (µg/m³)	Action Level (µg/m³)	Limit Level (µg/m³)
ASR1	67	42 – 94	213	260
ASR5	85	59 – 127	238	260
AQMS1	63	50 – 86	213	260
ASR6	79	45 – 103	238	260
ASR10	58	44 – 86	214	260

The weather condition during the monitoring period varied from sunny to cloudy. The major dust sources in the reporting period include construction activities under the Contract as well as nearby traffic emissions.

A total of ten monitoring events were undertaken in which no Action or Limit Level exceedances of 1-hr TSP were recorded in this reporting month. No Action or Limit Level exceedances for 24-hr TSP were record.

Meteorological information collected at the ASR5, including wind speed and wind direction, is provided in Appendix H.

2.2 Water Quality Monitoring

As informed by the Contractor, Phase I Reclamation works for the Northern Landfall was substantially completed in December 2014, a proposal letter was sent to EPD on 21 May 2015 to seek approval for the temporary suspension of Water Quality Monitoring. Subsequently, a letter from EPD on 5 June 2015 stated that they have no strong objection to the temporary suspension of the water quality monitoring. Water Quality Monitoring was suspended from 6 June 2015 effectively and will resume when Phase II Reclamation commences in the fourth quarter of 2016 tentatively.

2.3 Dolphin Monitoring

2.3.1 Monitoring Requirements

Impact dolphin monitoring is required to be conducted by a qualified dolphin specialist team to evaluate whether there have been any effects on the dolphins. In order to fulfil the EM&A requirements and make good use of available resources, the on-going impact line transect dolphin monitoring data collected by HyD’s Contract No. HY/2011/03 Hong Kong-Zhuhai-Macao Bridge. Hong Kong Link Road - Section between Scenic Hill and Hong Kong Boundary Crossing Facilities on the monthly basis is adopted to avoid duplicates of survey effort.

2.3.2 Monitoring Equipment

Table 2.5 summarises the equipment used for the impact dolphin monitoring.

Table 2.5 Dolphin Monitoring Equipment

Equipment	Model
Global Positioning System (GPS)	Garmin 18X-PC Geo One Phottix
Camera	Nikon D90 300m 2.8D fixed focus Nikon D90 20-300m zoom lens
Laser Binocular	Infinitor LRF 1000
Marine Binocular	Bushell 7 x 50 marine binocular with compass and reticules
Vessel for Monitoring	65 foot single engine motor vessel with viewing platform 4.5m above water level

2.3.3 Monitoring Parameter, Frequencies & Duration

Dolphin monitoring should cover all transect lines in Northeast Lantau (NEL) and the Northwest Lantau (NWL) survey areas twice per month throughout the entire construction period. The monitoring data should be compatible with, and should be made available for, long-term studies of small cetacean ecology in Hong Kong. In order to provide a suitable long-term dataset for comparison, identical methodology and line transects employed in baseline dolphin monitoring was followed in the impact dolphin monitoring.

2.3.4 Monitoring Location

The impact dolphin monitoring was carried out in the NEL and NWL along the line transect as depicted in Figure 2.2. The co-ordinates of all transect lines are shown in Table 2.6 below.

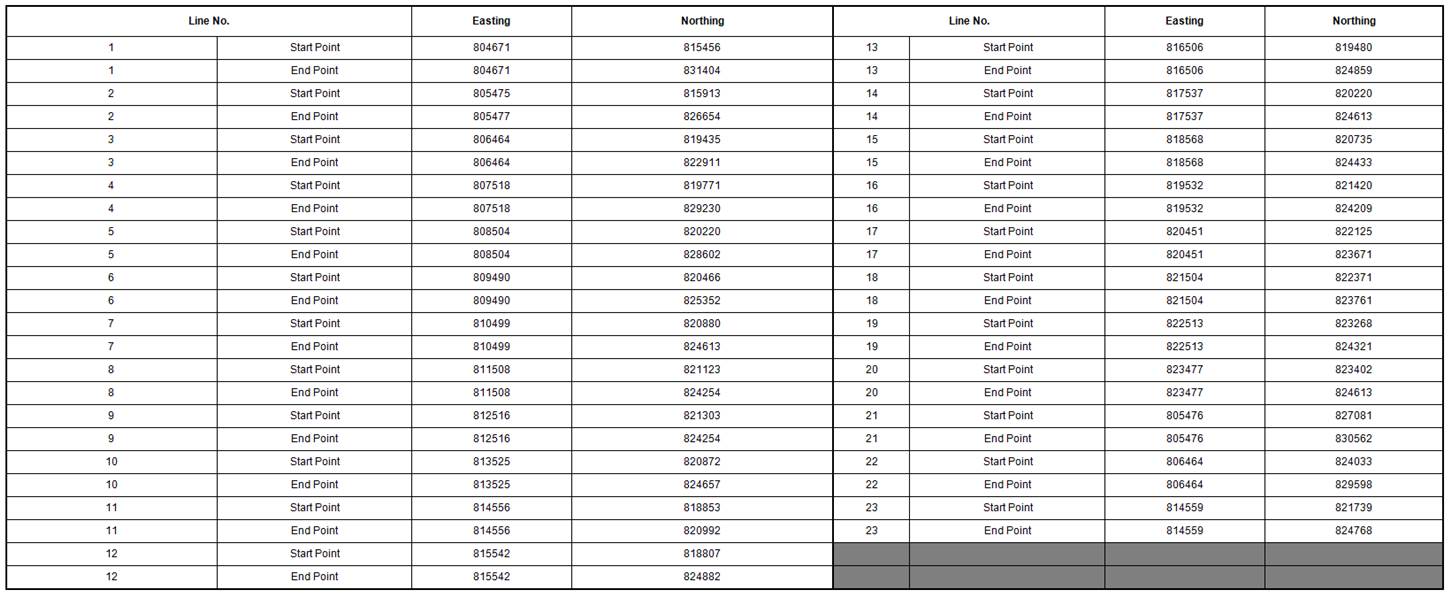

Table 2.6 Impact Dolphin Monitoring Line Transect Co-ordinates

2.3.5 Action & Limit Levels

The Action and Limit levels of impact dolphin monitoring are shown in Appendix D. The Event and Action plan is presented in Appendix J.

2.3.6 Monitoring Schedule for the Reporting Month

Dolphin monitoring was carried out on 10, 14, 19 and 28 of August 2015. The dolphin monitoring schedule for the reporting month is shown in Appendix F.

2.3.7 Results & Observations

A total of 297.72 km of survey effort was collected, with 99.6% of the total survey effort being conducted under favourable weather conditions (ie Beaufort Sea State 3 or below with good visibility) in August 2015. Amongst the two areas, 113.58 km and 184.14 km of survey effort were collected from NEL and NWL survey areas, respectively. The total survey effort conducted on primary and secondary lines were 215.91 km and 81.81 km, respectively. The survey efforts are summarized in Appendix I.

A total of 6 groups of twenty-one Chinese White Dolphin sightings were recorded during the two sets of surveys in August 2015. All six sightings were made in NWL during the survey in August 2015. All six sightings were made on primary lines during on-effort search, and the sighting was not associated with operating fishing vessel.

None of the sightings was made in the vicinity of the TM-CLKL Northern Connection Sub-sea Tunnel Section. The distribution of dolphin sightings during the reporting month is shown in Figure 2.3.

Encounter rates of Chinese White Dolphins are deduced from the survey effort and on-effort sighting data made under favourable conditions (Beaufort 3 or below with good visibility) in August 2015 with the results present in Tables 2.7 and 2.8.

Table 2.7 Individual Survey Event Encounter Rates

		Encounter rate (STG) (no. of on-effort dolphin sightings per 100 km of survey effort)	Encounter rate (ANI) (no. of dolphins from all on-effort sightings per 100 km of survey effort)
		Primary Lines Only	Primary Lines Only
NEL	Set 1: August 10^th/14^th	0.0	0.0
NEL	Set 2: August 19^th/28^th	0.0	0.0
NWL	Set 1: August 10^th/14^th	0.0	0.0
NWL	Set 2: August 19^th/28^th	8.5	29.8

Note: Dolphin Encounter Rates are deduced from the Two Sets of Surveys (Two Surveys in Each Set) in August 2015 in Northeast (NEL) and Northwest Lantau (NWL)

Table 2.8 Monthly Average Encounter Rates

	Encounter rate (STG) (no. of on-effort dolphin sightings per 100 km of survey effort)		Encounter rate (ANI) (no. of dolphins from all on-effort sightings per 100 km of survey effort)
	Primary Lines Only	Both Primary and Secondary Lines	Primary Lines Only	Both Primary and Secondary Lines
Northeast Lantau	0.0	0.0	0.0	0.0
Northwest Lantau	4.2	3.3	14.7	11.5

Note: Overall dolphin encounter rates (sightings per 100 km of survey effort) from all four surveys are conducted in August 2015 on primary lines only as well as both primary lines and secondary lines in Northeast and Northwest Lantau.

Whilst one (1) Limit Level exceedance (Both Northeast Lantau social cluster and Northwest Lantau social cluster exceeded Limit Level) was observed for the quarterly dolphin monitoring data between June 2015 and August 2015, no unacceptable impact from the construction activities of the Northern Connection Sub-sea Tunnel Section on Chinese White Dolphins was noticeable from general observations during the dolphin monitoring in this reporting month.

Due to monthly variation in dolphin occurrence within the survey area, it would be more appropriate to draw conclusion on whether any unacceptable impacts on dolphins have been detected in relation to the construction activities of this Project in the quarterly EM&A reports, where comparison on distribution, group size and encounter rates of dolphins between the quarterly impact monitoring period and baseline monitoring period will be made.

2.3.8 Implementation of Marine Mammal Exclusion Zone

2.4 EM&A Site Inspection

Site inspections were carried out on a weekly basis to monitor the implementation of proper environmental pollution control and mitigation measures under the Contract. In the reporting month, four (4) site inspections were carried out on 6, 12, 19 and 26 August 2015.

Key observations and recommendations during the site inspections in this reporting period are summarized in Table 2.9.

Table 2.9 Specific Observations and Recommendations during the Weekly Site Inspection in this Reporting Month

Inspection Date	Observations	Recommendations/ Remarks
6 August 2015	Works Area - Portion N-A Ÿ Floating litter adjacent to the work site should be cleared more frequently. Ÿ Water spraying should be applied more frequently during windy condition.	Works Area - Portion N-A Ÿ The Contractor was reminded to check and clear the floating litter more frequently. Ÿ The Contractor was reminded to provide water spraying more frequently during windy condition.
12 August 2015	Works Area - Portion N-A Ÿ Drip tray and chemical label should be provided to the oil drum. Works Area - Portion N-B Ÿ Water inside drip tray should be cleared after rainstorm. Ÿ Excess sandy materials should be cleared. Works Area - Portion N-C Ÿ Accumulated general refuse should be cleared. Ÿ Muddy water should be cleared to avoid runoff.	Works Area - Portion N-A Ÿ The Contractor was reminded to provide drip tray and chemical label to the oil drum. Works Area - Portion N-B Ÿ The Contractor was reminded to check and clear the water inside drip tray after rainstorm. Ÿ The Contractor was reminded to clear the excess sandy materials more frequently. Works Area - Portion N-C Ÿ The Contractor was reminded to clear the accumulated general refuse more frequently. Ÿ The Contractor was reminded to clear the muddy water avoid runoff.
19 August 2015	Works Area - Portion N-A Ÿ Water inside drip tray should be cleared after rainstorm to maintain capacity. Ÿ Excess muddy materials should be cleared more frequently. Ÿ Used chemical containers should be cleared or placed inside of drip trays. Ÿ Accumulated general refuse should be cleared.	Works Area - Portion N-A Ÿ The Contractor was reminded to check the capacity of drip trays more frequently. Ÿ The Contractor was reminded to clear the excess muddy more frequently. Ÿ The Contractor was reminded to clear the used chemical containers or placed them inside of drip trays. Ÿ The Contractor was reminded to clear the accumulated general refuse.
26 August 2015	Works Area - Portion N-A Ÿ Wetsep should be kept in adequate capacity to avoid any overflow. Ÿ Trays for general refuse should be provided. Ÿ Wetsep should be maintained to ensure adequate capacity. Works Area – Portion N-C Ÿ Materials other than chemical containers should be seperated from the drip tray. Ÿ Deposited silt should be removed in the channel.	Works Area - Portion N-A Ÿ The Contractor was reminded to maintain adequate capacity of the wetsep to avoid any overflow. Ÿ The Contractor was reminded to provide trays for general refuse. Ÿ The Contractor was reminded to maintain adequate capacity for the wetsep. Works Area – Portion N-C Ÿ The Contractor was reminded to clear the materials other than chemical containers in the drip tray. Ÿ The Contractor was reminded to remove the deposited silt in the channel.

Inspection Date

Observations

Recommendations/ Remarks

6 August 2015

Works Area - Portion N-A

Ÿ Floating litter adjacent to the work site should be cleared more frequently.

Ÿ Water spraying should be applied more frequently during windy condition.

Works Area - Portion N-A

Ÿ The Contractor was reminded to check and clear the floating litter more frequently.

Ÿ The Contractor was reminded to provide water spraying more frequently during windy condition.

12 August 2015

Works Area - Portion N-A

Ÿ Drip tray and chemical label should be provided to the oil drum.

Works Area - Portion N-B

Ÿ Water inside drip tray should be cleared after rainstorm.

Ÿ Excess sandy materials should be cleared.

Works Area - Portion N-C

Ÿ Accumulated general refuse should be cleared.

Ÿ Muddy water should be cleared to avoid runoff.

Works Area - Portion N-A

Ÿ The Contractor was reminded to provide drip tray and chemical label to the oil drum.

Works Area - Portion N-B

Ÿ The Contractor was reminded to check and clear the water inside drip tray after rainstorm.

Ÿ The Contractor was reminded to clear the excess sandy materials more frequently.

Works Area - Portion N-C

Ÿ The Contractor was reminded to clear the accumulated general refuse more frequently.

Ÿ The Contractor was reminded to clear the muddy water avoid runoff.

19 August 2015

Works Area - Portion N-A

Ÿ Water inside drip tray should be cleared after rainstorm to maintain capacity.

Ÿ Excess muddy materials should be cleared more frequently.

Ÿ Used chemical containers should be cleared or placed inside of drip trays.

Ÿ Accumulated general refuse should be cleared.

Works Area - Portion N-A

Ÿ The Contractor was reminded to check the capacity of drip trays more frequently.

Ÿ The Contractor was reminded to clear the excess muddy more frequently.

Ÿ The Contractor was reminded to clear the used chemical containers or placed them inside of drip trays.

Ÿ The Contractor was reminded to clear the accumulated general refuse.

26 August 2015

Works Area - Portion N-A

Ÿ Wetsep should be kept in adequate capacity to avoid any overflow.

Ÿ Trays for general refuse should be provided.

Ÿ Wetsep should be maintained to ensure adequate capacity.

Works Area – Portion N-C

Ÿ Materials other than chemical containers should be seperated from the drip tray.

Ÿ Deposited silt should be removed in the channel.

Works Area - Portion N-A

Ÿ The Contractor was reminded to maintain adequate capacity of the wetsep to avoid any overflow.

Ÿ The Contractor was reminded to provide trays for general refuse.

Ÿ The Contractor was reminded to maintain adequate capacity for the wetsep.

Works Area – Portion N-C

Ÿ The Contractor was reminded to clear the materials other than chemical containers in the drip tray.

Ÿ The Contractor was reminded to remove the deposited silt in the channel.

The Contractor has rectified all of the observations as identified during environmental site inspections in the reporting month.

2.5 Waste Management Status

The Contractor had submitted application form for registration as chemical waste producer under the Contract. Sufficient numbers of receptacles were available for general refuse collection and sorting.

Wastes generated during this reporting period include mainly construction wastes (inert and non-inert). Reference has been made to the waste flow table prepared by the Contractor (Appendix L). The quantities of different types of wastes are summarized in Table 2.10.

Table 2.10 Quantities of Different Waste Generated in the Reporting Month

Month/Year	Inert Construction Waste ^(a) (tonnes)	Imported Fill (tonnes)	Inert Construction Waste Re-used (tonnes)	Non-inert Construction Waste ^(b) (tonnes)	Recyclable Materials ^(c) (kg)	Chemical Wastes (kg)	Marine Sediment (m³)
Month/Year	Inert Construction Waste ^(a) (tonnes)	Imported Fill (tonnes)	Inert Construction Waste Re-used (tonnes)	Non-inert Construction Waste ^(b) (tonnes)	Recyclable Materials ^(c) (kg)	Chemical Wastes (kg)	Category L	Category M (M_p & M_f)
August 2015	62,367	0	0	246	300	0	0	0
Notes:
(a) Inert construction wastes include hard rock and large broken concrete, and materials disposed as public fill. (b) Non-inert construction wastes include general refuse disposed at landfill. (c) Recyclable materials include metals, paper, cardboard, plastics, timber and others.

The Contractor was advised to properly maintain on site C&D materials and waste collection, sorting and recording system, dispose of C&D materials and wastes at designated ground and maximize reuse/ recycle of C&D materials and wastes. The Contractor was also reminded to properly maintain the site tidiness and dispose of the wastes accumulated on site regularly and properly.

For chemical waste containers, the Contractor was reminded to treat properly and store temporarily in designated chemical waste storage area on site in accordance with the Code of Practice on the Packaging, Labelling and Storage of Chemical Wastes.

2.6 Environmental Licenses and Permits

The status of environmental licensing and permit is summarized in Table 2.11 below.

License/ Permit	License or Permit No.	Date of Issue	Date of Expiry	License/ Permit Holder	Remarks
Environmental Permit	EP-354/2009/D	13 March 2015	Throughout the Contract	HyD	Application for VEP on 3 March 2015 to supersede EP-354/2009/C
Construction Dust Notification	363510	19 August 2013	Throughout the Contract	DBJV	-
Chemical Waste Registration	5213-422-D2516-01	10 September 2013	Throughout the Contract	DBJV	-
Construction Waste Disposal Account	7018108	28 August 2013	Throughout the Contract	DBJV	Waste disposal in Contract No. HY/2012/08
Waste Water Discharge License	WT00017707-2013	18 November 2013	30 November 2018	DBJV	For site WA18
Waste Water Discharge License	WT00019248-2014	5 June 2014	30 June 2019	DBJV	For site Portion N6 and Reclamation Area E
Construction Noise Permit	GW-RW0350-15	14 July 2015	13 December 2015	DBJV	For site WA23
Construction Noise Permit	GW-RW0140-15	29 March 2015	28 September 2015	DBJV	For Portion N6
Construction Noise Permit	GW-RW0311-15	20 July 2015	19 October 2015	DBJV	For Dredging and Reclamation Works
Construction Noise Permit	GW-RW0150-15	1 April 2015	30 September 2015	DBJV	For GI Works at Southern Landfall
Notes:
HyD = Highways Department DBJV = Dragages – Bouygues Joint Venture VEP = Variation of Environmental Permit
