Table of Contents

Executive Summary

1 Introduction

1.1 Background

1.2 Scope of Report

1.3 Organization Structure

1.4 Summary of Construction Works

2 EM&A Results

2.1 Air quality

2.2 Noise Monitoring

2.3 Water Quality Monitoring

2.4 Dolphin monitoring

2.5 Coral Monitoring

2.6 EM&A Site inspection

2.7 Waste Management Status

2.8 Environmental Licenses and Permits

2.9 Implementation Status of Environmental Mitigation Measures

2.10 Summary of Exceedances of the Environmental Quality Performance Limit

2.11 Summary of Complaints, Notification of Summons and Successful Prosecutions

3 Future Key Issues

3.1 Construction Programme for the Coming Months

3.2 Key Issues for the Coming Month

3.3 Monitoring Schedule for the Coming Month

4 Conclusions

List of Tables

Table 1.1	Contact Information of Key Personnel
Table 2.1	Locations of Impact Air Quality Monitoring Stations
Table 2.2	Air Quality Monitoring Equipment
Table 2.3	Summary of 1-hour TSP Monitoring Results in the Reporting Period
Table 2.4	Summary of 24-hour TSP Monitoring Results in the Reporting Period
Table 2.5	Location of Impact Noise Monitoring Station
Table 2.6	Noise Monitoring Equipment
Table 2.7	Summary of Construction Noise Monitoring Results in the Reporting Period
Table 2.8	Locations of Impact Water Quality Monitoring Stations and its Corresponding Monitoring Requirements
Table 2.9	Water Quality Monitoring Equipment
Table 2.10	Dolphin Monitoring Equipment
Table 2.11	Impact Dolphin Monitoring Line Transect Co-ordinates
Table 2.12	Individual Survey Event Encounter Rates
Table 2.13	Monthly Average Encounter Rates
Table 2.14	Specific Observations and Recommendations during the Weekly Site Inspection in this Reporting Month
Table 2.15	Summary of Environmental Licensing and Permit Status

List of Figures

Figure 1.1	General Project Layout Plan
Figure 1.2	Location Plan and Key Plan
Figure 1.3	General Layout
Figure 1.4	Proposed Ground Investigation Plan (Sheet 1 of 8)
Figure 1.5	Proposed Ground Investigation Plan (Sheet 2 of 8)
Figure 1.6	Proposed Ground Investigation Plan (Sheet 3 of 8)
Figure 1.7	Proposed Ground Investigation Plan (Sheet 4 of 8)
Figure 1.8	Proposed Ground Investigation Plan (Sheet 5 of 8)
Figure 1.9	Proposed Ground Investigation Plan (Sheet 6 of 8)
Figure 1.10	Works Area and Hoarding Plan (Sheet 1 of 2)
Figure 1.11	Works Area and Hoarding Plan (Sheet 2 of 2)
Figure 1.12	Location of Area 4
Figure 1.13	Environmental Sensitive Receivers in the Vicinity of Contract No. HY/2012/07
Figure 2.1	Locations of Impact Air Quality Monitoring Stations
Figure 2.2	Locations of Impact Noise Monitoring Station
Figure 2.3	Locations of Impact Water Quality Stations
Figure 2.4	Line Transects for Impact Dolphin Monitoring Survey
Figure 2.5	Locations of Dolphin Sightings during Impact Dolphin Monitoring Survey
Figure 2.6	Environmental Complaint Handling Procedure

List of Appendices

Appendix A	Project Organization for Environmental Works
Appendix B	Three Month Rolling Construction Programmes
Appendix C	Implementation Schedule of Environmental Mitigation Measures (EMIS)
Appendix D	Summary of Action and Limit Levels
Appendix E	Calibration Certificates of Monitoring Equipment
Appendix F	EM&A Monitoring Schedules
Appendix G	Impact Air Quality Monitoring Results and Graphical Presentation
Appendix H	Meteorological Data for the Reporting Month
Appendix I	Impact Noise Monitoring Results and Graphical Presentation
Appendix J	Impact Water Quality Monitoring Results and Graphical Presentation
Appendix K	Impact Dolphin Monitoring Survey Results
Appendix L	Event Action Plan
Appendix M	Monthly Summary of Waste Flow Table
Appendix N	Cumulative Statistics on Exceedances, Complaints, Notifications of Summons and Successful Prosecutions

Executive Summary

Under Contract No. HY/2012/07, Gammon Construction Limited (GCL) is commissioned by the Highways Department (HyD) to undertake the design and construction of the Southern Connection Viaduct Section of the Tuen Mun ¡V Chek Lap Kok Link Project (TM-CLK Link Project) while AECOM Asia Company Limited was appointed by HyD as the Supervising Officer. For implementation of the environmental monitoring and audit (EM&A) programme under the Contract, ERM-Hong Kong, Limited (ERM) has been appointed as the Environmental Team (ET). ENVIRON Hong Kong Ltd. was employed by the HyD as the Independent Environmental Checker (IEC) and Environmental Project Office (ENPO) in accordance with Environmental Permit No. EP-354/2009/A. Another application for variation of environmental permit (VEP) (EP-354/2009/B) was granted on 28 January 2014.

The construction phase of the Contract commenced on 31 October 2013 and will be tentatively be completed by 2018. The impact monitoring of the EM&A programme, including air quality, noise, water quality and marine ecological monitoring as well as environmental site inspections, commenced on 31 October 2013.

This is the fifth monthly EM&A report presenting the EM&A works carried out during the period from 1 to 31 March 2014 for the Southern Connection Viaduct Section in accordance with the Updated EM&A Manual of the TM-CLK Link Project. As informed by the Contractor, major activities in the reporting period included:

Marine-based Works

¡P Marine piling platform installation;

¡P Marine Piling at Viaduct B;

¡P Construction of rockfill platform at Viaduct D landing; and

¡P Additional marine ground investigation (GI) and laboratory testing.

Land-based Works

¡P Satellite container offices erection along seawall;

¡P Fence installation and relocation of Area 2, Viaduct A, B, C & D;

¡P Land Piling at Viaduct B;

¡P Piling platform installation for Viaducts B, D & E;

¡P Additional land ground investigation (GI), trial pits & laboratory testing;

¡P Utility surveys; and

¡P Slope work of 9SE-B/C8 and 9SE-B/C9.

A summary of monitoring and audit activities conducted in the reporting period is listed below:

24-hour TSP monitoring 5 sessions

1-hour TSP monitoring 5 sessions

Noise monitoring 5 sessions

Impact Water Quality Monitoring 13 sessions

Impact dolphin monitoring 2 sessions

Joint Environmental site inspection 4 sessions

Breaches of Action and Limit Levels for Air Quality

No exceedance of Action and Limit Levels was recorded for impact air quality monitoring in the reporting month.

Breaches of Action and Limit Levels for Noise

No exceedance of Action and Limit Levels was recorded for construction noise monitoring in the reporting month.

Breaches of Action and Limit Levels for Water Quality

No exceedance of Action and Limit Levels was recorded for impact water quality monitoring in the reporting month.

Impact Dolphin Monitoring

During this month of dolphin monitoring, no unacceptable impact from the construction activities of the TM-CLKL Southern Connection Viaduct Section on Chinese White Dolphins was noticeable from general observations. Due to monthly variation in dolphin occurrence within the study area, it would be more appropriate to draw conclusion on whether any impacts on dolphins have been detected related to the construction activities of the TM-CLKL Southern Connection Viaduct Section in the quarterly EM&A reports, where comparison on distribution, group size and encounter rates of dolphins between the quarterly impact monitoring period and baseline monitoring period will be made.

Daily marine mammal exclusion zone monitoring was undertaken. No sighting of the Indo-Pacific humpback dolphin Sousa chinensis was recorded in March 2014 during the exclusion zone monitoring.

Environmental Complaints, Non-compliance & Summons

No complaint, notification of summons and successful prosecution was received in the reporting month.

Reporting Change

There was no reporting change required in the reporting period.

Upcoming Works for the Next Reporting Period

Works to be undertaken in the next monitoring period of April 2014 include the following:

Marine Works

¡P Marine piling platform installation;

¡P Marine piling at Viaduct B;

¡P Construction of rockfill platform at Viaduct D landing; and

¡P Additional marine ground investigation (GI) and laboratory testing.

Land-based Works

¡P Satellite container offices erection along seawall;

¡P Fence installation and relocation of Area 2, Viaducts A, B, C & D;

¡P Land piling at Viaduct B, C and E;

¡P Piling platform installation for Viaducts B, D & E;

¡P Additional land ground investigation (GI), trial pits & laboratory testing;

¡P Utility surveys; and

¡P Slope work at 9SE-B/C8 and 9SE-B/C9.

Future Key Issues

Potential environmental impacts arising from the above upcoming construction activities in the next reporting month of April 2014 are mainly associated with dust, noise, marine water quality, marine ecology and waste management issues.

1 Introduction

1.1 Background

According to the findings of the Northwest New Territories (NWNT) Traffic and Infrastructure Review conducted by the Transport Department, Tuen Mun Road, Ting Kau Bridge, Lantau Link and North Lantau Highway would be operating beyond capacity after 2016. This forecast has been based on the estimated increase in cross boundary traffic, developments in the Northwest New Territories (NWNT), and possible developments in North Lantau, including the Airport developments, the Lantau Logistics Park (LLP) and the Hong Kong ¡V Zhuhai ¡V Macao Bridge (HZMB). In order to cope with the anticipated traffic demand, two new road sections between NWNT and North Lantau ¡V Tuen Mun ¡V Chek Lap Kok Link (TM-CLKL) and Tuen Mun Western Bypass (TMWB) are proposed.

An Environmental Impact Assessment (EIA) of TM-CLKL (the Project) was prepared in accordance with the EIA Study Brief (No. ESB-175/2007) and the Technical Memorandum of the Environmental Impact Assessment Process (EIAO-TM). The EIA Report was submitted under the Environmental Impact Assessment Ordinance (EIAO) in August 2009. Subsequent to the approval of the EIA Report (EIAO Register Number AEIAR-145/2009), an Environmental Permit (EP-354/2009) for TM-CLKL was granted by the Director of Environmental Protection (DEP) on 4 November 2009, and EP variation (EP-354/2009A) was issued on 8 December 2010.

Under Contract No. HY/2012/07, Gammon Construction Limited (GCL) is commissioned by the Highways Department (HyD) to undertake the design and construction of the Southern Connection Viaduct Section of TM-CLKL (¡§the Contract¡¨) while AECOM Asia Company Limited was appointed by HyD as the Supervising Officer. For implementation of the environmental monitoring and audit (EM&A) programme under the Contract, ERM-Hong Kong, Limited (ERM) has been appointed as the Environmental Team (ET). ENVIRON Hong Kong Ltd. was employed by HyD as the Independent Environmental Checker (IEC) and Environmental Project Office (ENPO) in accordance with Environmental Permit No. EP-354/2009/A. Another application for variation of environmental permit (VEP) (EP-354/2009/B) was granted on 28 January 2014.

The construction phase of the Contract commenced on 31 October 2013 and will be tentatively be completed by 2018. The impact monitoring phase of the EM&A programme, including air quality, noise, water quality and marine ecological monitoring as well as environmental site inspections, commenced on 31 October 2013.

1.2 Scope of Report

This is the fifth monthly EM&A Report under the Contract No. HY/2012/07 Tuen Mun ¡V Chek Lap Kok Link ¡V Southern Connection Viaduct Section. This report presents a summary of the environmental monitoring and audit works in March 2014.

1.3 Organization Structure

The organization structure of the Contract is shown in Appendix A. The key personnel contact names and contact details are summarized in Table 1.1 below.

Table 1.1 Contact Information of Key Personnel

Party	Position	Name	Telephone	Fax
SOR (AECOM Asia Company Limited)	Chief Resident Engineer	Daniel Ip	3553 3800	2492 2057
	Resident Engineer	Kingman Chan	3691 3950	3691 2899
ENPO / IEC (ENVIRON Hong Kong Ltd.)	ENPO Leader	Y.H. Hui	3465 2888	3465 2899
	IEC	Tony Cheng	3465 2888	3465 2899
Contractor (Gammon Construction Limited)	Environmental Manager	Brian Kam	3520 0387	3520 0486
	Environmental Officer	Roy Leung	3520 0387	3520 0486
	24-hour Complaint Hotline		9738 4332
ET (ERM-HK)	ET Leader	Jovy Tam	2271 3113	2723 5660

1.4 Summary of Construction Works

The construction phase of the Contract commenced on 31 October 2013. The three-month rolling construction programme is shown in Appendix B.

As informed by the Contractor, details of the major works carried out in this reporting period are listed below:

Marine-based Works

¡P Marine piling platform installation;

¡P Marine Piling at Viaduct B;

¡P Construction of rockfill platform at Viaduct D landing; and

¡P Additional marine ground investigation (GI) and laboratory testing.

Land-based Works

¡P Satellite container offices erection along seawall;

¡P Fence installation and relocation of Area 2, Viaduct A, B, C & D;

¡P Land Piling at Viaduct B;

¡P Piling platform installation for Viaducts B, D & E;

¡P Additional land ground investigation (GI), trial pits & laboratory testing;

¡P Utility surveys; and

¡P Slope work of 9SE-B/C8 and 9SE-B/C9.

The general layout plan of the site showing the detailed works areas is shown in Figures 1.1 to 1.12. The Environmental Sensitive Receivers in the vicinity of the Project is shown in Figure 1.13.

The environmental mitigation measures implementation schedule are presented in Appendix C.

2 EM&A Results

The EM&A programme required environmental monitoring for air quality, noise, water quality and marine ecology as well as environmental site inspections for air quality, noise, water quality, waste management, marine ecology and landscape and visual impacts. The EM&A requirements and related findings for each component are summarized in the following sections.

2.1 Air quality

2.1.1 Monitoring Requirements and Equipment

In accordance with the Updated EM&A Manual, impact 1-hour TSP monitoring was conducted three (3) times every six (6) days and impact 24-hour TSP monitoring was carried out once every six (6) days when the highest dust impact was expected. The Action and Limit Level of the air quality monitoring is provided in Appendix D.

Table 2.1 Locations of Impact Air Quality Monitoring Stations

Monitoring Station	Location	Description	Monitoring Dates
ASR 8	Pak Mong Village Watch Tower	Rooftop of the premise	6, 12, 18, 24, 28 March 2014
ASR 8A	Area 4	On ground at the Area 4

High Volume Samplers (HVSs) were used for carrying out 1-hour and 24-hr TSP monitoring on 6, 12, 18, 24 and 28 March 2014 at ASR8 (Pak Mong Village Watch Tower) and ASR8A (Area 4) (Figure 2.1; Table 2.1) in accordance with the requirements stipulated in the Updated EM&A Manual. Wind anemometer was installed at the rooftop of Pak Mong Village Watch Tower for logging wind speed and wind direction. Details of the equipment deployed are given in Table 2.2. Copies of the calibration certificates for the equipment are presented in Appendix E.

Table 2.2 Air Quality Monitoring Equipment

Equipment	Brand and Model
High Volume Sampler (1-hour TSP and 24-hour TSP)	Tisch Environmental Mass Flow Controlled Total Suspended Particulate (TSP) High Volume Sampler (Model No. TE-5170)
Wind Anemometer	Global Water: Wind Speed Sensor WE550, Wind Direction Sensor WE570

2.1.2 Monitoring Schedule for the Reporting Month

The schedule for air quality monitoring in March 2014 is provided in Appendix F.

2.1.3 Results and Observations

The monitoring results for 1-hour TSP and 24-hour TSP are summarized in Tables 2.3 and 2.4 respectively. Detailed impact air quality monitoring results are presented in Appendix G.

Table 2.3 Summary of 1-hour TSP Monitoring Results in the Reporting Period

	Average (µg/m^3)	Range (µg/m^3)	Action Level (µg/m^3)	Limit Level (µg/m^3)
ASR 8A	120	58 - 240	394	500
ASR 8	118	70 - 175	393	500

Table 2.4 Summary of 24-hour TSP Monitoring Results in the Reporting Period

	Average (µg/m^3)	Range (µg/m^3)	Action Level (µg/m^3)	Limit Level (µg/m^3)
ASR 8A	56	37 - 83	178	260
ASR 8	64	45 - 83	178	260

The major dust source in the reporting period included construction activities such as excavation works under the Contract as well as nearby traffic emissions.

All 1-hour and 24-hour TSP results were below the Action and Limit level at all monitoring locations in the reporting period. No action is thus required to be undertaken in accordance with the Event Action Plan presented in Appendix L.

Meteorological information collected from the wind station, including wind speed and wind direction, is provided in Appendix H.

2.2 Noise Monitoring

2.2.1 Monitoring Requirements and Equipment

In accordance with the Updated EM&A Manual, impact noise monitoring was conducted once per week during the construction phase of the Contract. The Action and Limit level of the noise monitoring is provided in Appendix D.

Noise monitoring was performed on 6, 12, 18, 24 and 28 March 2014 using sound level meter at the designated monitoring station NSR 1 (Figure 2.2; Table 2.5) in accordance with the requirements stipulated in the Updated EM&A Manual. Acoustic calibrator was deployed to check the sound level meters at a known sound pressure level. Details of the equipment deployed are provided in Table 2.6. Copies of the calibration certificates for the equipment are presented in Appendix E.

Table 2.5 Location of Impact Noise Monitoring Station

Monitoring Station	Location	Description	Parameter	Frequency and Duration	Monitoring Dates
NSR 1	Pak Mong Village Watch Tower	Rooftop of the premise	30-mins measurement at each monitoring station between 0700 and 1900 on normal weekdays (Monday to Saturday). Leq, L10 and L90 would be recorded.	At least once per week	6, 12, 18, 24, 28 March 2014

Table 2.6 Noise Monitoring Equipment

Equipment	Brand and Model
Integrated Sound Level Meter	Rion NL-31
Acoustic Calibrator	Rion NC-73

2.2.2 Monitoring Schedule for the Reporting Month

The schedule for construction noise monitoring in the reporting period is provide in Appendix F.

2.2.3 Monitoring Results

Results for noise monitoring are summarized in Table 2.7 and the monitoring data is provided in Appendix I.

Table 2.7 Summary of Construction Noise Monitoring Results in the Reporting Period

	Average , dB(A), Leq (30mins)	Range, dB(A), Leq (30mins)	Limit Level, dB(A), Leq (30mins)
NSR 1	59	58 - 60	75

No noise Action Level and Limit level exceedance was recorded at all monitoring stations in the reporting month. No action is thus required to be undertaken in accordance with the Event Action Plan presented in Appendix L.

Major noise sources during the noise monitoring included noise from crane operation and excavation works, nearby traffic noise and aircraft noise.

2.3 Water Quality Monitoring

2.3.1 Monitoring Requirements and Equipment

Impact water quality monitoring was carried out to ensure that any deterioration of water quality was detected, and that timely action was taken to rectify the situation. Impact water quality monitoring was undertaken three days per week during the construction period in accordance with the Updated EM&A Manual. The Action and Limit Level of the water quality monitoring is provided in Appendix D.

The locations of the monitoring stations under the Contract are shown in Figure 2.3 and Table 2.8.

Table 2.8 Locations of Impact Water Quality Monitoring Stations and its Corresponding Monitoring Requirements

Station ID	Type	Coordinates		*Parameters, unit	Frequency	Depth
		Easting	Northing
IS(Mf)9	Impact Station (Close to HKBCF construction site)	813273	818850	Ÿ Temperature(¢XC) Ÿ pH(pH unit) Ÿ Turbidity (NTU) Ÿ Water depth (m) Ÿ Salinity (ppt) Ÿ DO (mg/L and % of saturation) ¡P SS (mg/L)	Impact monitoring: 3 days per week, at mid-flood and mid-ebb tides during the construction period of the Contract	3 water depths: 1m below sea surface, mid-depth and 1m above sea bed. If the water depth is less than 3m, mid-depth sampling only. If water depth less than 6m, mid-depth will be omitted
IS(Mf)16	Impact Station (Close to HKBCF construction site)	814328	819497
IS8	Impact Station(Close to HKBCF construction site)	814251	818412
SR4	Sensitive receiver (Tai Ho Inlet)	814760	817867
SR4a	Sensitive receiver	815247	818067
CS(Mf)3	Control Station	809989	821117
CS(Mf)5	Control Station	817990	821129
*Notes: In addition to the parameters presented monitoring location/position, time, water depth, sampling depth, tidal stages, weather conditions and any special phenomena or works underway nearby were also recorded.

Table 2.9 summarises the equipment used in the impact water quality monitoring programme. Copies of the calibration certificates are attached in Appendix E.

Table 2.9 Water Quality Monitoring Equipment

Equipment	Brand and Model	Quantity
DO, Temperature meter and Salinity	YSI Pro2030	1
Turbidimeter	HACH Model 2100Q	1
pH meter	HANNA HI8314	1
Positioning Equipment	Koden913MK2 with KBG-3 DGPS antenna	1
Water Depth Detector	Speedtech Instrument SM-5	1
Water Sampler	Kemmerer 1520 (1520-C25) 2.2L with messenger	1

2.3.2 Monitoring Schedule for the Reporting Month

The schedule for water quality monitoring in March 2014 is provided in Appendix F.

2.3.3 Results and Observations

Impact water quality monitoring was conducted at all designated monitoring stations in the reporting month. Impact water quality monitoring results and graphical presentations are provided in Appendix J.

No Action and Limit level exceedance was recorded at all monitoring stations for impact water quality monitoring in the reporting month, during which marine piling platform installation, marine piling at Viaduct B and rockfill platform construction at Viaduct D landing were the major marine construction works involved. No action is thus required to be undertaken in accordance with the Event Action Plan presented in Appendix L.

2.4 Dolphin monitoring

2.4.1 Monitoring Requirements

Impact dolphin monitoring is required to be conducted by a qualified dolphin specialist team to evaluate whether there have been any effects on the dolphins. In order to fulfil the EM&A requirements and make good use of available resources, the on-going impact line transect dolphin monitoring data collected by HyD¡¦s Contract No. HY/2011/03 Hong Kong-Zhuhai-Macao Bridge. Hong Kong Link Road - Section between Scenic Hill and Hong Kong Boundary Crossing Facilities on the monthly basis is adopted to avoid duplicates of survey effort.

2.4.2 Monitoring equipment

Table 2.10 summarises the equipment used for the impact dolphin monitoring.

Table 2.10 Dolphin Monitoring Equipment

Equipment	Model
Global Positioning System (GPS) Camera Laser Binoculars Marine Binocular Vessel for Monitoring	Garmin 18X-PC Geo One Phottix Nikon D90 300m 2.8D fixed focus Nikon D90 20-300m zoom lens Infinitor LRF 1000 Bushell 7 x 50 marine binocular with compass and reticules 65 foot single engine motor vessel with viewing platform 4.5m above water level

2.4.3 Monitoring Parameter, Frequencies and Duration

Dolphin monitoring should cover all transect lines in Northeast Lantau (NEL) and the Northwest Lantau (NWL) survey areas twice per month throughout the entire construction period. The monitoring data should be compatible with, and should be made available for, long-term studies of small cetacean ecology in Hong Kong. In order to provide a suitable long-term dataset for comparison, identical methodology and line transects employed in baseline dolphin monitoring was followed in the impact dolphin monitoring.

2.4.4 Monitoring Location

The impact dolphin monitoring was carried out in the NEL and NWL along the line transect as depicted in Figure 2.4. The co-ordinates of all transect lines are shown in Table 2.11 below.

Table 2.11 Impact Dolphin Monitoring Line Transect Co-ordinates

Line No.		Easting	Northing	Line No.		Easting	Northing
1	Start Point	804671	814577	13	Start Point	816506	819480
1	End Point	804671	831404	13	End Point	816506	824859
2	Start Point	805475	815457	14	Start Point	817537	820220
2	End Point	805477	826654	14	End Point	817537	824613
3	Start Point	806464	819435	15	Start Point	818568	820735
3	End Point	806464	822911	15	End Point	818568	824433
4	Start Point	807518	819771	16	Start Point	819532	821420
4	End Point	807518	829230	16	End Point	819532	824209
5	Start Point	808504	820220	17	Start Point	820451	822125
5	End Point	808504	828602	17	End Point	820451	823671
6	Start Point	809490	820466	18	Start Point	821504	822371
6	End Point	809490	825352	18	End Point	821504	823761
7	Start Point	810499	820690	19	Start Point	822513	823268
7	End Point	810499	824613	19	End Point	822513	824321
8	Start Point	811508	820847	20	Start Point	823477	823402
8	End Point	811508	824254	20	End Point	823477	824613
9	Start Point	812516	820892	21	Start Point	805476	827081
9	End Point	812516	824254	21	End Point	805476	830562
10	Start Point	813525	820872	22	Start Point	806464	824033
10	End Point	813525	824657	22	End Point	806464	829598
11	Start Point	814556	818449	23	Start Point	814559	821739
11	End Point	814556	820992	23	End Point	814559	824768
12	Start Point	815542	818807
12	End Point	815542	824882

2.4.5 Action & Limit Levels

The action and limit levels of dolphin impact monitoring are shown in Appendix D. The Event and Action plan is presented in Appendix L.

2.4.6 Monitoring Schedule for the Reporting Month

Dolphin monitoring was carried out on 5, 11, 17 and 25 March 2014 (Appendix F).

2.4.7 Results and Observations

A total of 296.83 km of survey effort was collected, with 89.0% of the total survey effort being conducted under favourable weather conditions (i.e. Beaufort Sea State 3 or below with good visibility) during the February¡¦s surveys. Among the two areas, 117.30 km and 179.53 km of survey effort were collected from NEL and NWL survey areas respectively. The total survey effort conducted on primary and secondary lines were 211.71 km and 85.12 km, respectively. The survey efforts are summarized in Appendix K.

A total of 14 groups of 43 Chinese White Dolphin sightings were recorded during the two sets of surveys in March 2014. All sightings were made in NWL during the two sets of surveys in March, with no dolphin being sighted at all in NEL. All except two sightings were made on primary lines during on-effort search, and none of the dolphin groups was associated with operating fishing vessel.

The majority of these dolphin sightings in March 2014 were made at the northwestern portion of NWL survey area, especially to the north of Lung Kwu Chau. Another two sightings were made at the north of the airport and between the River Trade Terminal and airport platform respectively. The distribution of dolphin sightings during the reporting month is shown in Figure 2.5.

Encounter rates of Chinese White Dolphins are deduced from the survey effort and on-effort sighting data made under favourable conditions (Beaufort 3 or below with good visibility) in March 2014 with the results presented in Tables 2.12 and 2.13.

Table 2.12 Individual Survey Event Encounter Rates

		Encounter rate (STG) (no. of on-effort dolphin sightings per 100 km of survey effort)	Encounter rate (ANI) (no. of dolphins from all on-effort sightings per 100 km of survey effort)
		Primary Lines Only	Primary Lines Only
NEL	Set 1: Mar 5^th/ 11^th	0.0	0.0
	Set 2: Mar 17^th/ 25^th	0.0	0.0
NWL	Set 1: Mar 5^th/ 11^th	6.4	23.6
	Set 2: Mar 17^th/ 25^th	13.2	24.8
Note: Dolphin Encounter Rates are deduced from the two sets of surveys ( ie two Surveys in each set) in March 2014 in Northeast (NEL) and Northwest Lantau (NWL)

Table 2.13 Monthly Average Encounter Rates

	Encounter rate (STG) (no. of on-effort dolphin sightings per 100 km of survey effort)		Encounter rate (ANI) (no. of dolphins from all on-effort sightings per 100 km of survey effort)
	Primary Lines Only	Both Primary and Secondary Lines	Primary Lines Only	Both Primary and Secondary Lines
Northeast Lantau	0.0	0.0	0.0	0.0
Northwest Lantau	10.4	8.6	24.3	19.9

Note: Overall dolphin encounter rates (sightings per 100km of survey effort) from all four surveys are conducted in March 2014 on primary lines only as well as both primary lines and secondary lines in Northeast and Northwest Lantau

The average group size of Chinese White Dolphins in March 2014 was 3.07 individuals per group, which was lower than the previous three months of dolphin monitoring. Most dolphin groups were composed of 1-3 animals, with only one large group of 13 animals sighted near Lung Kwu Chau. Detailed results of dolphin monitoring in this reporting month are presented in Appendix K.

During this month of dolphin monitoring, no unacceptable impact from the construction activities of the TM-CLKL Southern Connection Viaduct Section on Chinese White Dolphins was noticeable from general observations

Due to monthly variation in dolphin occurrence within the Study area, it would be more appropriate to draw conclusion on whether any unacceptable impacts on dolphins have been detected related to the construction activities of the TM-CLKL Southern Connection Viaduct Section in the quarterly EM&A reports, where comparison on distribution, group size and encounter rates of dolphins between the quarterly impact monitoring period and baseline monitoring period will be made.

2.4.8 Marine Mammal Exclusion Zone Monitoring

Daily 250 m marine mammal exclusion zone monitoring was undertaken during the period of dredging activities being undertaken.  No sighting of Indo-Pacific humpback dolphin Sousa chinensis were recorded in March 2014 during the exclusion zone monitoring.

2.4.9 Marine Bored Piling Monitoring

Marine bored piling monitoring programme for dolphins (ie Land-based Theodolite Tracking, Underwater Noise Monitoring and Acoustic Behavioural Monitoring) was undertaken since 3 March 2014. No sightings of Indo-Pacific humpback dolphins Sousa chinensis were recorded during the bored piling monitoring in March 2014. The monitoring schedule for bored piling monitoring in March 2014 is presented in Appendix F.

2.5 Coral Monitoring

No Post-Translocation Monitoring Exercise was conducted in the reporting month in March 2014.

2.6 EM&A Site inspection

Site inspections were carried out on a weekly basis to monitor the implementation of proper environmental pollution control and mitigation measures under the Contract. In the reporting month, five (5) site inspections were carried out on 5, 12, 19 and 26 March 2014.

Key observations and recommendations during the site inspections are summarized in Table 2.14.

Table 2.14 Specific Observations and Recommendations during the Weekly Site Inspection in this Reporting Month

Inspection Date	Observations	Remarks
5 March 2014	Ÿ Stoppers of two drip trays were missing at seafront site. Ÿ Several chemical drums were not placed in drip tray.	Ÿ The Contractor was reminded to replace the stopper. Ÿ The Contractor was reminded to place them properly and immediate rectification has been done accordingly.
12 March 2014	Ÿ Some oil trace was observed around one of the bored piles with unidentified source.	Ÿ The Contractor carried out immediate rectification action by deploying absorbent to absorb the floating oil trace.
19 March 2014	Ÿ Watering programme was recommended to be carried out more regularly to suppress dust.	Ÿ The Contractor was reminded to carry out watering programme or dust-suppression measures more regularly.
26 March 2014	Ÿ Oil stain was observed underneath a vibration hammer at B1. Ÿ Five cans of chemicals were placed along the road of the rockfill platform without any drip trays.	Ÿ Immediate rectification action was undertaken by the Contractor to absorb the oil stain. Ÿ The Contractor was reminded to place them properly in timely manner.

The Contractor has rectified all observations as identified during environmental site inspection in the reporting month.

2.7 Waste Management Status

The Contractor had submitted application form for registration as chemical waste producer under the Contract. Sufficient numbers of receptacles were available for general refuse collection and sorting.

As advised by the Contractor, 3223 m³ of inert C&D Materials are generated and disposed of in the reporting period and 221 m³ of inert C&D Materials are disposed of as public fill. 12.39 tonnes of general refuse were generated and disposed of in the reporting period. Monthly summary of waste flow table is detailed in Appendix M.

The Contractor is advised to properly maintain on site C&D materials and waste collection, sorting and recording system, dispose of C&D materials and wastes at designated ground and maximize reuse/ recycle of C&D materials and wastes. The Contractor is reminded to properly maintain the site tidiness and dispose of the wastes accumulated on site regularly and properly.

The Contractor is reminded that chemical waste containers should be properly treated and stored temporarily in designated chemical waste storage area on site in accordance with the Code of Practice on the Packaging, Labelling and Storage of Chemical Wastes.

2.8 Environmental Licenses and Permits

The status of environmental licensing and permit is summarized in Table 2.15 below.

Table 2.15 Summary of Environmental Licensing and Permit Status

Statutory Reference	License/ Permit	License or Permit No.	Date of Issue	Date of Expiry	License/ Permit Holder	Remarks
EIAO	Environmental Permit	EP-354/2009/A	8 Dec 2010	NA	HyD	Tuen Mun- Chek Lap Kok Link
EIAO	Environmental Permit	EP-354/2009/B	28 Jan 2014	NA	HyD	Tuen Mun- Chek Lap Kok Link
APCO	Construction Dust Notification	361571	5 Jul 2013	NA	GCL	-
APCO	Construction Dust Notification	362093	17 Jul 2013	NA	GCL	for Area 23
WDO	Billing Account for Disposal	7017735	10 Jul 2013	End of Project	GCL	-
WDO	Chemical Waste Registration	5213-961-G2380-13	10 Oct 2013	NA	GCL	Chemical waste produced in Contract HY/2012/07
WDO	Chemical Waste Registration	5213-961-G2380-14	10 Oct 2013	NA	GCL	Chemical waste produced in Contract HY/2012/07
WDO	Chemical Waste Registration	5213-974-G2588-03	4 Nov 2013	NA	GCL	Chemical waste produced in Contract HY/2012/07
WDO	Construction Waste Disposal Account	7017735	10 Jul 2013	NA	GCL	Waste disposal in Contract HY/2012/07
WPCO	Waste Water Discharge License	Nil	Application Ref. 368337	NA	GCL	Discharge for discharge points for Viaduct A & B
NCO	Construction Noise Permit	Nil	Application in process	NA	GCL	For Piling Works
NCO	Construction Noise Permit	GW-RW0660-13	27 Sep 2013	02 Feb 2014	GCL	For night works and works in general holidays
NCO	Construction Noise Permit	GW-RS1129-13	31 Oct 2013	30 Apr 2014	GCL	For night works and works in general holidays
NCO	Construction Noise Permit	GW-RS1186-13	23 Oct 2013	24 Dec 2013	GCL	For night works and works in general holidays
NCO	Construction Noise Permit	GW-RS1187-13	24 Oct 2013	28 Feb 2014	GCL	For night
NCO	Construction Noise Permit	GW-RW0925-13	19 Dec 2013	17 Apr 2014	GCL	Renewal of WA5 site office erection
NCO	Construction Noise Permit	GW-RS1423-13	11 Dec 2013	30 Apr 2014	GCL	Renewal for marine portion
NCO	Construction Noise Permit	GW-RS1413-13	17 Dec 2013	26 Mar 2014	GCL	For loading and unloading on NLH near viaduct A & B
NCO	Construction Noise Permit	GW-RS0034-14	14 Jan 2014	29 Mar 2014	GCL	For night works and works in general holiday
NCO	Construction Noise Permit	GW-RW0123-14	27 Feb 2014	27 Aug 2014	GCL	For night works and works in general holiday
NCO	Construction Noise Permit	GW-RS0236-14	27 Mar 2014	14 May 2014	GCL	For loading & unloading on NLH near Viaduct A & B
NCO	Construction Noise Permit	GW-RS0226-14	30 Mar 2014	29 Sep 2014	GCL	For loading & unloading on NLH near Viaduct D
NCO	Construction Noise Permit	GW-RS0280-14	31 Mar 2014	31 May 2014	GCL	For excavation at Pier B9
DASO	Dumping Permit/ Loading Permit (Type 1 ¡V Open Sea Disposal)	(4) in EP/MD/14-075	25 Sep 2013	NA	GCL	-
DASO	Marine Dumping Permit	EP/MD/14-075	28 January 2014	27 July 2014	GCL	For dumping Type I Sediment
DASO	Marine Dumping Permit	EP/MD/14-155	1 April 2014	30 April 2014	GCL	For dumping Type I (Dedicated Site) and Type II Sediment
Note: Statutory Reference: EIAO ¡V Environmental Impact Assessment Ordinance; NCO ¡V Noise Control Ordinance; APCO ¡V Air Pollution Control Ordinance; WDO ¡V Waste Disposal Ordinance; WPCO ¡V Water Pollution Control Ordinance; DASO ¡V Dumping At Sea Ordinance. License/ Permit Holder: HyD ¡V Highway Department; GCL ¡V Gammon Construction Limited.

2.9 Implementation Status of Environmental Mitigation Measures

In response to the site audit findings, the Contractors carried out corrective actions.

A summary of the Implementation Schedule of Environmental Mitigation Measures (EMIS) is presented in Appendix C. The necessary mitigation measures were implemented properly for this Contract.

2.10 Summary of Exceedances of the Environmental Quality Performance Limit

Results for 1-hour, 24-hour TSP, construction noise monitoring and impact water quality monitoring complied with the Action/ Limit levels in the reporting period.

Cumulative statistics on exceedances is provided in Appendix N.

2.11 Summary of Complaints, Notification of Summons and Successful Prosecutions

The Environmental Complaint Handling Procedure is provided in Figure 2.6.

No complaints, notification of summons and prosecution were received in the reporting period.

Statistics on complaints, notifications of summons and successful prosecutions are summarized in Appendix N.

3 Future Key Issues

3.1 Construction Programme for the Coming Months

As informed by the Contractor, the major works for the Contract in April 2014 will be:

Marine Works

¡P Marine piling platform installation;

¡P Marine piling at Viaduct B;

¡P Construction of rockfill platform at Viaduct D landing; and

¡P Additional marine ground investigation (GI) and laboratory testing.

Land-based Works

¡P Satellite container offices erection along seawall;

¡P Fence installation and relocation of Area 2, Viaducts A, B, C & D;

¡P Land piling at Viaduct B, C and E;

¡P Piling platform installation for Viaducts B, D & E;

¡P Additional land ground investigation (GI), trial pits & laboratory testing;

¡P Utility surveys; and

¡P Slope work at 9SE-B/C8 and 9SE-B/C9.

3.2 Key Issues for the Coming Month

Potential environmental impacts arising from the above upcoming construction activities in the next reporting month of April 2014 are mainly associated with dust, noise, marine water quality, marine ecology and waste management issues.

3.3 Monitoring Schedule for the Coming Month

The tentative schedule for environmental monitoring in April 2014 is provided in Appendix F.

Marine bored piling monitoring programme for dolphins (ie Land-based Theodolite Tracking, Underwater Noise Monitoring and Acoustic Behavioural Monitoring) will be carried out in April 2014. The preliminary schedule for the marine bored piling monitoring in the coming reporting month is provide in Appendix F.

4 Conclusions

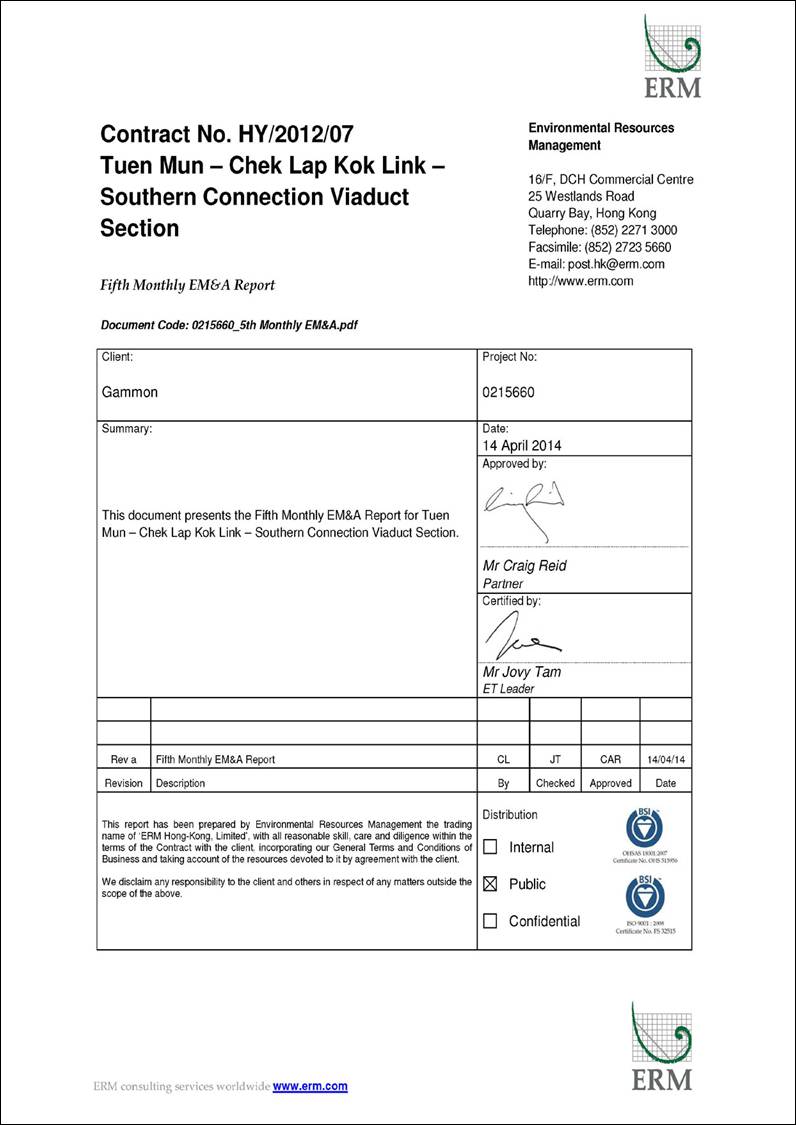

This Fifth Monthly EM&A Report presents the findings of the EM&A activities undertaken during the period from 1 to 31 March 2014, in accordance with the Updated EM&A Manual and the requirements of EP-354/2009/A.

Air quality (including 1-hour TSP and 24-hour TSP), noise, water quality and dolphin monitoring were carried out in the reporting period. Results for noise, 1-hr, 24-hr TSP monitoring, noise and impact water quality monitoring complied with the Action/ Limit levels in the reporting period.

A total of fourteen (14) groups of forty-three (43) dolphin sightings were recorded during the two sets of surveys. All sightings were made in NWL during the two sets of surveys in March, with no dolphin being sighted at all in NEL. During this reporting period of dolphin monitoring, no unacceptable impact from the construction activities of the TM-CLKL Southern Connection Viaduct Section on Chinese White Dolphins was noticeable from general observations.

Environmental site inspection was carried out four (4) times in March 2014. Recommendations on remedial actions were given to the Contractor for the deficiencies identified during the site audits.

No environmental complaint, notification of summons and prosecution were received in the reporting month.

The ET will keep track on the construction works to confirm compliance of environmental requirements and the proper implementation of all necessary mitigation measures.
