Executive
Summary
1.1 Background
1.2 Scope of Report
1.3 Organization Structure
1.4 Summary of Construction Works
2.1 Air quality
2.2 Noise Monitoring
2.3 Water Quality Monitoring
2.4 Dolphin monitoring
2.5 EM&A Site inspection
2.6 Waste Management Status
2.7 Environmental Licenses and Permits
2.8 Implementation Status of Environmental Mitigation
Measures
2.9 Summary of Exceedances of the Environmental Quality
Performance Limit
2.10 Summary of Complaints, Notification of Summons and
Successful Prosecutions
3.1 Construction Programme for the Coming Months
3.2 Key Issues for the Coming Month
3.3 Monitoring Schedule for the Coming Month
4 Conclusions and recommendations
4.1 Conclusions
List
of Appendices
Appendix A Project Organization for Environmental Works
Appendix B Three Month Rolling Construction Programmes
Appendix C Implementation Schedule of Environmental Mitigation
Measures (EMIS)
Appendix D Summary of Action and Limit Levels
Appendix E Calibration Certificates of Monitoring Equipment
Appendix F EM&A Monitoring Schedules
Appendix G Impact Air Quality Monitoring Results and Graphical
Presentation
Appendix H Meteorological Data for the Reporting Month
Appendix I Impact Noise Monitoring Results and Graphical
Presentation
Appendix J Impact Water Quality Monitoring Results and Graphical
Presentation
Appendix K Impact Dolphin Monitoring Survey Results
Appendix L Event Action Plan
Appendix M Monthly Summary of Waste Flow Table
Under Contract No. HY/2012/07,
Gammon Construction Limited (GCL) is commissioned by the Highways Department (HyD) to undertake the design and construction of the
Southern Connection Viaduct Section of the Tuen Mun ¡V Chek Lap Kok Link Project (TM-CLK Link Project) while AECOM
Asia Company Limited was appointed by HyD as the
Supervising Officer. For
implementation of the environmental monitoring and audit (EM&A) programme under the Contract, ERM-Hong Kong, Limited (ERM)
has been appointed as the Environmental Team (ET). Ramboll
Environ Hong Kong Ltd. was employed by the HyD as the
Independent Environmental Checker (IEC) and Environmental Project Office (ENPO)
in accordance with Environmental Permit
No. EP-354/2009/A.
Further applications for variation of
environmental permit (VEP), EP-354/2009/B, EP-354/2009/C and EP-354/2009/D, were granted on 28 January 2014, 10 December 2014
and 13 March 2015, respectively.
The southern landfall of TM-CLK Link lies alongside the Hong Kong -
Zhuhai - Macao Bridge Hong Kong Boundary Crossing Facilities (HKBCF) where a
reclamation area is constructed by Contract
No. HY/2010/02 under Environmental
Permit No. EP-353/2009/K and
EP-354/2009/D. Upon the
agreement and confirmation between the Supervising Officer Representatives and
Contractors of HY/2010/02 and HY/2012/07 in September 2015, part of
the reclamation area for southern landfall under EP-353/2009/K and
EP-354/2009/D was handed-over to Contract
No. HY/2012/07. Another part of the southern landfall
area under EP-354/2009/D was
handed-over to Contract No. HY/2012/07
after completion of reclamation works by Contract
No. HY/2010/02 in June 2016.
The construction phase of the Contract commenced on 31
October 2013 and will be tentatively completed by 2018. The impact monitoring of the EM&A programme, including air quality, noise, water quality and
marine ecological monitoring as well as environmental site inspections,
commenced on 31 October 2013.
This is the Forty-fourth Monthly EM&A report
presenting the EM&A works carried out during the period from 1 to 30 June
2017 for the Southern Connection Viaduct
Section in accordance with the Updated EM&A Manual of the
TM-CLK Link Project. As informed by the Contractor, major
activities in the reporting period included:
Marine Works
¡P Uninstallation
of marine piling platform;
¡P Pier
construction;
¡P Launching
gantry operation;
¡P Installation
of deck segment and pier head segment; and
¡P Construction
of underslung truss scheme (no additional seabed will be occupied other than
those assumed in the approved EIA Report).
Land-based Works
¡P Pier
construction;
¡P Re-alignment
of Cheung Tung Road;
¡P Road
works along North Lantau Highway;
¡P Installation
of pier head and deck segments; and
¡P Slope
work of Viaducts A, B & C.
A summary of monitoring and audit activities conducted
in the reporting period is listed below:
24-hour TSP Monitoring 6
sessions
1-hour TSP Monitoring 6
sessions
Noise Monitoring 6
sessions
Impact Water Quality Monitoring 13
sessions
Impact Dolphin Monitoring 2
sessions
Joint Environmental Site Inspection 4
sessions
Breaches of
Action and Limit Levels for Air Quality
No exceedance of Action and Limit Levels was recorded
for construction air quality monitoring in the reporting month.
Breaches of
Action and Limit Levels for Noise
No exceedance of Action and Limit Levels was recorded
for construction noise monitoring in the reporting month.
Breaches of Action and Limit Levels for Water Quality
No
exceedance of Action and Limit Levels was recorded for water quality impact
monitoring in the reporting month.
Impact Dolphin
Monitoring
During this month of dolphin monitoring, no
unacceptable impact from the construction activities of the TM-CLKL Southern
Connection Viaduct Section on Indo-Pacific humpback dolphin Sousa chinensis
(i.e. Chinese White Dolphin) was noticeable from general observations. Due to monthly variation in dolphin
occurrence within the Study Area, it would be more appropriate to draw
conclusion on whether any impacts on dolphins have been detected related to the
construction activities of the TM-CLKL Southern Connection Viaduct Section in
the quarterly EM&A reports, in which comparison on distribution, group size
and encounter rates of dolphins between the quarterly impact monitoring period
and baseline monitoring period will be made.
Daily marine mammal exclusion zone monitoring was
undertaken during the period of marine works under this Contract. No sighting of the Chinese White Dolphin
was recorded in June 2017 during the exclusion zone monitoring.
Environmental
Complaints, Non-compliance & Summons
There was no environmental complaint, notification of
summons or successful prosecution recorded in the reporting period.
The investigation report on the complaint received
from EPD on 31 May 2017 regarding construction dust nuisance near site exit of Hong Kong Boundary Crossing
Facilities of Hong Kong-Zhuhai-Macao Bridge related Hong Kong projects in the
previous reporting period is provided in Appendix
N.
Reporting
Change
There was no reporting change in the reporting period.
Upcoming Works for the Next Reporting Period
Works to be undertaken in the next monitoring period
of July 2017 include the following:
Marine Works
¡P Uninstallation
of marine piling platform;
¡P Pier
construction;
¡P Launching
gantry operation;
¡P Installation
of deck segment and pier head segment; and
¡P Construction
of underslung truss scheme (no additional seabed will be occupied other than
those assumed in the approved EIA Report).
Land-based Works
¡P Pier
construction;
¡P Re-alignment
of Cheung Tung Road;
¡P Road
works along North Lantau Highway;
¡P Installation
of pier head and deck segments; and
¡P Slope
work of Viaducts A, B & C.
Future Key
Issues
Potential environmental impacts arising from the above
upcoming construction activities in the next reporting month of July 2017 are
mainly associated with dust, noise, marine water quality, marine ecology and
waste management issues.
According to the findings of the Northwest New
Territories (NWNT) Traffic and Infrastructure Review conducted by the Transport
Department, Tuen Mun Road,
Ting Kau Bridge, Lantau Link and North Lantau Highway
would be operating beyond capacity after 2016. This forecast has been based on the
estimated increase in cross boundary traffic, developments in the Northwest New
Territories (NWNT), and possible developments in North Lantau, including the
Airport developments, the Lantau Logistics Park (LLP) and the Hong Kong ¡V
Zhuhai ¡V Macao Bridge (HZMB). In
order to cope with the anticipated traffic demand, two new road sections
between NWNT and North Lantau ¡V Tuen Mun ¡V Chek Lap Kok Link (TM-CLKL) and Tuen Mun Western Bypass (TMWB) are proposed.
An Environmental Impact Assessment (EIA) of TM-CLKL
(the Project) was prepared in accordance with the EIA Study Brief (No. ESB-175/2007) and the Technical
Memorandum of the Environmental Impact Assessment Process (EIAO-TM). The EIA Report was submitted under the
Environmental Impact Assessment Ordinance (EIAO) in August 2009. Subsequent to the approval of the EIA
Report (EIAO Register Number AEIAR-146/2009), an Environmental Permit (EP-354/2009) for TM-CLKL was granted by
the Director of Environmental Protection (DEP) on 4 November 2009, and EP
variation (EP-354/2009/A) was issued
on 8 December 2010.
Under Contract No. HY/2012/07,
Gammon Construction Limited (GCL) is commissioned by the Highways Department (HyD) to undertake the design and construction of the
Southern Connection Viaduct Section of TM-CLKL (¡§the Contract¡¨) while AECOM
Asia Company Limited was appointed by HyD as the
Supervising Officer. For
implementation of the environmental monitoring and audit (EM&A) programme under the Contract, ERM-Hong Kong, Limited (ERM)
has been appointed as the Environmental Team (ET). Ramboll
Environ Hong Kong Ltd. was employed by HyD as the
Independent Environmental Checker (IEC) and Environmental Project Office (ENPO)
in accordance with Environmental Permit
No. EP-354/2009/A. Further applications
for variation of environmental permit (VEP), EP-354/2009/B, EP-354/2009/C
and EP-354/2009/D, were granted on 28
January 2014, 10 December 2014 and 13 March 2015, respectively.
The southern landfall of TM-CLK Link lies alongside the Hong Kong -
Zhuhai - Macao Bridge Hong Kong Boundary Crossing Facilities (HKBCF) where a
reclamation area is constructed by Contract
No. HY/2010/02 under Environmental
Permit No. EP-353/2009/K and
EP-354/2009/D. Upon the
agreement and confirmation between the Supervising Officer Representatives and
Contractors of HY/2010/02 and HY/2012/07 in September 2015, part of
the reclamation area for southern landfall under EP-353/2009/K and
EP-354/2009/D was handed-over to Contract
No. HY/2012/07. Another part of the southern landfall
area under EP-354/2009/D was
handed-over to Contract No. HY/2012/07
after completion of reclamation works by Contract
No. HY/2010/02 in June 2016.
The construction phase of the Contract commenced on 31
October 2013 and will be tentatively completed by 2018. The impact monitoring phase of the
EM&A programme, including air quality, noise,
water quality and marine ecological monitoring as well environmental site
inspections, commenced on 31 October 2013.
The general layout plan of the Contract components is
presented in Figures 1.1 & 1.2a to l.

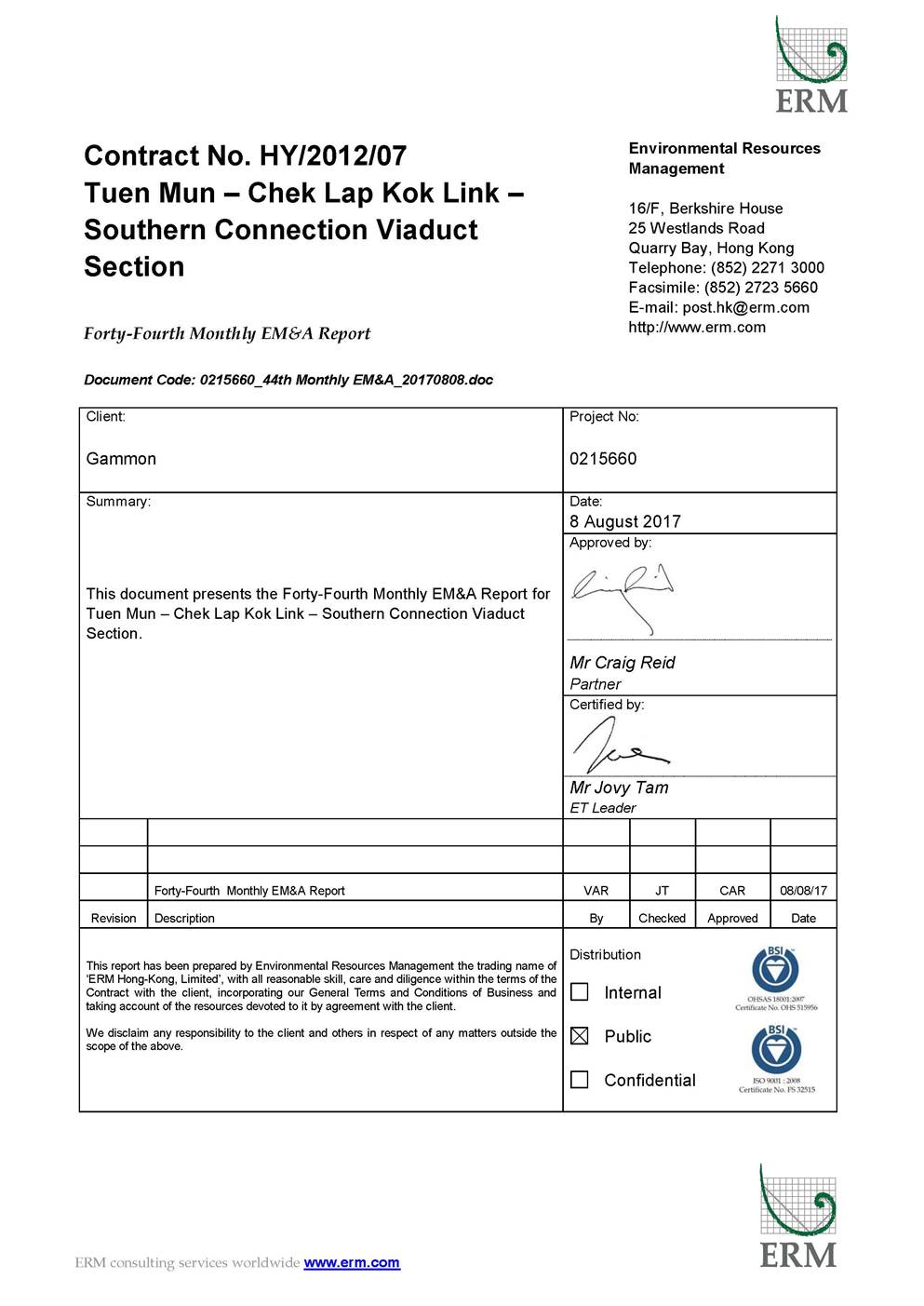

This is the Forty-fourth Monthly EM&A Report under
the Contract No. HY/2012/07
Tuen Mun ¡V Chek Lap Kok Link ¡V Southern
Connection Viaduct Section. This report presents a summary of the
environmental monitoring and audit works in June 2017.
The organization structure of the Contract is shown in
Appendix A.
The key personnel contact names and contact details are summarized in Table 1.1 below.
Table 1.1 Contact Information of Key
Personnel
Party |
Position |
Name |
Telephone |
Fax |
HyD
(Highways Department) |
Project
Coordinator |
Stanley Chan |
2762 3406 |
3188 6614 |
|
Senior
Engineer |
Steven Shum |
2762 4133 |
3188 6614 |
SOR (AECOM Asia
Company Limited) |
Chief
Resident Engineer |
Daniel Ip |
3553 3800 |
2492 2057 |
|
Resident
Engineer |
Kingman Chan |
3691 3950 |
3691 2899 |
ENPO / IEC (Ramboll Environ Hong Kong Ltd.) |
ENPO Leader |
Y.H. Hui |
3465
2850 |
3465 2899 |
IEC |
Dr. F.C.
Tsang |
3465
2851 |
3465 2899 |
|
Contractor (Gammon Construction
Limited) |
Environmental
Manager |
Brian Kam |
3520 0387 |
3520 0486 |
Environmental
Officer |
Roy Leung |
3520 0387 |
3520 0486 |
|
|
24-hour
Complaint Hotline |
|
9738 4332 |
|
ET (ERM-HK) |
ET Leader |
Jovy Tam |
2271 3113 |
2723 5660 |
Marine Works
¡P
Uninstallation of marine piling platform;
¡P
Pier construction;
¡P
Launching gantry operation;
¡P
Installation of deck segment and pier head segment;
and
¡P
Construction of underslung truss scheme (no additional
seabed will be occupied other than those assumed in the approved EIA Report).
Land-based Works
¡P
Pier construction;
¡P
Re-alignment of Cheung Tung Road;
¡P
Road works along North Lantau Highway;
¡P
Installation of pier head and deck segments; and
¡P
Slope work of Viaducts A, B & C.
The
locations of the construction activities are shown in Figure 1.3. The
Environmental Sensitive Receivers in the vicinity of the Project are shown in Figure 1.4.
The EM&A programme required
environmental monitoring for air quality, noise, water quality and marine
ecology as well as environmental site inspections for air quality, noise, water
quality, waste management, marine ecology and landscape and visual impacts. The EM&A requirements and related
findings for each component are summarized in the following sections.
Table 2.1 Locations of Impact Air Quality Monitoring
Stations
Monitoring Station |
Location |
Description |
Monitoring Dates |
ASR 9 |
MTR Depot |
On the
ground nearby MTR Depot Entrance |
2, 8, 14,
20, 26 and 29 June 2017 |
ASR 8A |
Area 4 |
On ground at
the works area, Area 4 |
2, 8, 14,
20, 26 and 29 June 2017 |
High Volume Samplers (HVSs)
were used for carried out 1-hour and 24-hour TSP monitoring on 2,
8, 14, 20, 26 and 29 June 2017 at ASR8A and ASR9 in
accordance with the requirements of the Updated EM&A Manual. The TSP monitoring stations are
illustrated in Figure 2.1 and detailed
in Table 2.1. Wind meter was deployed at Area 4 for
logging wind speed and wind direction.
Copies of the calibration certificates for the
equipment are presented in Appendix E.
Details of the deployed equipment are given in Table 2.2.
Table 2.2 Air Quality Monitoring
Equipment
Equipment |
Brand and Model |
High
Volume Sampler |
Tisch Environmental Mass Flow Controlled Total Suspended Particulate (TSP) High Volume Sampler (Model No. TE-5170) |
Wind
Sensor |
Global
Water (Wind Speed Sensor: WE550; Wind Direction Sensor: WE570) |
Wind
Anemometer for calibration |
Lutron
(Model No. AM-4201) |
Table 2.3 Summary of 1-hour TSP Monitoring Results in
the Reporting Period
Monitoring Station |
Average (µg/m3) |
Range (µg/m3) |
Action Level (µg/m3) |
Limit Level (µg/m3) |
ASR
8A |
60 |
38-97 |
394 |
500 |
ASR
9 |
89 |
41-147 |
393 |
500 |
Table 2.4 Summary of 24-hour TSP Monitoring Results in
the Reporting Period
Monitoring Station |
Average (µg/m3) |
Range (µg/m3) |
Action Level (µg/m3) |
Limit Level (µg/m3) |
ASR
8A |
42 |
38-45 |
178 |
260 |
ASR
9 |
46 |
41-51 |
178 |
260 |
All 1-hour and 24-hour TSP results were below the Action
and Limit Levels at all monitoring locations in the reporting period. No action is thus required to be
undertaken in accordance with the Event Action Plan presented in Appendix L.
Meteorological information collected at ASR8A including wind speed and wind
direction is provided in Appendix H.
Noise monitoring was performed on 2, 8, 14, 20, 26 and
29 June 2017 using sound level meter at the designated monitoring station NSR1A
(Figure 2.2; Table 2.5) in accordance with the
requirements stipulated in the Updated EM&A Manual. Acoustic calibrator was deployed to
check the sound level meters at a known sound pressure level. Details of the deployed equipment are
provided in Table 2.6. Copies of the calibration certificates
for the equipment are presented in Appendix E.
Table 2.5 Location of Impact Noise
Monitoring Station
Monitoring Station |
Location |
Description |
Parameter |
Frequency and Duration |
Monitoring Dates |
NSR 1A |
Pak Mong Village Pavilion |
On the
ground at the village entrance |
30-minute
measurement at each monitoring station between 0700 and 1900 on normal
weekdays (Monday to Saturday). Leq, L10
and L90 would be recorded. |
At least
once per week |
2, 8, 14,
20, 26 and 29 June 2017 |
Table 2.6 Noise Monitoring Equipment
Equipment |
Brand and Model |
Integrated
Sound Level Meter |
Rion
NL-31 |
Acoustic
Calibrator |
Rion
NC-73 |
Table 2.7 Summary of Construction
Noise Monitoring Results in the Reporting Period
|
Average , dB(A), Leq (30mins) |
Range, dB(A), Leq (30mins) |
Limit Level, dB(A), Leq (30mins) |
NSR
1A |
62 |
61-62 |
75 |
Results of water quality monitoring were adopted from
the published monthly Environmental Monitoring and Audit (EM&A) Report of Contract No. HY/2010/02
Hong Kong-Zhuhai-Macao Bridge Hong Kong Boundary Crossing Facilities ¡V
Reclamation Works. The
monitoring requirements, monitoring equipment, monitoring parameters, frequency
and duration, monitoring methodology, monitoring
schedule, meteorological information are detailed in the monthly EM&A
Reports prepared for Contract No. HY/2010/02.
The locations of the monitoring stations covered by Contract No. HY/2010/02 are shown in Figure 2.3 and those overlapped with Contract No. HY/2012/07 are presented in Table 2.8.
Table 2.8 Locations of Impact Water Quality Monitoring
Stations and its Corresponding Monitoring Requirements
Station ID |
Type |
Coordinates |
*Parameters, unit |
Frequency |
Depth |
|
|
|
Easting |
Northing |
|
|
|
IS(Mf)9 |
Impact
Station (Close to HKBCF construction site) |
813273 |
818850 |
Temperature(¢XC)
pH (pH unit)
Turbidity (NTU)
Water depth (m)
Salinity (ppt)
Dissolved Oxygen
(DO) (mg/L and % of saturation) ¡P Suspended Solid (SS) (mg/L) |
Impact monitoring: 3 days per week, at mid-flood
and mid-ebb tides during the construction period of the Contract |
3 water depths: 1m below sea surface, mid-depth and 1m above sea bed. If the water
depth is less than 3m, mid-depth sampling only. If water depth less than 6m, mid-depth
may be omitted |
IS(Mf)16 |
Impact
Station (Close to HKBCF construction site) |
814328 |
819497 |
|||
IS8 |
Impact
Station (Close to HKBCF construction site) |
814251 |
818412 |
|||
SR4(N) |
Sensitive
receiver (Tai Ho) |
814705 |
817859 |
|||
CS(Mf)3(N) |
Control
Station |
808814 |
822355 |
|||
CS(Mf)5 |
Control
Station |
817990 |
821129 |
|||
*Notes: Water Quality Monitoring Station CS(Mf)3
was relocated to CS(Mf)3(N) since 2 May 2017. Station SR4a is not covered by HY/2010/02. Data from Station SR4(N)
is considered representative of those from SR4a since they are located 50m
from each other and coral colonies, which is the SR concerned at SR4a, are
also presented along the seawall nearby SR4(N). |
Neither Action
nor Limit Levels exceedances was recorded by the Environmental Team of Contract
No. HY/2010/02
during the reporting period.
No action is thus required to be undertaken in accordance with the Event
Action Plan presented in Appendix L.
Table 2.10 Dolphin Monitoring Equipment
Equipment |
Model |
|
Global Positioning
System (GPS) Camera Laser Binoculars Marine Binocular Vessel for Monitoring |
Garmin 18X-PC Geo One Phottix Nikon D90 300m 2.8D fixed focus Nikon
D90 20-300m zoom lens Infinitor
LRF 1000 Bushell 7 x 50 marine binocular with compass and reticules 65 foot single engine motor vessel with viewing platform 4.5m above
water level |
|
Table 2.11 Impact
Dolphin Monitoring Line Transect Co-ordinates
Line No. |
Easting |
Northing |
Line No. |
Easting |
Northing |
||
1 |
Start
Point |
804671 |
815456 |
13 |
Start
Point |
816506 |
819480 |
1 |
End
Point |
804671 |
831404 |
13 |
End
Point |
816506 |
824859 |
2 |
Start
Point |
805475 |
815913 |
14 |
Start
Point |
817537 |
820220 |
2 |
End
Point |
805477 |
826654 |
14 |
End
Point |
817537 |
824613 |
3 |
Start
Point |
806464 |
819435 |
15 |
Start
Point |
818568 |
820735 |
3 |
End
Point |
806464 |
822911 |
15 |
End
Point |
818568 |
824433 |
4 |
Start
Point |
807518 |
819771 |
16 |
Start
Point |
819532 |
821420 |
4 |
End
Point |
807518 |
829230 |
16 |
End
Point |
819532 |
824209 |
5 |
Start
Point |
808504 |
820220 |
17 |
Start
Point |
820451 |
822125 |
5 |
End
Point |
808504 |
828602 |
17 |
End
Point |
820451 |
823671 |
6 |
Start
Point |
809490 |
820466 |
18 |
Start
Point |
821504 |
822371 |
6 |
End
Point |
809490 |
825352 |
18 |
End
Point |
821504 |
823761 |
7 |
Start
Point |
810499 |
820880 |
19 |
Start
Point |
822513 |
823268 |
7 |
End
Point |
810499 |
824613 |
19 |
End
Point |
822513 |
824321 |
8 |
Start
Point |
811508 |
821123 |
20 |
Start
Point |
823477 |
823402 |
8 |
End
Point |
811508 |
824254 |
20 |
End
Point |
823477 |
824613 |
9 |
Start
Point |
812516 |
821303 |
21 |
Start
Point |
805476 |
827081 |
9 |
End
Point |
812516 |
824254 |
21 |
End
Point |
805476 |
830562 |
10 |
Start
Point |
813525 |
820872 |
22 |
Start
Point |
806464 |
824033 |
10 |
End
Point |
813525 |
824657 |
22 |
End
Point |
806464 |
829598 |
11 |
Start
Point |
814556 |
818853 |
23 |
Start
Point |
814559 |
821739 |
11 |
End
Point |
814556 |
820992 |
23 |
End
Point |
814559 |
824768 |
12 |
Start
Point |
815542 |
818807 |
|
|
|
|
12 |
End
Point |
815542 |
824882 |
|
|
|
|
The Action and Limit levels of dolphin impact
monitoring are shown in Appendix D. The Event and Action plan is presented
in Appendix L.
A total of 258.04 km of survey effort was collected,
with 93.80% of the total survey effort being conducted under favourable weather
conditions (i.e. Beaufort Sea State 3 or below with good visibility) during the
surveys in June 2017. Among the two
areas, 90.70 km and 167.34 km of survey effort were collected from NEL and NWL
survey areas, respectively. The
total survey effort conducted on primary and secondary lines were 189.45 km and
68.59 km, respectively. The survey
efforts are summarized in Appendix K.
Two (2) groups of 5 Chinese White Dolphins were sighted during the two sets of monitoring surveys in June 2017. Both
dolphin sightings were made in NWL, while none was sighted in NEL. During the surveys in June 2017, the
sightings were made during on-effort search on secondary lines. The dolphin group was not associated
with operating fishing vessel and was not sighted in the proximity of the
Project¡¦s alignment. The
distribution of dolphin sighting during the reporting month is shown in Figure 2.5.
Encounter
rates of Chinese White Dolphins are deduced from the survey effort and
on-effort sighting data made under favourable
conditions (Beaufort 3 or below) in June 2017 are shown in Tables 2.12 & 2.13.
Table 2.12 Individual Survey Event Encounter
Rates
|
|
Encounter rate (STG) |
Encounter rate (ANI)
|
Primary Lines Only |
Primary Lines Only |
||
NEL |
Set
1: June 14th / 15th |
0.0 |
0.0 |
Set
2: June 20th / 26th |
0.0 |
0.0 |
|
NWL |
Set
1: June 14th / 15th |
0.0 |
0.0 |
Set
2: June 20th / 26th |
0.0 |
0.0 |
|
Note: Dolphin Encounter Rates are deduced
from the two sets of surveys ( two surveys in each set) in June
2017 in Northeast (NEL) and Northwest Lantau (NWL) |
Table 2.13 Monthly Average Encounter Rates
|
Encounter rate (STG) (no. of on-effort dolphin sightings per 100 km of
survey effort) |
Encounter rate (ANI)
(no. of dolphins
from all on-effort sightings per 100 km of survey effort) |
||
Primary Lines Only |
Both Primary and Secondary Lines |
Primary Lines Only |
Both Primary and Secondary Lines |
|
Northeast
Lantau |
0.0 |
0.0 |
0.0 |
0.0 |
Northwest
Lantau |
0.0 |
0.7 |
0.0 |
0.7 |
Note: Overall dolphin encounter rates (sightings
per 100 km of survey effort) from all four surveys are conducted in June 2017 on primary lines only as
well as both primary lines and secondary lines in Northeast and Northwest
Lantau
During this month of dolphin monitoring, no
unacceptable impact from the construction activities of the TM-CLKL Southern
Connection Viaduct Section on Indo-Pacific humpback dolphin Sousa chinensis
(i.e. Chinese White Dolphin) was noticeable from general observations. Due to monthly variation in dolphin
occurrence within the Study Area, it would be more appropriate to draw
conclusion on whether any impacts on dolphins have been detected related to the
construction activities of the TM-CLKL Southern Connection Viaduct Section in
the quarterly EM&A reports, in which comparison on distribution, group size
and encounter rates of dolphins between the quarterly impact monitoring period
and baseline monitoring period will be made.
Daily 250 m marine mammal exclusion zone
monitoring was undertaken during the period of daytime marine works
activities. No sighting of Chinese
White Dolphin was recorded in June 2017 during the exclusion zone monitoring.
Passive Acoustic Monitoring (PAM) had
been decommissioned as no marine piling works was carried out outside the
daylight hours since September 2015.
Site
inspections were carried out on a weekly basis to monitor the implementation of
proper environmental pollution control and mitigation measures under the
Contract. In the reporting month,
four (4) site inspections were carried out on 7, 14, 21 and 29 June 2017.
Key
observations during the site inspections are summarized in Table 2.14.
Table 2.14 Specific Observations Identified
during the Weekly Site Inspections in this Reporting Month
Inspection Date |
Environmental Observations |
Recommendations/ Remarks |
7 June 2017 |
Viaduct D
(Pier D13) Accumulated general refuse
should be cleared regularly. Viaduct D (Pier D14) Drip tray under the
generator was observed not well plugged. Ramp D Chemical containers were
observed not placed in drip tray. |
Viaduct D
(Pier D13) The Contractor was
reminded to clear accumulated general refuse. Viaduct D (Pier D14) The Contractor was
reminded to plug drip tray under the generator. Ramp D The Contractor was reminded to
place chemical containers in drip tray. |
14 June 2017 |
Southern
Landfall Portion A (Portion S-b) Chemical containers were
observed not placed in drip tray. Stagnant water inside
drip tray nearby the chemical containers should be cleared. |
Southern
Landfall Portion A (Portion S-b) The Contractor was reminded to
place chemical containers in drip tray. The Contractor was reminded to
clear stagnant water inside drip tray nearby the chemical containers. |
21 June 2017 |
Viaduct D
(Pier D13) NRMM label should be displayed clearly on the
generator. Stagnant water inside
drip tray should be cleared. Viaduct B (Pier B16) Exposed slope was
observed not fully covered by tarpaulin. Viaduct C (Pier C12) Exposed stockpile was
observed not fully covered by tarpaulin. |
Viaduct D
(Pier D13) The Contractor was reminded to display NRMM label
clearly on the generator. The Contractor was reminded to clear stagnant water
inside drip tray. Viaduct B (Pier B16) The Contractor was reminded to fully cover exposed
slope by tarpaulin. Viaduct C (Pier C12) The Contractor was reminded to fully cover exposed
stockpile by tarpaulin. |
29 June 2017 |
Viaduct E (Pier E6) Chemical containers were
observed not placed in drip tray. Stagnant
water inside drip tray should be cleared. Viaduct E (Pier E10) Chemical containers were
observed not placed in drip tray. |
Viaduct E (Pier E16) The Contractor was
reminded to place chemical containers in drip tray. The
Contractor was reminded to clear stagnant water inside drip tray. Viaduct E (Pier E10) The Contractor was
reminded to place chemical containers in drip tray. |
The Contractor has rectified all of the observations
identified during environmental site inspections in the reporting month.
The Contractor has submitted application form for
registration as chemical waste producer under the Contract. Sufficient numbers of receptacles were
available for general refuse collection and sorting.
Wastes generated during this reporting period include
mainly construction wastes (inert and non-inert) and recyclable materials. Reference has been made to the waste
flow table prepared by the Contractor (Appendix M). The quantities of different types of
wastes are summarized in Table 2.15.
Table 2.15 Quantities of Different Waste Generated in the Reporting
Period
Month/Year |
Inert C&D Materials (a) (m3) |
Imported Fill (m3) |
Inert Construction Waste Re-used (m3) |
Non-inert Construction Waste (b) (kg) |
Recyclable Materials (c) (kg) |
Chemical Wastes (kg) |
Marine Sediment (m3) |
|
Category L |
Category M (Mp & Mf) |
|||||||
June 2017 |
4,394 |
0 |
98 |
148,600 |
63 |
0 |
0 |
0 |
Notes: |
||||||||
(a) Inert
construction wastes include hard rock and large broken concrete, and materials
disposed as public fill. (b) Non-inert
construction wastes include general refuse disposed at landfill. (c) Recyclable
materials include metals, paper, cardboard, plastics, timber, felled trees
and others. |
The Contractor was advised to properly maintain on
site C&D materials and waste collection, sorting and recording system,
dispose of C&D materials and wastes at designated ground and maximize
reuse/ recycle of C&D materials and wastes. The Contractor was also reminded to
properly maintain the site tidiness and dispose of the wastes accumulated on
site regularly and properly.
For chemical waste containers, the Contractor was
reminded to treat properly and store temporarily in designated chemical waste
storage area on site in accordance with the Code
of Practice on the Packaging, Labelling and Storage of Chemical Wastes.
The status of environmental licensing and permit is
summarized in Table 2.16 below.
Table 2.16 Summary of Environmental Licensing and Permit Status
License/ Permit |
License or Permit No. |
Date of Issue |
Date of Expiry |
License/ Permit Holder |
Remarks |
Environmental Permit |
EP-354/2009/D |
13 March 2015 |
N/A |
HyD |
Tuen Mun- Chek Lap Kok Link |
Environmental Permit |
EP-353/2009/K |
11 April 2016 |
N/A |
HyD |
Hong Kong Boundary Crossing Facilities |
Construction Dust Notification |
361571 |
5 Jul 2013 |
N/A |
GCL |
|
Construction Dust Notification |
362093 |
17 Jul 2013 |
N/A |
GCL |
For Area 23 |
Chemical Waste Registration |
5213-961-G2380-13 |
10 Oct 2013 |
N/A |
GCL |
Chemical waste produced in Contract No. HY/2012/07 (Area 1 adjacent to Cheng Tung Road, Siu Ho Wan) |
Chemical Waste Registration |
5213-961-G2380-14 |
10 Oct 2013 |
N/A |
GCL |
Chemical waste produced in Contract No. HY/2012/07 (Area 2 adjacent to Cheung Tung Road, Pak Mong Village) |
Chemical Waste Registration |
5213-974-G2588-03 |
4 Nov 2013 |
N/A |
GCL |
Chemical waste produced in Contract No. HY/2012/07 (WA5 adjacent to Cheung Tung Road, Yam O) |
Chemical Waste Registration |
5213-951-G2380-17 |
12 Jun 2014 |
N/A |
GCL |
Viaducts A, B, C, D & E |
Construction Waste Disposal Account |
7017735 |
10 Jul 2013 |
N/A |
GCL |
- |
Construction
Waste Disposal Account |
7019470 |
3 Mar 2014 |
N/A |
GCL |
Vessel
CHIT Account |
Waste Water Discharge License |
WT00019017-2014 |
13 May 2014 |
31 May 2019 |
GCL |
Discharge for marine portion |
Waste Water Discharge License |
WT00019018-2014 |
13 May 2014 |
31 May 2019 |
GCL |
Discharge for land portion |
Construction Noise Permit for night
works and works in general holidays Construction Noise Permit for night
works and works in general holidays |
GW-RW0708-16 GW-RW0294-17 |
20
Dec 2016 19
Jun 2017 |
18
Jun 2017 18
Dec 2017 |
GCL GCL |
General works at WA5 General works at WA5 |
Construction Noise Permit for night works
and works in general holidays Construction Noise Permit for night
works and works in general holidays |
GW-RS1309-16 GW-RS0540-17 |
20 Dec 2016 20
Jun 2017 |
19 Jun 2017 15
Dec 2017 |
GCL GCL |
Broad Permit for Whole Site Areas Broad Permit for Whole Site Areas |
Construction Noise Permit
for night works and works in general holidays |
GW-RS0456-17 |
31 May 2017 |
31 July 2017 |
GCL |
Broad Permit for Segment Launching
at Land Portion |
Construction Noise Permit for night
works and works in general holidays Construction Noise Permit for
percussive piling |
GW-RS0408-17 PP-RS0010-17 |
11
May 2017 12
June 2017 |
30
Sept 2017 15
Sept 2017 |
GCL GCL
|
Pre-casted pile cap shell
installation at E8-E13 Percussive piling at Portion A |
Marine Dumping Permit |
EP-MD-17-153 |
01 Jan 2017 |
30 Jun 2017 |
GCL |
For
dumping Type I sediment |
In response to the site audit findings, the
Contractors carried out corrective actions.
A summary of the Implementation Schedule of
Environmental Mitigation Measures (EMIS) is presented in Appendix C. The necessary mitigation measures were
implemented properly for this Contract.
The landscape and visual (L&V) mitigation measures
were also monitored on weekly basis in the reporting period. The monitoring status is summarized in Appendix C.
Results for water quality, 1-hour TSP, 24-hour TSP and
construction noise monitoring complied with the Action/ Limit levels in the
reporting period.
The Environmental Complaint Handling Procedure is provided in Figure 2.6.
There was no environmental complaint, notification of
summons or successful prosecution recorded in the reporting period.
The investigation report on the complaint received from
EPD on 31 May 2017 regarding construction dust nuisance near site exit of Hong Kong Boundary Crossing
Facilities of Hong Kong-Zhuhai-Macao Bridge related Hong Kong projects in the
previous reporting period is provided in Appendix N.
Statistics on complaints, notifications of summons,
successful prosecutions are summarized in Appendix N.
Marine Works
¡P
Uninstallation of marine piling platform;
¡P
Pier construction;
¡P
Launching gantry operation; and
¡P
Installation of deck segment and pier head segment;
and
¡P
Construction of underslung truss scheme (no additional
seabed will be occupied other than those assumed in the approved EIA Report).
Land-based Works
¡P
Pier construction;
¡P
Re-alignment of Cheung Tung Road;
¡P
Road works along North Lantau Highway;
¡P
Installation of pier head and deck segments; and
¡P
Slope work of Viaducts A, B & C.
Potential environmental impacts arising from the above
upcoming construction activities in the next reporting month of July 2017 are
mainly associated with dust, noise, marine water quality, marine ecology and
waste management issues.
This Forty-fourth Monthly EM&A Report presents the
findings of the EM&A activities undertaken during the period from 1 to 30
June 2017 in accordance with the Updated EM&A Manual and the requirements
of the Environmental Permits (EP-354/2009/D
and EP-353/2009/K).
Two (2) groups
of 5 Chinese White Dolphins were sighted
during the two sets of monitoring surveys in June 2017. During this month of dolphin monitoring, no
unacceptable impact from the construction activities of the TM-CLKL Southern
Connection Viaduct Section on Indo-Pacific humpback dolphin Sousa chinensis (i.e. Chinese White
Dolphin) was noticeable
from general observations.
Environmental site inspection was carried out four (4)
times in June 2017. Recommendations
on remedial actions were given to the Contractor for the deficiencies
identified during the site audits.
There was no environmental complaint, notification of
summons or successful prosecution recorded in the reporting period.
The ET will keep track on the construction works to
confirm compliance of environmental requirements and the proper implementation
of all necessary mitigation measures.
